Here we go with some more bits and pieces. As I said in my last update I was fed up with sanding and polishing so I continued by working on the cockpit area. Some of the parts have been in the works or done for a while and others were now made during assembly.
The main two pieces for the footwell and seat area were CF’d and painted along with the bodywork. I scratch built the pedals even though they will hardly be visible in the end but you can see them when looking through the service hole in front of the front damper.


http://i21.photobucket.com/albums/b288/jaykay640/Jordan%20191/117pedalsinfootwell.jpg

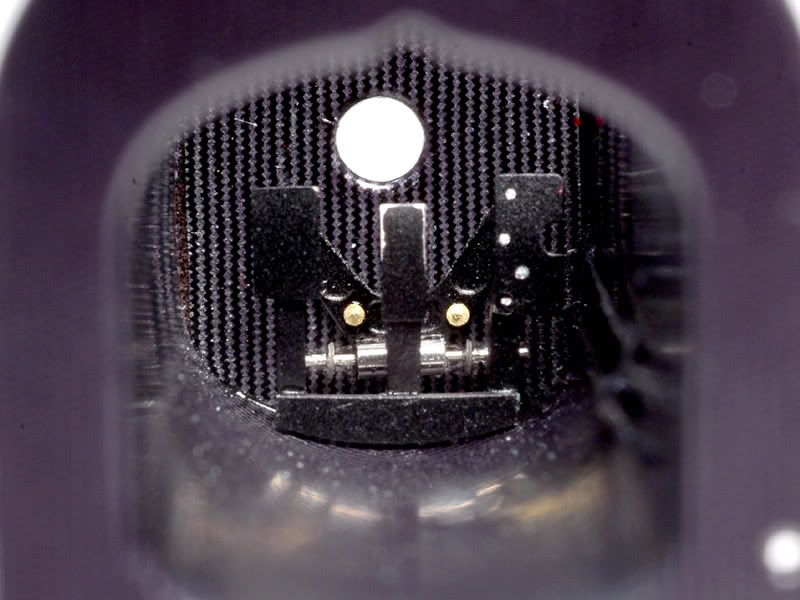

There’s one useful picture in the Perfect Manual taken from the driver’s seat so I tried to build what I could see and made up the rest :-) I made them from some etched and plastic bits.


http://i21.photobucket.com/albums/b288/jaykay640/Jordan%20191/118pedalsfromseat.jpg

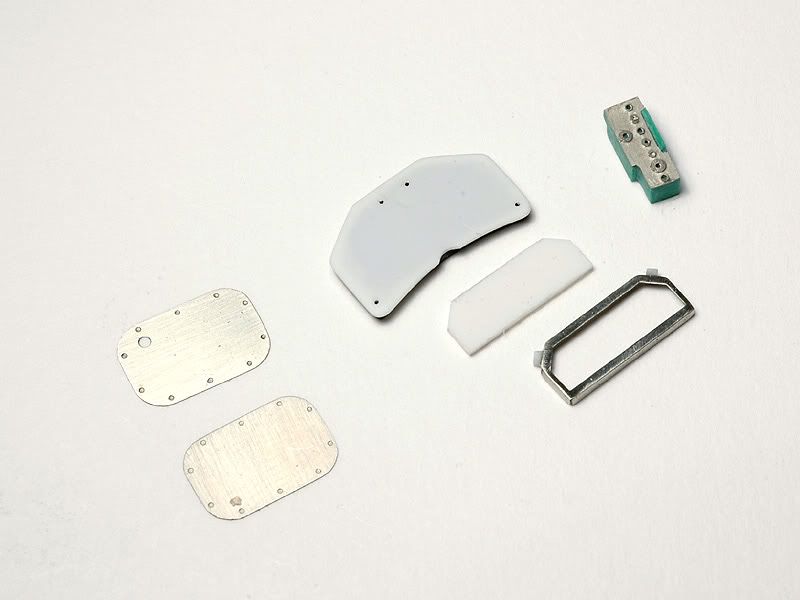

The next step was to do the main cockpit display. To replace the moulded in detail from the kit parts I made individual pieces from plastic for easier painting and decaling and an etched frame for the display itself.
In the picture you also see a switch box made from an etched front face and a bit of renshape that will go to the lower left of the “dashboard” and two etched panels that will go on the cockpit walls besides the driver’s shoulders.


http://i21.photobucket.com/albums/b288/jaykay640/Jordan%20191/119scratchbuiltcockpitdisplay.jpg

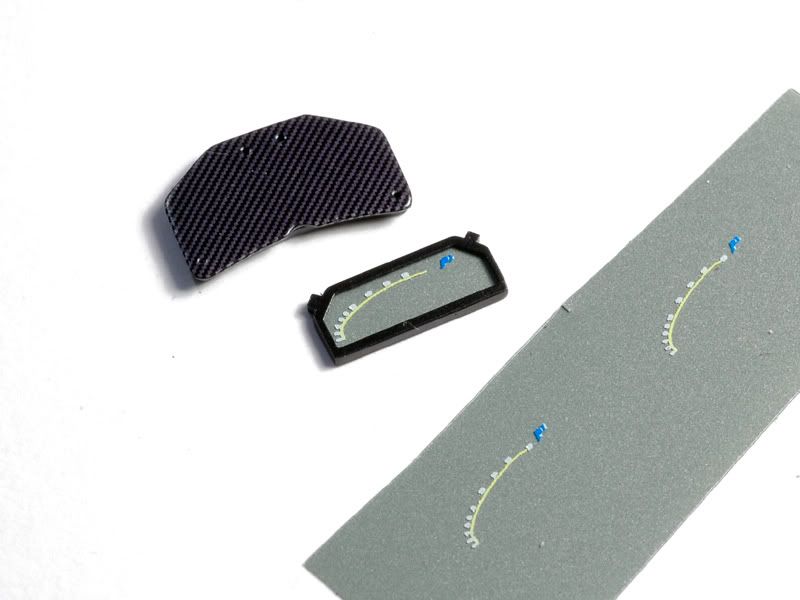

The parts were again painted and CF’d. For the display itself I designed the graphics ( that are printed/stickered on the real display as well ) along with the etching graphics and printed them on transparent overhead film with an ALPS printer. I then sprayed the film from the back side with a mix of moss green and silver. After cutting this out I could place the display face inside the etched frame.


http://i21.photobucket.com/albums/b288/jaykay640/Jordan%20191/120cockpitdisplay.jpg

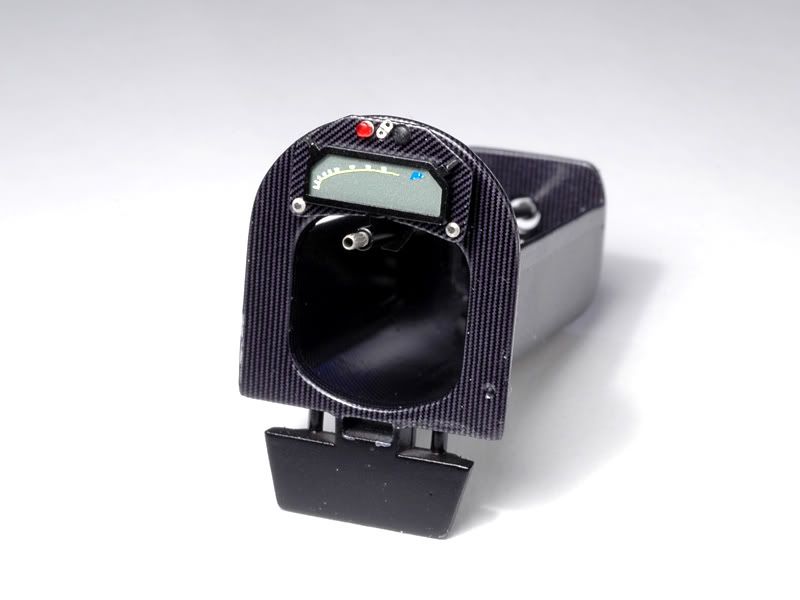

I then glued these parts on the dashboard and dressed them up with some small details. I also added the steering column that I made from brass tubes. The steering wheel that I’ll show later will be removable.


http://i21.photobucket.com/albums/b288/jaykay640/Jordan%20191/121displayinstalled.jpg


I carried on with the little box that goes to the left. It was also painted and CF’d. I then added the emergency button that I turned from aluminium and painted transparent red for the anodized look. The little switches were made from 0,3mm nickel silver wire. I tried to give them a bit of that typical conical shape but at that size it’s rather tricky. Anyway I’m happy how it turned out :-)
Finally I added some knee pads on the bulkhead, some wires and that little round thing between display and switch box that seems to be a later season addition. I have no clue what it’s for though :-)


http://i21.photobucket.com/albums/b288/jaykay640/Jordan%20191/122dashboardready.jpg


This is it for the first part of the cockpit. There’s more to come from the silly little bits department in the next update. That’s the part I really enjoy during a build. Much more than painting and sanding… :-)
