Nissan Fairlady Version Nismo

[Entau]

This will be a straight fast built, target 3 weeks, reason is because this is a VERY simple kit, no suspension details, front wheel can't turn, all mold together under chassis details, but still, this is a very sharp and nice mold from tamiya, that's why i choose it for a fast built

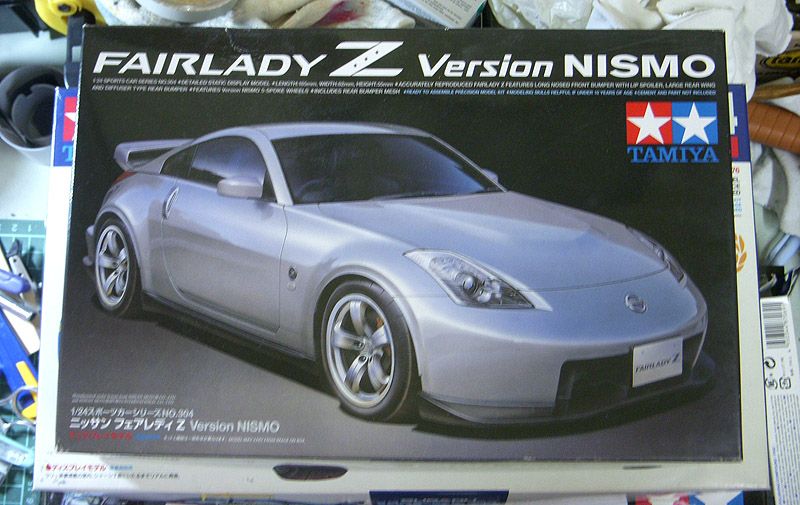

The kit

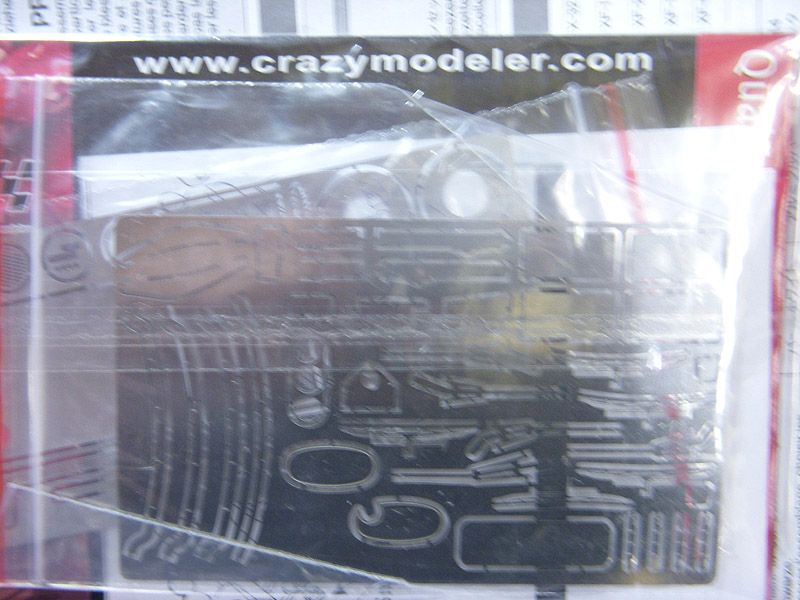

The PE set from Crazy Modeler

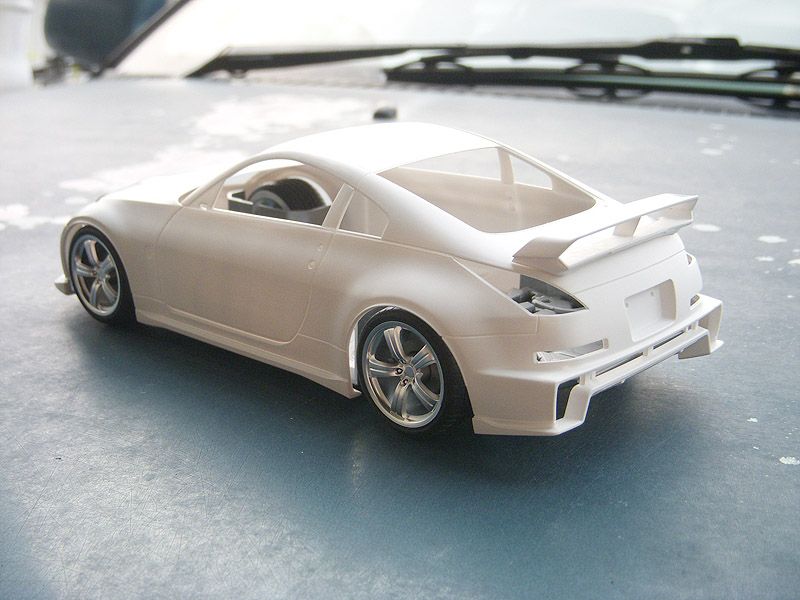

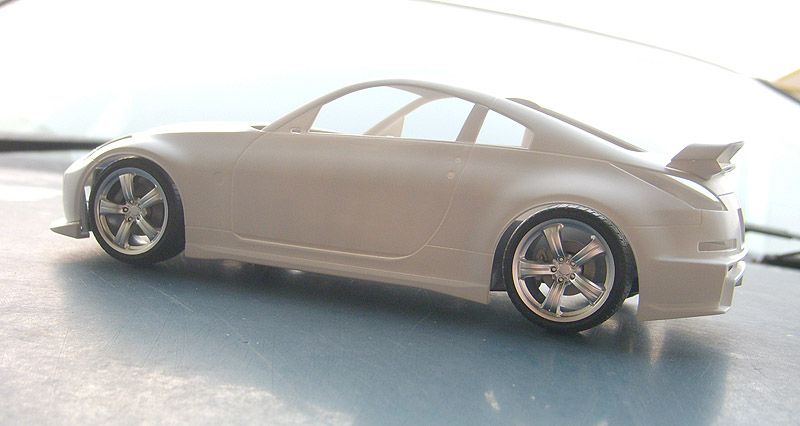

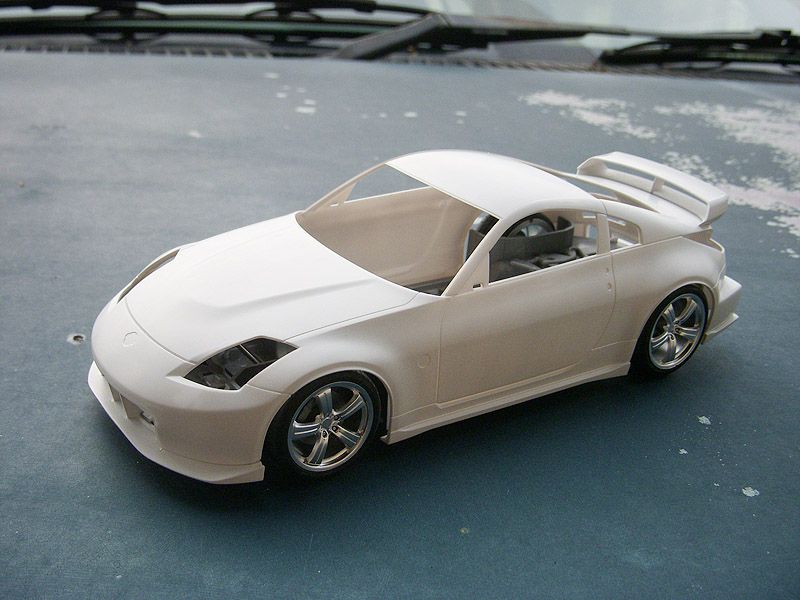

Dryfit, almost perfect, except some area with 0.2mm, but thats all

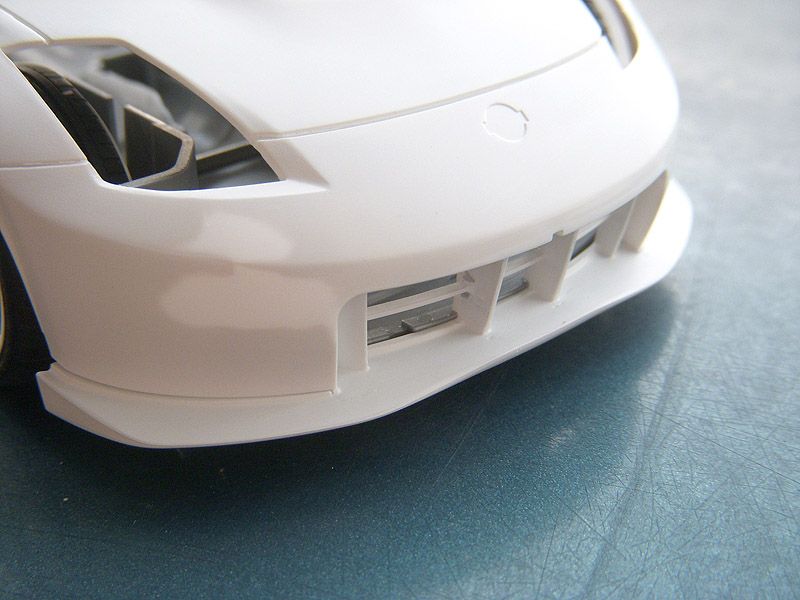

only 1 area need to cover seamlines, which is the front grill and bumper lips

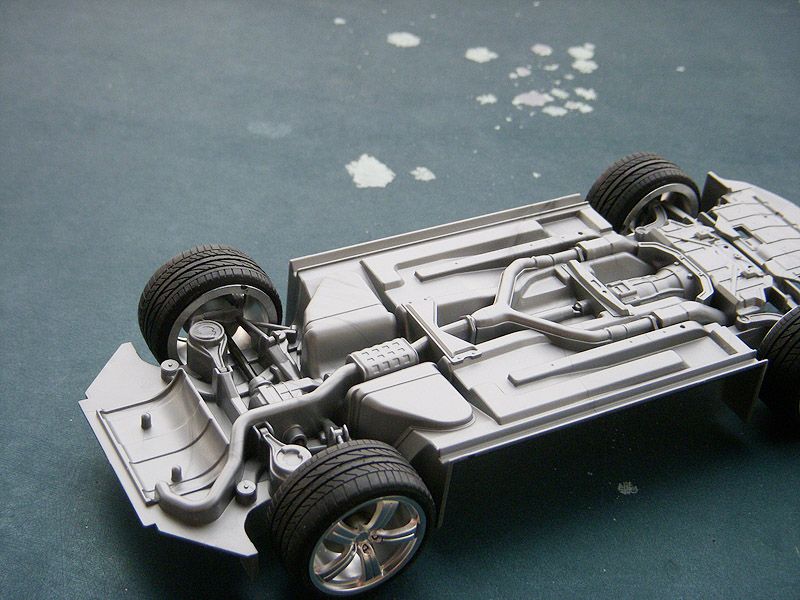

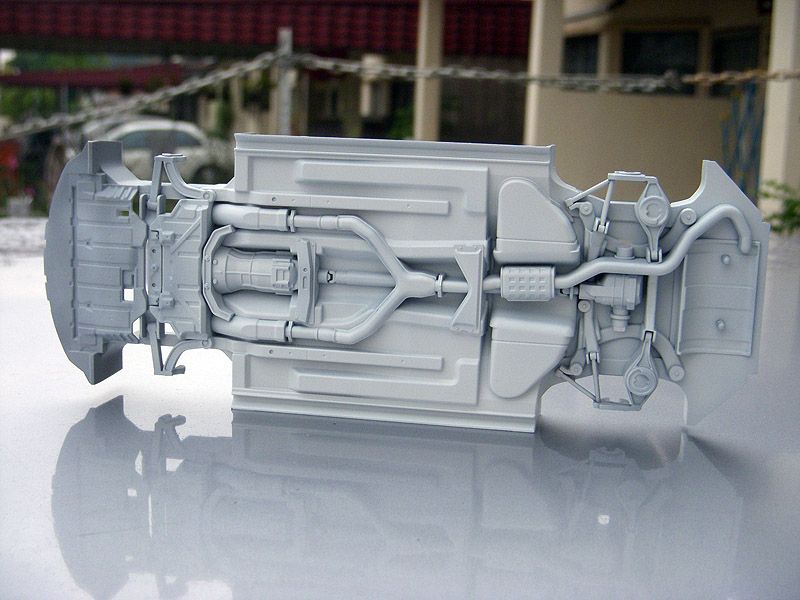

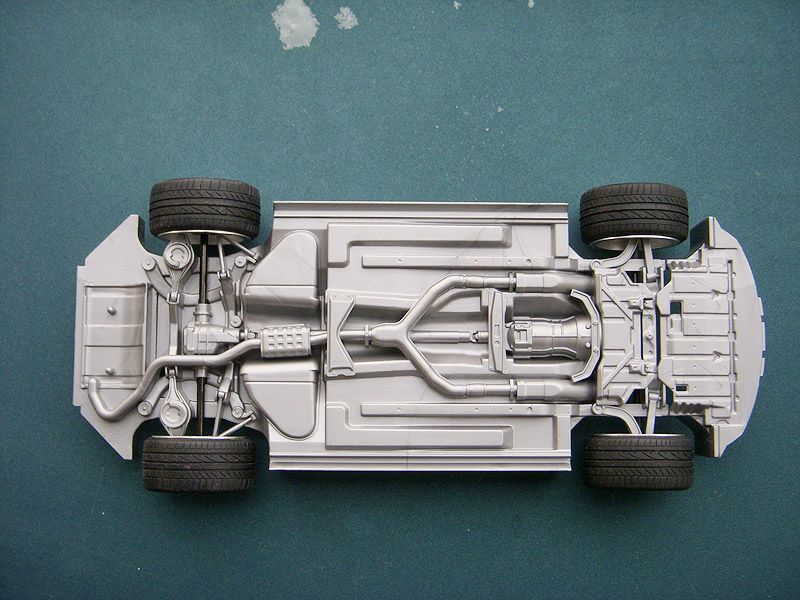

under chassis all mold together, no suspension, front wheel can't turn

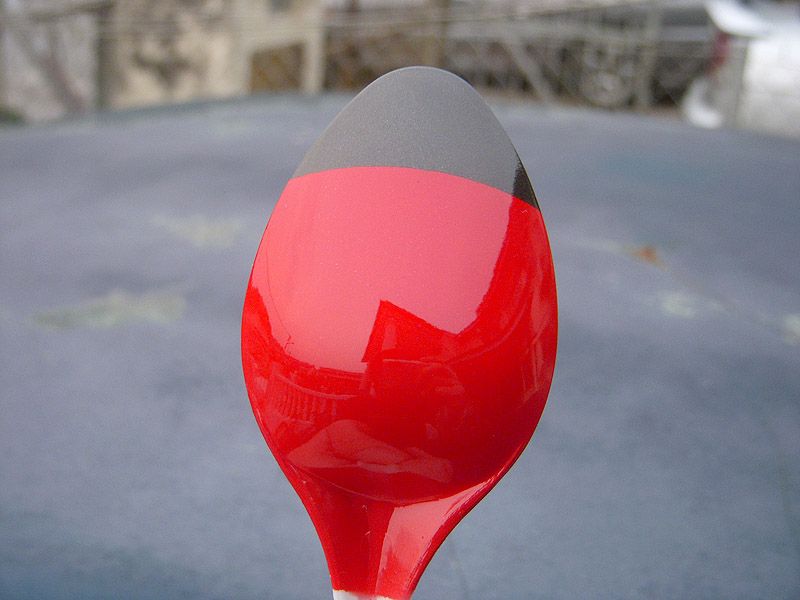

this will be the colour, RED + GUN METAL, both custom mixed, RED is Mr Color Shine Red + Super Italian Red 1:1 ratio, while the GUN METAL is Mr Color Gun Chrome + Black 4:6 ratio

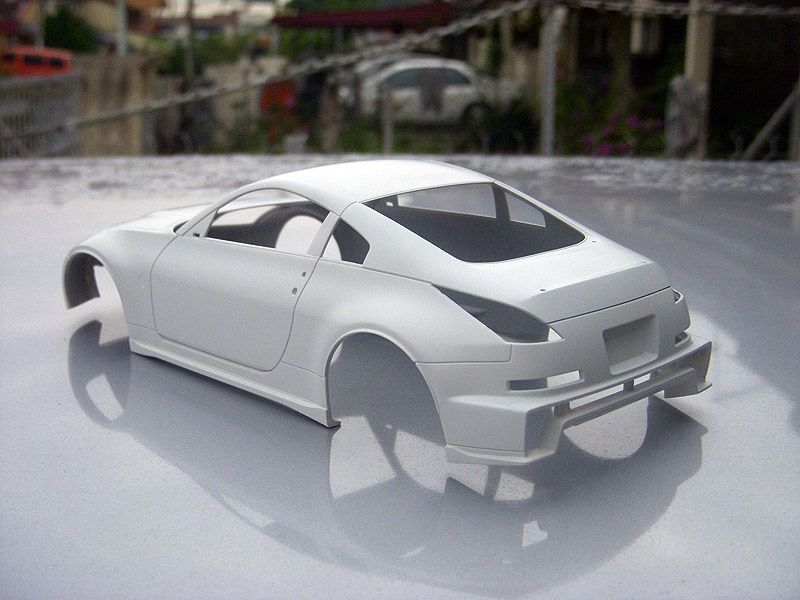

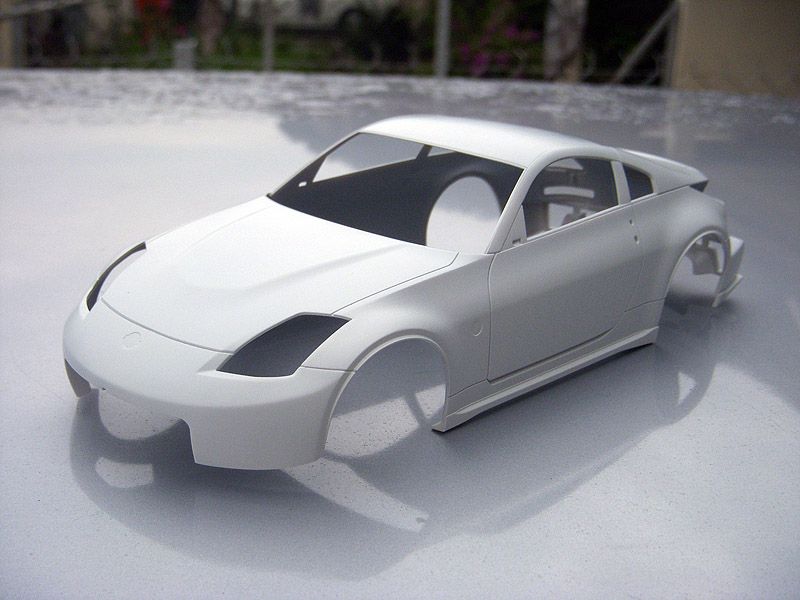

Body prime INSIDE, and lightly spray on the outside, then whitebase+surfacer at 3:1 ratio spray all over again the body, now it looks very opaque

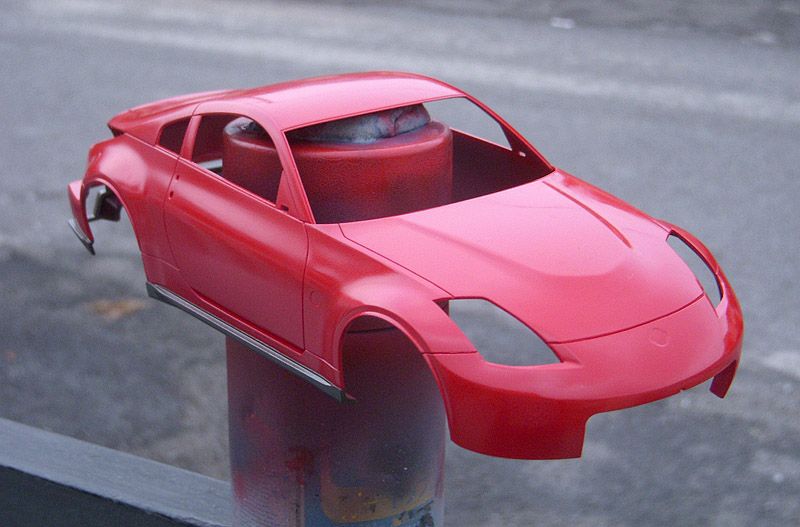

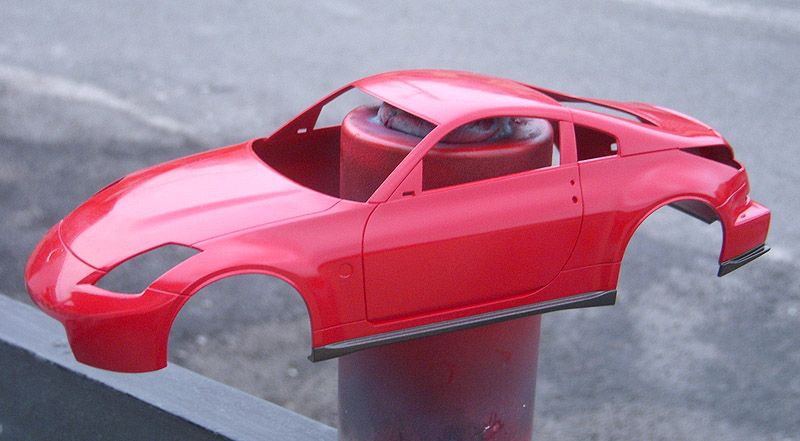

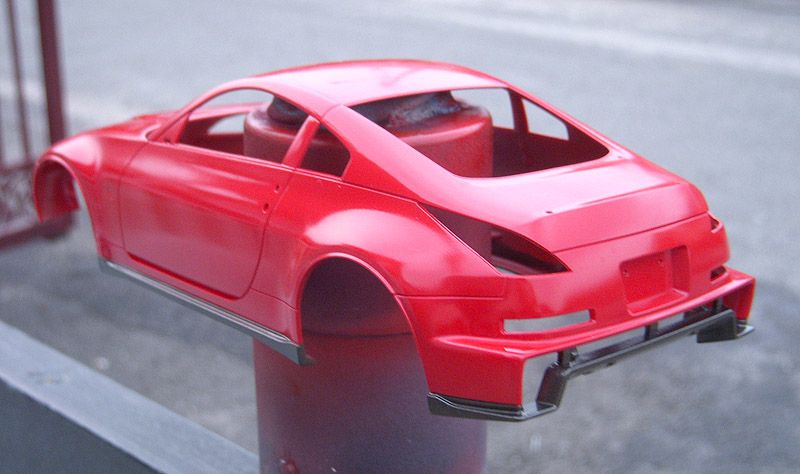

Body painted with 4 Mist & 1 Wetcoat of RED, GUN METAL & 2 layer of gloss coat and wetsand with 2000





maybe because my spray booth was full with dust from paints, lots of dust sticks to the paint surface, which require me to wetsand each coat of paint

now the masking nightmare

[tuned.by.twenty]

So far this is looking exceptionally well done. Keep it up!

[rollin80s]

hm, never seen a kit like this from tamiya. i've seen the snap kits, but a no suspension kit. never.
looks killer though.

[Entau]

yeah...still couldn't believe Tamiya would ever produce a kit WITHOUT suspensions on such a nicely mold kit, but its pretty obvious Tamiya are cutting a lot of cost nowadays.

[Entau]

finally i continue this supposed to be 3 week fast built after 10 months

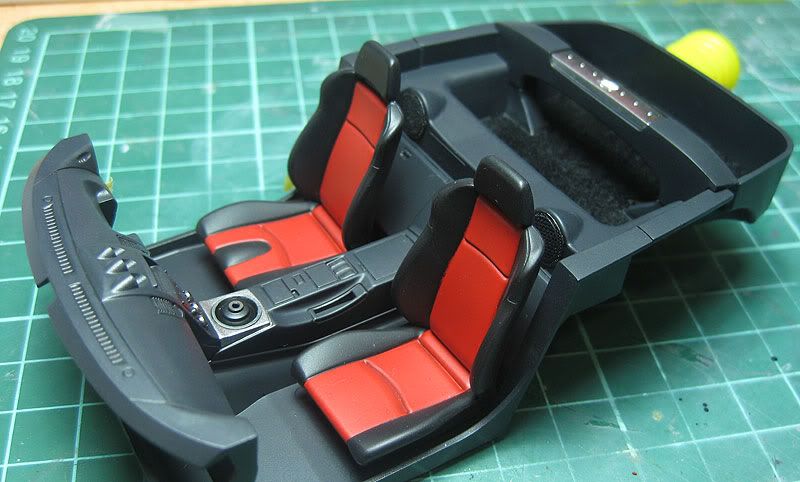

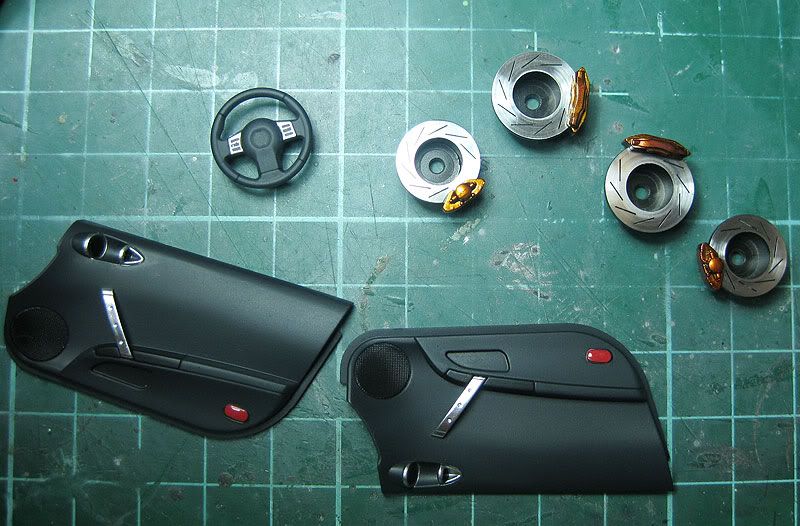

almost finish the interior, just need some more touch up, carpets and seatbelts, not glue yet

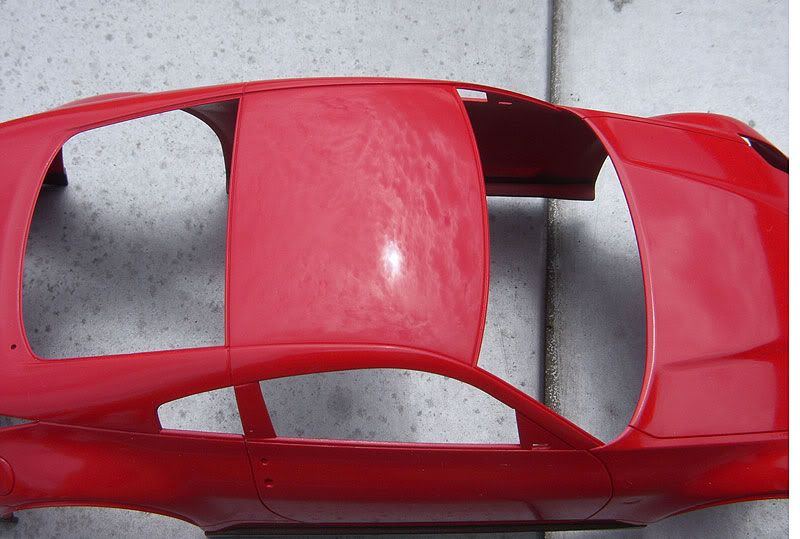

polished the roof

[hirofkd]

Originally Posted by Entau

yeah...still couldn't believe Tamiya would ever produce a kit WITHOUT suspensions on such a nicely mold kit, but its pretty obvious Tamiya are cutting a lot of cost nowadays.

I specifically addressed this issue to one of the Tamiya reps at Shizuoka Hobby Show several years ago. Apparently, it wasn't the cost (it's roughly the same for fixed and steerable designs), but it had more to do with accessibility to casual modelers (and of course, easiness of building for the Masterwork Collection ).
I'm sure Tamiya got a lot of complains (I did, too!), because the front wheel of the 370Z is steerable, so at least, they learned.

[Entau]

i see.., thanks for the info

[da_ashman]

Looks good, great colour combo

[Entau]

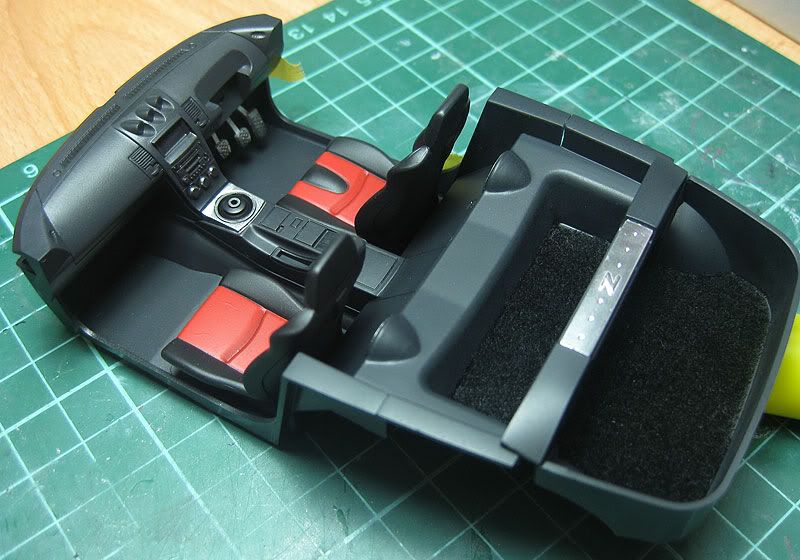

tiny updates, interior almost done, only left seatbelt & buckle

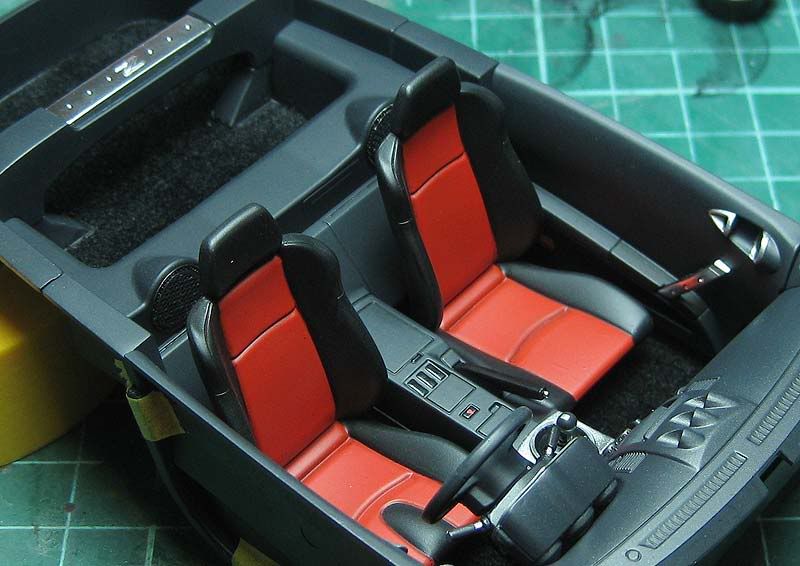

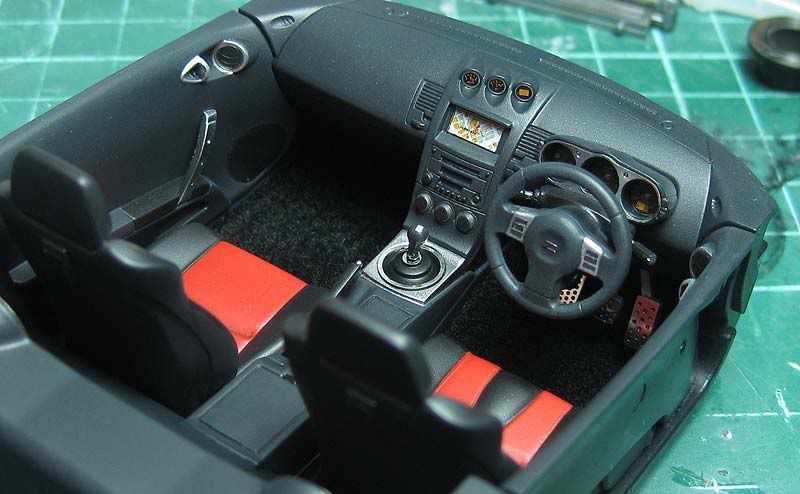

indoor pics

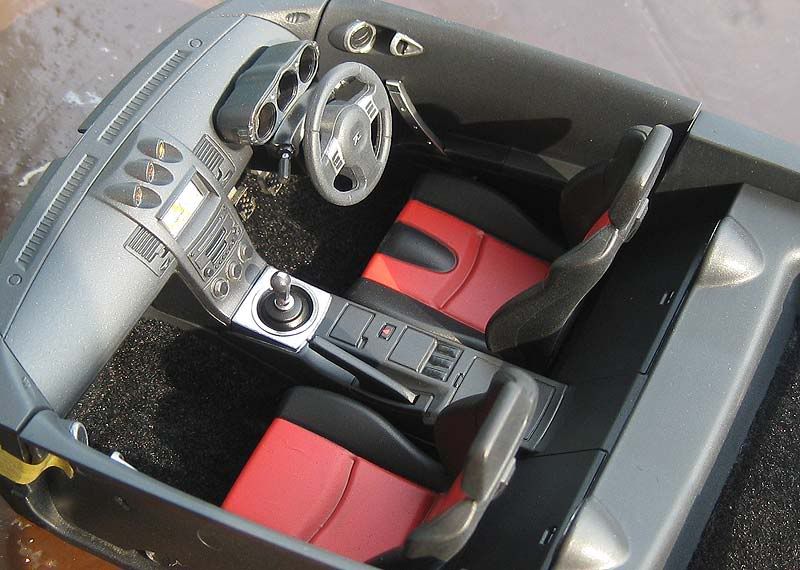

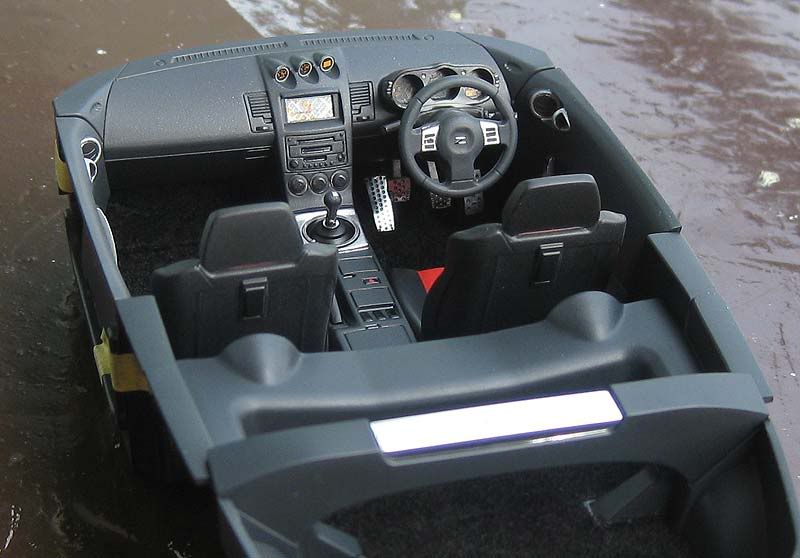

outdoor pics




and the one piece everything mold together chassis, tonnes of masking

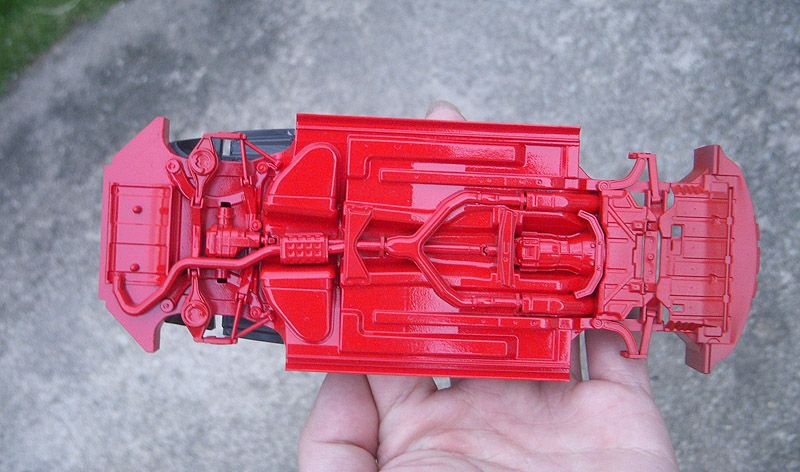

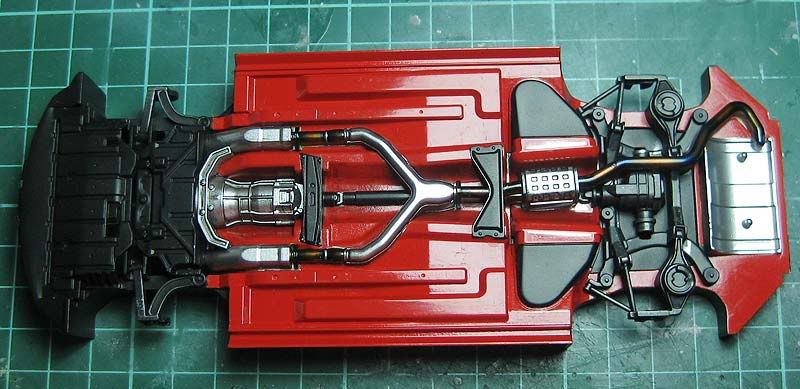

first gloss red

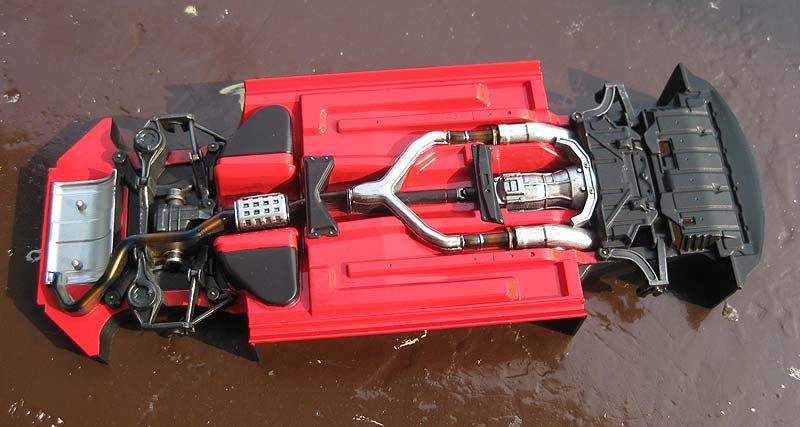

then wetsand, compound, masked & spray semigloss black, masked & spray silver, mask again & spray the exhaust stain effect, some dry brush and black wash

[enocom]

great masking job!

clean & nice build, i love this.

[Drift F.C]

The chassis came out great!

[crisjr]

Nice job out there.. love the interior.. and chassis is also very well painted considering that is all molded to the body..

Great job!

[indy_231]

This build is super clean!

[Entau]

snail update

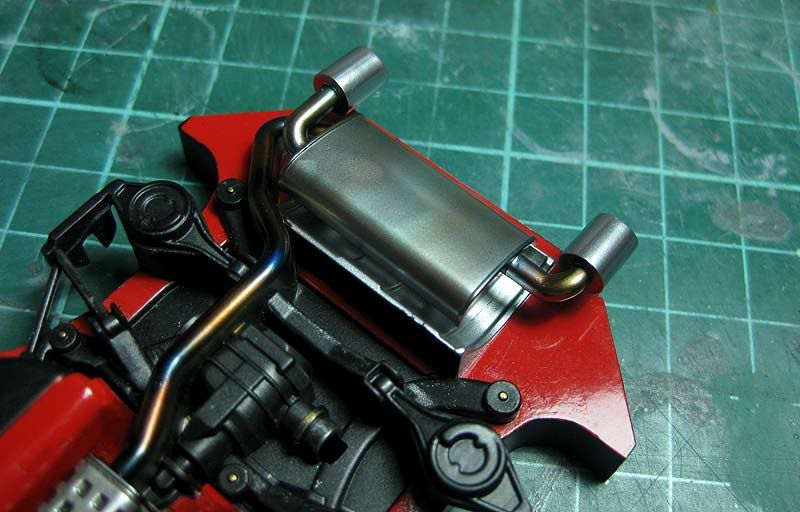

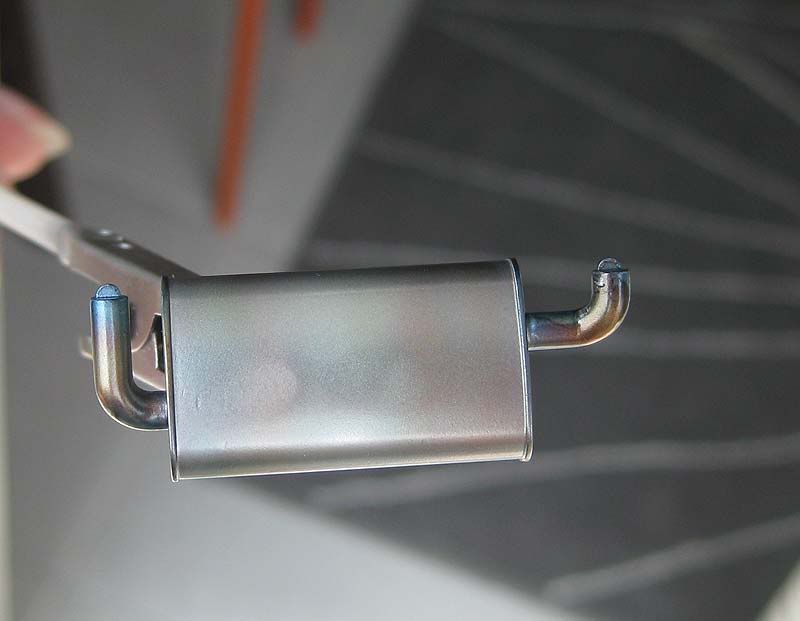

previously the exhaust was a bit overdone, but since its mold to the chassis, redo simply not possible, so this time i try a lighter tone for the heat stain

base is Plate Silver from mr color super metallic series, i start with a very light coat of clear blue, overlapped some clear red, then overlapped some clear yellow and lastly overlap some clear purple on those green area (result of blue overlapped by yellow since i dont want any green)

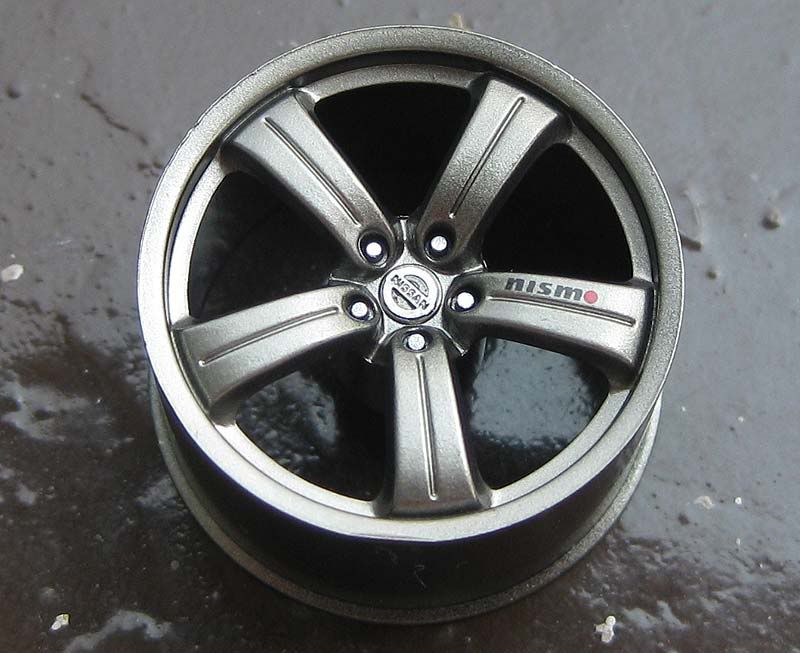

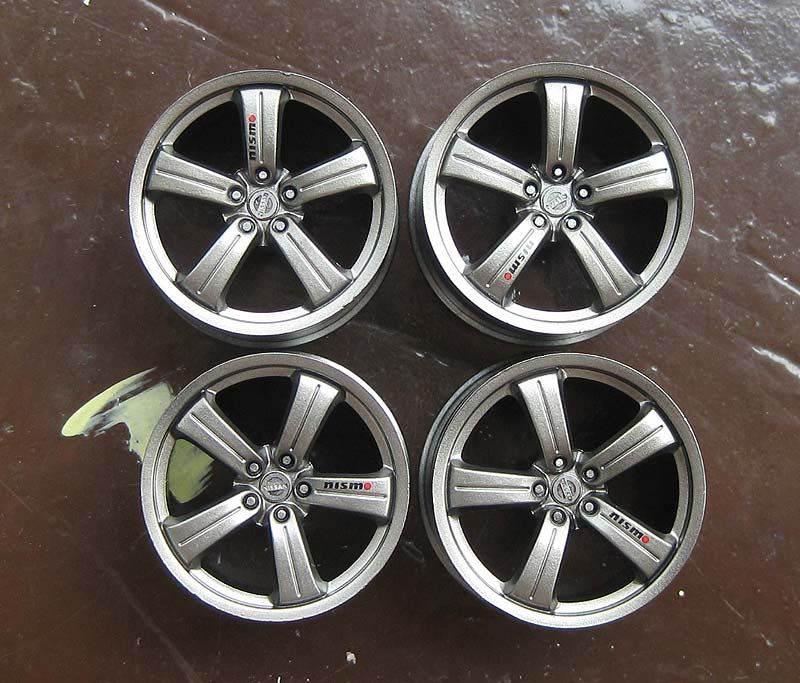

wheels are painted gloss back, then Plate Silver again, after that few light coats of smoke grey + little clear blue, but still came out brownish, then i apply pe logo & enamel black wash, nismo decal and another few light clear gloss

close up

[crisjr]

Wheel looks very realistic, weel done!!..
