1941 Willys Twin Turbo / Supercharged...

[kanedge]

Here is my latest creation that I have been working on. It's in its advanced stages, but I wanted to see what everyone thinks of it, so please bear this mind if it goes a little quick at the start.

I'm trying to build this like the owner is building it to take out SEMA or Summernats Grand Champion. We'll see how he goes.
This is the kit that I'm using and various parts associated with it. It's a really nice kit, the molding is quite clean with little clean up, so I'm happy about that.
I'm going to use the kit wheels, but will Alclad them.
Now I have made some slight modifications to the frame.
I scratchbuilt the front and rear suspension out of aluminium tube and styrene.
I'm trying to lower this kit, as it looks really nice, but in my opinion sits way too high.

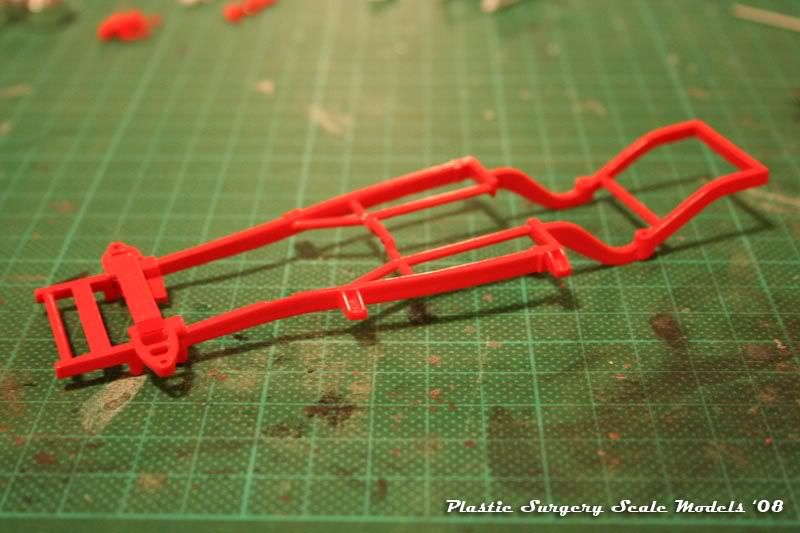

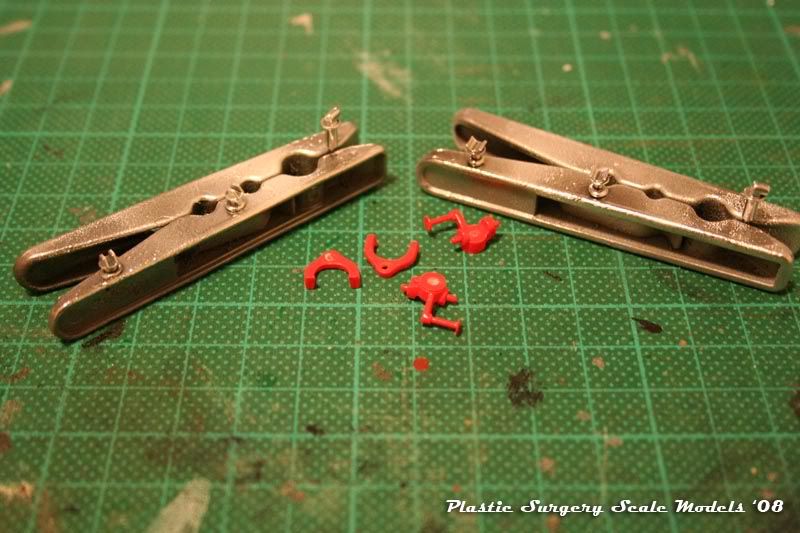

Here is the frame modified and in colour as well as some other various parts in colour.
The colour is MM Huggar Orange with Tamiya Pearl clear over the top. The artificial lighting doesn't show it very well.

[kanedge]

The front had to be quite extensively modified to make it as low as I wanted.

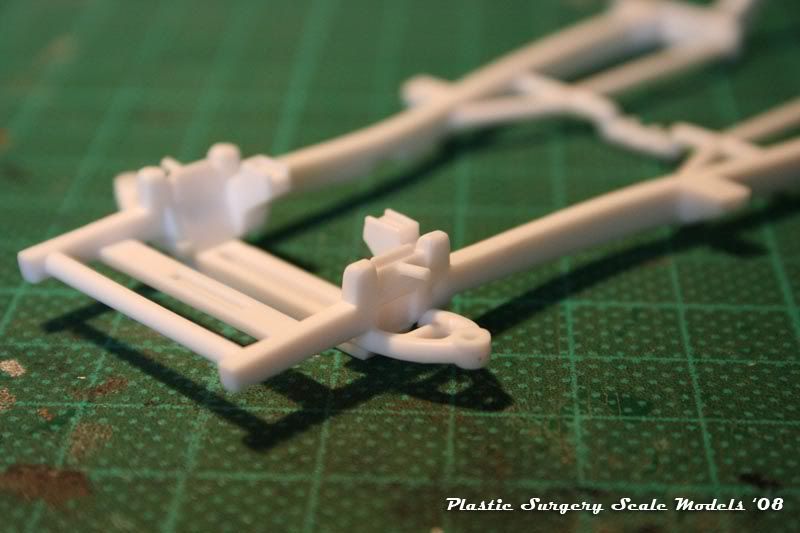

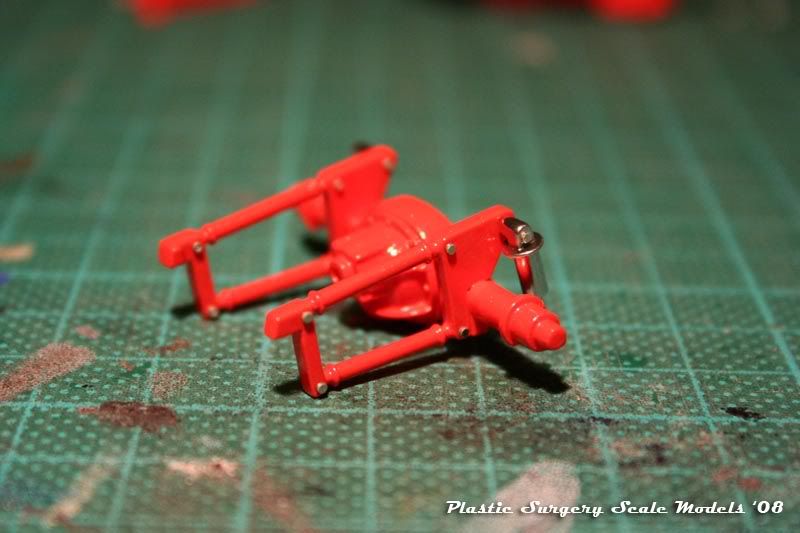

This involved cutting all the arms off the frame and reversing them and moving them higher.

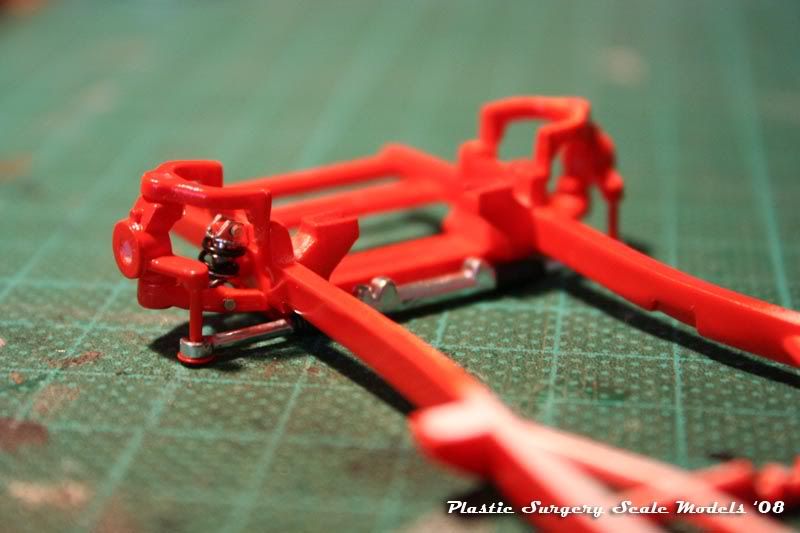

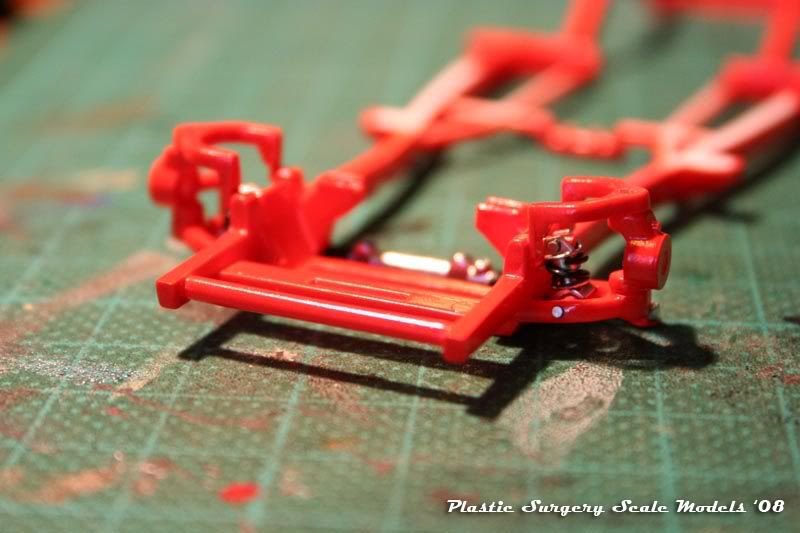

Here you can see completed front end with shocks and springs.

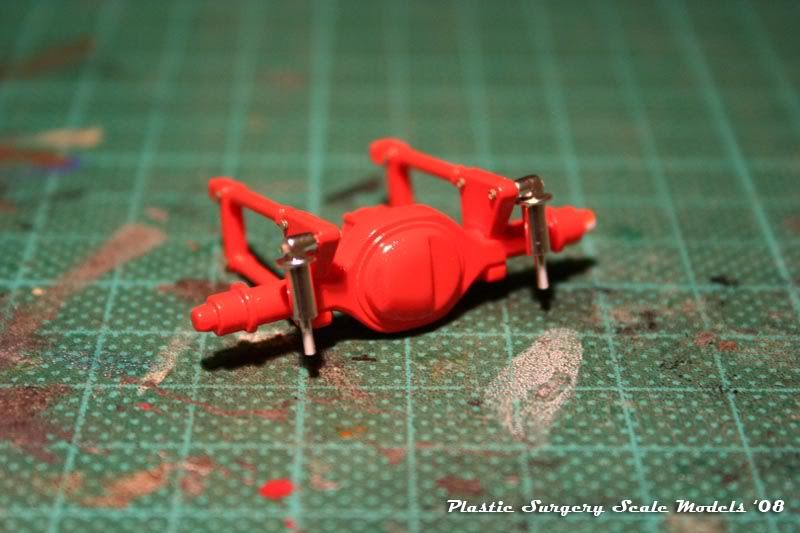

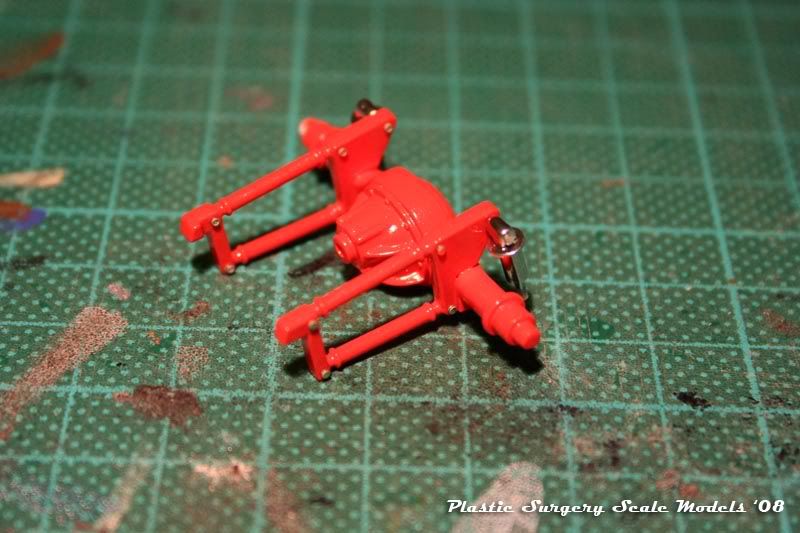

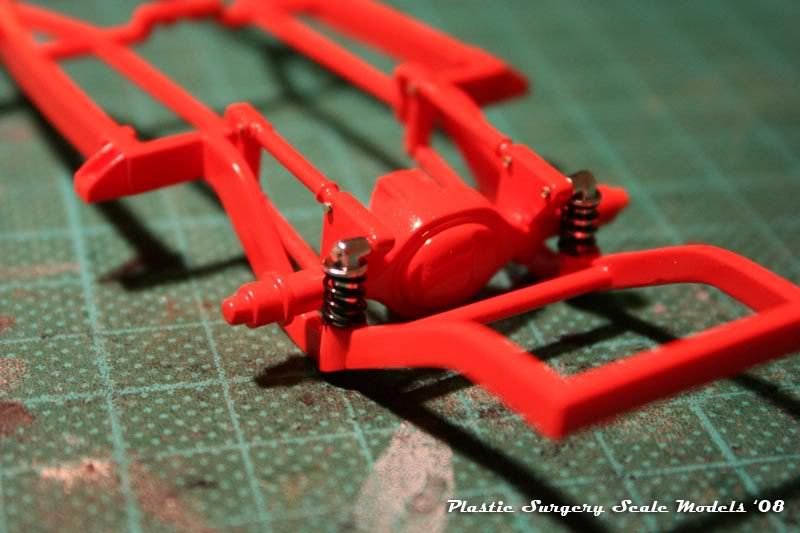

The back end was much easier, this just involved making shorter shocks and springs.

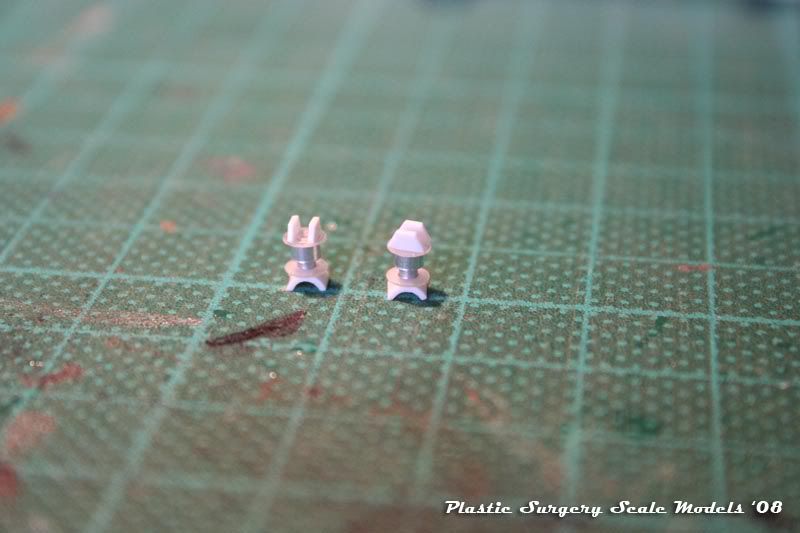

I cut all the molded nuts off and have added ScaleMotorsport photoetch nuts and bolts across the board.

[kanedge]

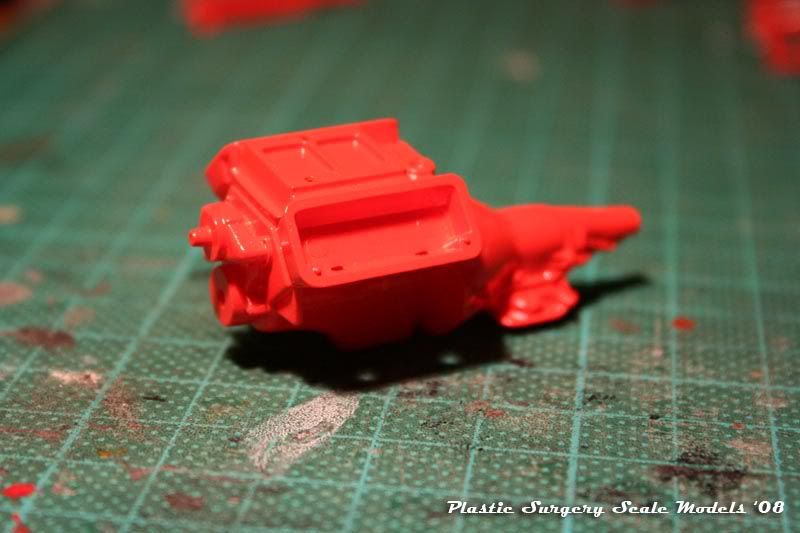

I painted the engine block and other parts in the same orange.

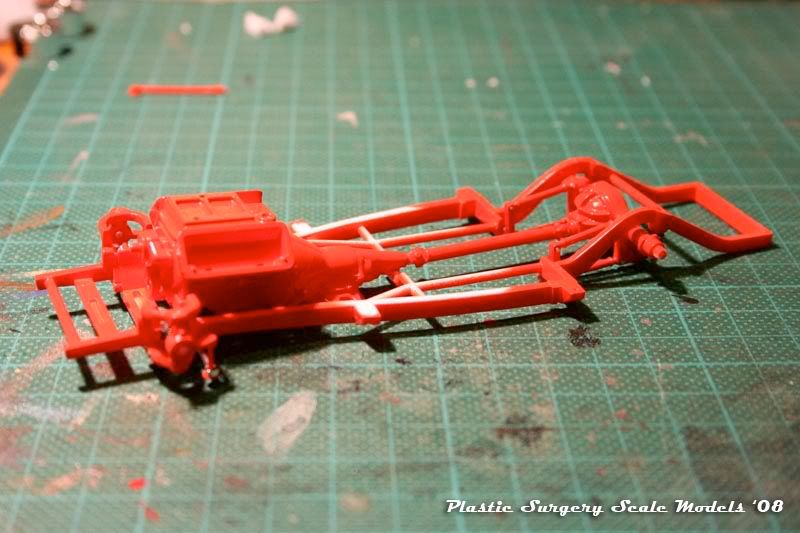

Here is a mock up of the frame and engine together.
And now for the unveiling which is the part I'm most happy about.

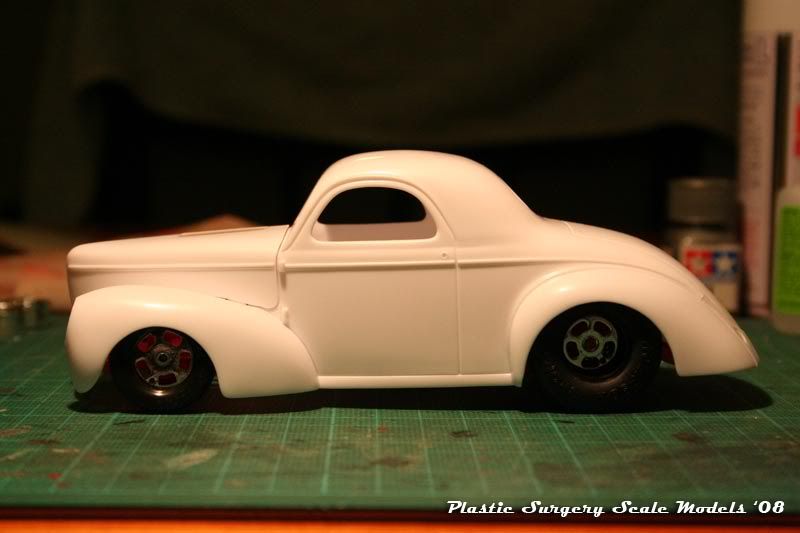

This is the stance which I have able to achieve with a couple of small modifications.
Next step for me now is to work on the engine as I have a couple of changes I want to do to that.

[kanedge]

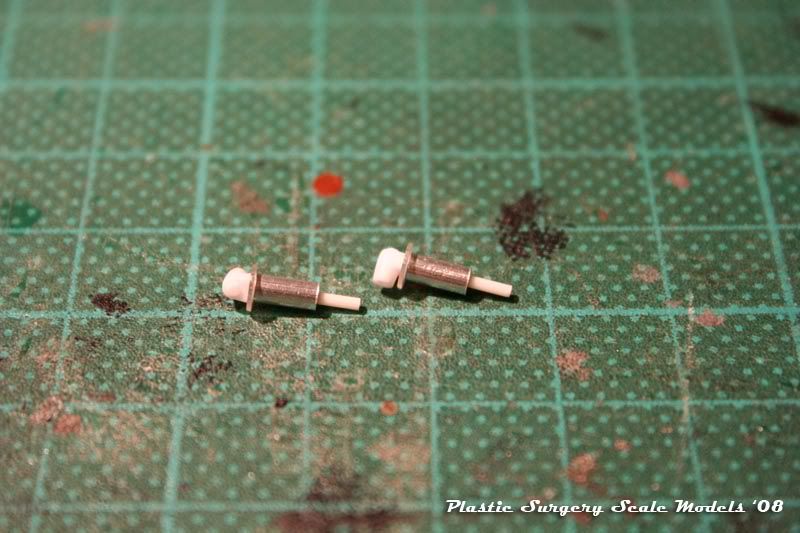

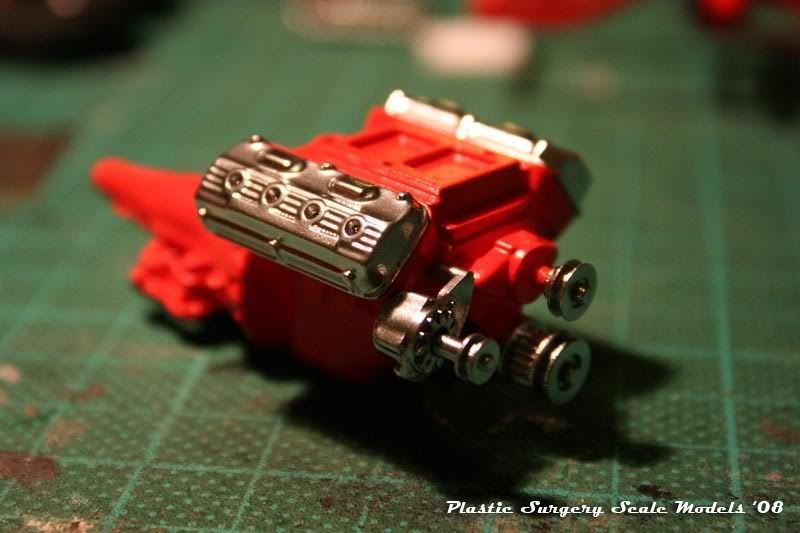

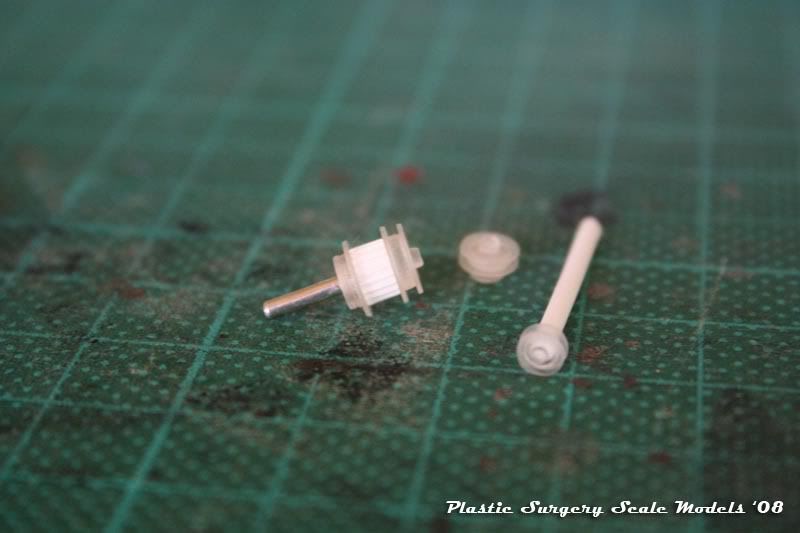

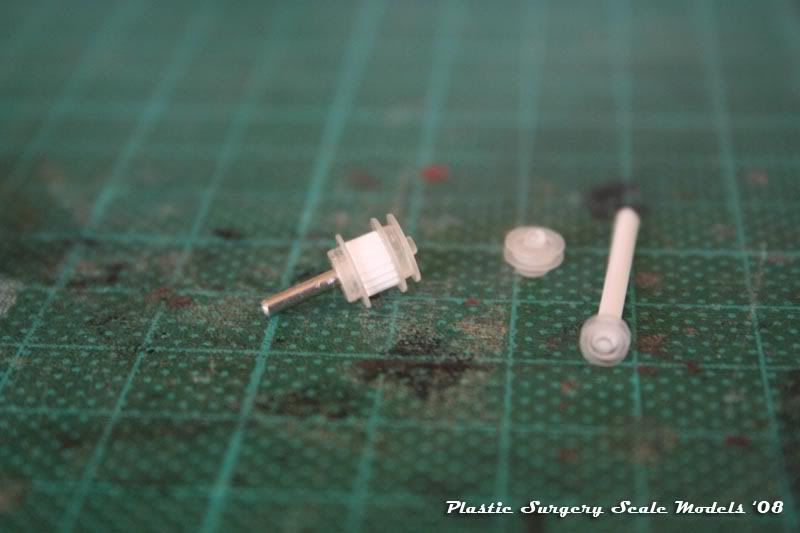

These are the pulleys for the engine, all lovingly handmade with 0.5 and 1mm acrylic.

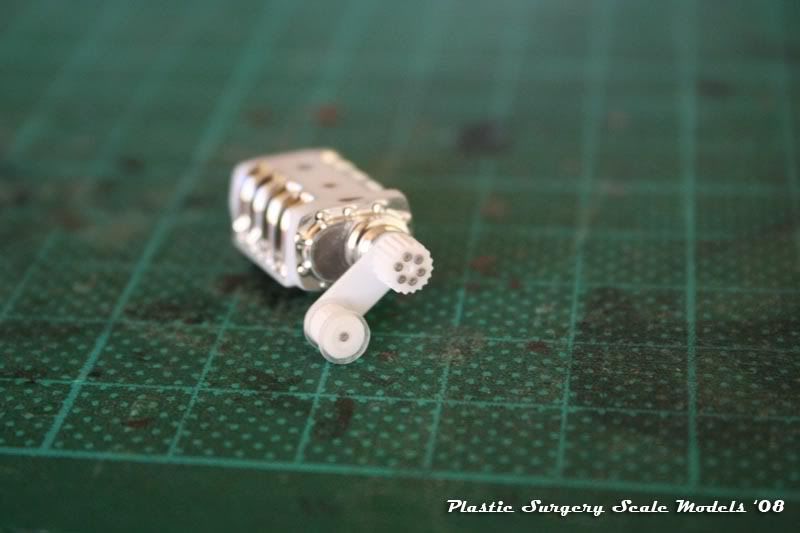

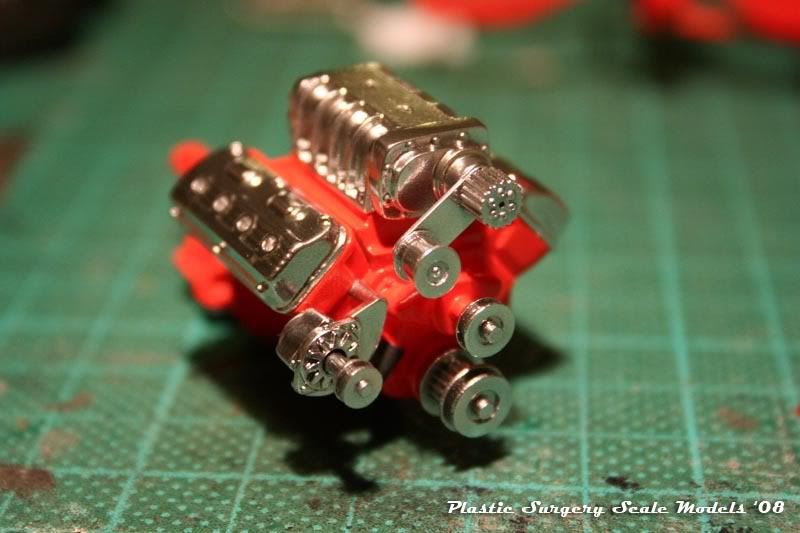

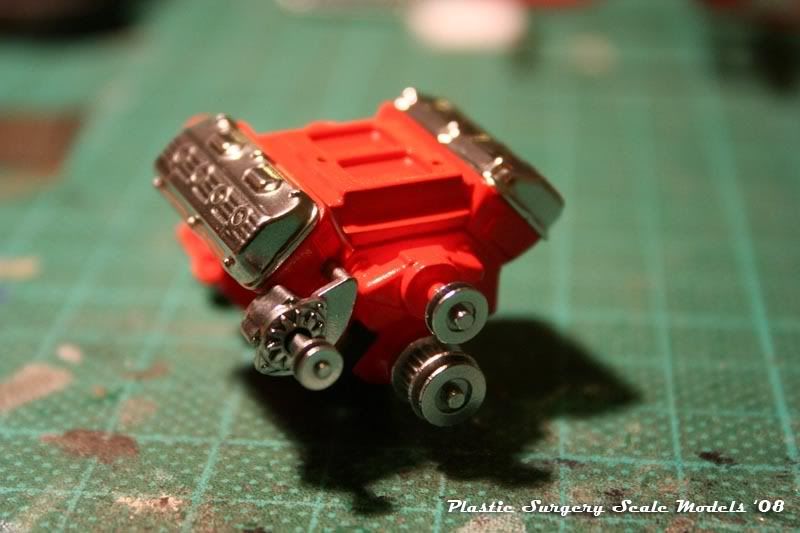

Also I detailed the blower up as well. It's now all in primer ready for alclad.

[kanedge]

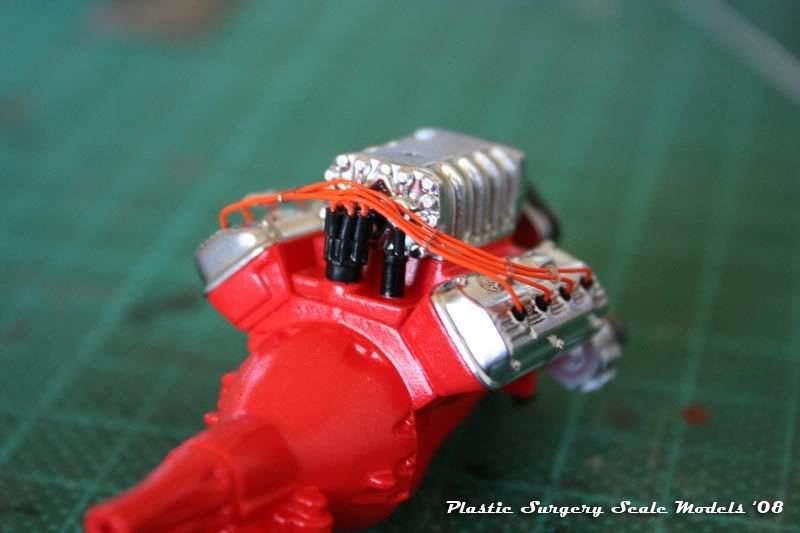

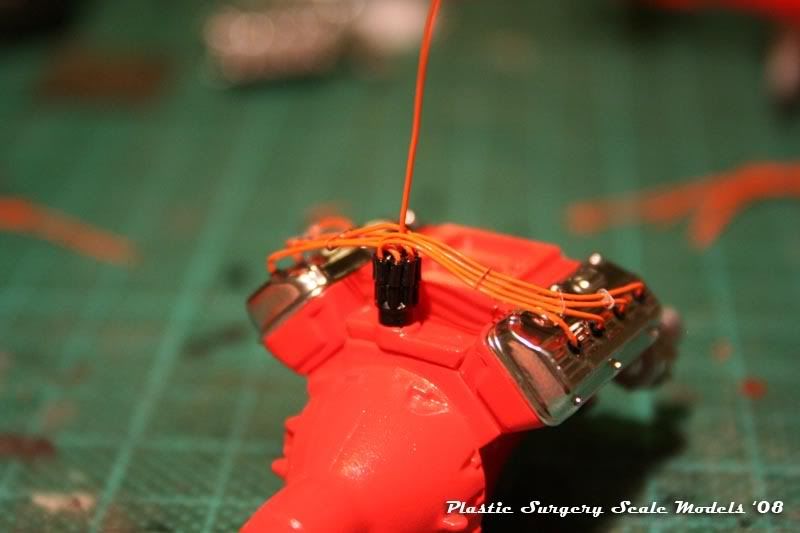

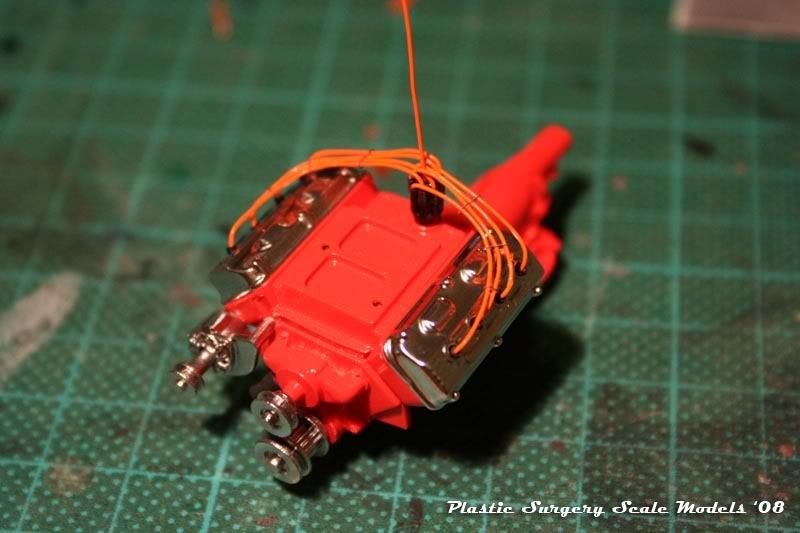

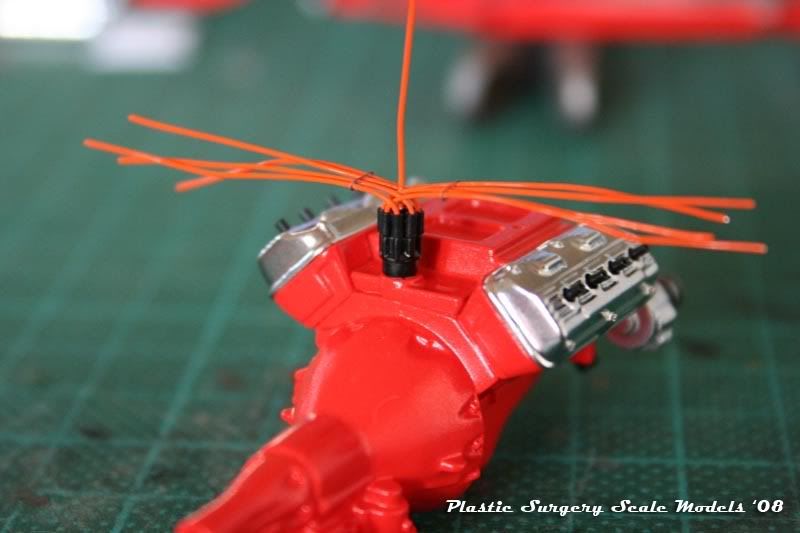

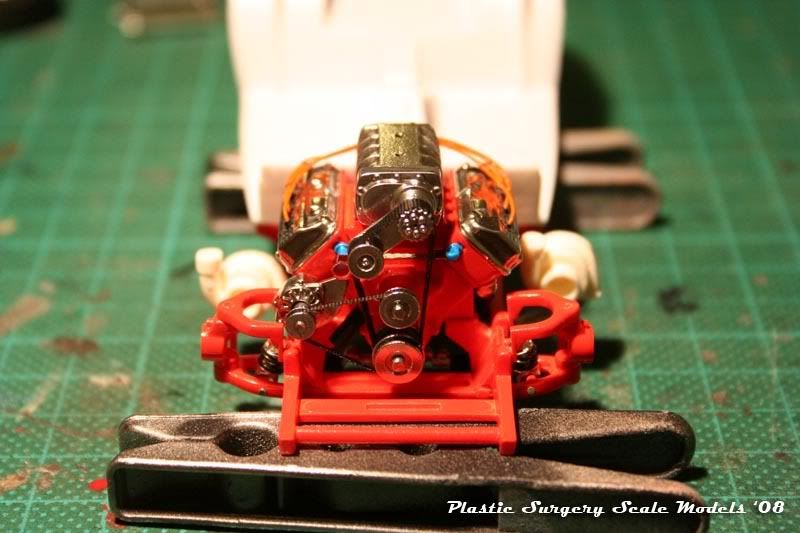

Also got the engine wired up. This turned out to be a pain in the royal behind, but I got it done.

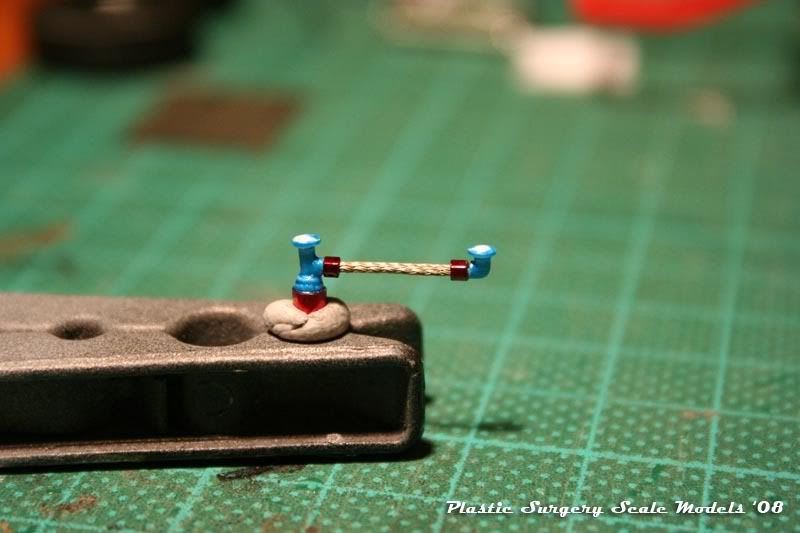

Made up a new hose for the front of the engine as well.

[kanedge]

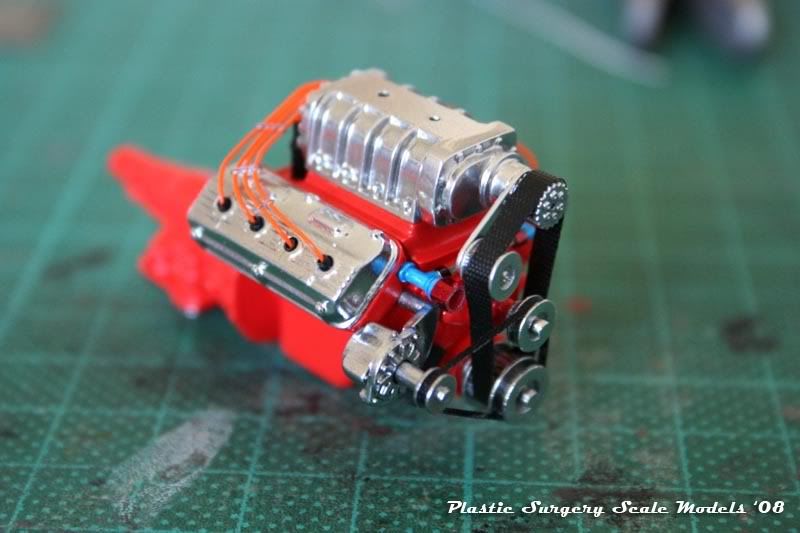

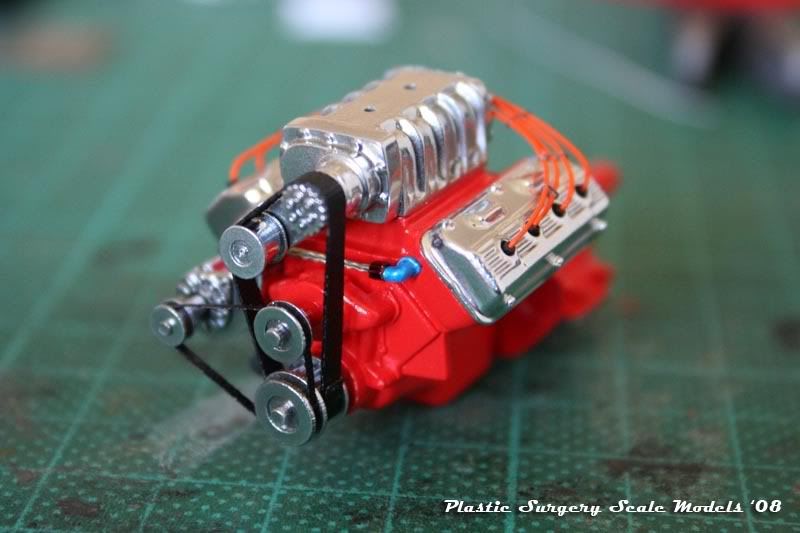

All the wires are on and I got the belts installed. The belts make a huge difference to the appearance.

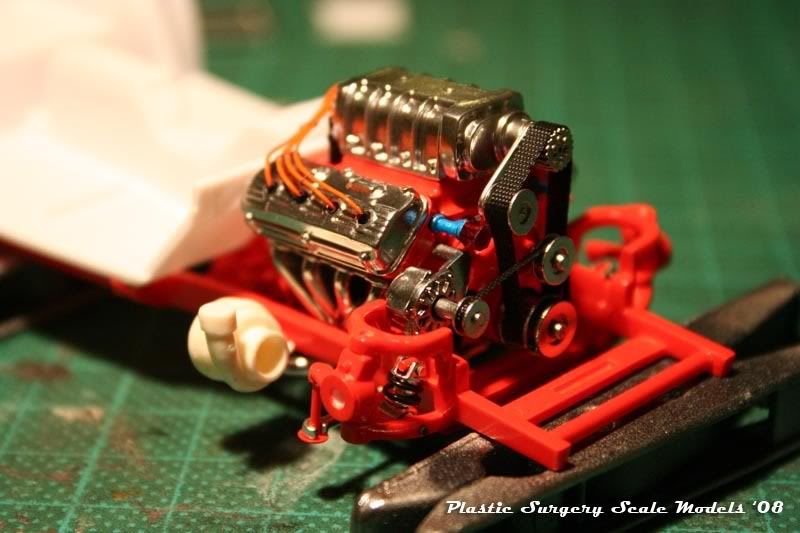

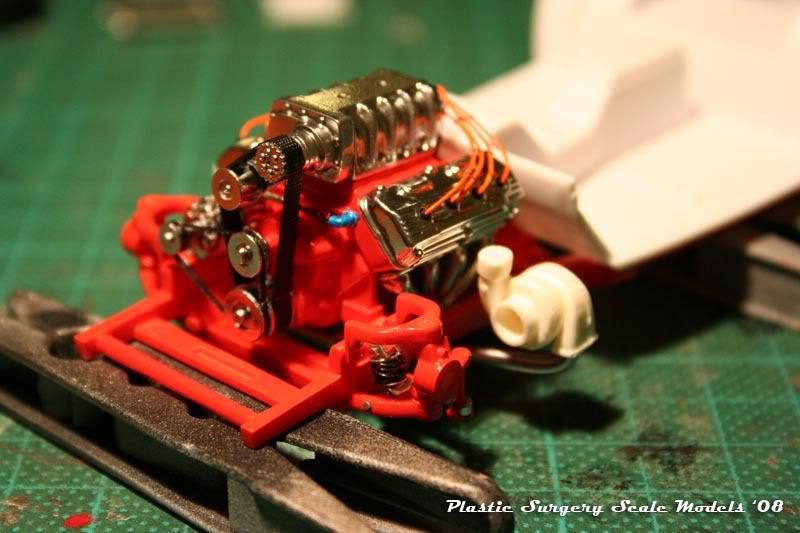

And now I've started the turbo system. It was difficult initially but I got the pipes going from the headers into the turbo worked out (the critical part). And the good news is I will be able to hide it all, although it will be tight (I'd hate to have to work on the real thing). I used solder for the piping, which worked out to be a scale 2.5 inch.













Thanks for looking.
