99-03 Grand Am Parts List:Restraint Systems/Seats tracks syst/SunRoof-Headliner Assy
Restraint Systems
Air Bag Components  1 Driver air bag - 99 GM# 22617914 - 00-01 GM# 22616920 - 02-03 GM# 22625398 2 Passngr air bag Grey - 99-03 GM# 16822363 Neutral - 99-03 GM# 16822361 Oak - 99 GM# 16822362 3 Diagnostics Unit - 99 GM# 9383869 - 00-01 GM# 22574103 - 02 GM# 22574103 - 03 GM# 22674101 4 Clockspring w/o cruise contrl - 99 GM# 26087354 - 00-02 GM# 26096189 - 03 - mot listed w/ cruise contrl - w/o accessory contrl - 99 GM# 26087355 - 00-03 GM# 26096191 w/ accessory control - 99 GM# 26087356 - 00-03 GM# 26096192 Front Seats  1 Seat belt assy 2 Door -Grey - 99-01 B GM# 12457310 - 02-03 R GM# 12493286 - 02-03 L GM# 88898928 -Neutral - 99 B GM# 12457307 - 02-03 R GM# 12493284 - 02-03 L GM# 88898926 Oak - 99 B GM# 12457309 4 Door Grey - 99-01 B GM# 12457303 - 02-03 R GM# 88950476 - 02-03 L GM# 88950477 Neutral - 99 B GM# 12455830 - 00-03 R GM# 88949696 - 00-03 L GM# 88949698 Oak - 99 B GM# 12458484 Mount bolt 2 upper - 99-03 GM# 22648562 3 Center - 99-01 GM# 11509793 2 door - 02-03 GM# 22606226 4 door - 02-03 GM# 11509793 4 Lower - 99-01 GM# 22606226 2 door - 02-03 GM# 11509793 4 door - 02-03 GM# 22606226 5 Cover 2 door Grey - 99-03 B GM# 22607089 Neutral - 99-03 B GM# 22607090 Oak - 99 B GM# 22607091 4 door Grey - 99-03 B GM# 22657814 Neutral - 99-03 B GM# 22657815 Oak - 99 B GM# 22657816 6 Giude - 99-03 B GM# 22657434 7 Track- belt guide 4 door - 99-01 B GM# 22613979 - 02-03 B GM# 22697526 8 Buckle Grey - 99-03 R GM# 12453493 - 99-03 L GM# 12453495 Neutral - 99-03 R GM# 12532160 - 99-03 L GM# 12532162 Oak - 99 R GM# 12534967 - 99 L GM# 12534968 9 Mount bolt - 99-03 B GM# 22579279 Rear Seat Belts  1 Outer belt assy Grey - 99-03 B GM# 12457316 Neutral - 99-03 B GM# 12457314 Oak - 99 B GM# 12457317 2 bolt Upper - 99-03 B GM# 11509793 Lower - 99-03 B GM# 22648559 3 Guide - 99-03 GM# 22584100 4 Center Assy Grey - 99-01 12457316 - 02-03 12453498 Neutral - 99-03 GM# 12530660 Oak - 99 GM# 12534965 Seats and Tracks  Front seat Components 1 Seat Cover Grey - 99-01 B GM# 88896118 - 02 B GM# 12459108 - 03 B GM# 88991945 Neutral - 99-01 B GM# 88896119 - 02 B GM# 12459109 - 03 B GM# 88991946 Oak - 99 B GM# 22604860 2 Seat Back Cover Grey - 99-01 B GM# 22604811 - 02 B GM# 12459104 - 03 B GM# 88991951 Neutral - 99-01 B GM# 22604812 - 02 B GM# 12459105 - 03 B GM# 88991952 Oak - 99 B GM# 22604813 3 Headrest Grey - 99-01 B GM# 22609357 - 02-03 B GM# 12459084 Neutral - 99-01 B GM# 22609355 - 02-03 B GM# 12459185 Oak - 99 B GM# 22609356 5 Guide Grey - 99-03 B GM# 22614779 Neutral - 01-03 B GM# 22604840 Oak - 99 B GM# 22614782 5 Belt Holder Grey - 99-01 R GM# 22614110 - 99-01 L GM# 22614111 - 02-03 R GM# 12492639 - 02-03 L GM# 12492635 Neutral - 99-01 R GM# 22614112 - 99-01 L GM# 22614113 - 02-03 R GM# 12492640 - 02-03 L GM# 12492636 Oak - 99 R GM# 22614114 - 99 L GM# 22614115 6 Seat Cushion pad - 99-03 B GM# 22604854 7 Seat back cushion - 99-03 B GM# 22604785 8 Seat Frame - 99-03 B GM# 22617600 9 Back frame - 99-03 B GM# 22604830 10 support - 99-03 B GM# 22604836 11 Recline Adjuster Pass. Side Outer - 99-01 GM# 22604905 - 02-03 GM# 22604904 Inner - 99-01 GM# 22604903 - 02-03 GM# 22604902 Drivers side Outer - 99-00 GM# 22604901 - 02-03 GM# 22604900 Inner - 99-03 GM# 22604899 12 Knob - 99-03 GM# 12458600 12 Cable Actuator - 99-03 GM# 22604906 Latch Release - 99-03 GM# 22605151 Tracks & Components W/O Power  Seat adjuster 2 door pass. 1 Outer - 99-03 GM# 22609373 2 Inner - 99-03 GM# 22609372 4 Door Pass. Side Outer - 99-01 GM# 22604912 - 02 GM# 22604912 - 03 GM# 88951423 Inner - 99-01 GM# 22604911 - 02 GM# 22604911 - 03 GM# 88951422 Driver side Outer - 99-01 GM# 22604909 - 02 GM# 22604909 - 03 GM# 88951421 Inner - 99-02 GM# 22604908 - 03 GM# 88951420 3 Return spring - 99-03 B GM# 22614457 4 Adjuster Handle - 99-03 B GM# 22604913 5 Adjuster Cover Front Outer - 99-02 GM# 22604731 - 03 NL Inner - 99-02 GM# 22622477 - 03 NL Rear Pass. seat Outer - 99-02 GM# 22622477 - 03 NL Inner - 99-02 GM# 22614024 - 03 NL Rear Driver seat Outer - 99-02 GM# 22614170 - 03 NL Inner - 99-02 GM# 22614171 Tracks and Components  Drivers side 4 way power 1 Seat Adjuster - 99-03 GM# 22617607 2 bracket - 99-03 GM# 22609349 Adjuster Cover 3 Front Outer - 99-02 GM# 22605731 - 03 NL Inner - 99-02 GM# 22617687 - 03 NL 4 Rear Outer - 99-02 GM# 22614170 - 03 NL Inner - 99-02 GM# 22614171 - 03 NL 5 Return Spring - 99-03 B GM# 22614457 6 Linkage wire - 99-03 GM# 16802943 Driver Side W/6 way power seat  Seat Adjuster 1 Outer - 99-03 GM# 16818122 2 Inner - 99-03 GM# 16818121 Adjuster Cover 3 Front - 99-03 B GM# 22600713 4 Rear Outer - 99-03 GM# 22612078 Inner - 99-03 GM# 22620889 5 Motor - 99-03 GM# 16776529 Cable- Vertical 6 Front - 99-02 GM# 16604591 - 03 NL 7 Rear - 99-02 R GM# 16801406 8 Rear - 99-02 L GM# 16738826 - 03 NL 9 Horizontal - 99-02 GM# 16604591 - 03 NL Actuator 10 Front vertical Outer Adjustment - 99-03 GM# 16607860 Inner Adj. - 99-03 GM# 16807200 11 Rear vertical Outer Adj. - 99-03 GM# 16807203 Inner Adj. - 99-03 GM# 16807202 12 Wire Harness - 99-03 GM# 12163360 13 Seat Switch - 99-03 GM# 22604934 14 Switch bezel grey - 99-03 GM# 22605124 Neutral - 99-03 GM# 22605125 15 Recline handle Grey - 99-03 GM# 16797774 Neutral - 99-03 GM# 22611117
__________________
1999 Grand Am SS 3.4 OHV
Last edited by xeroinfinity; 01-27-2007 at 05:02 PM. |
|
#2
01-27-2007, 05:20 PM
|
||||
|
||||
|
Re: 99-03 Grand Am Parts List:Restraint Systems/Seats tracks syst/SunRoof-Headliner Assy

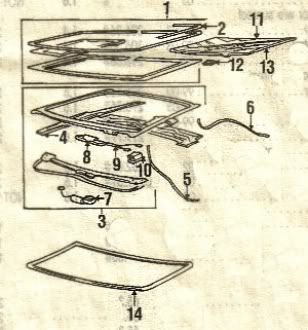

ROOF & COMPONENTS
 1 Roof Panel w/o sunroof 2 door - 99-03 GM# 22640707 4 door - 99-03 GM# 22621516 w/sunroof 2 door - 99-02 GM# 22614611 - 03 GM# 22699032 4 door - 99-02 GM# 22699033 - 03 GM# 22699033 2 Roof Bow w/o sunroof - 99-03 GM# 22610111 Header Panel 3 Front - 99-02 GM# 22696280 - 03 GM# 22696280 4 Rear 2 door - 99-03 GM# 22610110 5 Outer Rail - 99-03 B N/A 6 Inner Rail 2 door - 99-03 R GM# 22640792 - 99-03 L GM# 22640793 4 door - 99-03 R GM# 22640794 - 99-03 L GM# 22640795 Weather Strip 2 door - 99-03 R GM# 22614340 - 99-03 L GM# 22614341 4 door - 99-03 R GM# 22614342 - 99-03 L GM# 22614343 SUN ROOF  Sun roof assy grey - 99-01 GM# 22613831 neutral - 99-01 GM# 22617122 Oak - 99 GM# 22613830 1 Glass Assy - 99-03 GM# 22617023 2 weatehrstrip - 99-03 GM# 22617022 3 Housing Assy - 99-03 GM# 22619984 4 Track - 99-03 B * included in Housing Assy Tube 5 Front Sunroof - Drain hose - 99-03 B GM# 22611831 6 Rear Sunroof - Drain hose - 99-03 B GM# 22615690 7 Motor - 99-02 GM# 22601762 - 03 not listed 8 Module express open - 99-02 GM# 22596817 - 03 not listed 9 Wire Harness - 99-03 included in housing assy 10 Switch - 99-00 GM# 22654791 - 01-03 GM# 22624804 11 Sunshade - grey - 99-03 GM# 22645641 - neutral - 99-03 GM# 22605152 - Oak - 99 GM# 22600782 12 Handle - 99-03 GM# 22597391 13 Guide - 99-02 GM# 22596838 - 03 not listed 14 Lace - grey - 99-03 GM# 22621484 - Neutral - 99-03 GM# 22621482 - Oak - 99 GM# 22621483  Headliner Interior trim 1 Headliner 2 door w/o sunroof Grey - 99-03 GM# 22617880 Neutral - 99-03 GM# 22617878 Oak - 99 GM# 22617879 2 door W/sunroof Grey - 99-03 GM# 22698650 Neutral - 99-03 GM# 22619727 Oak - 99 GM# 22619728 2 door w/sunroof & Onstar grey - 02 GM# 22677113 Neutral - 02 GM# 22677112 Oak Not avial 4 Door w/o Sunroof grey - 99-03 GM# 22617876 Neutral - 99-03 GM# 22617874 Oak - 99 GM# 22617875 4 Door w/Sunroof Grey - 99-00 v22698650 - 01-03 GM# 22698654 Neutral - 99-03 GM# 22698653 Oak - 99 GM# 22619724 4 Door w/sunroof & Onstar Grey - 02 GM# 22677116 Neutral - 02 GM# 22677115 2 retainer grey - 99-03 GM# 10266714 neutral - 99-03 GM# 10283726 Oak - 99 GM# 10287591 3 Visor w/o sunroof pewter - 99-02 R v22706060 - 99-02 L GM# 22696337 - 03 R GM# 22706060 - 03 L GM# 22706061 Neutral - 99-03 R GM# 22706058 - 99-03 L GM# 22706059 Oak - 99 R GM# 22621728 - 99 L GM# 22621729 W/ Sunroof pewter - 99-02 R GM# 22706060 - 99-02 L GM# 22696337 - 03 R GM# 22706060 - 03 L GM# 22706061 Neutral - 99-02 R GM# 22706058 - 99-02 L GM# 22706059 - 03 R GM# 22706058 - 03 L GM# 22706059 Oak - 99 R GM# 22621728 - 99 L GM# 22621729 4 Support Oak - 99 GM# 22624712 grey - 9-01 GM# 22624713 - 02 GM# 22670725 Neutral - 99-01 GM# 22624711 - 02 GM# 22670724 - 03 Not listed 5 Compartment w/o Sunroof grey - 99-03 GM# 22610863 neutral - 99-03 GM# 22610861 Oak - 99 GM# 22610862 W/ Sunroof grey - 02-03 GM# 22677122 Neutral - 02-03 GM# 22677121 6 Clip - 99-03 GM# 22657963 7 Nut - 99-03 GM# 22605147 8 Dome light Grey - 99-03 GM# 22619083 Neutral - 99-03 GM# 22619081 Oak - 99 GM# 22619082 9 Retainer - 99-03 GM# 22615124 10 Coat Hook 2 Door Grey - 99-03 B GM# 22612391 Neutral - 99-03 B GM# 22612392 Oak - 99 B GM# 22612393 4 Dooor Grey - 99-03 B GM# 22646726 Neutral - 99-03 B GM# 22655181 Oak - 99 GM# 22655182 11 Anchor Plate - 99-03 B GM# 22612231 12 retainer - 99-03 B GM# 22612024 13 Harness - 99-01 GM# 15323417 w/Onstar - 02 GM# 15323417 - 03 GM# 15374583
