Needed: Ferrari 250GTO illustrations/schematics

[klutz_100]

Hi!

I hope you can help me with this.

I have been singularly unsuccessful in finding reference materials for a long term project I want to undertake.

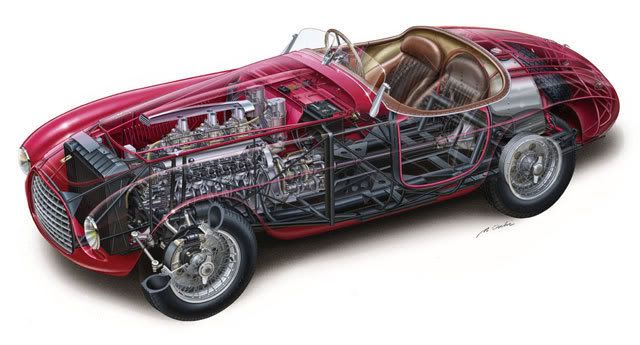

I am looking for cutaway illustrations and detailed schematics (similar to the one below) for the 250GTO. I need to see not just the mechanicals but also how the frame is constructed below the body shell.






I'm hoping that some of you will have stuff squirrelled away on your hard disks.


Thanks in advance for any help you can provide!

[M4tt83]

I just found this 250 GTO restoration project using Google. It's not strictly what you are asking for, but it may help you. Click on the images to show the full versions and there is a (large, but not all too visible) link to the next page at the bottom of each page.

http://www.mototechnique.com/250GTO_p1.htm

I'll try and post direct links to each photo when I have the time, so that you can save them because the window closes when you left or right click on the full sized images.

[proosen]

Hi klutz!

I have this book and even if it's not exactly what you need there is some picutres that may come in handy.
I'll try to scan some of them for you this weekend, I don't have a scanner myself but I'm going to pay a visit at my parents and then I can borrow the one they have.


Niclas

[klutz_100]

Thanks guys! Keep it comin'

M4tt83 - thats a GREAT link - very useful stuff! I'll be very grateful for the links. Thank you.

Niclas - What can I say? droooooooool!! I'd even send you my scanner (if I had one)!

[CADguy]

This is the only one I have of the 250GTO


There are over 200 reference photos in this album
http://public.fotki.com/CADguy/refer...rrari/250_gto/

[klutz_100]

Originally Posted by CADguy

This is the only one I have of the 250GTO


There are over 200 reference photos in this album
http://public.fotki.com/CADguy/refer...rrari/250_gto/

Thanks Matt. May I take that as an invitation to browse around?

[CeeElle]

Originally Posted by proosen

I have this book and even if it's not exactly what you need there is some picutres that may come in handy...

would you be so kind as to provide them to me as well? i'm expecting a 250 GTO kit to arrive on my doorstep any day now.

and Klutz, if you've got any helpful references, would you send them my way?

as am i... perhaps you had two?

Originally Posted by CADguy

There are over 200 reference photos in this album
http://public.fotki.com/CADguy/refer...rrari/250_gto/

ok, i'm a luddite... do i need a premium account to view the pics full-size? i can only see/save the thumbnails...

klutz... you can buy a poster-size cutaway drawing here: http://www.autotrend.com/9118.html

you might also look for a david kimble cutaway drawing; his are incredible in their detail and accuracy.

[klutz_100]

Originally Posted by CeeElle

and Klutz, if you've got any helpful references, would you send them my way?

What's mine is yours Kemo Sabe!

[mike@af]

I'm intrigued as to what your project will be.

[auw12]

me too~~

[klutz_100]

Originally Posted by CeeElle

as am i... perhaps you had two?

...or maybe even 4?

Thanks for mentioning Kimble by name. I spent a good part of yesterday racking my brain trying to remember it. His work is amazing! BTW the artisit who did the 166MM above isMakoto Ouchi.

Chuck, I've heard of "double posting" but triple posting?? Come on.... j/k

Originally Posted by GTmike400, auw12

I'm intrigued as to what your project will be.
me too~~

You're smart guys - I don't doubt for a second you can figure it out

M4tt83 - just wanted to say thanks again for that link! Incredibly interesting and useful. Now THAT'S what I call a WIP!!!

[mike@af]

-Full Detail
-Scratch Build
-Cut away

Those are my guesses? Am I close?

[klutz_100]

Originally Posted by GTmike400

-Full Detail
-Scratch Build
-Cut away

Those are my guesses? Am I close?

See? Told 'ya

1. Cutaway. Something that I have wanted to try for some time now.
2. The above point kind of leads to scratching the bits "behind the holes"
3. Full detail? We'll see. As "full" as my nerves can stand anyway

[M4tt83]

Well I have to say that it feels good to have really helped someone out rather than just posting the same old opinions again and again, so thank you for giving me the opportunity and I look forward to seeing your WIP.

Unfortunately, three of the pages appear to have broken links to the full size images, but I have emailed them and hopefully they will correct this, as there are some useful pictures missing.

[CeeElle]

Originally Posted by klutz_100

Chuck, I've heard of "double posting" but triple posting?? Come on.... j/k

i'm bad about posting thoughts as they come, rather than combining them into one tidy post.
