McLaren F1 LM
'The fastest road car in the world gets faster'

The McLaren F1 LM has been developed as a direct result of the outstanding success which the F1 GTR has enjoyed, in both the 24 hours of Le Mans and the Global GT Endurance Series, during its inaugural 1995 racing season.

It is not a race replica but follows the specification of the Le Mans winning F1 GTR. Consequently the chassis, engine and transmission are virtually identical, being modified only enough to make them road usable. The most significant difference between the F1 LM and the F1 GTR is the acceleration, which will be substantially greater in the LM. This is possible owing to the fact that the LM is some 60kg lighter than the racing car, and the engine is not limited by the inlet air restrictors.

Race regulations restrict the air intakes on the F1 GTR to 2 x 39.4mm diameter, which results in 636 bhp and a top speed of 215mph. It is estimated that without these inhibitions the F1 LM will reach 668 bhp with a top speed of 225mph/360kph in high downforce configuration. The torque figures for the LM are 520 lb/ft or 705 Nm at 4,500 rpm. The estimated the 0-60mph figure will be under 3 seconds, with 0-100mph thought to be just under 5 seconds.

McLaren Cars Ltd are lucky enough to enjoy a rich and colourful motor racing heritage, not only with Formula One, but from the days when Bruce McLaren, campaigned his cars at Le Mans and in the Can-Am series. The F1 GTR's recent racing victories are reminiscent of the five Can-Am championships which were won between 1967 and 1971 and Bruce's own victory at Le Mans in 1966 in a Ford Mark II.

It has always been a dream to produce the 'ultimate road-going sports car' and this is something which McLaren Cars achieved initially with the McLaren F1 road car. As a mark of respect of for Bruce McLaren the LM, which represents a genuine race car experience on the road, has been painted vibrant orange which was extensively used when Bruce achieved his successes.

The company's aim has always been to develop and manufacture cars best in their class by design. The McLaren F1 LM is a celebration of that achievement so aplty displayed by the historic win at the 24 Heures Du Mans 1995.

McLAREN F1 LM TECHNICAL SPECIFICATION

Dimensions

Length..................... 4365mm..... 172"
Width...................... 1820mm...... 76.6"
Height..................... 1120mm...... 44"
Ground Clearance..... 100mm........ 4"
Wheel Base.............. 2718mm...... 107"
Front Track.............. 1570mm....... 61.8"
Rear Track............... 1464mm....... 57.6"
Kerb Weight............ 1062kg.......... 2336 lbs

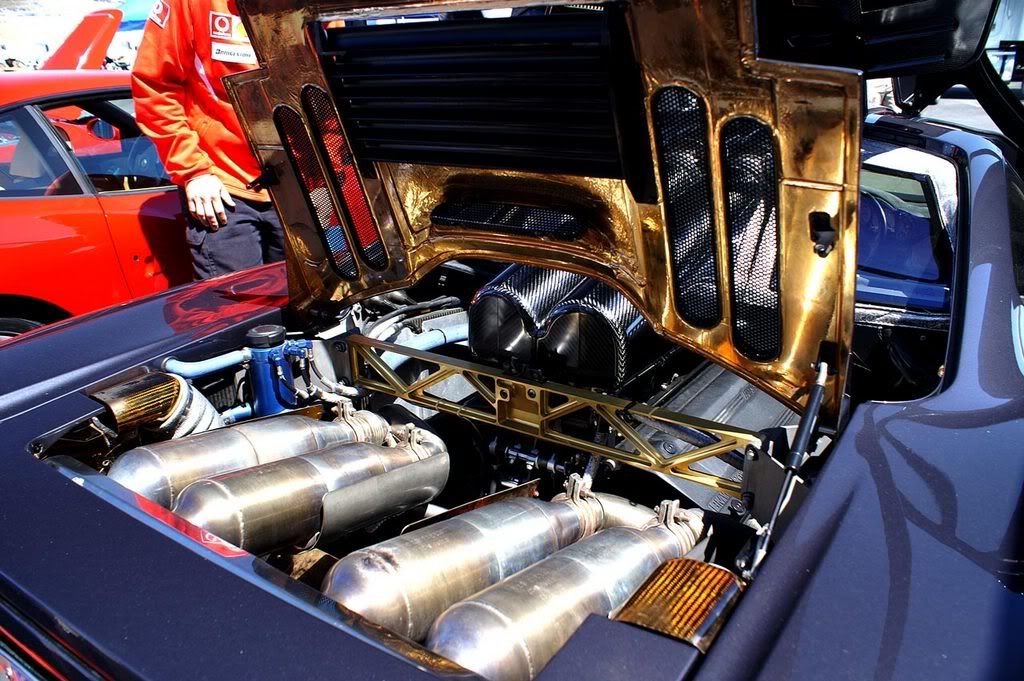

Engine

Type no..................... S70 / 2 GTR LM
Configuration............. V12
V Angle..................... 60
Displacement............. 6,064cc (369.9 cubic inches)
Bore.......................... 86.00mm......... 3.38"
Stroke....................... 87.00mm......... 3.42"
Compression Ratio..... 10.5:1
Ignition System......... Transistorized system with 12 individual coils

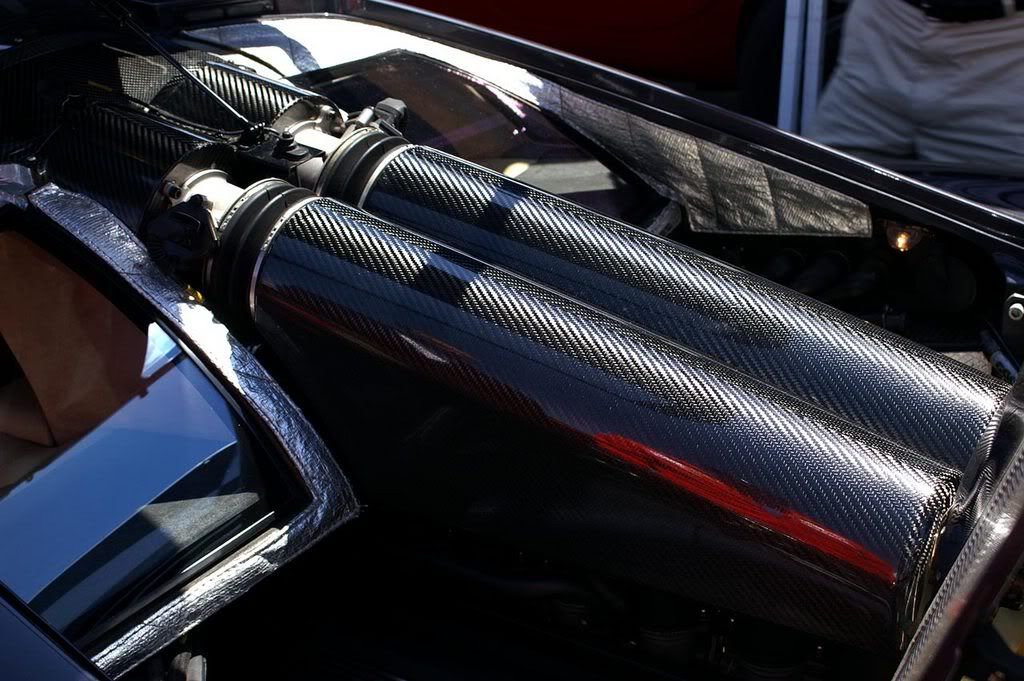

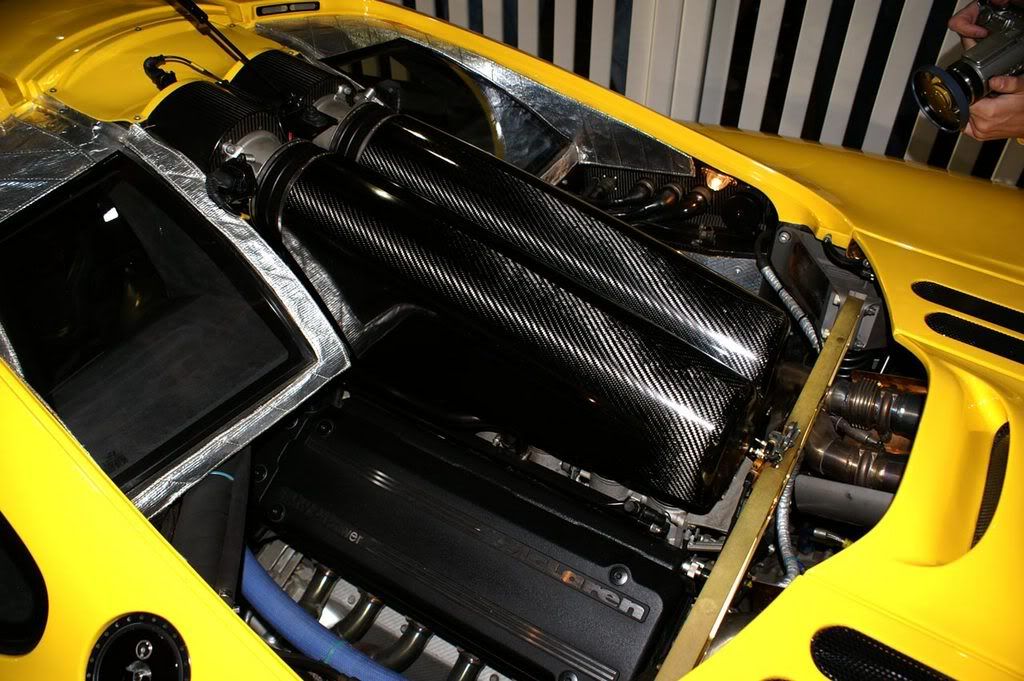

Induction System...... 12 single throttle valves, carbon-fibre airbox
Valve Train................ Chain driven doubleoverhead camshaft with continuously variable inlet valve timing
Engine Block............. Cast-aluminium 60-degree V12
Cylinder Heads.......... 4 valves per cylinder, cast aluminium-alloy
Flywheel................... Aluminium
Cam Carries/Covers... Cast magnesium
Lubrication System.... Dry sump, magnesium casting - with four scavenge pumps and one pressure pump
Fuel.......................... 95-98 RON unleaded
Power....................... 668 BHP @ 7800 rpm
Maximum Torque....... 520 ft/lb @ 4500 rpm
Maximum RPM........... 8500 rpm

Cooling System
Twin aluminium water radiators and oil/water heat exchanger

Fuel System
Safety fuel cell 90 litre capacity

Electrics
12V system
160 amp altenator
Engine ECU

Chassis
Front Suspension - Double wishbones, light alloy dampers, co-axial coil springs, anti-roll bar
Rear Suspension - Double wishbones, light allow dampers, co-axial coil springs

Transmission
Transverse racing unit with high speed bevel gears and spur final drive.
All synchro constant mesh 6 speed.
Limited slip differential.
Air/oil radiator with pumped lubrication system with pumped dry sump lubrication.
Straight cut gears.
Le Mans specification gun driller drive shafts and tripod CV joint.

Clutch
AP triple plate carbon / carbon
200mm (7.87") diameter
Remote actuation (hydraulic)

Steering
Unassisted rack and pinion
Two turns lock to lock

Wheels
Magnesium 18" diameter
Front 10.85" wide
Rear 13.00" wide
Centre lock nuts, retaining pin

Tyres
Michelin high performance
Front - 275/35ZR18 SX-MXX3
Rear - 345/35ZR18 SX-MXX3

Brakes
Front ---------- 322mm diameter x 32mm thick (13.07" x 1.26") ventilated disc, 4 pot monobloc light allow caliper
Rear ----------- 305mm diameter x 26mm thick (12.01" x 1.02") ventilated disc, 4 pot monobloc light allow caliper
Parking Brake - Rear, mechanical, light allow caliper
Brake Cooling - Race type brake cooling system

Aerodynamics
Full underbody ground effect with Le Mans diffuser
Le mans front body work and rear wing.

TECHNICAL DIFFERENCES BETWEEN F1, F1 GTR & F1LM

Dimensions............…............ LM ..............…............. GTR .............……................ F1
Length........................…... 4365mm..172"......…....... 4365mm..172"........….... 4288mm..168.8"
Width........................…... 1820mm..71.6"......…...... 1820mm..71.6".........…... 1820mm..71.6"
Height..................…........ 1120mm..44"............…... 1080mm..42.5".........…... 1140mm..44.8"
Ground Clearance....…....... 100mm..4"..............…..... 75mm..3".............………. 120mm..5"
Wheel Base….................. 2718mm..107".........….... 2718mm..107".........…… 2718mm..107"
Front Track..…................ 1570mm..61.8"..........….. 1568mm..61.7".....…....… 1568mm..61.7"
Rear Track.....….............. 1464mm..57.6"...........….. 1472mm..57.9"........…… 1472mm..57.9"
Kerb Weight....…............. 1062kg..2336lbs.........….. 1012kg..2226lbs......….... 1134kg..2495lbs

Engine
Type No......................….. S70/2 GTR LM..…........... S70/2 GTR....……............. S70/2
Configuration................…....... V12 ..............…............ V12 ..............………........ V12
V Angle ......................…... 60 degrees .............…... 60 degrees ............………..60 degrees
Displacement..........….... 6,064cc (369.9 CI) ..…. 6,064cc (369.9 CI) .…….... 6,064cc (369.9 CI)
Bore........................…..... 86.00mm..3.38" ......…... 86.00mm..3.38" ......……... 86.00mm..3.38"
Stroke......................….... 87.00mm..3.42" ......….... 87.00mm..3.42" ......…….. 87.00mm..3.42"


……………………………………LM…………………………….GTR…………………………….LM
Ignition System ...……. Transistorized system w/……...Transistorized system w/………..Transistorized system w/
...........................………… 12 individual coils.....……..….. 12 individual coils………...….. 12 individual coils
Inductions System….… 12 single throttle valves,………12 single throttle valves,………. 12 single throttle valves,
……………………….... Carbon-fibre airbox………….. Carbon-fibre airbox………….... Carbon-fibre airbox.
Valve Train………. Chain driven double overhead…..Chain driven double overhead…….Chain driven double overhead
……………………. Camshaft with continuously……. Camshaft with continuously…….. Camshaft with continuously
……………………… Variable inlet valve timing…….. Variable inlet valve timing…….... Variable inlet valve timing
Engine Block……… Cast-aluminium 60-deg V12…… Cast-aluminium 60-deg V12……... Cast-aluminium 60-deg V12
Cylinder Heads…….. 4 valves per cylinder, cast……... 4 valves per cylinder, cast………. 4 valves per cylinder, cast
…………………………. aluminium-alloy…………………. aluminium-alloy………………… aluminium-alloy
Flywheel………………….. Aluminium……………………… Aluminium………………………. Aluminium
Cam carriers/covers… Cast magnesium to LM spec………. Cast magnesium……………….. Cast magnesium
Lubrication system…. Dry sump, magnesium casting…. Dry sump, magnesium casting….. Dry sump, magnesium casting
……………………… with 4 scavenge pumps and….….. with 4 scavenge pumps and………. with 4 scavenge pumps and
…………………………. 1 pressure pump…………………. 1 pressure pump…………….…… 1 pressure pump
Fuel………………….. 95-98 RON unleaded……………… 95-98 RON unleaded……..……95-98 RON unleaded
Power…………………668 bhp @ 7800 rpm …………………..600 bhp ………………………… 627 bhp
Maximum Torque…… 520 ft/lb @ 4500 rpm …………… 527 lb/ft @ 4500 rpm …………… 479 lb/ft @ 5600 rpm
Maximum RPM…………. 8500 rpm ………………………… 7500 rpm ………………………… 7500 rpm

Cooling System…. LM …………………………………... GTR ………………………..………….. F1
Twin aluminium water, fan assisted ………… Twin aluminium water radiators ………. Twin aluminium water, fan assisted
Radiators & oil/water heat exchanger………… & oil/water heat exchanger …………… radiators & oil/water heat exchanger

Fuel System
Safety fuel cell 90 litre capacity ……………….. 100 litre saftety cell …………………… 90 litre safety cell

Electrics
……………… 12V System ………………………….. 12V System ……..…………… 12V System with high capacity batteries
……………… 160 amp altenator …………………. 160 amp altenator ………………….. 160 amp altenator
……………… Engine ECU………………………….. Engine ECU ………………….. Engine and Chassis ECU
…………………………………………………………………………………………… DC/DC Converter for heated glass

Chassis……………………… LM …………………………………… GTR ………………………………………. F1
Front Suspension ..… Double Wishbones ……………………… Double Wishbones ………….. Double Wishbones, GPSC Subframes
……………………... light alloy dampers .…………………….. light alloy dampers ………. Light alloy dampers/co-axial coil-springs
……………………… co-axial coil springs …………………… co-axial coil springs …………………….. Anti-roll bar.
……………………… anti-roll bar ……………………………… anti-roll bar

Rear Suspension…… Double wishbones ……………………….. Double wishbones ……… Double wishbones, ISA mounting system
…………………….. light alloy dampers ………………………. light alloy dampers ……… Light-alloy dampers/co-axial coil springs
…………………….. co-axial coil springs ……………………… co-axial coil springs …………. Toe-in/toe-out control links

Transmission
…………………….. Aluminium Case …………………………. Magnesium Case …………………… Aluminium Case
……………. Transverse racing unit with high speed … Transverse racing unit with high speed … Transverse unit with high speed
……………. Bevel gears and spur final drive …………. Bevel gears and spur final drive …………. Bevel gears and final spur drive
……………. All synchro constant mesh 6 speed ……. All synchro constant mesh 6 speed ………. All synchro constant-mesh 6-speed
……………. Limited slip final drive differential ……. Limited slip final drive differential ………. Limited slip final drive differential
……………. Air/oil radiator with high capacity …….. Air/oil radiator with high capacity ….. Air/oil radiator-pumped dry lubrication
……………….. Pumped lubrication system ……………. Pumped lubrication system …………………….. system
…………………. Straight cut gears ………………………….. Straight cut gears ……………………. Helical cut gears
…………….. Le Mans heavy duty specification …….… Le Mans heavy duty specification ……. Light weight gun drilled drive shafts
………….. gun drilled drive shafts & tripod CV joints .. gun drilled drive shafts & tripod CV joint ….. and tripod CV joint

Clutch
…………..…… AP triple plate carbon / carbon ………….. AP triple plate carbon/carbon …………… AP triple plate carbon/carbon
……………….. 200mm (7.87”) diameter …………………….200mm (7.87”) diameter ……………….. 200mm (7.87”) diameter
……………….. Remote actuation (hydraulic) …………… Remote actuation (hydraulic) ……………. Remote actuation (hydraulic)

Steering
………………... Unassisted rack and pinion ……………… Unassisted rack and pinion ……………….. Unassisted rack and pinion
……………….… Two turns lock to lock ……………………. Two turns lock to lock ………………….. Two turns lock to lock

Wheels
……………….. Magnesium 18” diameter: ………………… Magnesium 18” diameter: …………………. Magnesium 17” diameter:
………………….. front 10.85’ wide …………………………. Front 11.00” wide …………………………. Front 9.0” wide
………………….. rear 13.00” wide ………………………….. Rear 13.00” wide ………………………….. Rear 11.5” wide
………………. Centre lock nuts, retaining pin …………… Centre lock nuts, retaining pin …………… Centre lock nuts, retaining pin

Brakes
Front …………. 322mm diameter x 32mm thick ………… 355mm diameter x 36mm thick …………. 332mm diameter x 32mm thick
……………….. (13.07” x 1.26”) ventilated disc ………… (14.00” x 1.42”) carbon disc ……………. (13.07” x 1.26”) ventilated disc
……………….. 4 pot monobloc light alloy caliper ………. 4 pot monobloc light alloy caliper ……. 4 pot monobloc light alloy caliper
Rear …………. 305mm diameter x 26mm thick …………. 355mm diameter x 36mm thick …………. 305mm diameter x 26mm thick
……………….. (12.01” x 1.02”) ventilated disc …………. (14.00” x 1.42”) carbon disc ……………. (12.01” x 1.02” ventilated disc
……………….. 4 pot monobloc light alloy caliper ………. 4 pot monobloc light alloy caliper ……. 4 pot monobloc light alloy caliper
Parking Brake .. Rear, mechanical, light alloy caliper ……………….. None …………………….. Rear, mechanical, light alloy caliper
Brake Cooling .. Race type brake cooling system …………. Race type brake cooling system . Automatic computerised control system
Brake & Balance Foil ……. None ……………………………………. None ………………... Automatic computerised control system

Tyres
……………….. Michelin high performance ………………. Goodyear/Michelin ………………… Goodyear Eagle F1:
……………….. Front – 275/35ZR18 SX-MXX3 ………… High performance racing ……… F – P235 45ZR 17” R – P315 40ZR 17”
……………….. Rear – 345/35ZR18 SX-MXX3 ………………………………………………….. Michelin Pilot ZX FZ:
………………………………………………………………………………………………….. F – 235 45 ZR 17” R – 335 40 ZR 17”

Aerodynamics
………………. Full underbody ground effect …………… Full underbody ground effect ……. Full underbody air management
…………………………………………………………………………………………………………. (fan assisted).
………………. Le Mans front body work & ………..…… Le Mans front body work & …….. Driver selectable high downforce mode
……………….. Rear wing ……………………………….. Rear wing ……………………. Automatic Brake & Balance ‘Foil’ System


Now for the photos.

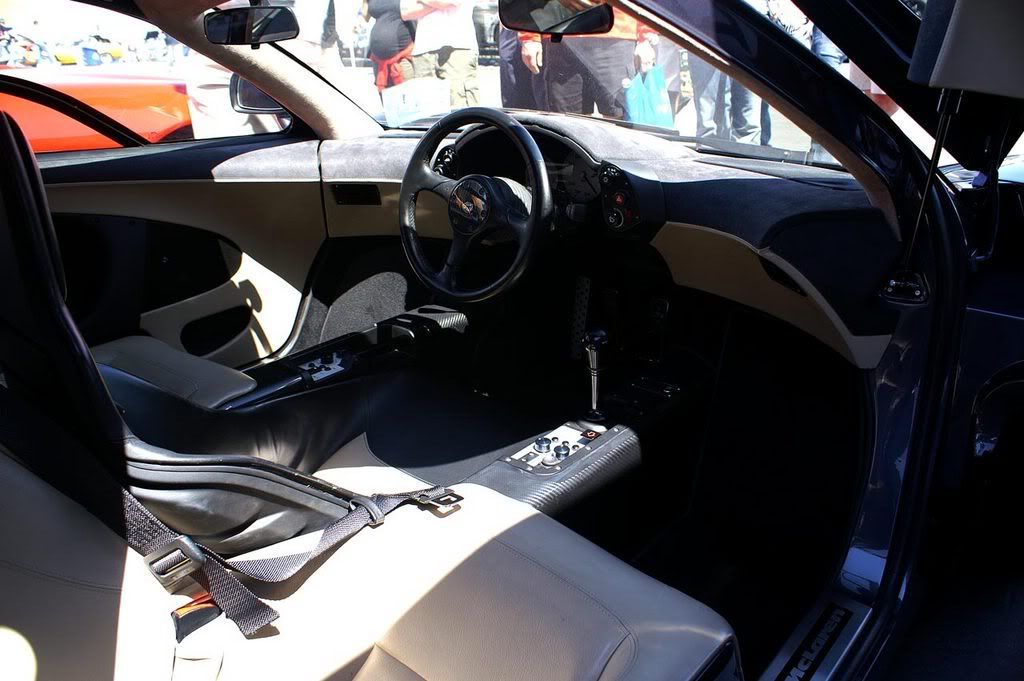

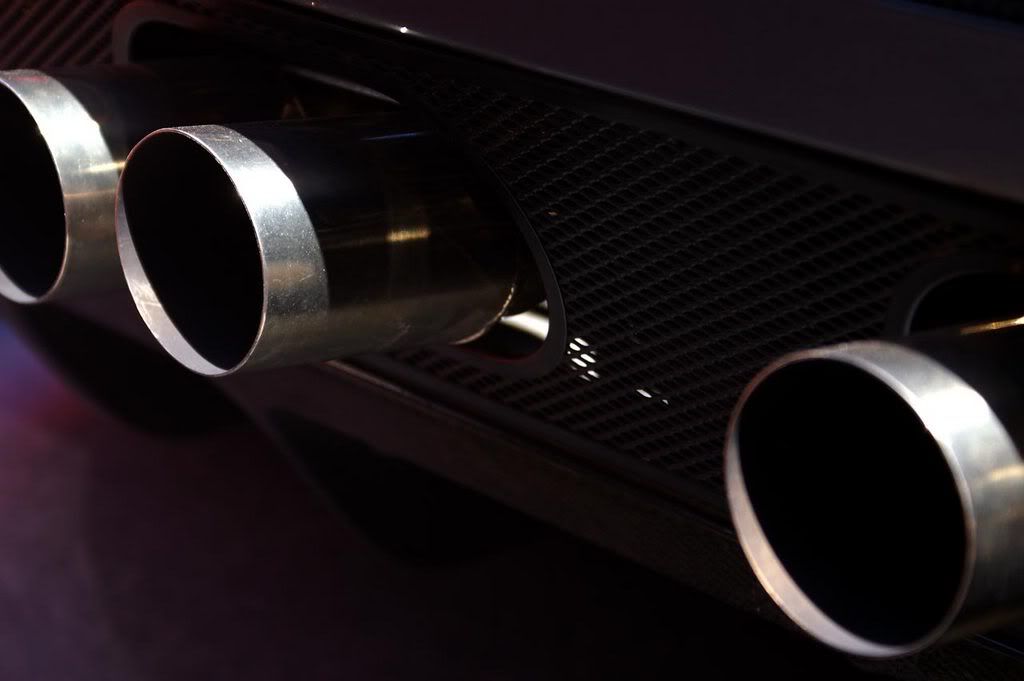

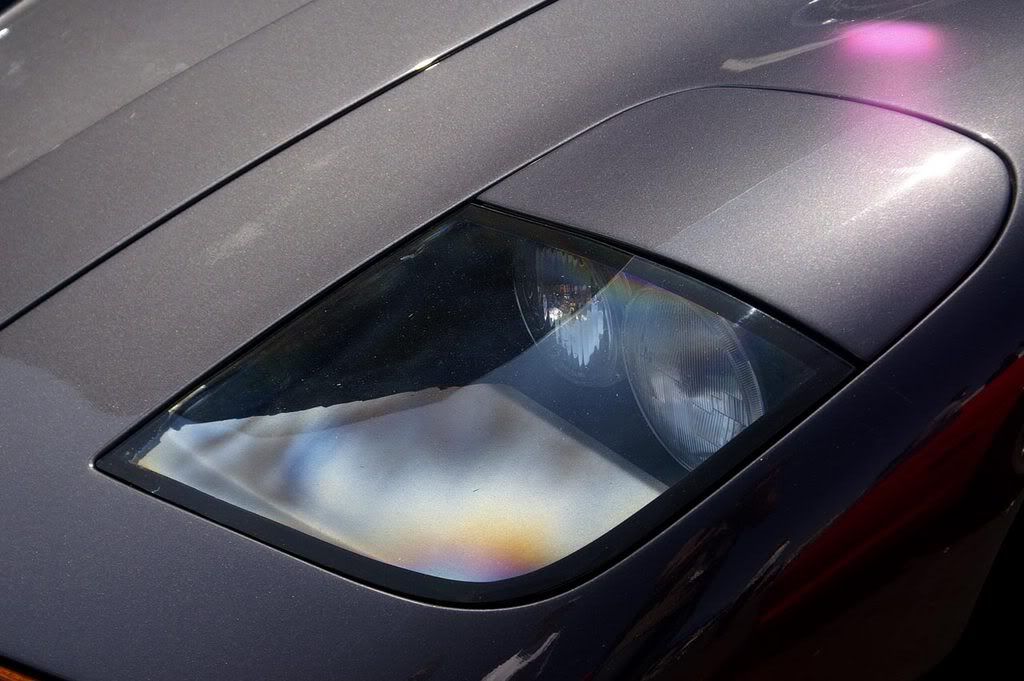

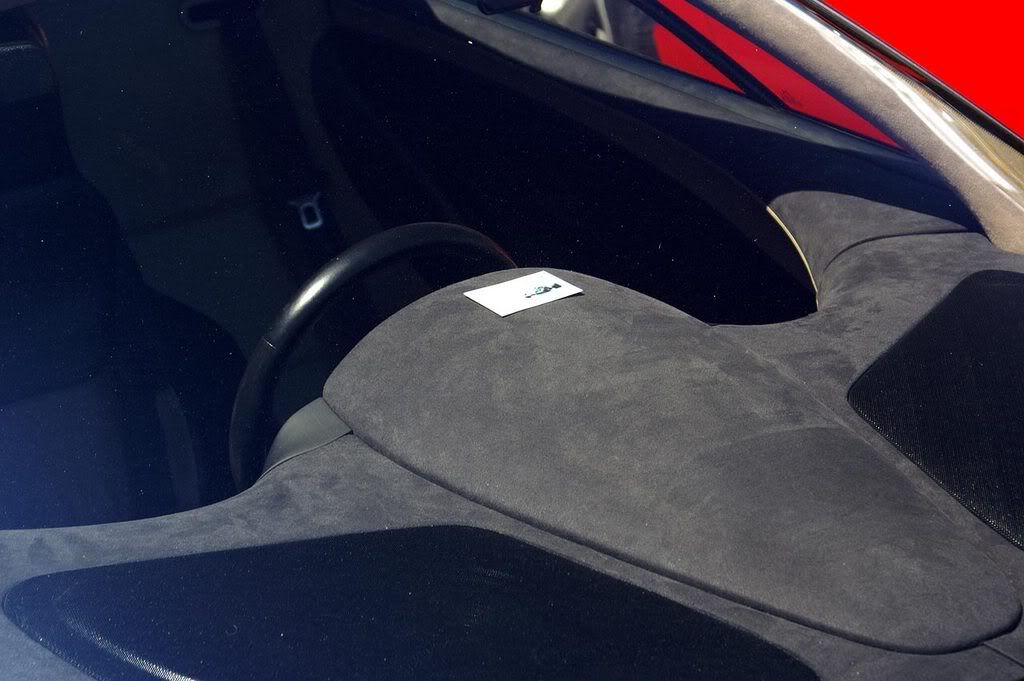

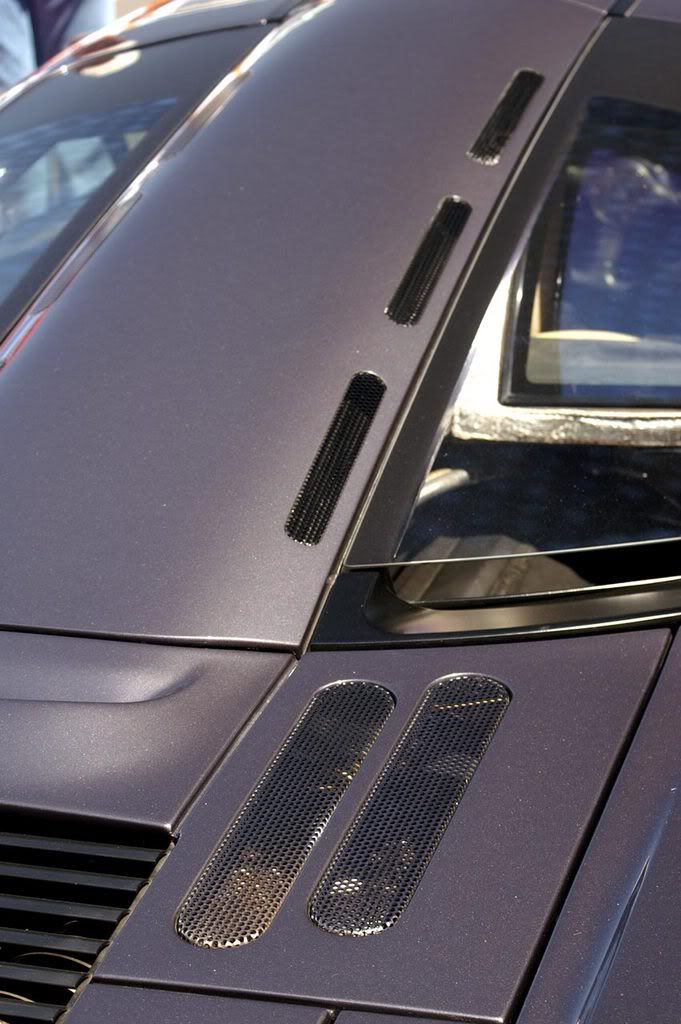

016:

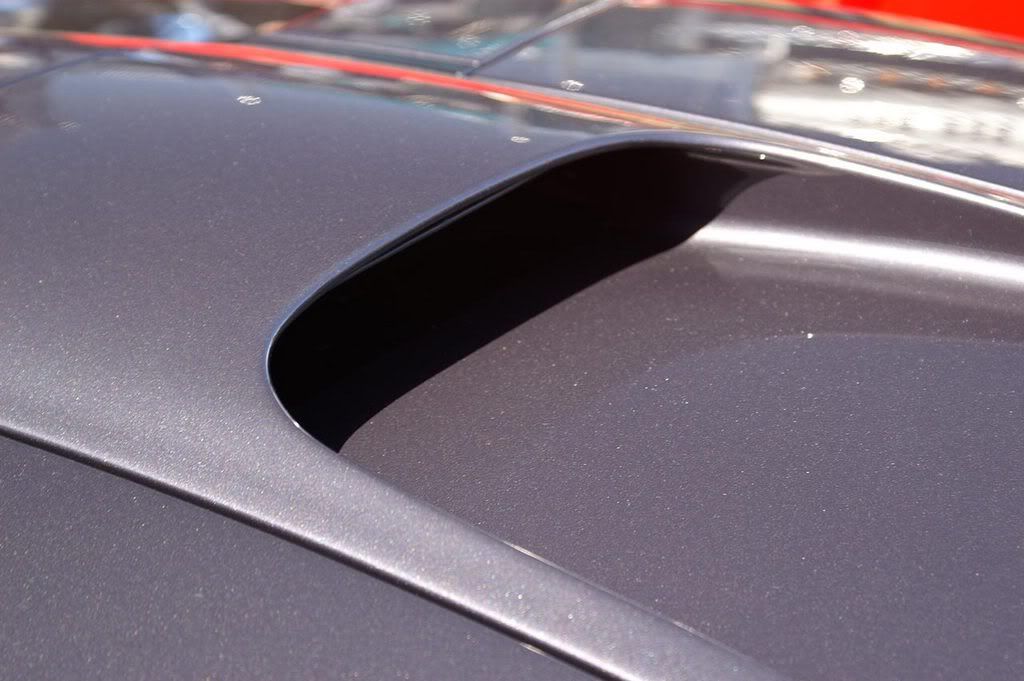

http://img.photobucket.com/albums/v2...s/PICT6511.jpg

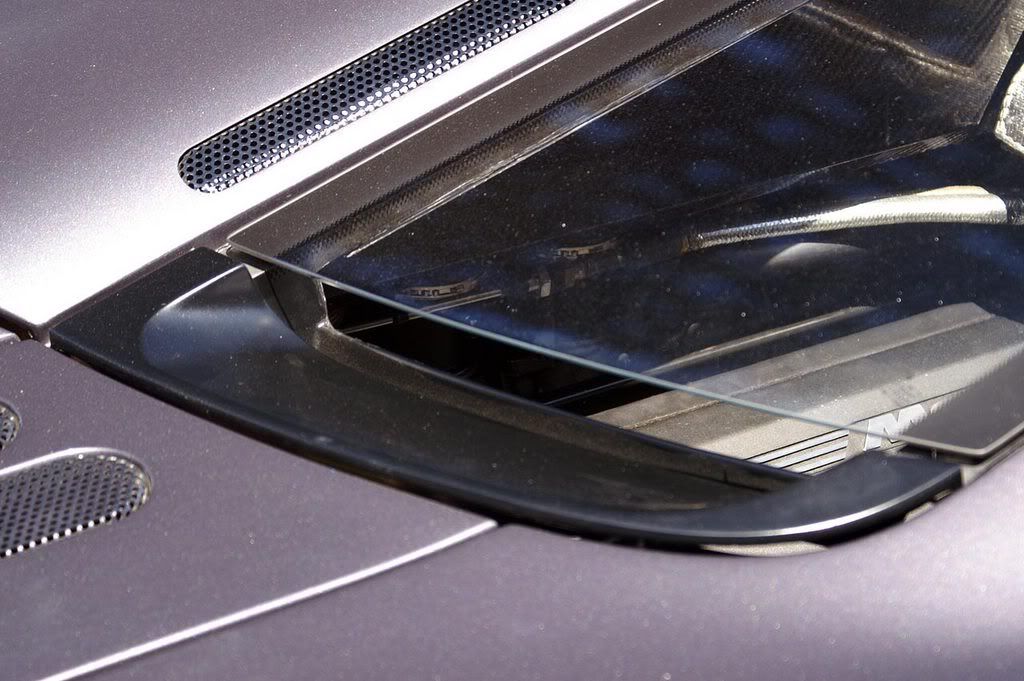

http://img.photobucket.com/albums/v2...s/PICT6513.jpg

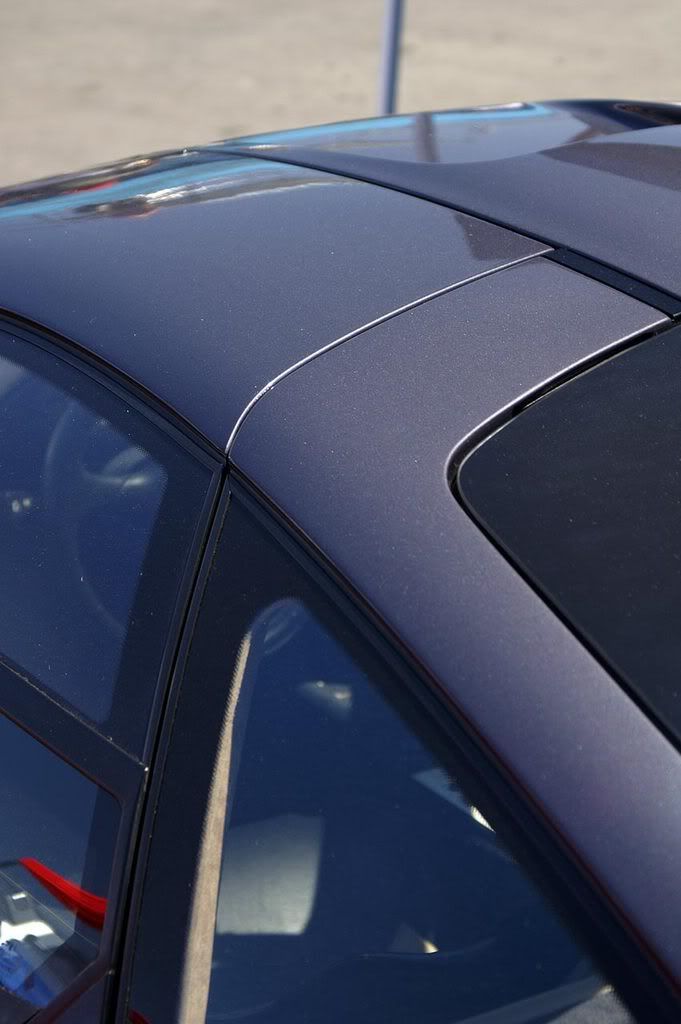

http://img.photobucket.com/albums/v2...s/PICT6515.jpg

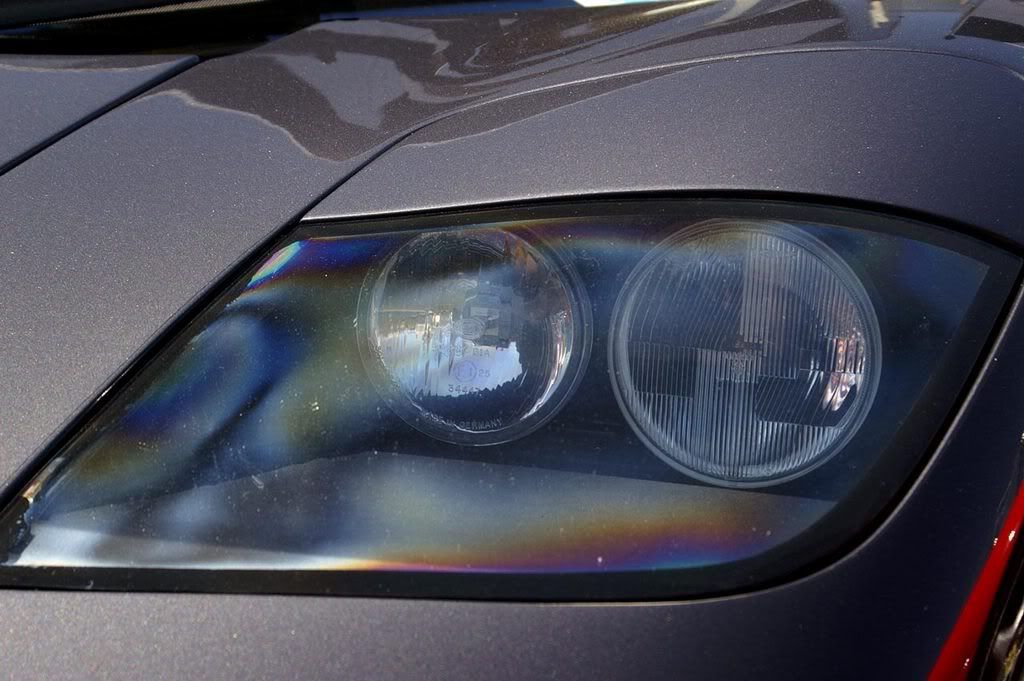

http://img.photobucket.com/albums/v2...s/PICT6517.jpg

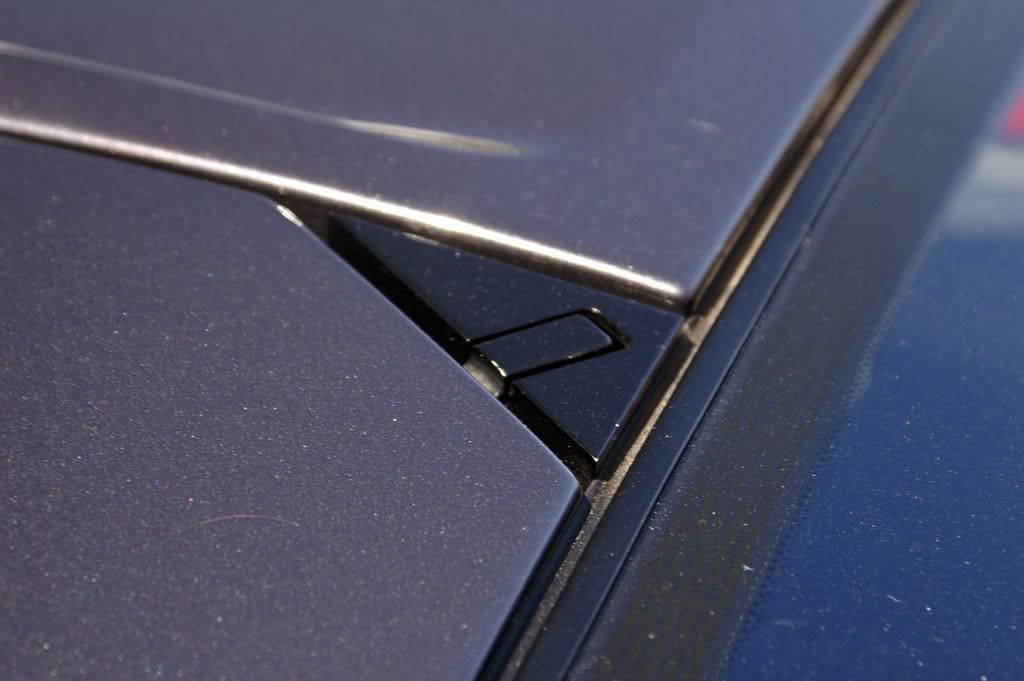

http://img.photobucket.com/albums/v2...s/PICT6519.jpg

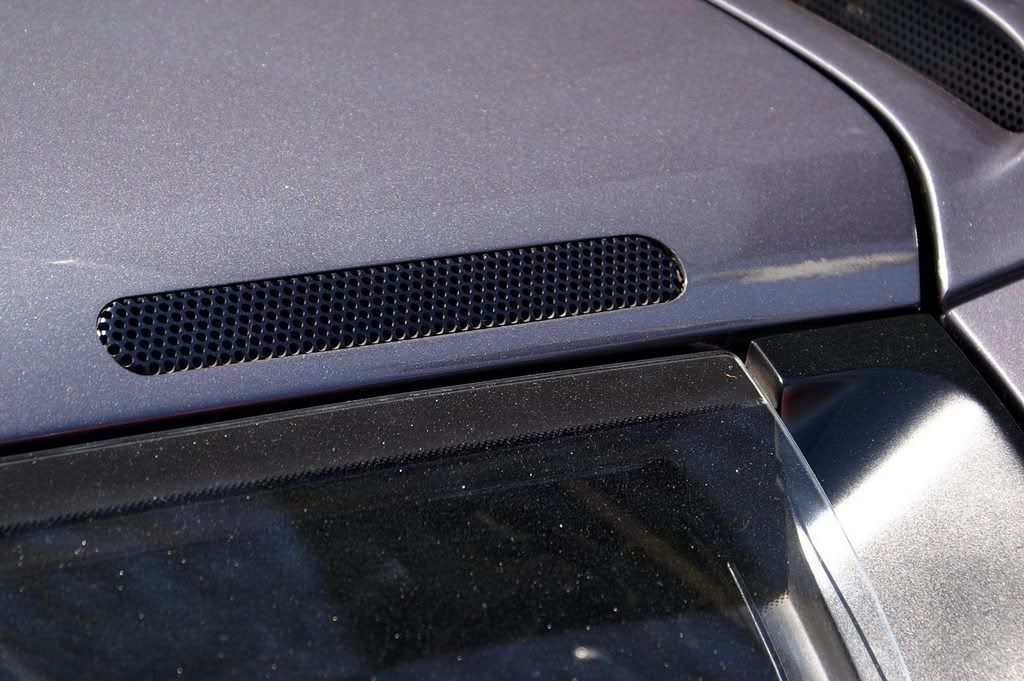

http://img.photobucket.com/albums/v2...s/PICT6522.jpg
http://img.photobucket.com/albums/v2...s/PICT6523.jpg
http://img.photobucket.com/albums/v2...s/PICT6524.jpg
http://img.photobucket.com/albums/v2...s/PICT6525.jpg
http://img.photobucket.com/albums/v2...s/PICT6529.jpg

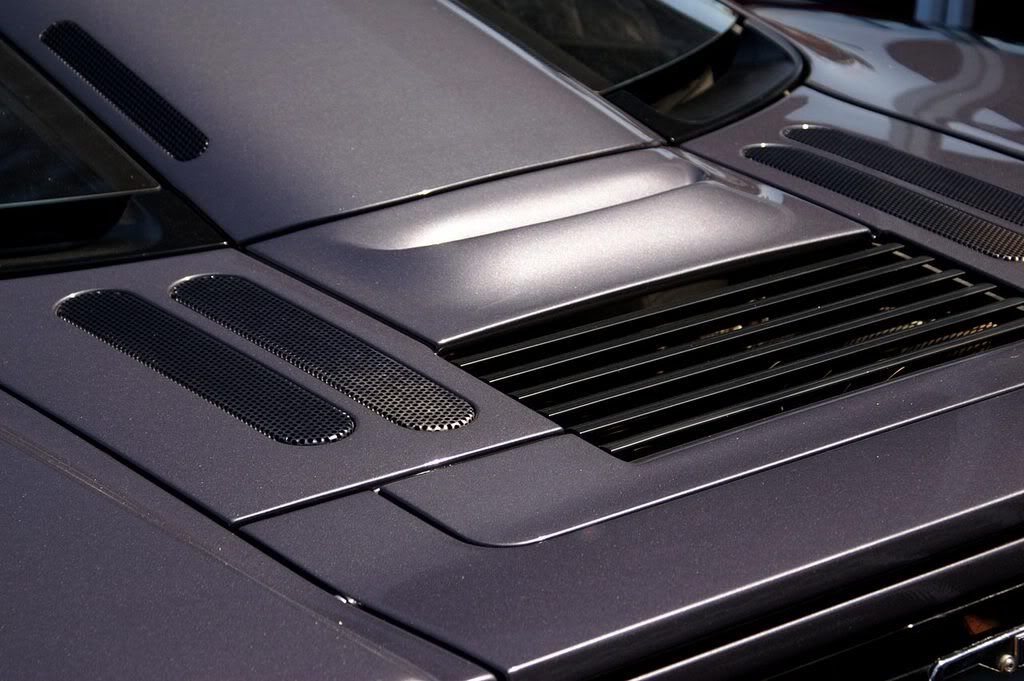

http://img.photobucket.com/albums/v2...s/PICT6530.jpg
http://img.photobucket.com/albums/v2...s/PICT6533.jpg

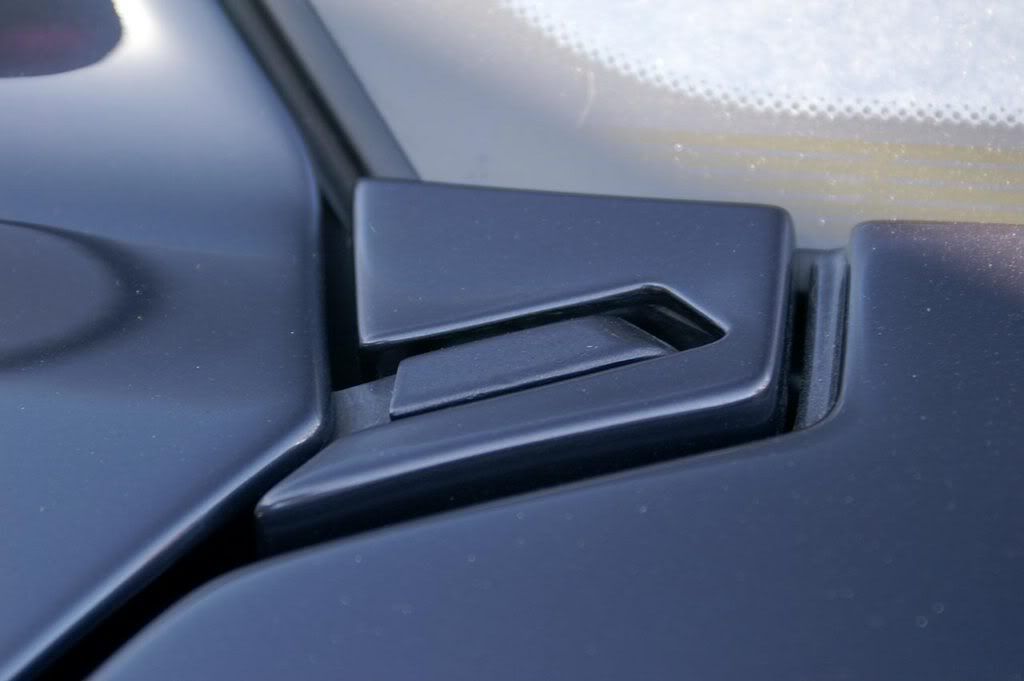

http://img.photobucket.com/albums/v2...s/PICT6535.jpg

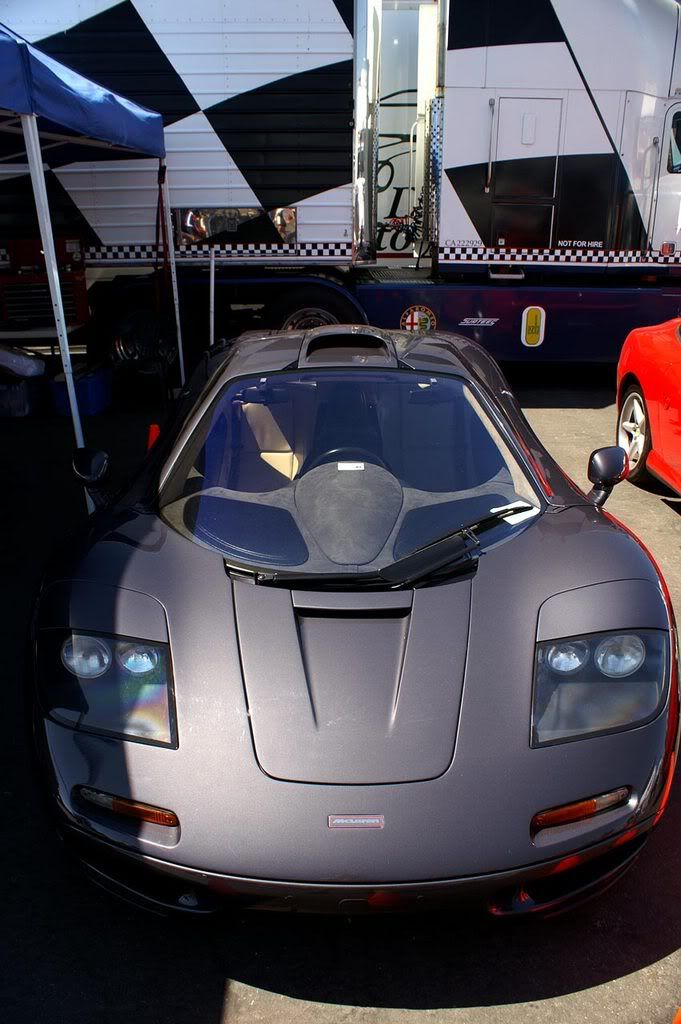

http://img.photobucket.com/albums/v2...s/PICT6539.jpg

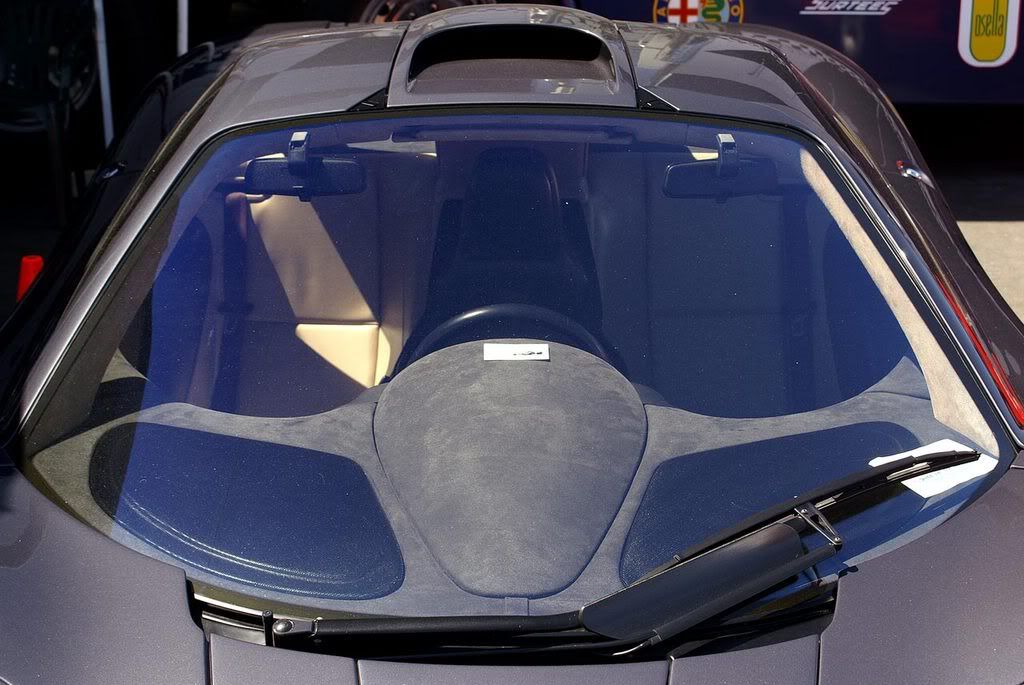

http://img.photobucket.com/albums/v2...s/PICT6541.jpg
http://img.photobucket.com/albums/v2...s/PICT6544.jpg
http://img.photobucket.com/albums/v2...s/PICT6545.jpg
http://img.photobucket.com/albums/v2...s/PICT6547.jpg
http://img.photobucket.com/albums/v2...s/PICT6548.jpg

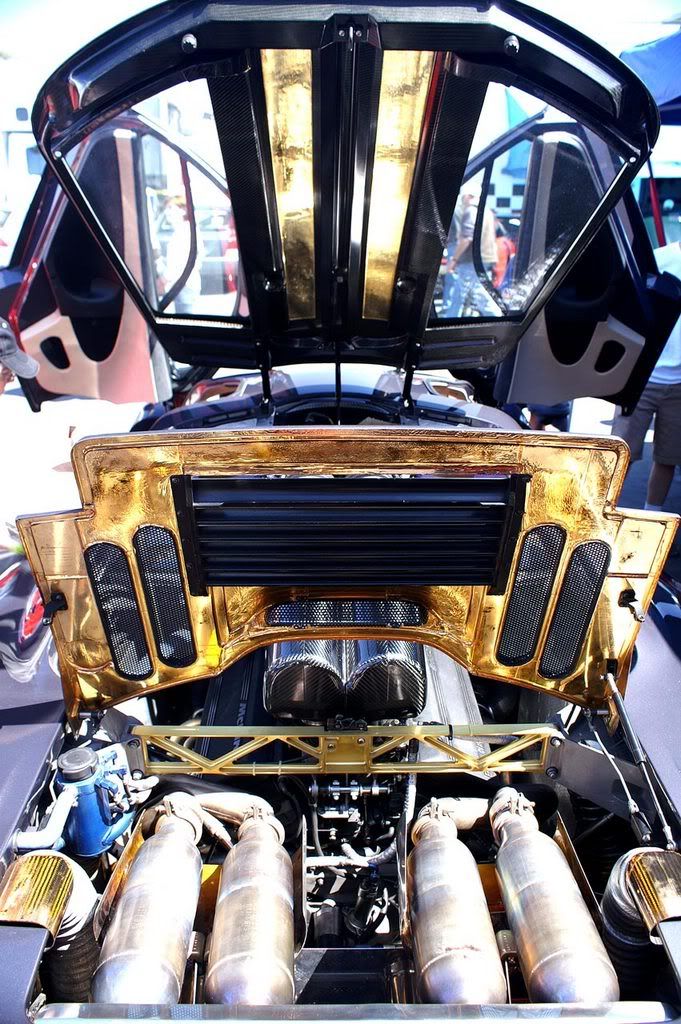

http://img.photobucket.com/albums/v2...s/PICT6550.jpg
http://img.photobucket.com/albums/v2...s/PICT6555.jpg

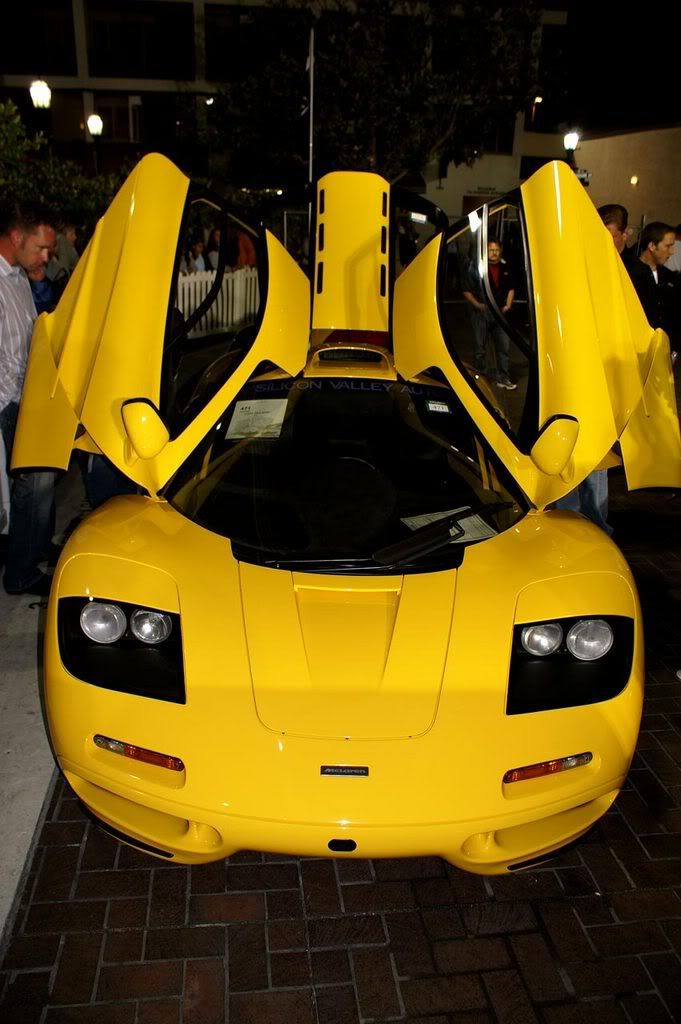

014: (You can see a famous face in this first picture )

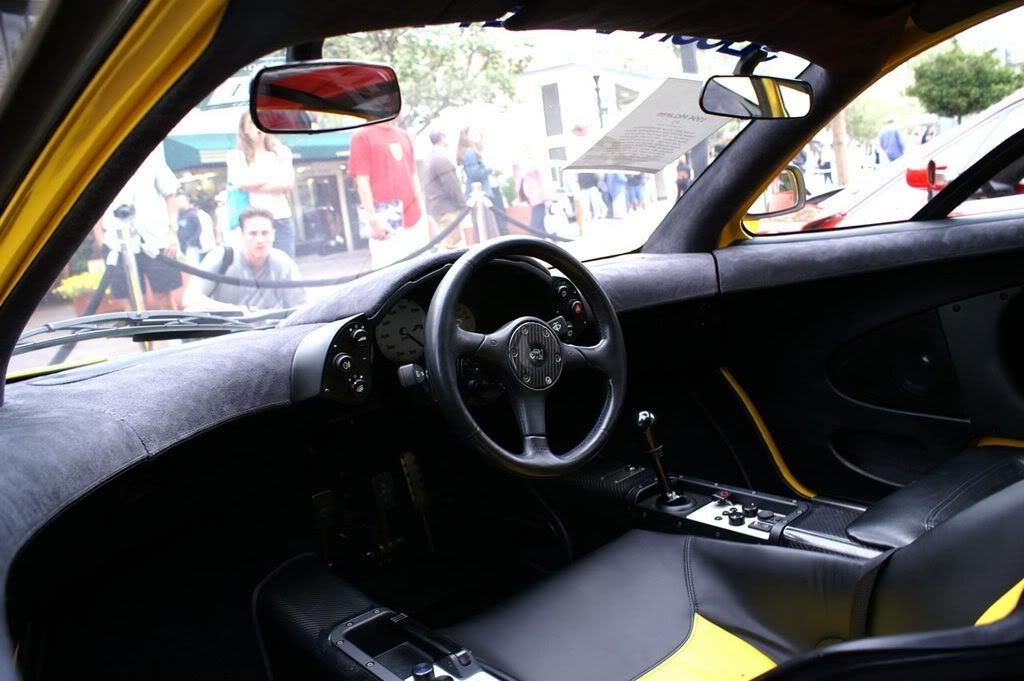

http://img.photobucket.com/albums/v2...s/PICT6862.jpg

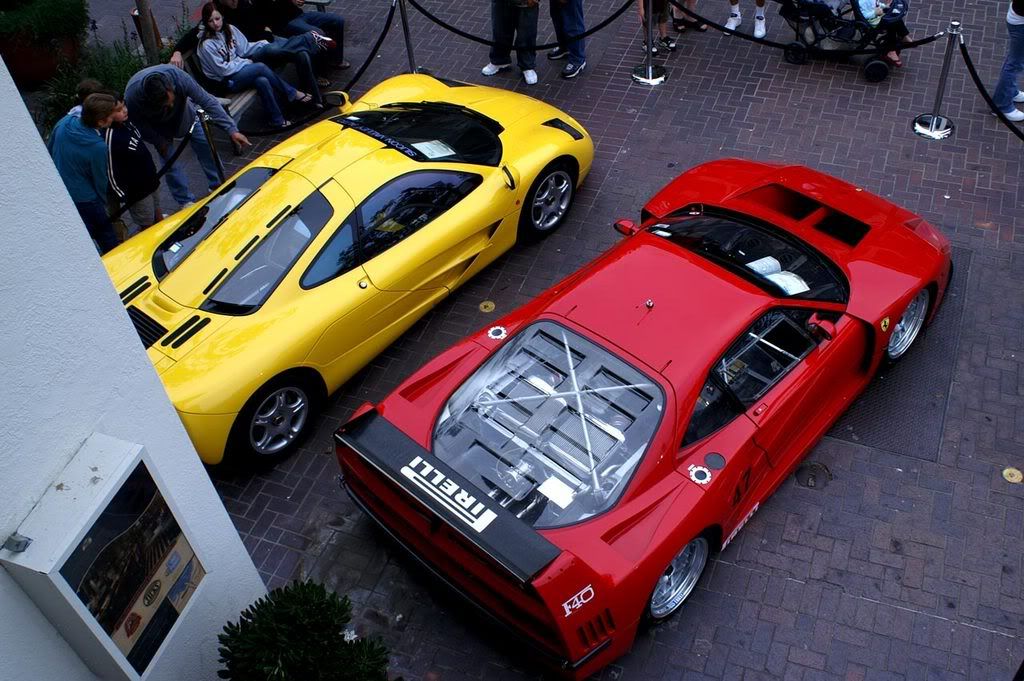

http://img.photobucket.com/albums/v2...s/PICT6868.jpg

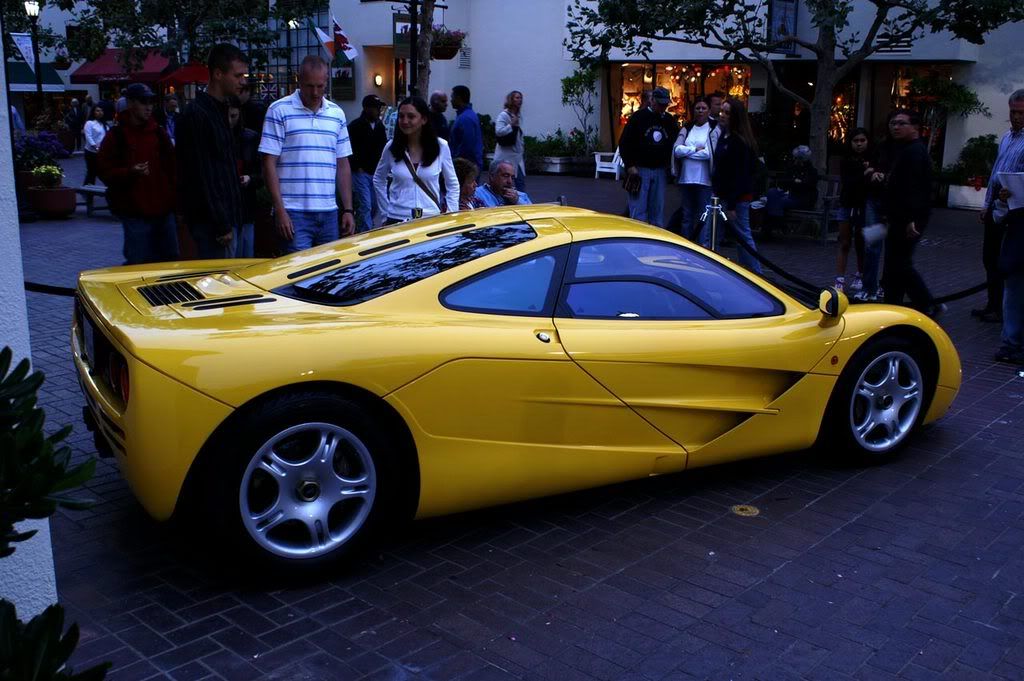

http://img.photobucket.com/albums/v2...s/PICT6936.jpg

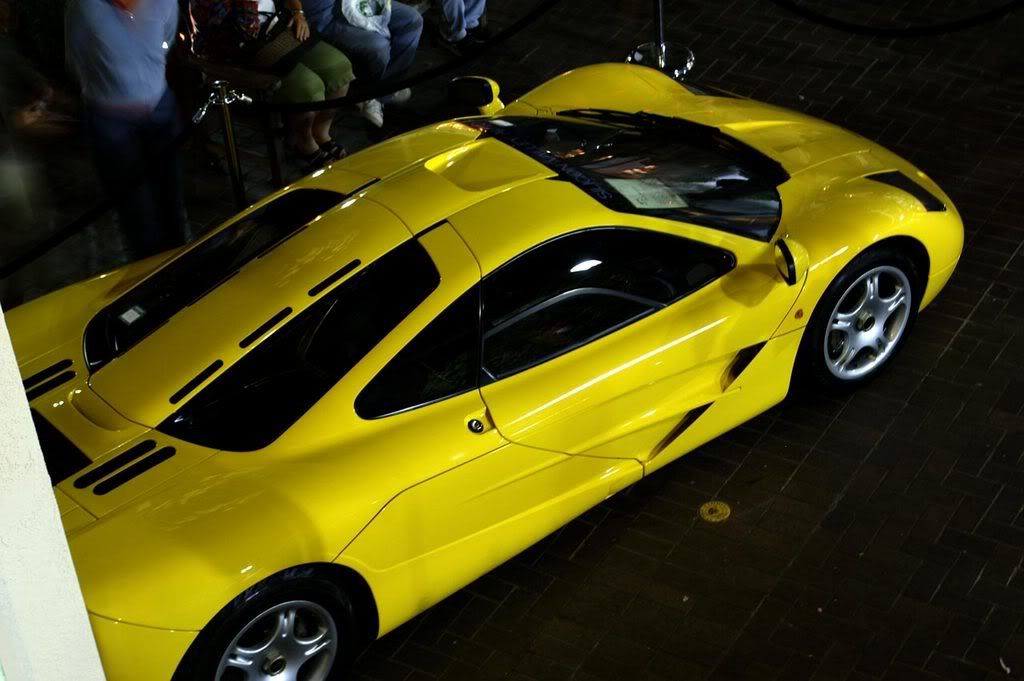

http://img.photobucket.com/albums/v2...s/PICT6946.jpg

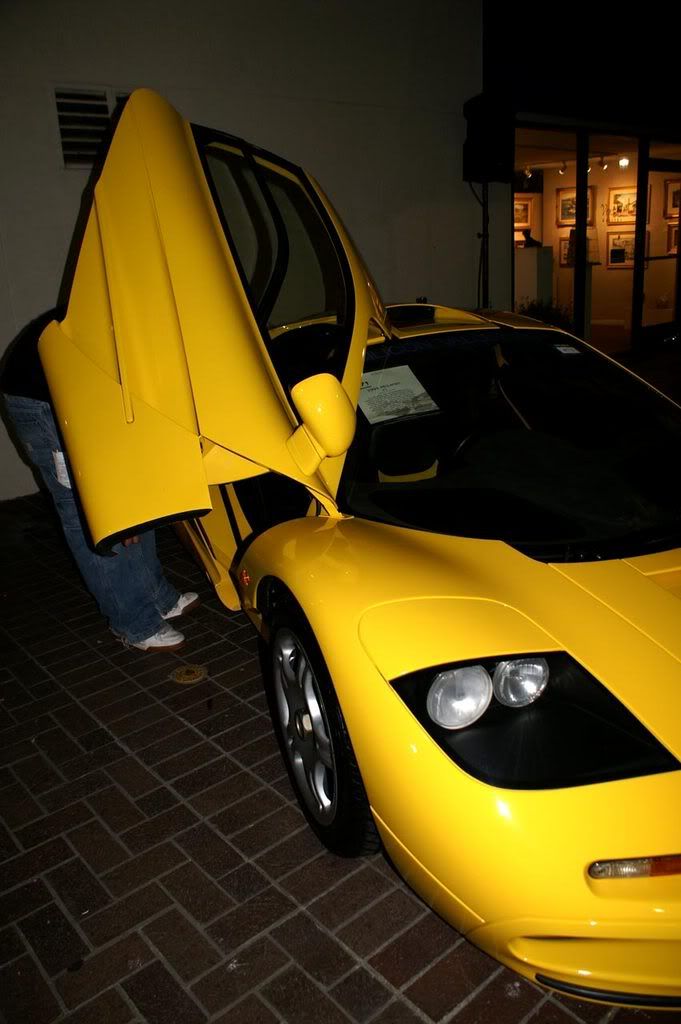

http://img.photobucket.com/albums/v2...s/PICT6952.jpg
http://img.photobucket.com/albums/v2...s/PICT6963.jpg
http://img.photobucket.com/albums/v2...s/PICT6965.jpg

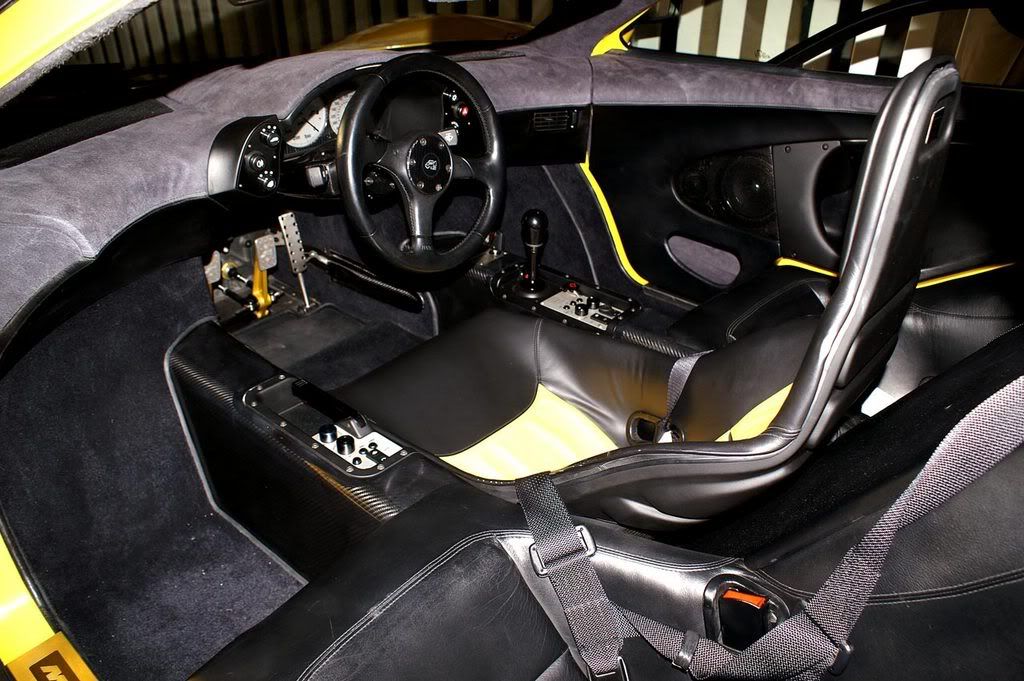

http://img.photobucket.com/albums/v2...s/PICT6966.jpg
http://img.photobucket.com/albums/v2...s/PICT6967.jpg
http://img.photobucket.com/albums/v2...s/PICT6969.jpg

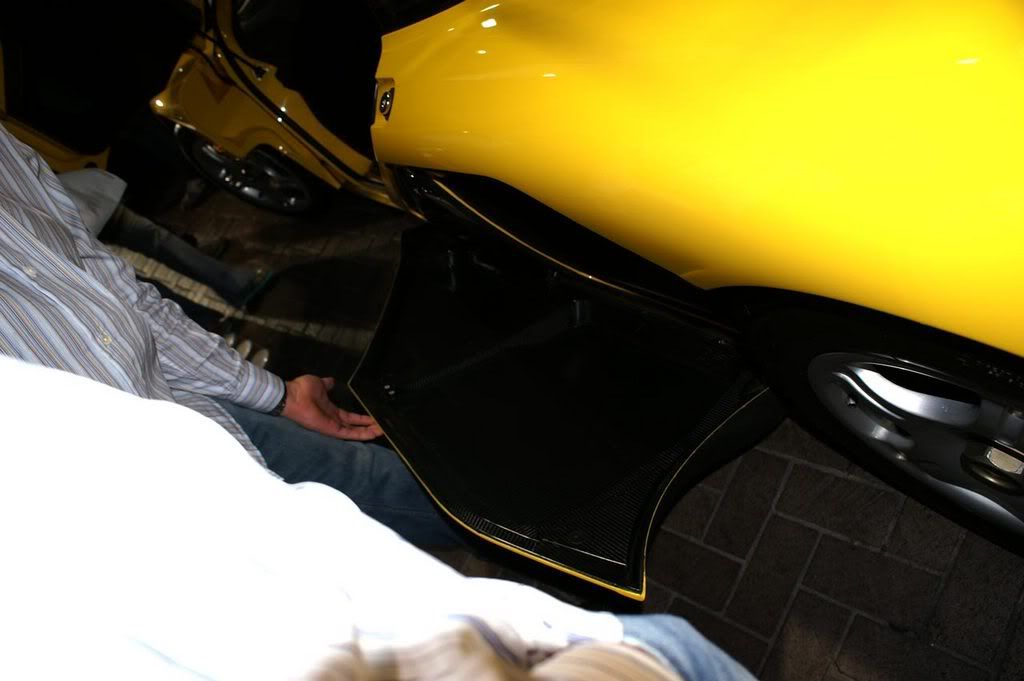

http://img.photobucket.com/albums/v2...s/PICT6971.jpg
http://img.photobucket.com/albums/v2...s/PICT6972.jpg

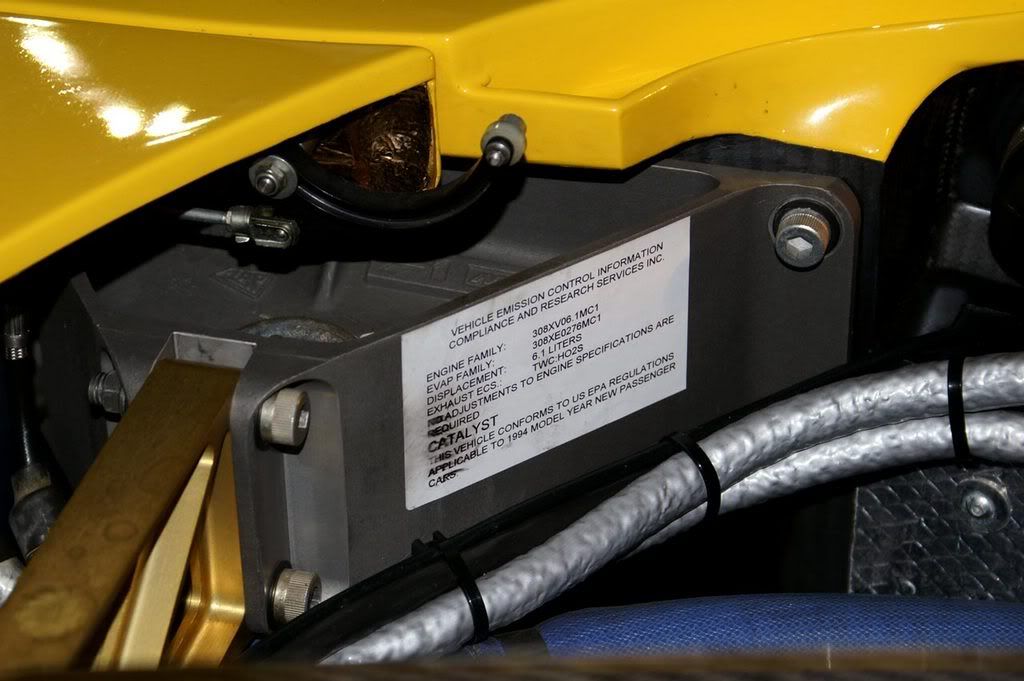

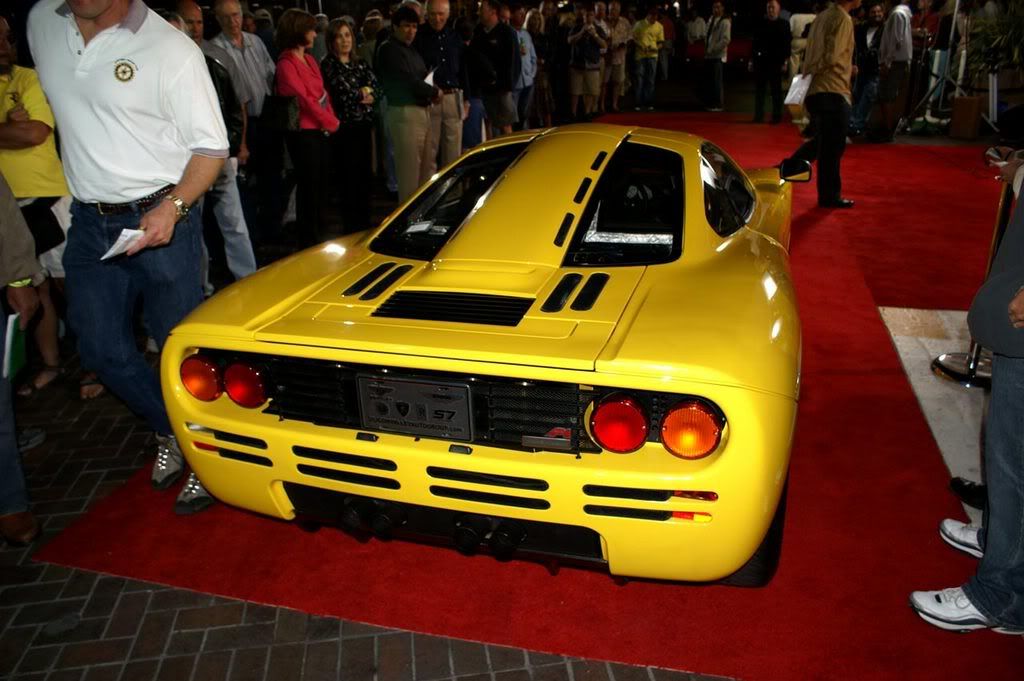

http://img.photobucket.com/albums/v2...s/PICT6978.jpg
http://img.photobucket.com/albums/v2...s/PICT6982.jpg

Fresh scan:
http://img.photobucket.com/albums/v2...6-113017AM.jpg

There you are folks, I hope you enjoy all that.

EDIT: as it turns out the comparison part of the press release doesn't look quite that good now that I've posted it, please let me know if you want a .doc file that looks a lot neater in comparison.

[hurstg01]

some nice pics there, cheers - especially the 'fresh scan'...

[Le Man]

Ace pics Sauc3,

You have six pages missing from your LM press kit and two pages of Ron Dennis,s opening speach!!

[jayfive]

Some of that press release is optomistic, sub 5 second 0-100 hmmm very optimistic. 1.2 second quicker than a standard f1 to 100 i dont think so.

[amanichen]

Those photos are particularly nice because they show the little nuances and details which normally get glossed over.

[McLaren F1 Guy]

Sweet closeup shots of #016!
