Cd Player///radio Connecting

[Street_Racing_Guy]

Hi I Was Wondering If Someone Can Give Me The Diagram To Connect My Cd Player To My 93 Honda Civic? I Need To Know What Wires Go Where From The Wiring To The Cd Player? (ex.)red/yellow Connects To ?........ To The Cd Player? Id Appreciate It If Someone Can Tell Me And I Already Used The Installdr.com And It Had Brown And White Wire For 2 Wires So Thats Not It?? Plzz Let Me Know K Ty!

[highteknology]

this is what i found...hope it helps you out.


1993 Honda Civic Stereo Information
Constant 12V+... White/Blue
Switched 12V+... Yellow/Red
Ground... Black
Illumination... Red/Black
Dimmer... n/a
Antenna Driver's Pillar

Front Speakers 6 1/2" Doors
Left Front (+)... Blue/Green
Left Front (-)... Gray/Black
Right Front (+)... Red/Green
Right Front (-)... Brown/Black

Rear Speakers 5 1/4" Rear Deck
Left Rear (+)... Blue/Yellow
Left Rear (-)... Gray/White
Right Rear (+)... Red/Yellow
Right Rear (-)... Brown/White

[Street_Racing_Guy]

hey, i just need to know what the connections are for the radio?? not the speakers or anything else.

[CivicSpoon]

Originally Posted by Street_Racing_Guy

hey, i just need to know what the connections are for the radio?? not the speakers or anything else.

Those are the wires for the radio/cd player. If that's not what you're looking for, then you need to be more specific as to what you're looking for. You've got powers and a ground, the antenna, and the wires to the speaker...that's it.

[Street_Racing_Guy]

i basically need to know what wires go where because my regular radio harness is cut off and i want to install a cd player now i need to know what wires on the cd player clip connects to the cars harness? ex. red/yellow connects to what color on the cd players clip?

[CivicSpoon]

Look in the CD players manual or on their web site. What deck is it (brand)?

Edit: This might help, these are off my Premier/Pioneer:
(CD Player - Car Harness)
Red - Yellow/Red: Ignition On 12V
Black - Ground or Black obviously
Yellow - White/Blue: Constant 12V
Orange/White - Red/Black: Illum

[Street_Racing_Guy]

its a panasonic

[CivicSpoon]

Dude...stop making threads of the same exact thing. You only need 1 thread, not 3. It's not going to get you help any faster by creating so many (especially when you already have one in this forum)


How the hell is anyone supposed to know what color wires you have on the plug off the cd player. How about you look at them and let us know. All the wires that have both a solid color and that same color with a black stripe; those are the speaker ones. There should also be a black one (ground), but what are the other colors? Give us a little more info if you want help, stop being so damn vague. Not all CD Players come with the same colors, that's all from the CD player manufacturer.

[Street_Racing_Guy]

hey its not for me its for my cousin ok so chill the hell out!!! im just tryin to help him ok so chill! LOOK HERE ARE THE COLORS TO THE CD PLAYER PLUG-IN HARNESS-----(BLUE), (BLUE/WHITE), (BROWN/WHITE), (GRAY/BLACK), (WHITE/BLACK), (GRAY), (WHITE), (YELLOW), (RED), (GREEN/BLACK), (GREEN), (PURPLE/BLACK), and (PURPLE)-------- those are the cd player plug in harness wires that he needs to connect. its a 1993 honda civic. im sure you know the honda ciivc colors if not then here it is........HONDA CIVIC FACTORY HARNESS COLORS--- (BROWN/WHITE), GREY/WHITE, BLACK, GREY/BLACK, BROWN/BLACK, RED/YELLOW, BLUE/YELLOW, YELLOW/RED, WHITE/BLUE, RED/BLACK, BLUE/GREEN, RED/GREEN,------- there are the colors to the 1993 honda civic factory car harness-----ok let me know if you know anything. ALSO THOSE ARE THE WIRES THAT I HAVE TO CONNECT OK TY!

[highteknology]

alright this is how you figure out...get a better attitude...then look on the back of the radio you want to install and it should have what wires are for each component (i.e. speakers). so you take those two wires, the + and - and connect them the respectable wires in the car...so for EXAMPLE, if the rear right
speaker is green and green/black connect the green(+) to the red/yellow wire (+ coming from the car)...remember i am just pickin these at random (except for the red/yellow wire because of the wire diagram up above) look at the radio and figure out what wires are for what, if they aren't on the radio look in the manual and if not there then look online at the manufacturer's website. you should be able to find it somewhere. hope this helps.

[Street_Racing_Guy]

Thank You For Trying!

[CivicSpoon]

Do you need 4 fucking threads about 1 question??? Delete your other threads, they are pointless. Making more than 1 thread will 1)get you banned or warned by a moderator 2)get all your threads deleted, 3)not get you anymore help. Here's your answers dipshit...

(CD Player - Civic Harness)

Front Left Speaker
White - Blue/Green +
White/Black - Gray/Black -

Front Right Speaker
Gray - Red/Green +
Gray/Black - Brown/Black -


Rear Left Speaker
Green - Blue/Yellow +
Green/Black - Gray/White -

Rear Right Speaker
Purple - Red/Yellow +
Purple/Black - Brown/White -

Constant Power
Yellow - White/Blue

Ignition On
Red - Yellow/Red

Ground
Black

Other
Red/Black - Dimmer
________________________________
Not Positive on these wires...

CD Player Side:
Blue = Power Antenna
Blue/White = System Remote Control
Brown/White = Dimmer???

[Pavlo]

I needed this too, some usefull information.
Thank you.
PS: are the wires in '94 Civic EX use the same color codes?

[CivicSpoon]

Yes, all the '92-'95 Civics are the same (even my CX that doesn't come with rear speakers, has the wires for them already there).

[CivicSpoon]

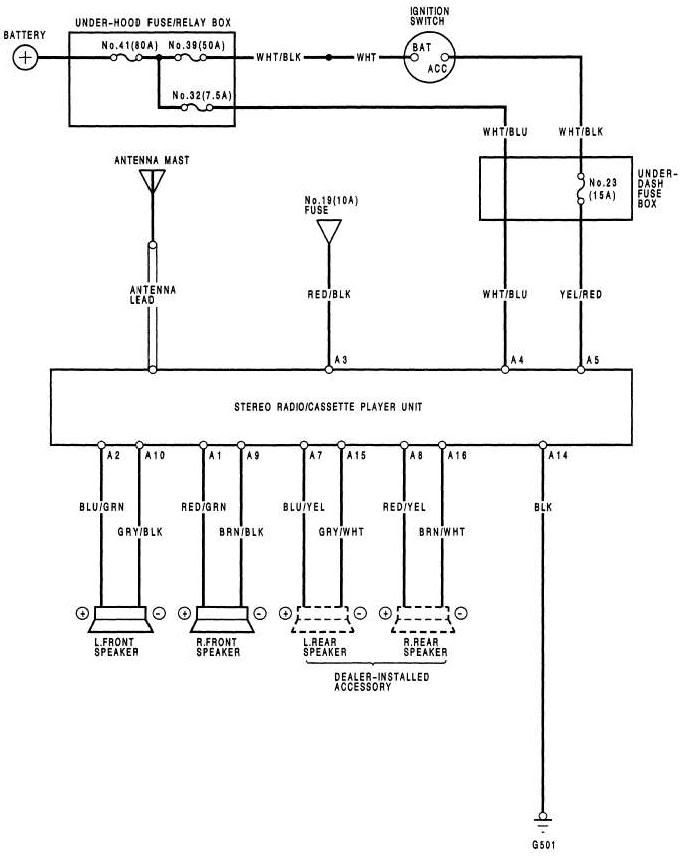

Also these diagrams might help someone (straight from a service manual):
http://img.photobucket.com/albums/v4.../CDPlayer1.jpg
http://img.photobucket.com/albums/v4.../CDPlayer2.jpg
