Yet another supra

rebirth215 · #1 09-14-2009, 02:19 AM

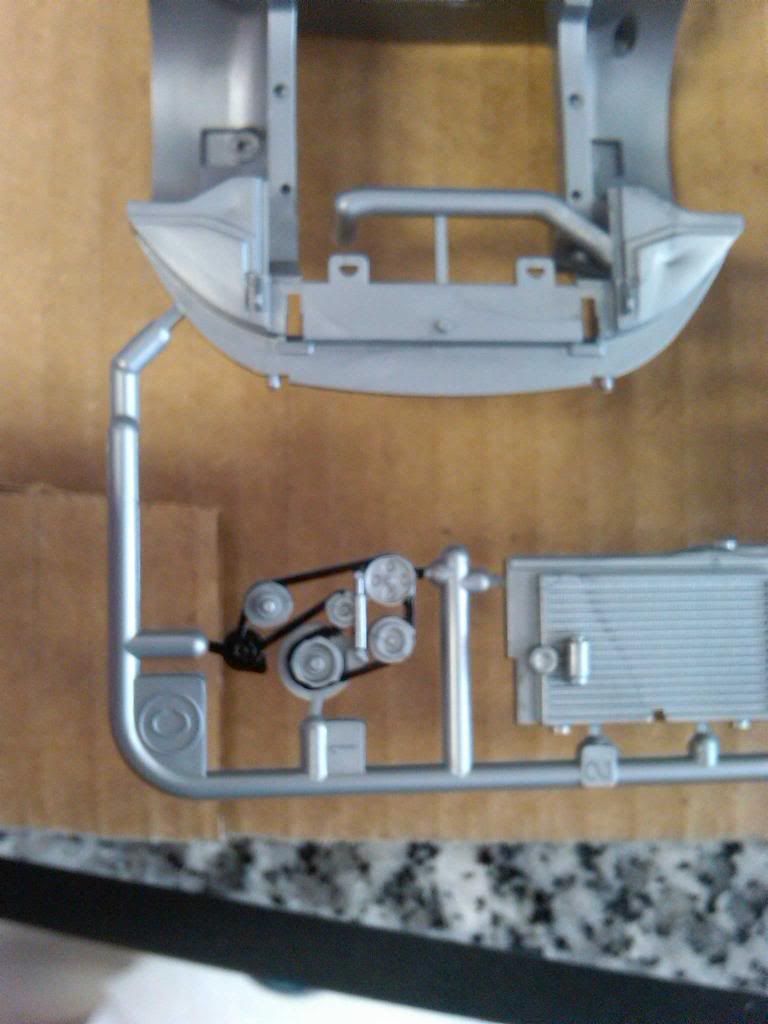

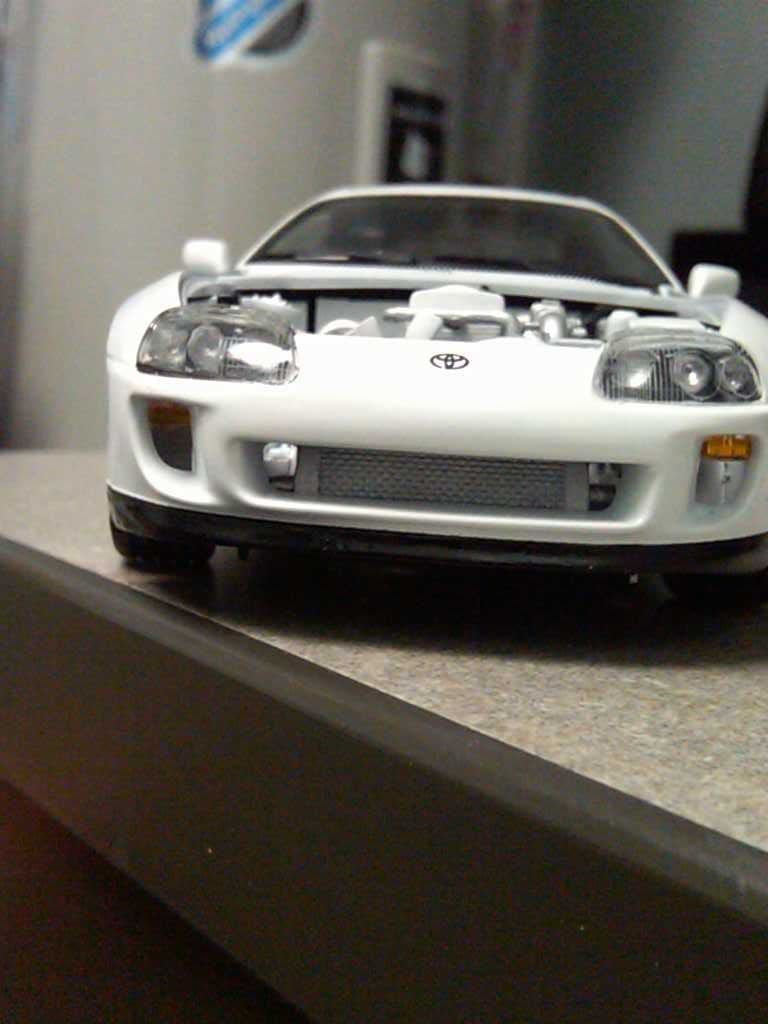

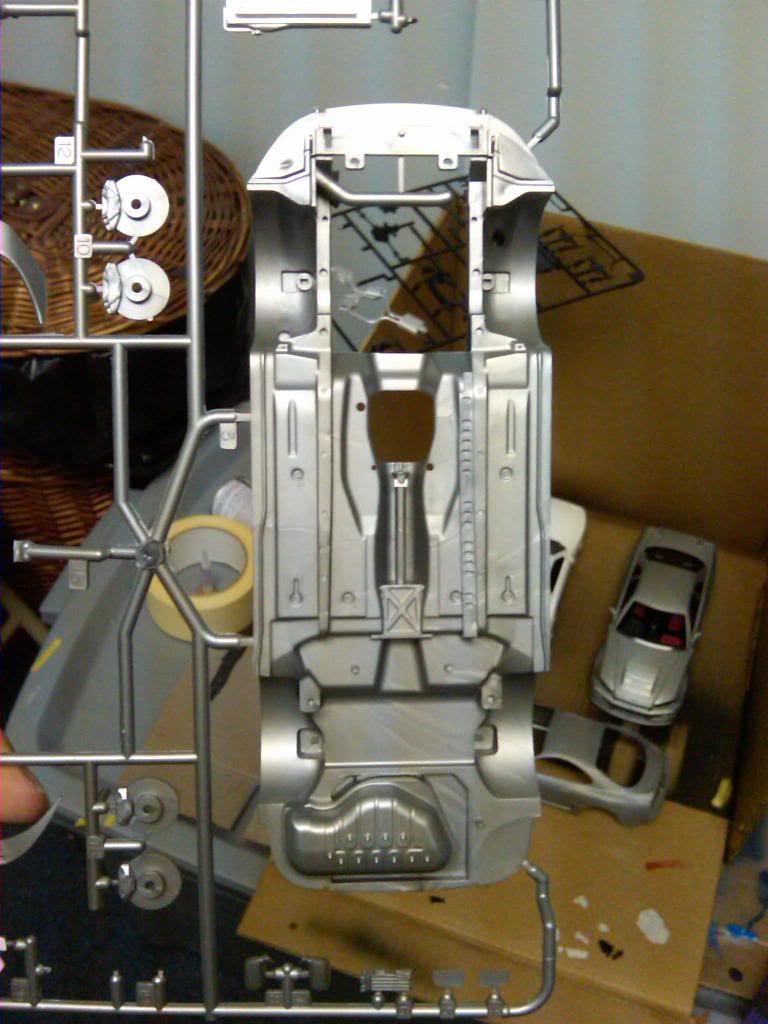

Hi AF people I am new to this whole modeling thing. I have been working on a tamiya supra for the pass couple of months. I started out building the car stock but got bored of it so I started to messing around with moding the turbo and intercooler and this is the out come. Tell me wat you think please feel free too comment. Sorry Im still trying to figure out how to add picture to this thread but here the link to see the picture http://photobucket.com/mk4

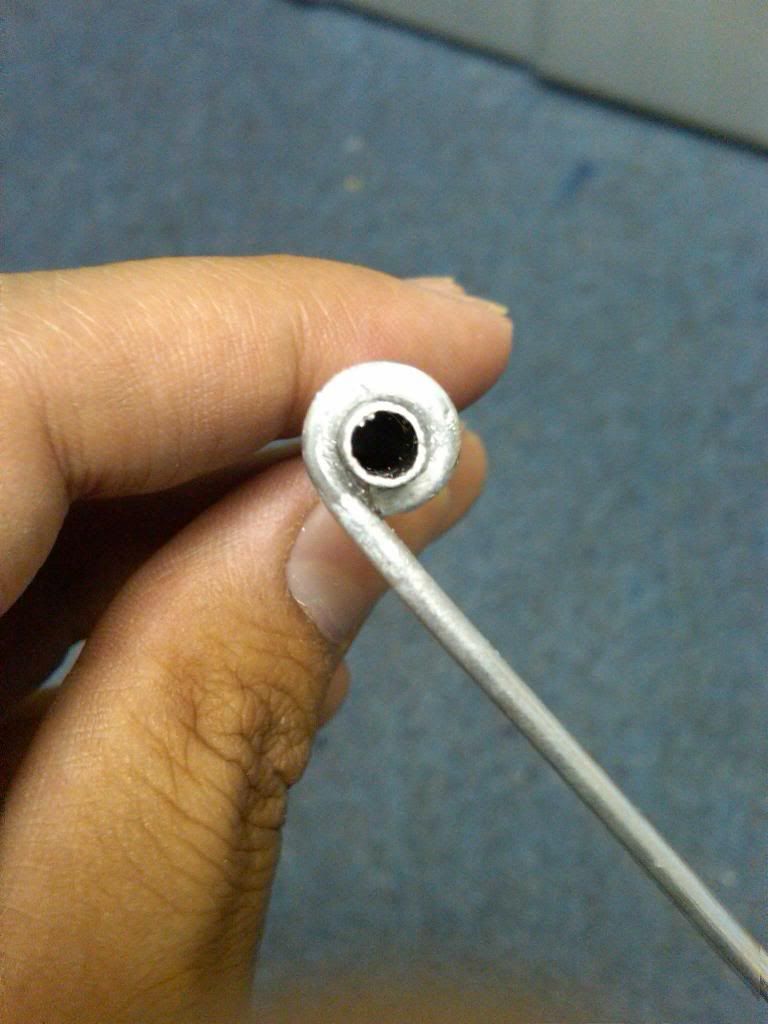

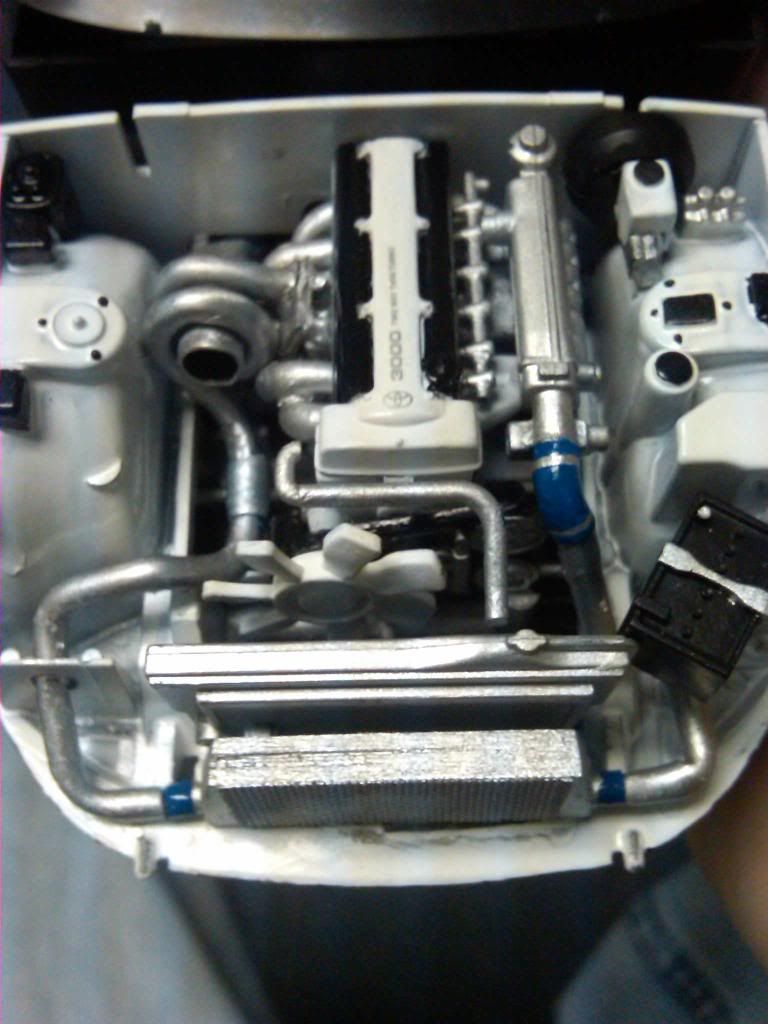

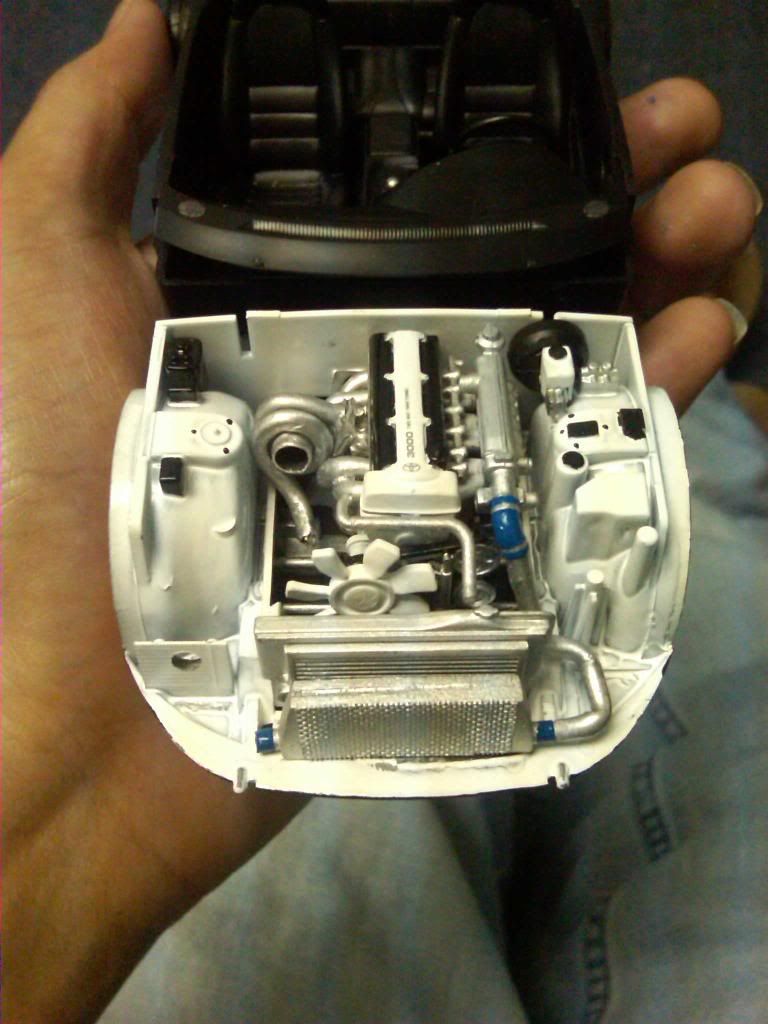

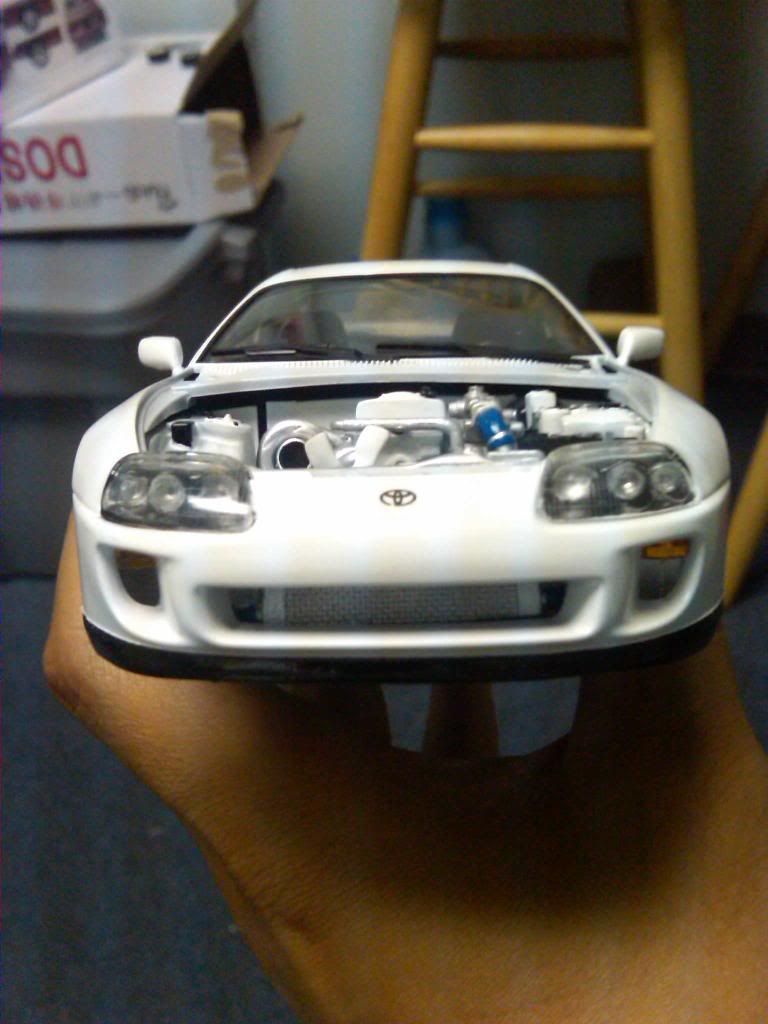

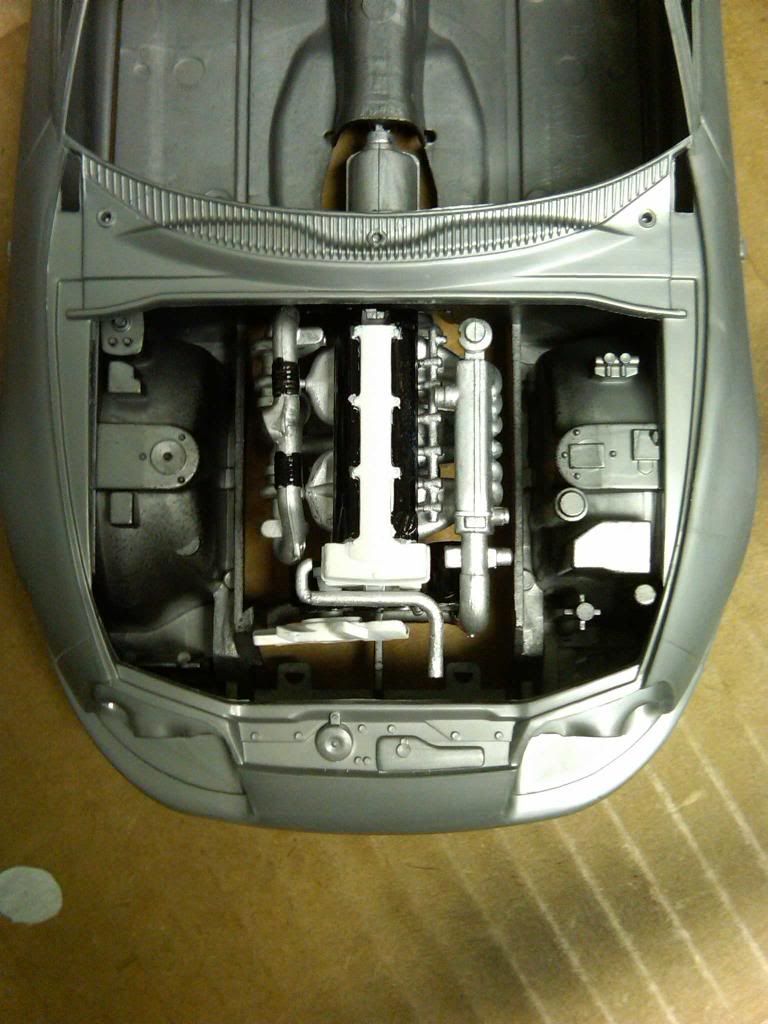

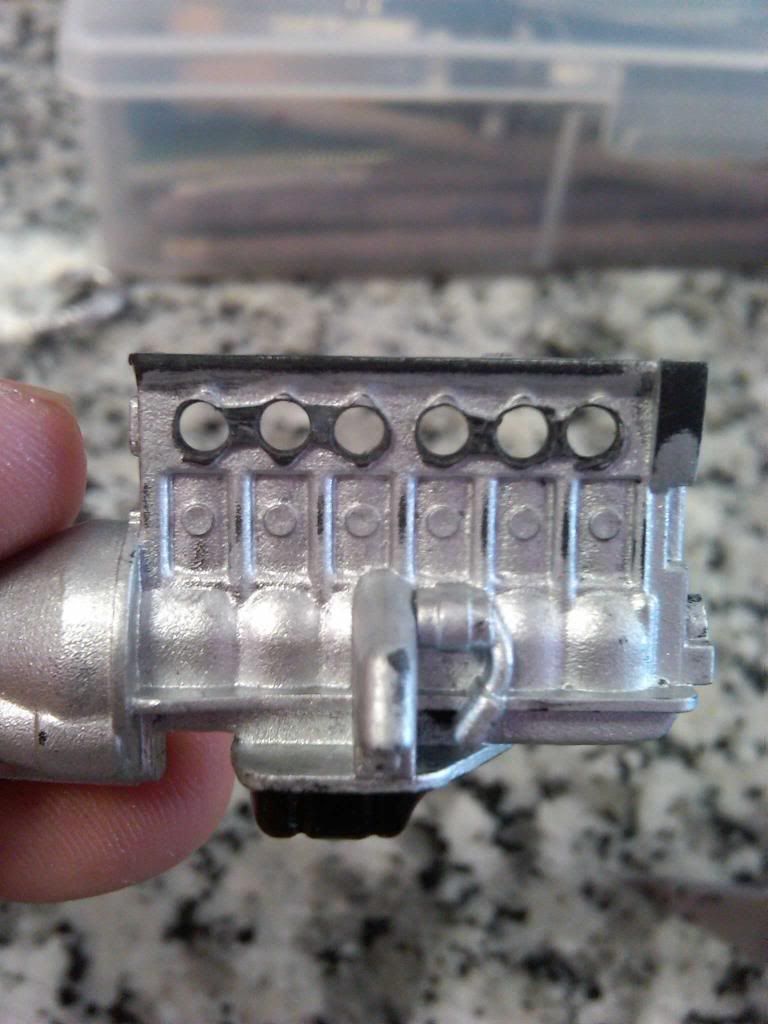

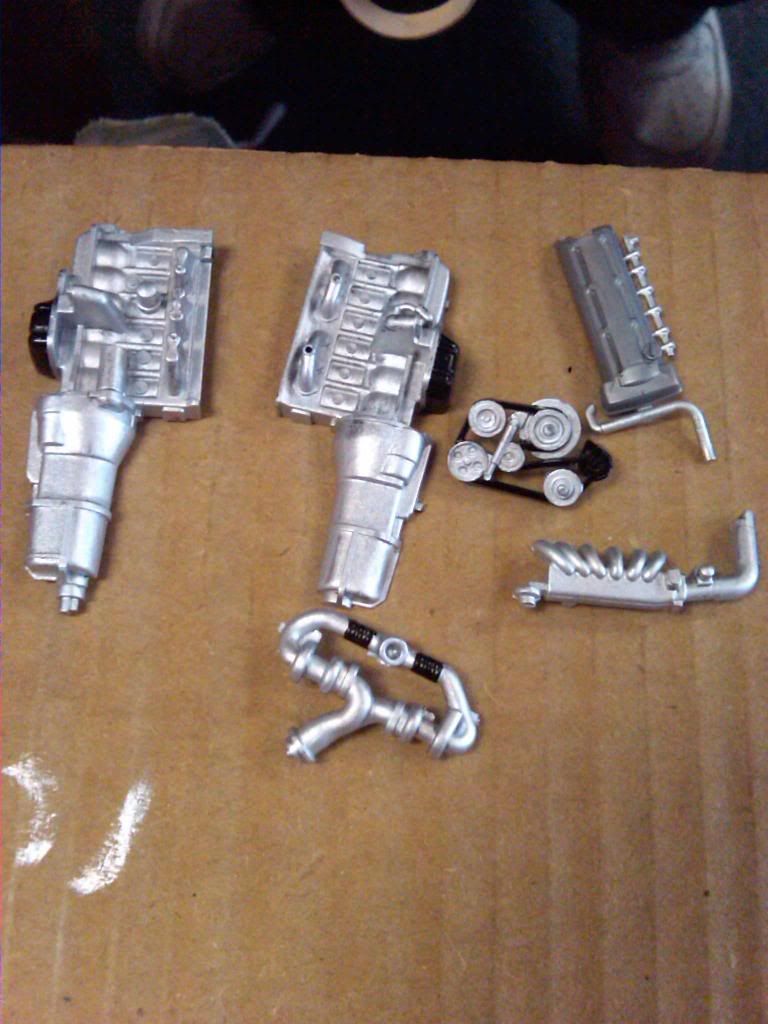

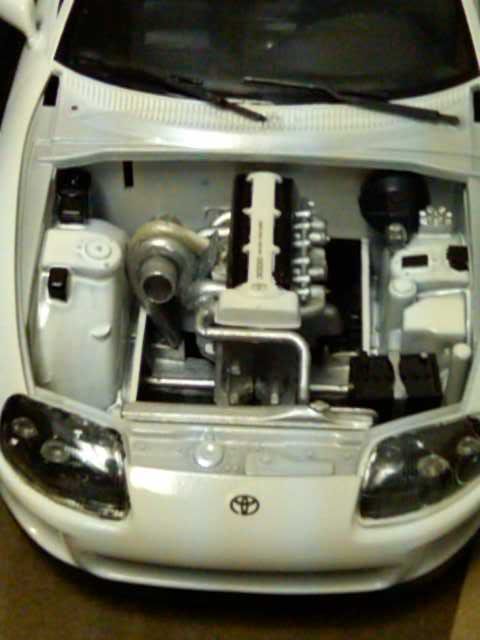

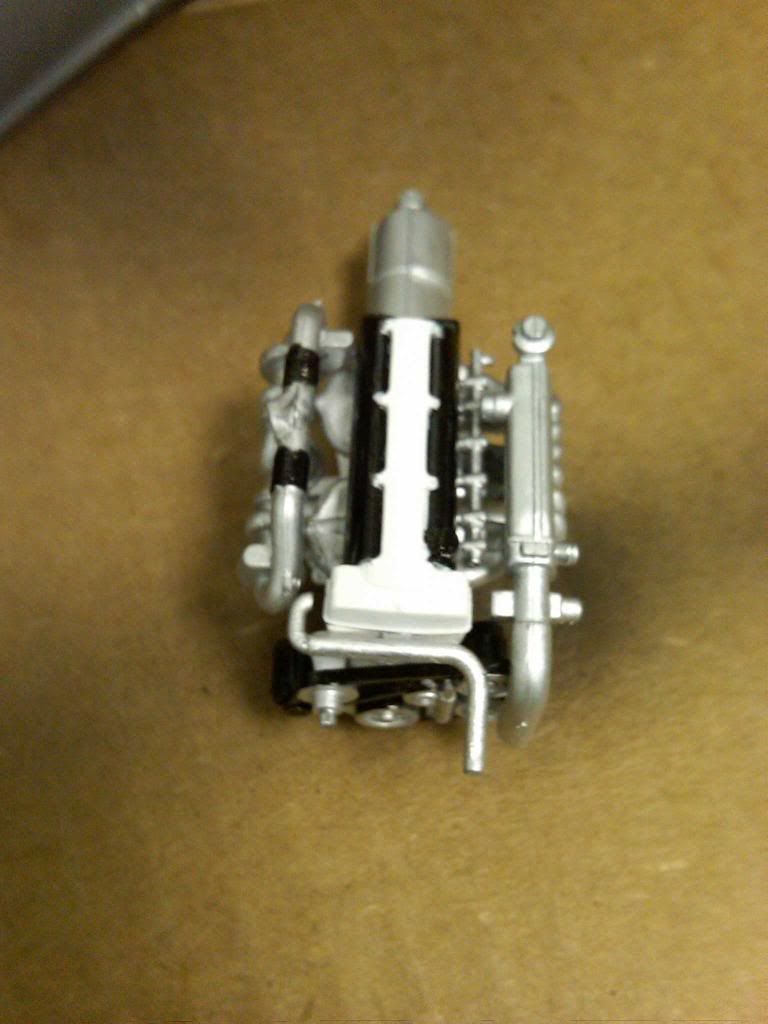

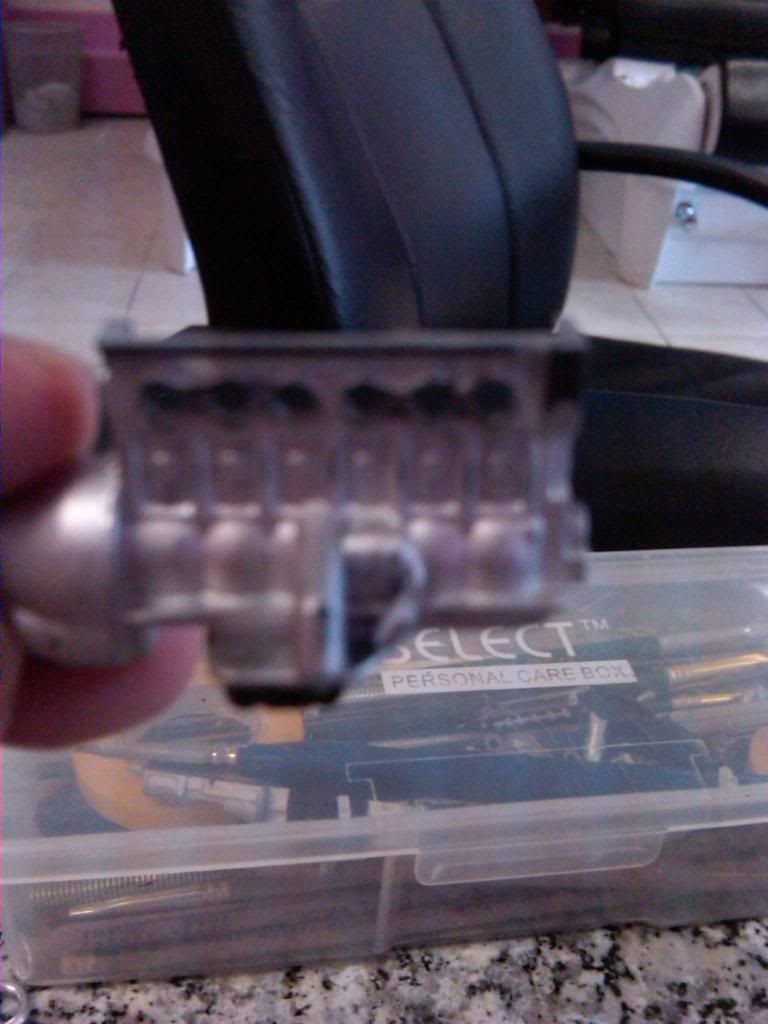

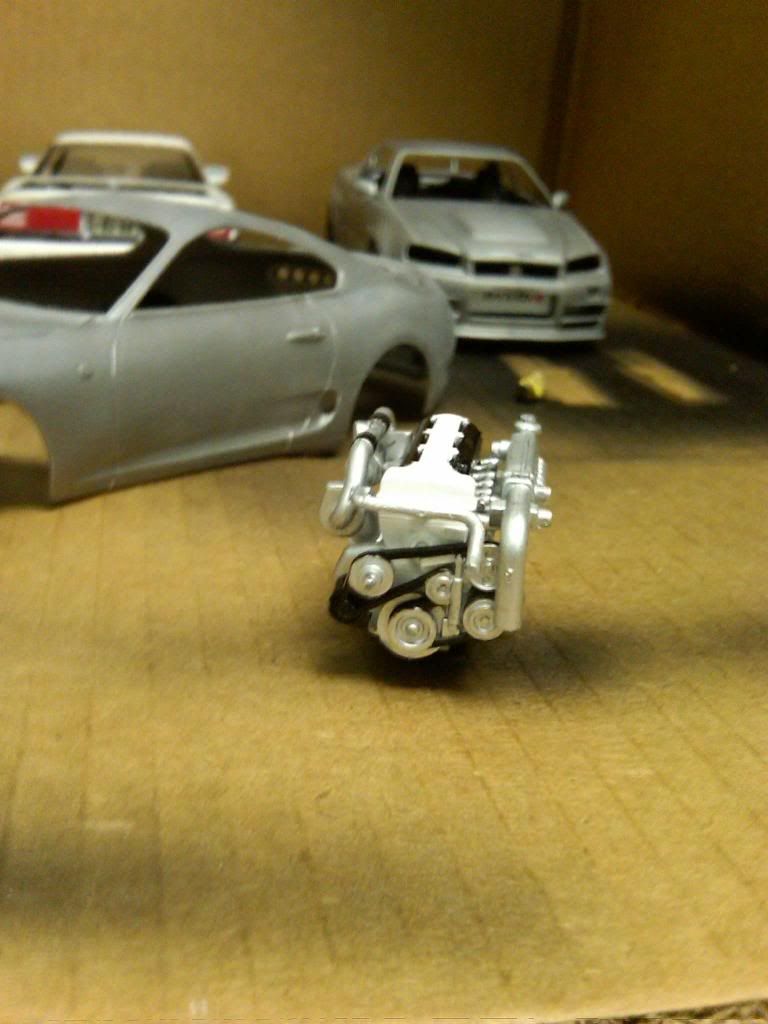

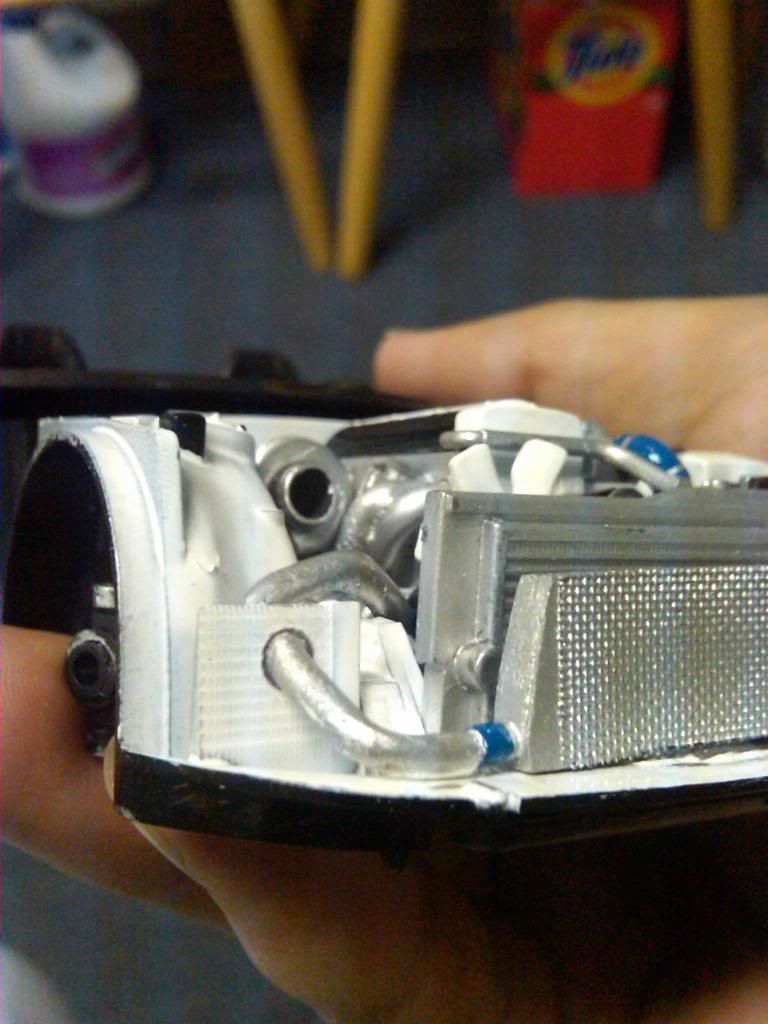

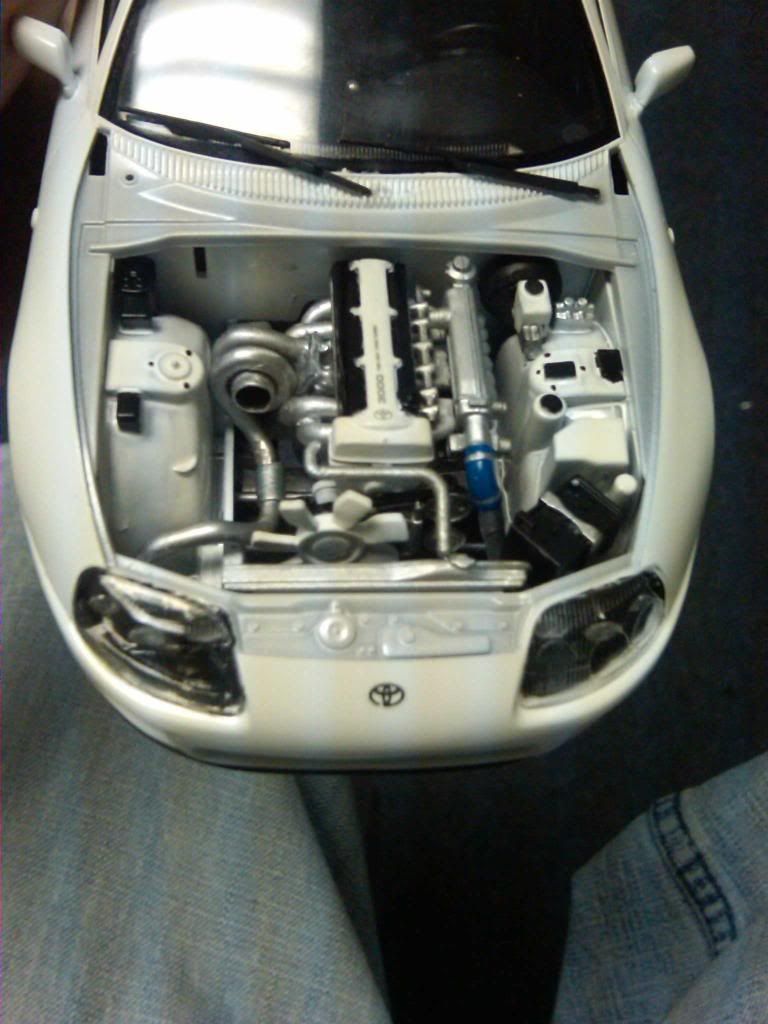

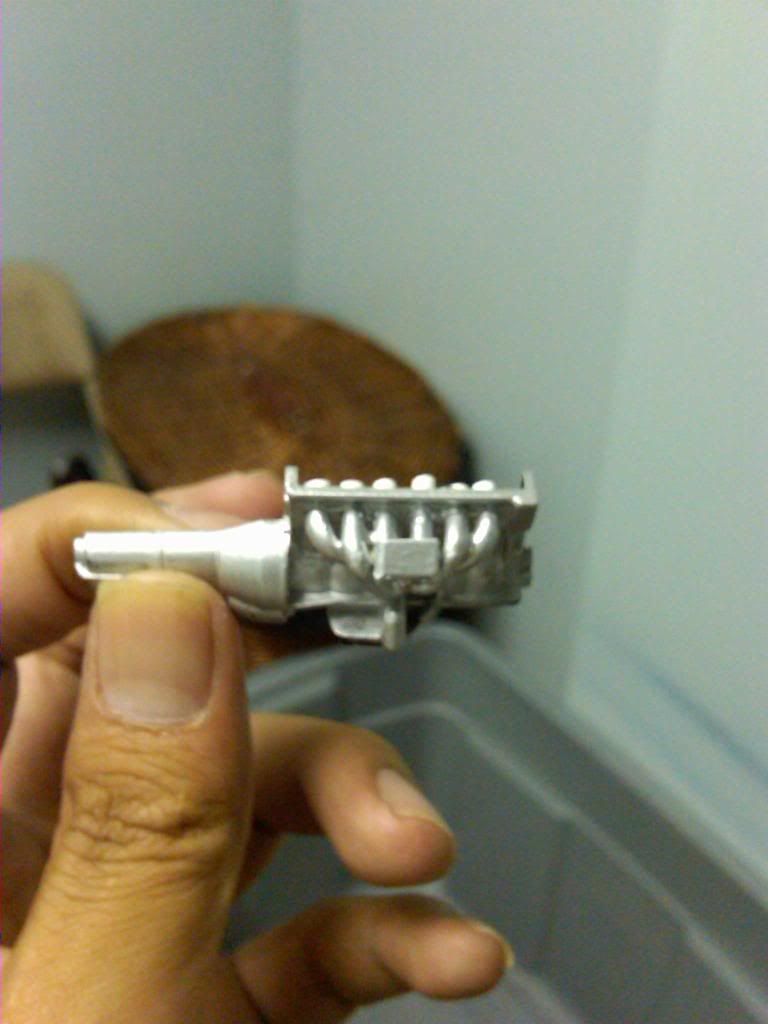

So this is where things got interesting I decided to do a single turbo setup. I cut off the stock manifold and build my own, ran some tubing

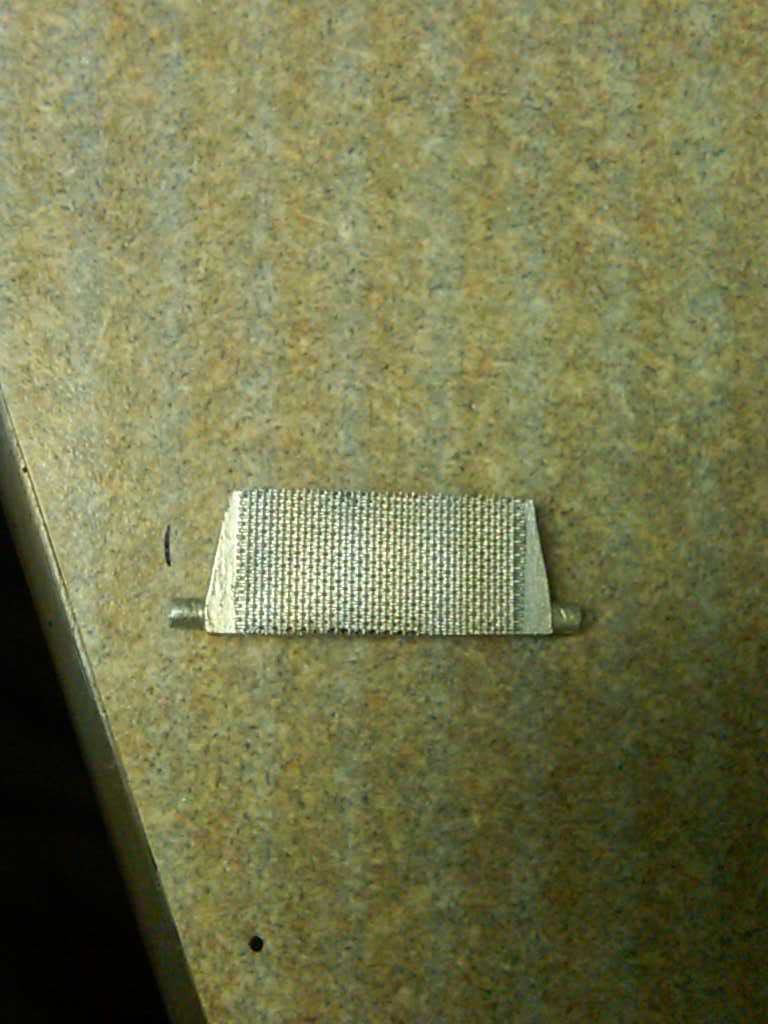

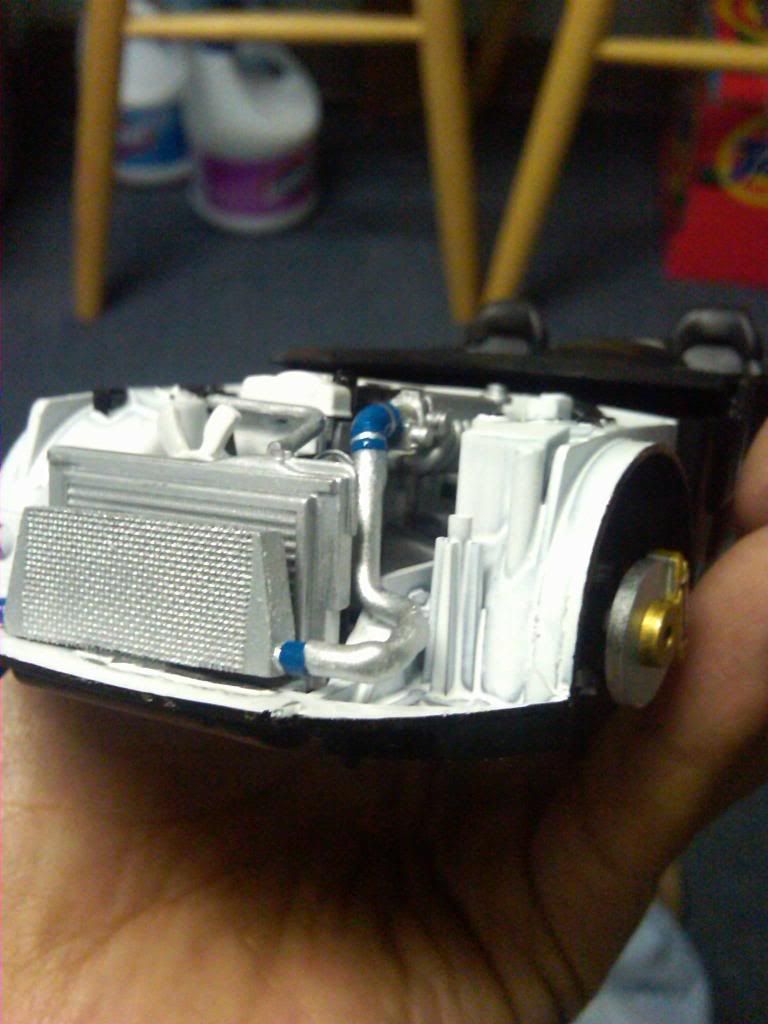

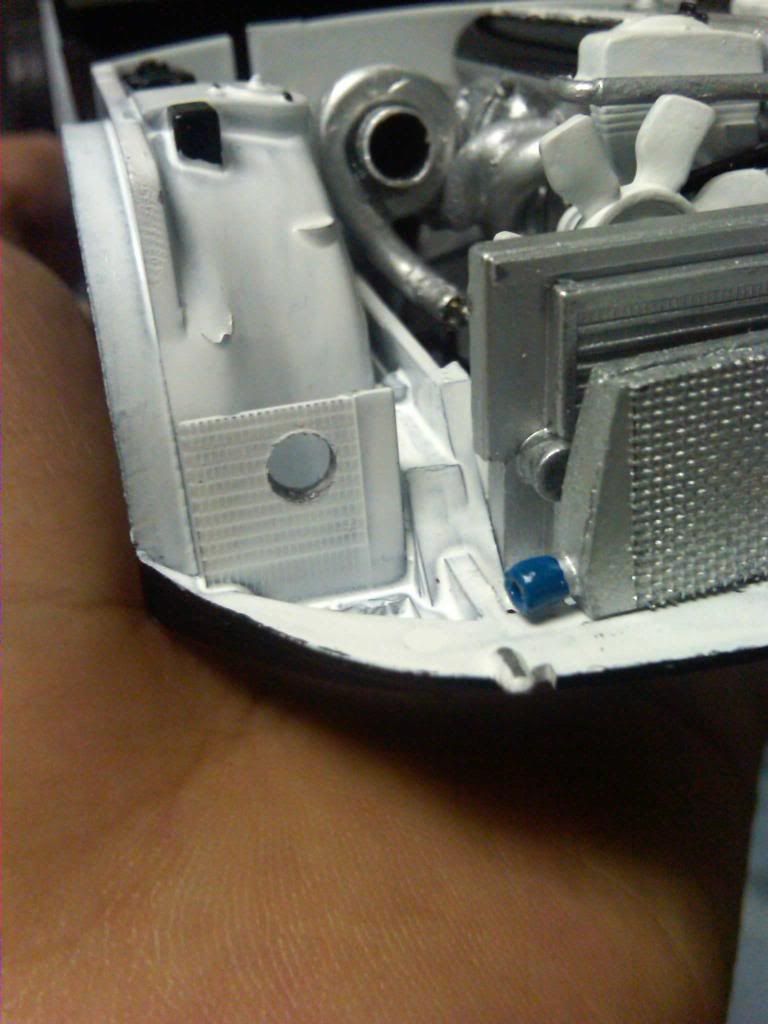

and build a intercooler as well.

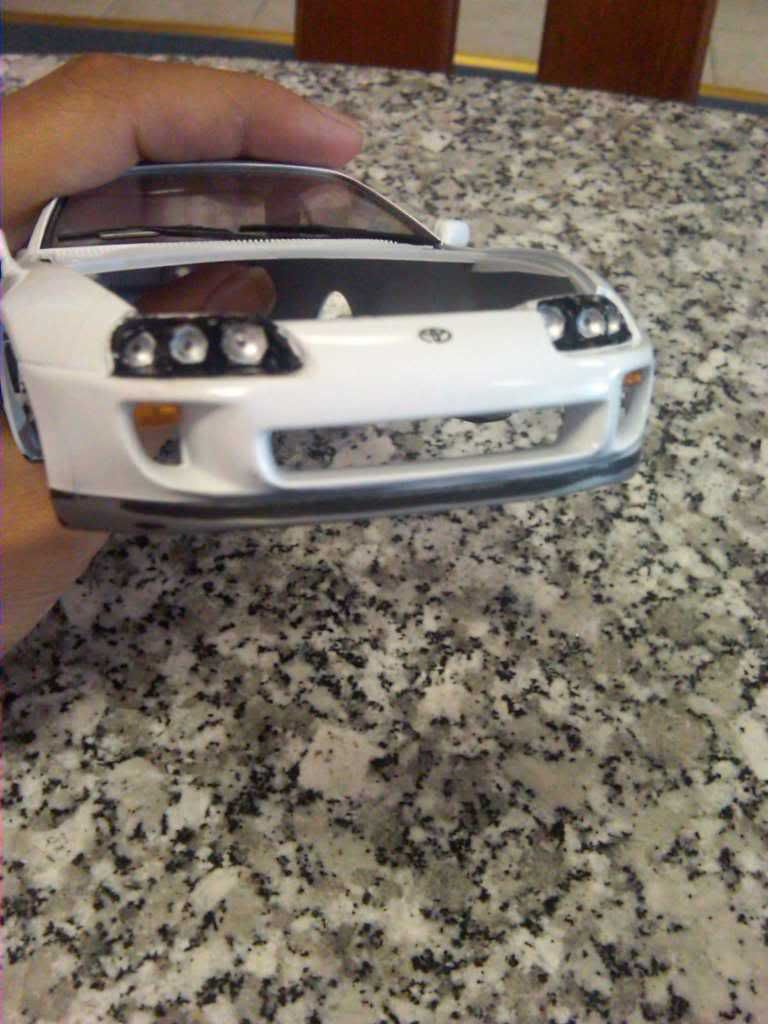

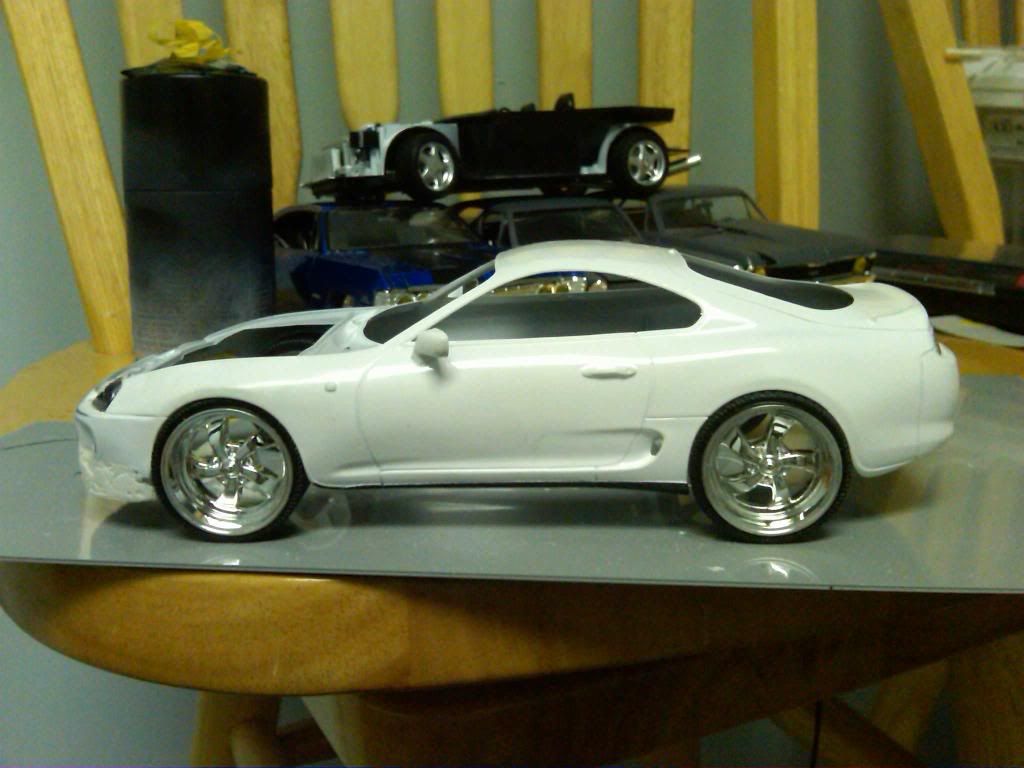

So thats what I got so far. Tell me wat you think. My next plan is to maybe building a lip or a full body kit.

xpeed · #2 09-14-2009, 03:48 AM

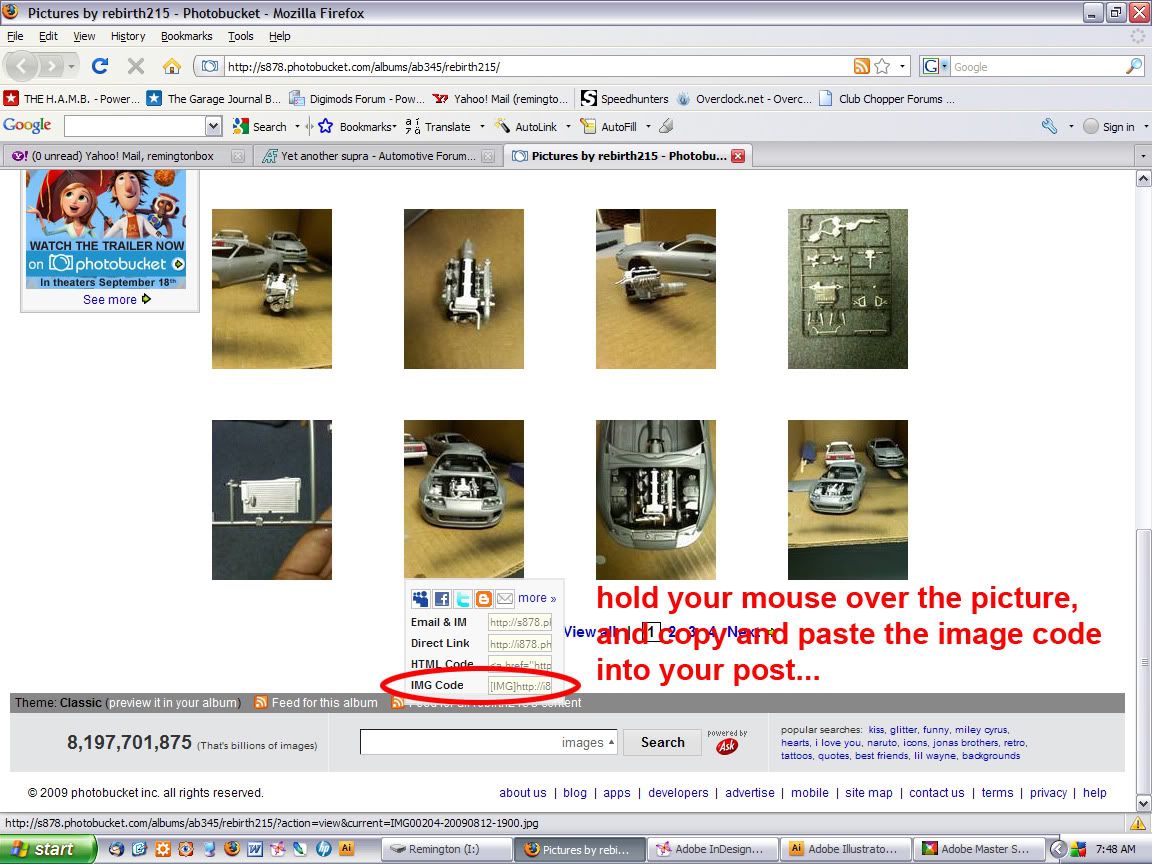

Post it here instead of outside linking it. You will get responses if you do.

remingtonbox · #3 09-14-2009, 09:58 AM

rebirth215 · #4 09-14-2009, 11:11 AM

ok thanks

Quote:

Originally Posted by xpeed

Post it here instead of outside linking it. You will get responses if you do.

rebirth215 · #5 09-14-2009, 03:11 PM

thanks pal

Quote:

Originally Posted by remingtonbox

rsxse240 · #6 09-14-2009, 07:36 PM

For a beginner, it's looking quite nice. Keep up the good work.

ravan17 · #7 09-14-2009, 11:48 PM

lookin good man.

a couple of things i would like to point out though being a real life supra owner/enthusiat:

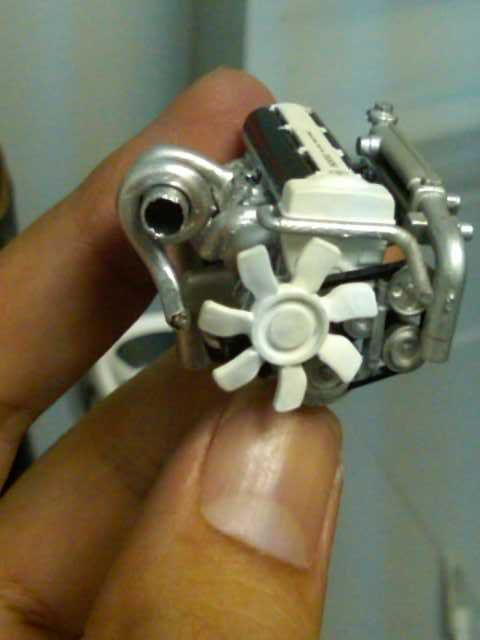

1: for realism purposes the turbo is positioned back wards ...if that makes any sense... the outleft of the compressor housing sits to the right, not left like you have it, this is because of the way the exhaust flows into the ehxaust housing making the turbine sping Clockwise if looking at it from the front of the car, the way you have it set up would not flow any air if it makes any sense

2: the supra block is no aluminum, meaning it wouldnt be silver in color, but rather black, when i build these tamiya models i leave the block the color it comes in , black, but paint the cylinder head portion as well as the oil pan portion in aluminum silver.

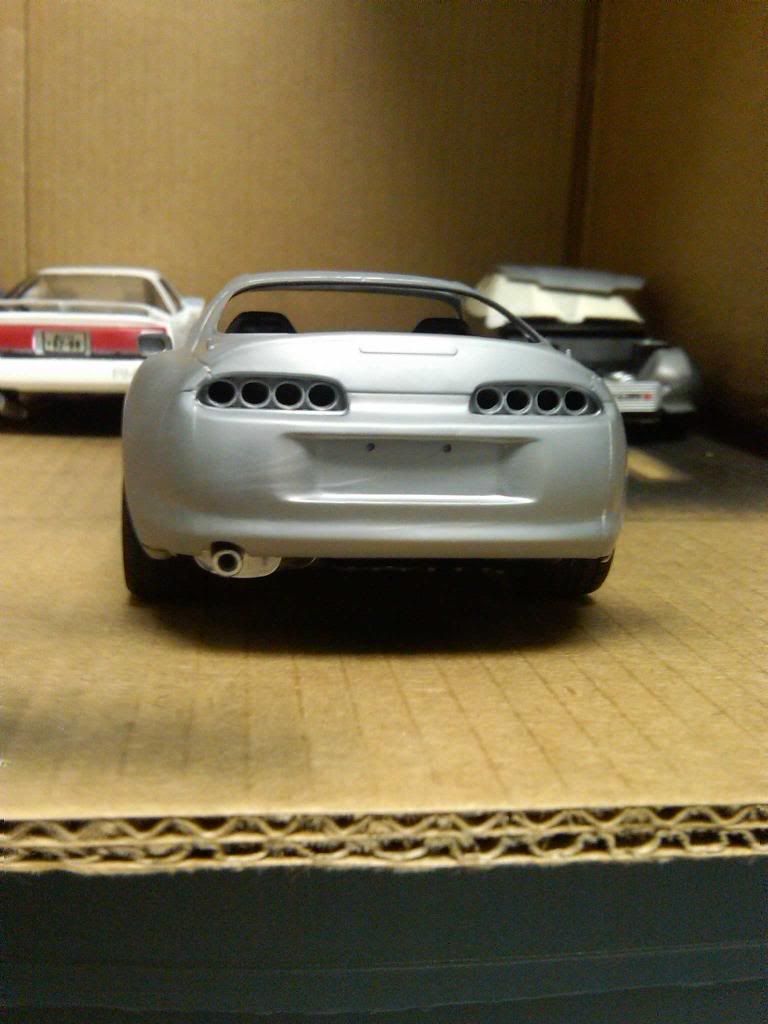

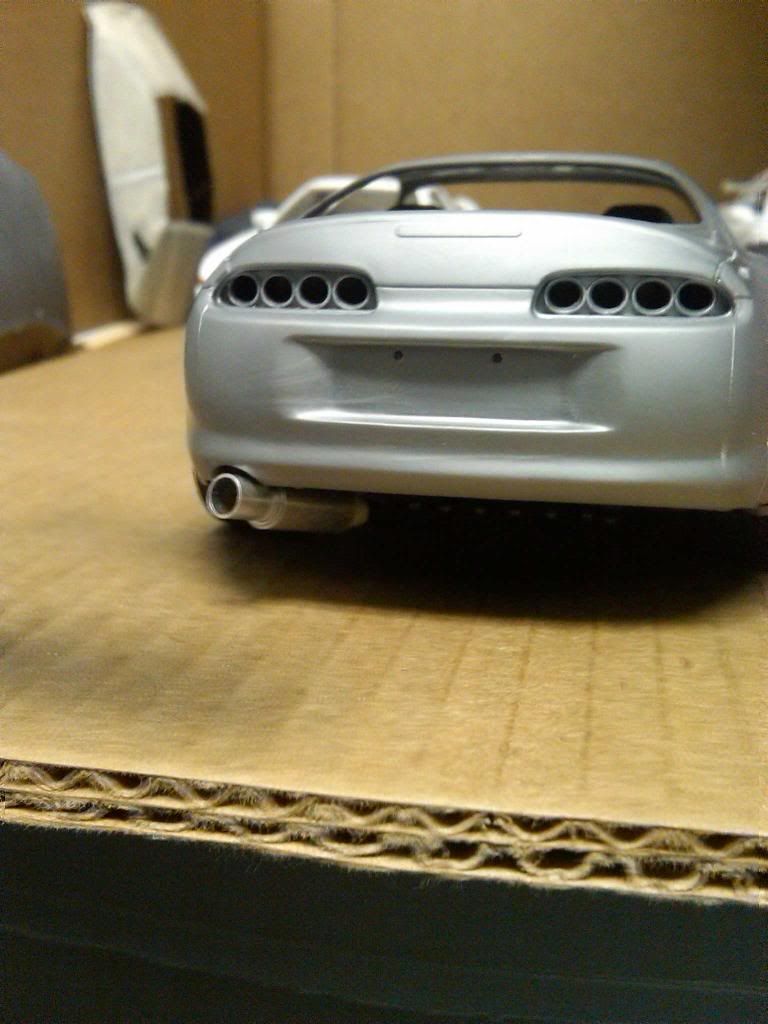

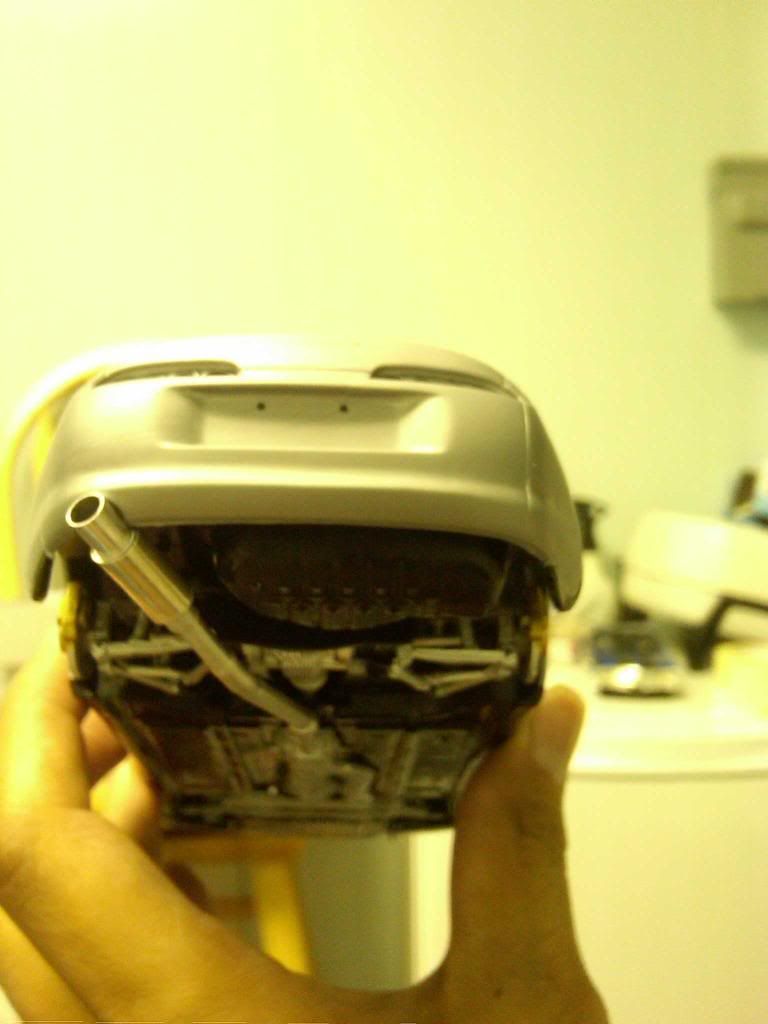

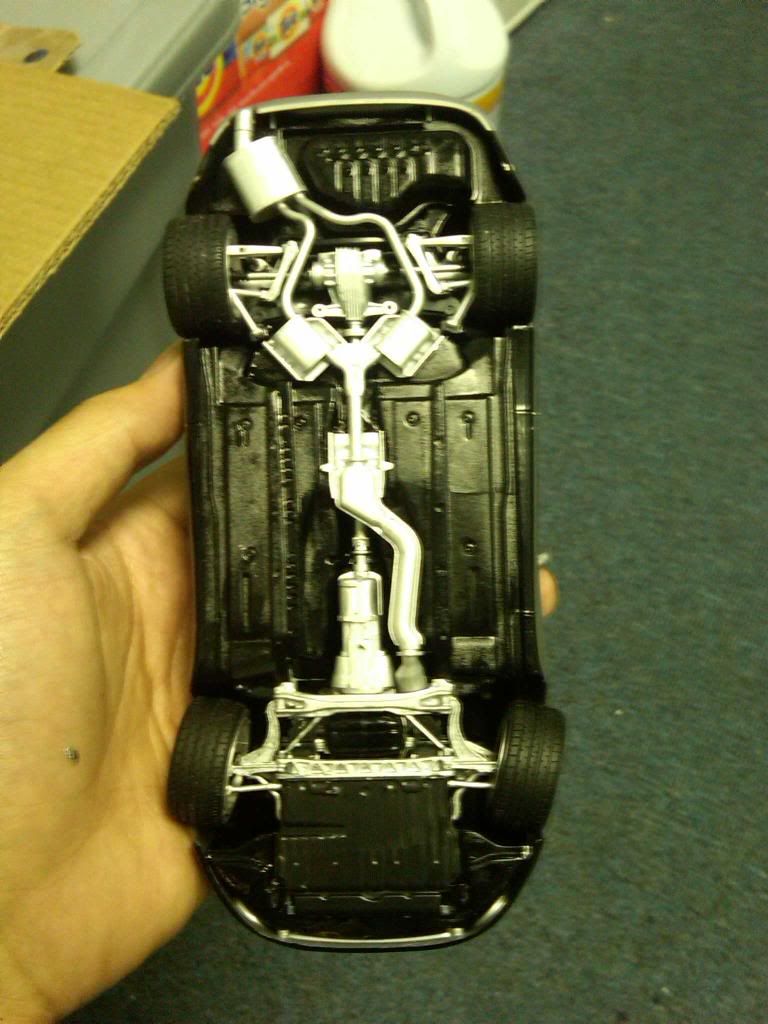

i really like the way the exhaust looks.

rebirth215 · #8 09-15-2009, 12:29 AM

Thanks for the comment. I own a supra myself (87 MKIII). I didnt catch the backward turbo untill I waz finished with it thanks for pointing that out. Ill correct that when im done with the body. As far as the engine block I wanted it to show some detail so I painted it aluminum thinking it was gray but it turned out ok. I am still trying to figure out how to build a BOV do u have any ideas??

Quote:

Originally Posted by ravan17

lookin good man.

a couple of things i would like to point out though being a real life supra owner/enthusiat:

1: for realism purposes the turbo is positioned back wards ...if that makes any sense... the outleft of the compressor housing sits to the right, not left like you have it, this is because of the way the exhaust flows into the ehxaust housing making the turbine sping Clockwise if looking at it from the front of the car, the way you have it set up would not flow any air if it makes any sense

2: the supra block is no aluminum, meaning it wouldnt be silver in color, but rather black, when i build these tamiya models i leave the block the color it comes in , black, but paint the cylinder head portion as well as the oil pan portion in aluminum silver.

i really like the way the exhaust looks.

rebirth215 · #9 09-15-2009, 12:30 AM

Thanks for the comment but as u can see I still have along way to go to build up my skills

Quote:

Originally Posted by rsxse240

For a beginner, it's looking quite nice. Keep up the good work.

ravan17 · #10 09-15-2009, 12:34 PM

yes i actually do

if you look at my other thread (my veryf rist build thats kind of messy....) you can see that i made a BOV out a very thing pipe and i stuck a piece of plastic pipe through it and filed down the nose of it to resemble the HKS SSQV bov. sorry if that doesnt make any sense i didnt take progress pics of the BOV as i was building it...

MidMazar · #11 09-16-2009, 12:21 PM

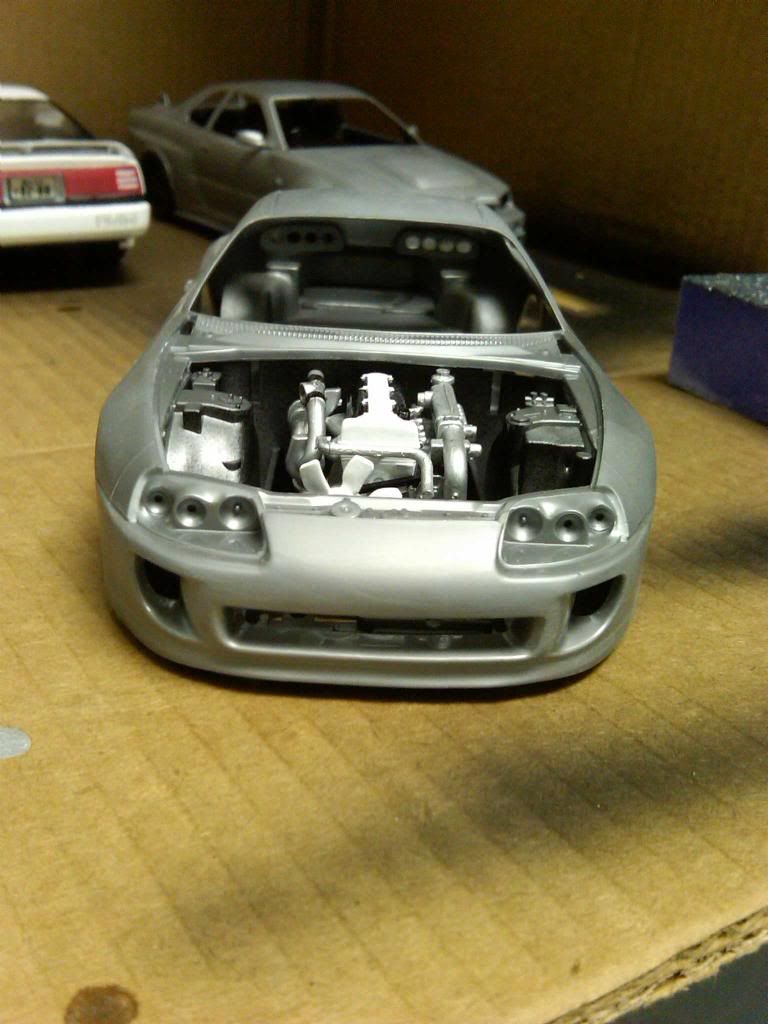

Looks good, did you prime the chasis tho? Nice detail in the engine bay, but try more coats of paint next time on the engine (white), light coats i mean. Because it looks like it pooled up in spots, usually that happens when too thick of coat is sprayed. Good luck!

rebirth215 · #12 09-16-2009, 08:24 PM

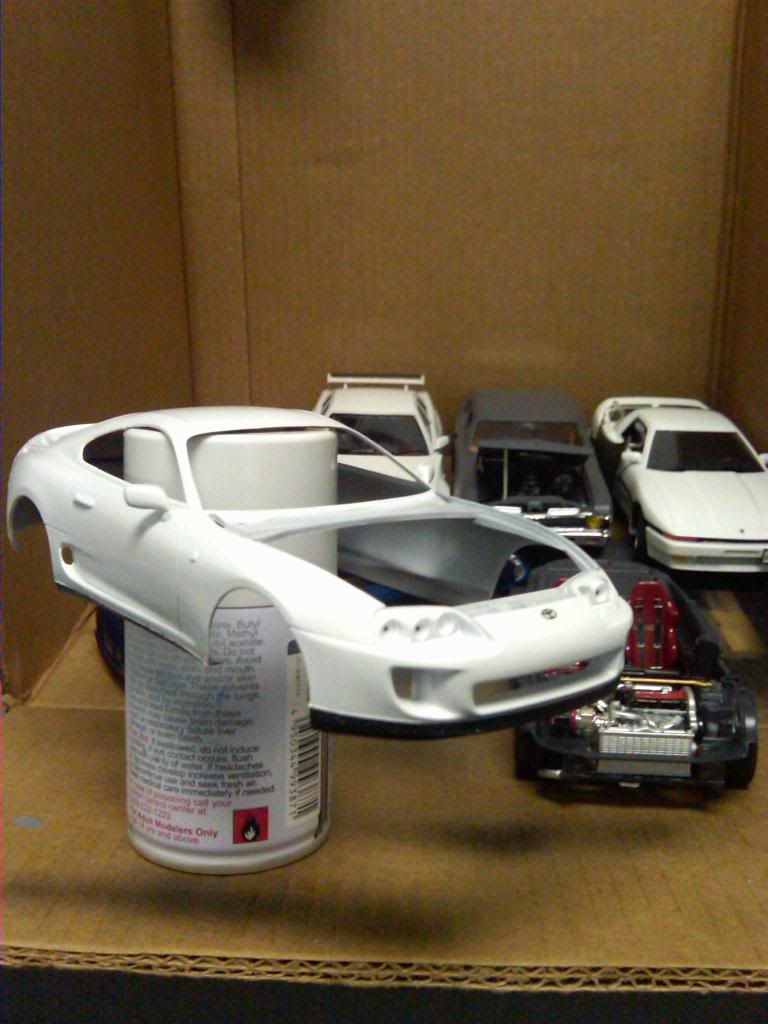

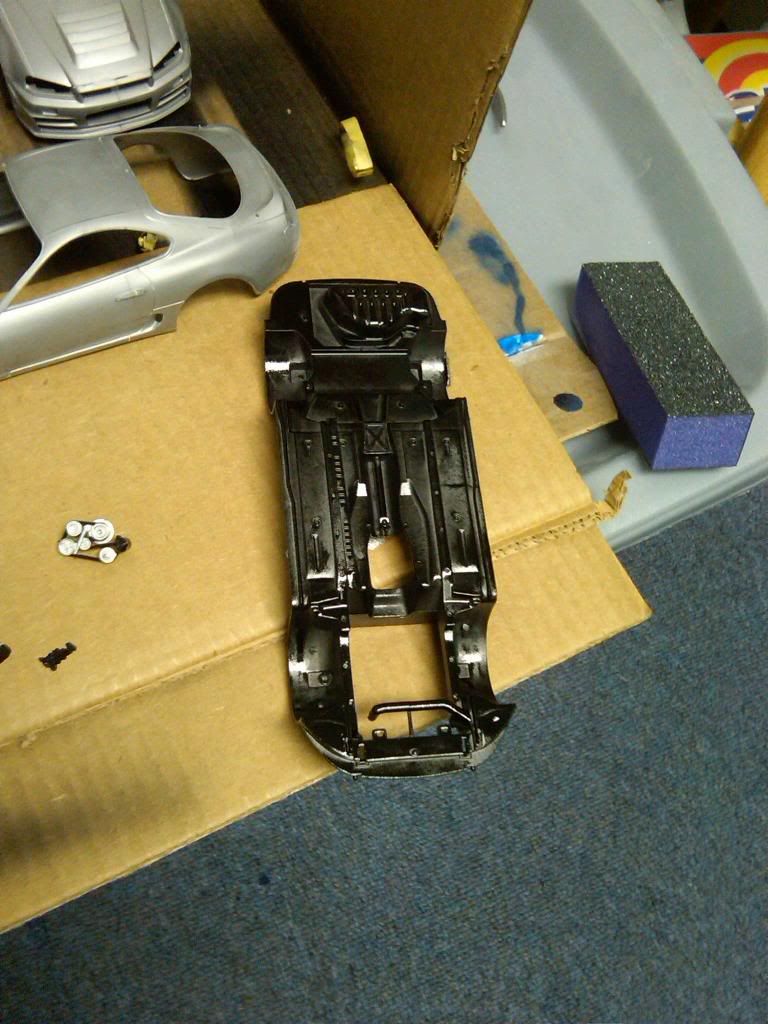

No I didnt prime the chasis. The hobby store next to my shop ran out so I just sand it and hit it with tamiya white. Thanks for the tip. Im doing some body mods right now so Im going to prime it this time befor i paint

Quote:

Originally Posted by MidMazar

Looks good, did you prime the chasis tho? Nice detail in the engine bay, but try more coats of paint next time on the engine (white), light coats i mean. Because it looks like it pooled up in spots, usually that happens when too thick of coat is sprayed. Good luck!

rebirth215 · #13 09-16-2009, 08:44 PM

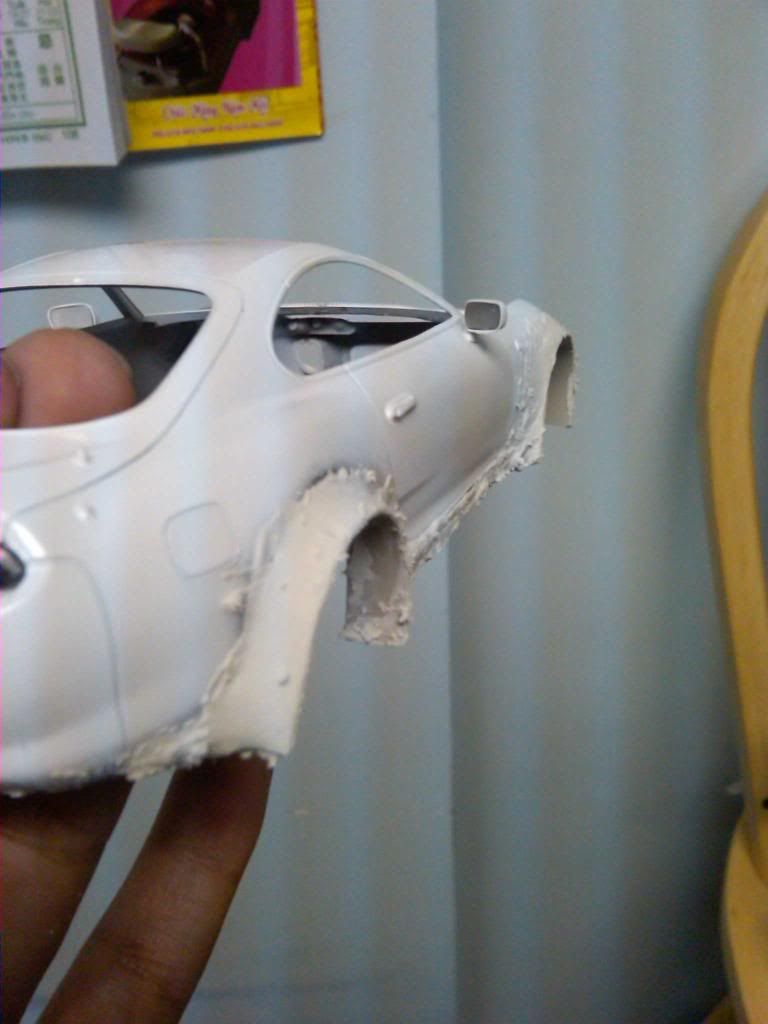

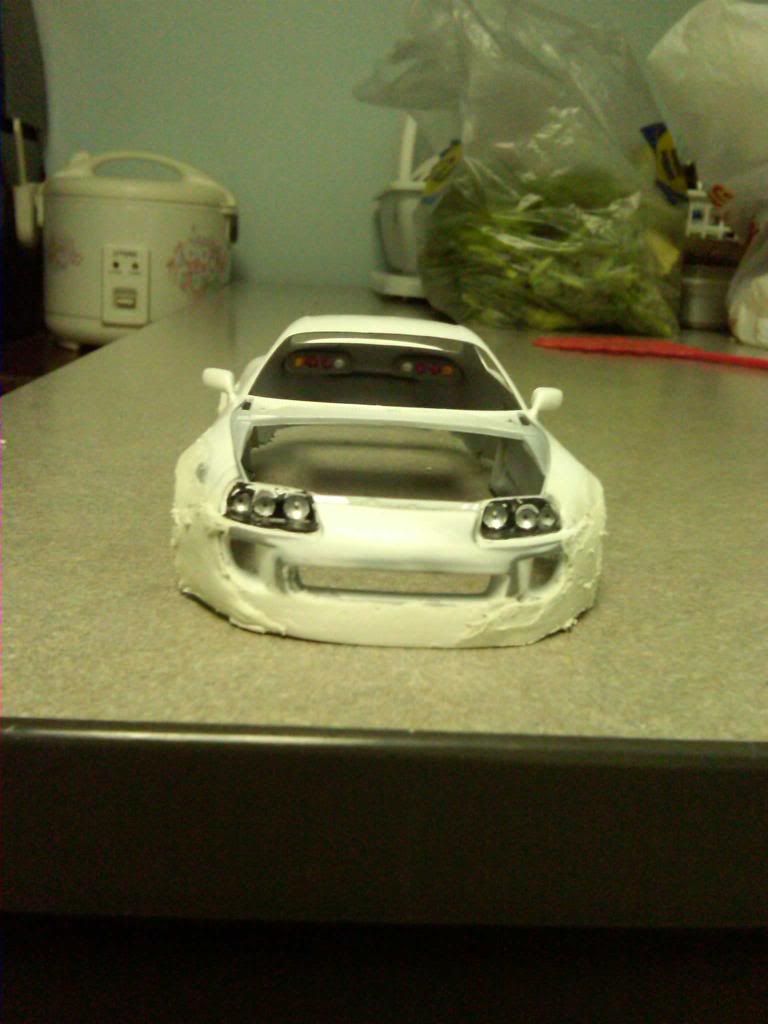

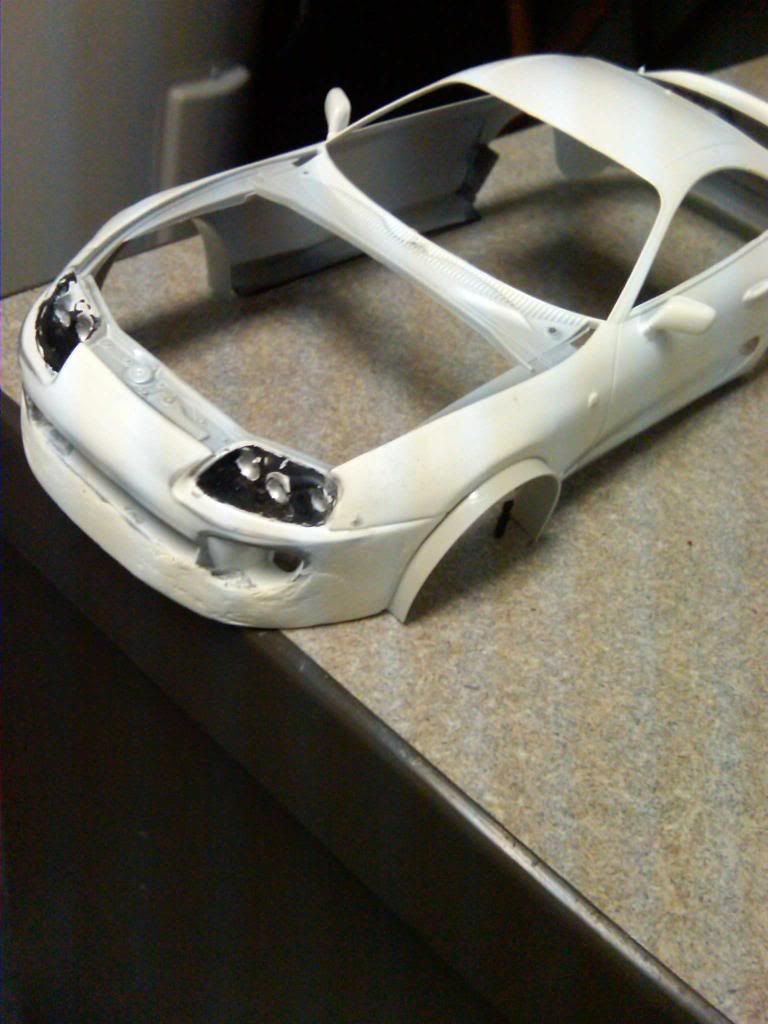

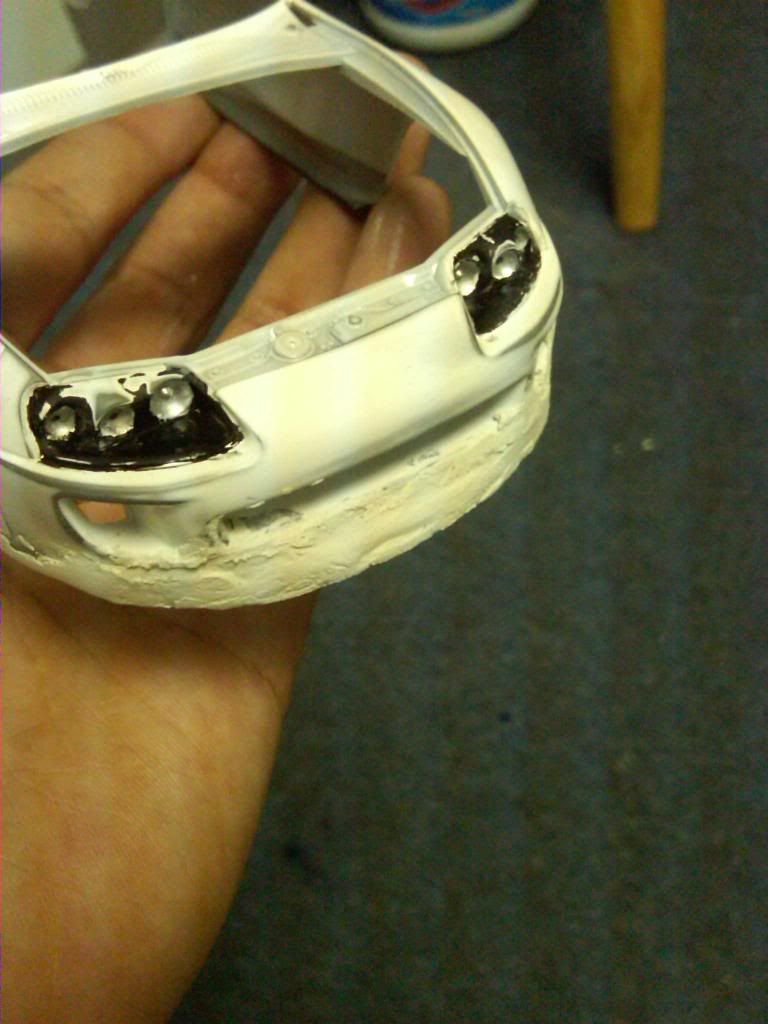

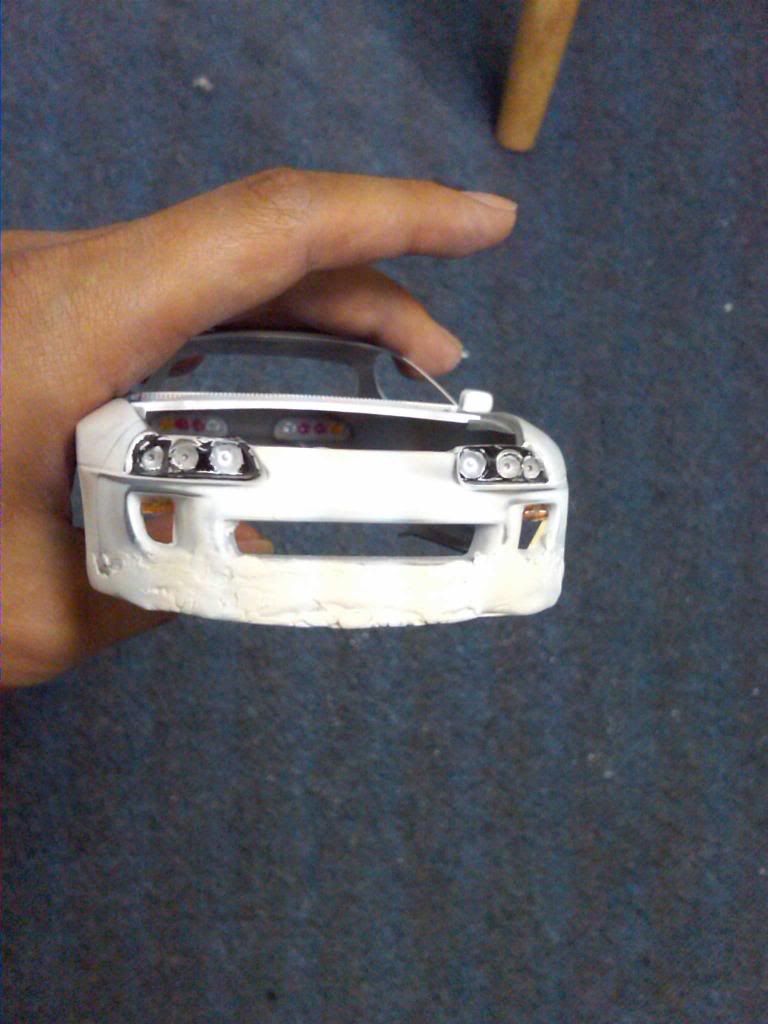

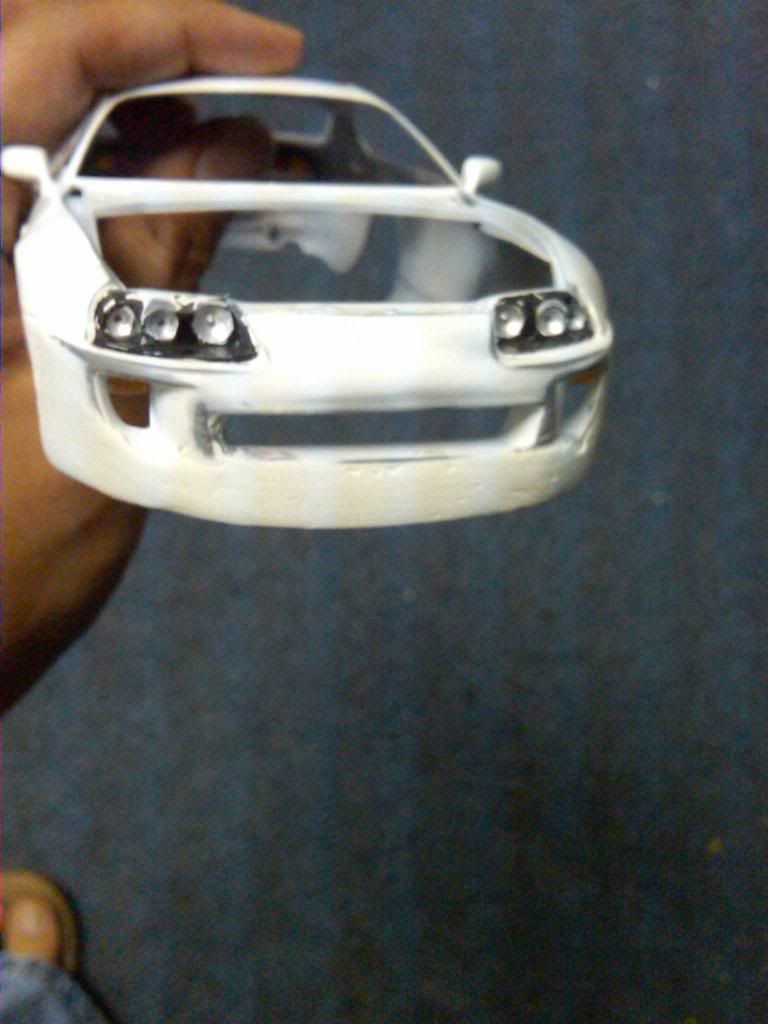

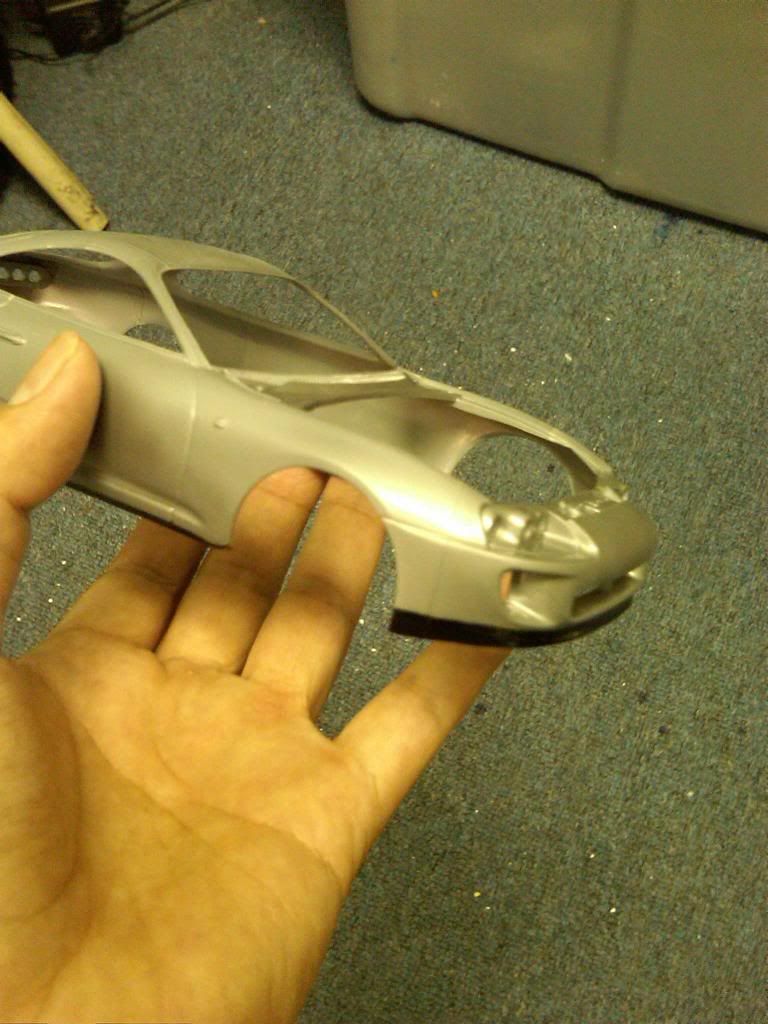

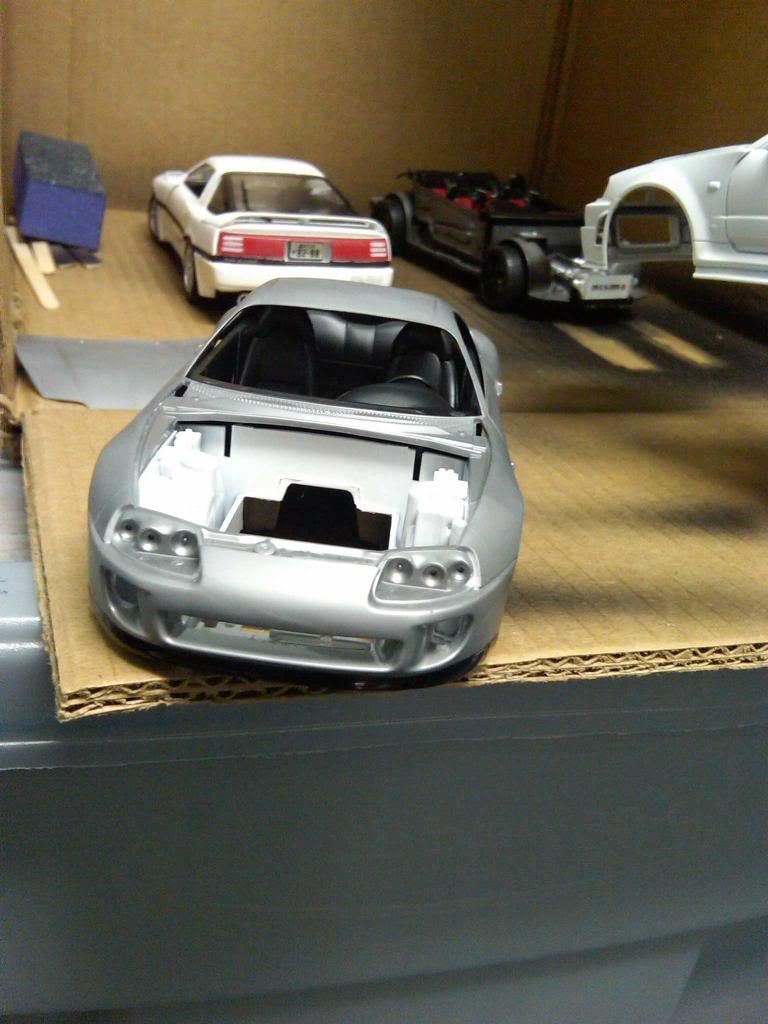

hello AF people so for the pass couple of days Ive been working on a body kit for the car its still in the making so bear with me

ravan17 · #14 09-16-2009, 10:15 PM

one trick i found to work really well when working with miliput putty is wetting your fingers just a LITTLE bit, it allows you to realllyy smooth the clay and get the shapes you want w/out leaving so much material to sand off later

rebirth215 · #15 09-17-2009, 12:50 AM

Is that right ?? Ill have to try that tomorrow. The problem Im having with the putty Im using is it drys super fast giving me no time to shape it.

Quote:

Originally Posted by ravan17

one trick i found to work really well when working with miliput putty is wetting your fingers just a LITTLE bit, it allows you to realllyy smooth the clay and get the shapes you want w/out leaving so much material to sand off later
