Look what I found in our school shop...

A DYNAMOMETER

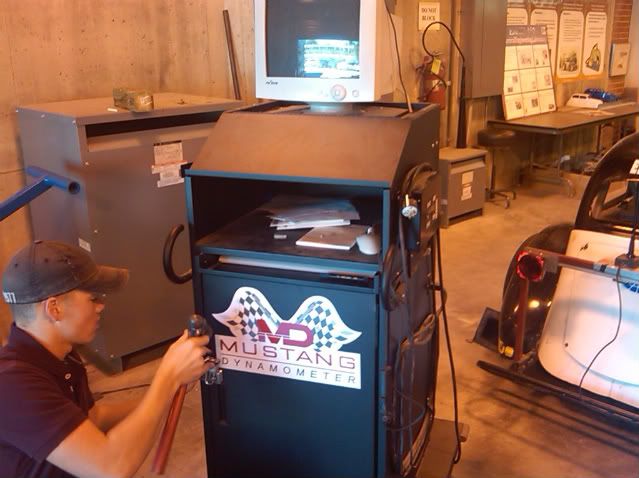

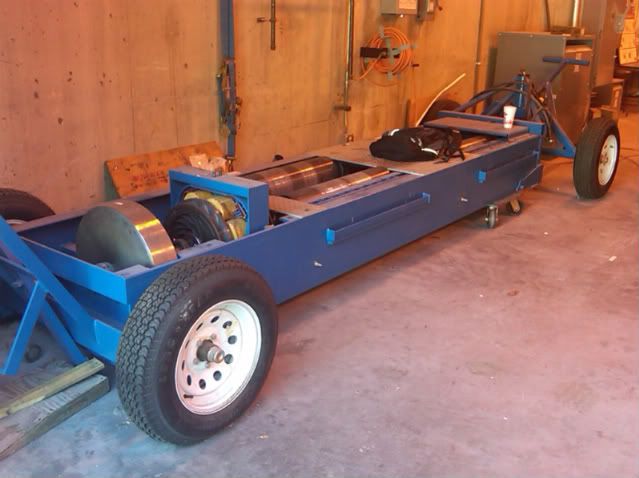

Our school has had this dyno sitting in the mech. engineering shop, it hasn't been used in years. Well some of us found out about this thing and got permission to hook it all back up and use it when ever we want to. We pulled it out today and spent most of our time just trying to position it back where it needs to be. We fired up the computer system also to make sure it all still worked. Everything seems to be working fine, dyno is still wired up so we could spin the wheels and get reading on the screen so it appears to be working. We will be working on it some more this week, finish setting it up and doing some maintanence work. Also calibrating the dyno again. Hoping to have it up and functioning sometime next week.

http://i189.photobucket.com/albums/z173/SilvrEclipse/USCdyno2.jpg?t=1256088766

http://i189.photobucket.com/albums/z173/SilvrEclipse/USCDyno.jpg?t=1256088896

That's cool man. We had a new one installed my last semester at central carolina. It was pretty fun. That's when my talon dynoed at like 72 to the wheels. We had ricers pouring in to see what they were running. It was funny actually watching that. The most I saw was my buddy with the GST pulling about 418 hp to the wheels. And of course I was the slowest that I saw. It pissed me off I couldn't put the GSX on there. I still have yet to see how much HP my eclipse actually has. Let me know the next time you pass through Sumter.

I have been in Sumter a lot lately visiting my grand pa. Im sure I will be passing threw there in the next few weeks

Thats awesome man. Def keep us updated. I can take my civic out there and put down about 63 hp....show em whats really up.

Is that a legend car in the 2nd picture?

Is that a legend car in the 2nd picture?

Yes it is. There is another one sitting in front of it also.

wow man thats a huge hookup!

I have been in Sumter a lot lately visiting my grand pa. Im sure I will be passing threw there in the next few weeks


Well definately let me know and Ill pm you my cell. After I change my transmission fluid, I am going to be able to start driving my car a little harder after my breakin. Im still going to go light on the shifting fast seeing as Ive been told the synchronizers wont be fully broken in until about 1500-2000 miles. Im also anxious to see a turboed 420A, as I have never seen one in person, just pictures.

We have a dyno here as well for the race car but its an engine dyno :(. Its amazing how things get forgotten. We found a ford 302 and C4 transmission all hooked up in the back of our welding shed.

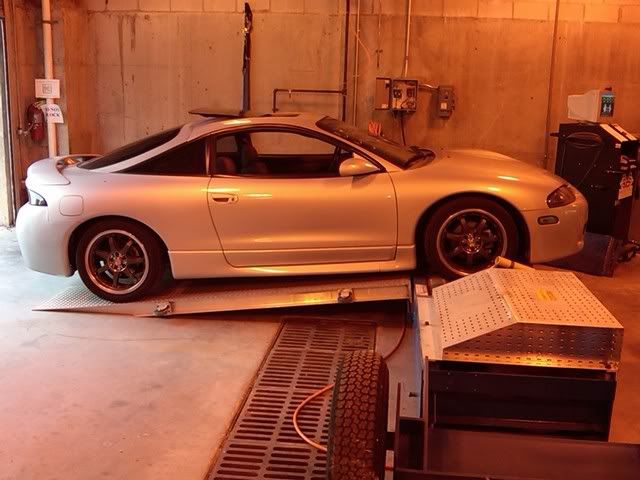

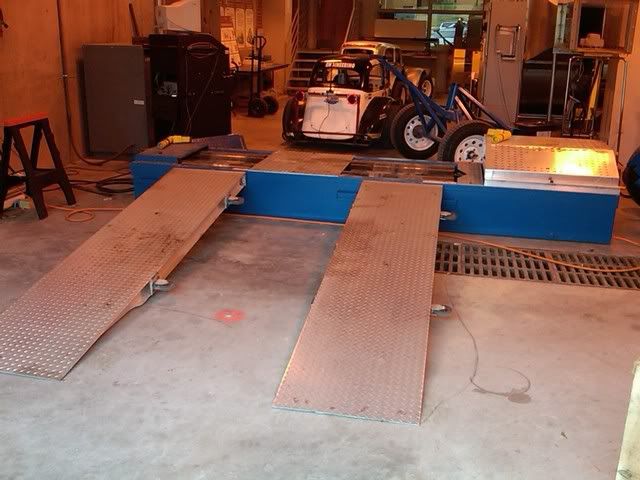

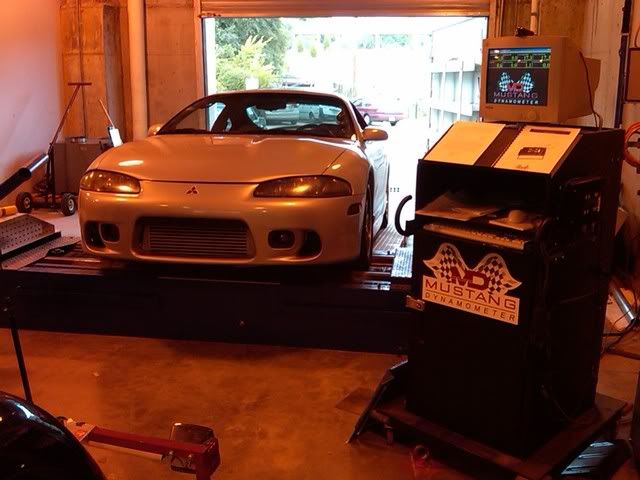

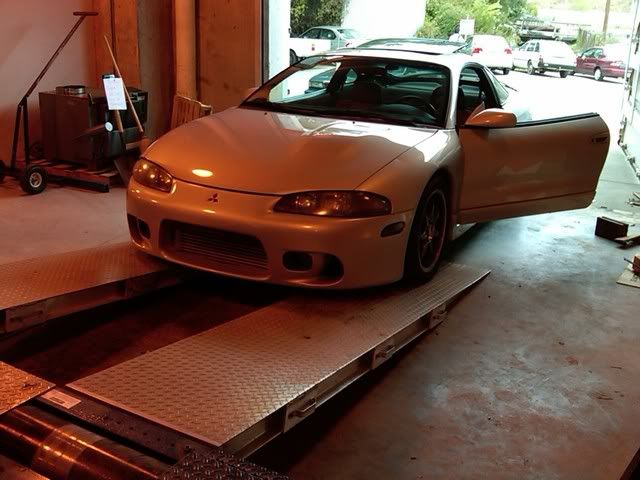

Got some more work done on the dyno on Friday. Finished setting it up, just have to grease all the bearings and get this thing calibrated. Put the eclipse up to see if what kinda clearences we have getting into the shop and up on the dyno. I never scrapped so we should be fine. Starting on the calibrations Monday so maybe it will be ready for use that evening. Here are a few more pics I snapped.

http://i189.photobucket.com/albums/z173/SilvrEclipse/IMG00058-20091023-1638.jpg?t=1256399954
http://i189.photobucket.com/albums/z173/SilvrEclipse/IMG00059-20091023-1641.jpg?t=1256400550
http://i189.photobucket.com/albums/z173/SilvrEclipse/IMG00060-20091023-1643.jpg?t=1256400604
http://i189.photobucket.com/albums/z173/SilvrEclipse/IMG00061-20091023-1645.jpg?t=1256400642

We have a dyno here as well for the race car but its an engine dyno :(. Its amazing how things get forgotten. We found a ford 302 and C4 transmission all hooked up in the back of our welding shed.

Yea I dont even know why we have this thing. We talked to the guy that use to run it and he said they only put a few cars on this thing. I was playin with the software and this dyno only has 51 miles on it! And there were only 3 car registered on it. So its pretty much brand new still

Dyno vid is a MUST!

There will be lots of dyno vids Im sure. The car is actually getting dynoed on a different dyno at a shop around here tmrw. We have about 10-15 cars all getting dynoed so it should be a lot of fun. Hoping for at least 330whp on the mustang dyno.

I know nothing about dynos. Ive always heard that mustang readings are lower than say a DynoJet. I guess Mustangs are supposed to be a closer depiction of actual power. Some people say they wont go off DynoJet readings.

I'm interested to see what kind of hp your putting down. Dynos aren't cheap how does something like that get forgotten?

Exciting discovery. Thanks for sharing the pics.

I found this online explaining the difference. They can explain it better than I can.


This discussion revolves around chassis dynamometer's and is intended to be informative and thought provoking. There are two types of chassis dynamometers on the market, inertia and loading. An inertia dynamometer (such as DynoJet) does not measure torque, but measures acceleration. A loading dynamometer applies resistance that is measured (using some type of strain gauge.)

The most often heard discussion is that what factor can be applied to rear wheel horsepower to reflect crankshaft horsepower. This is where we need to understand how the rear wheel horsepower number was derived. Since the DynoJet seems to be widely used and numbers quoted are those from a DynoJet, we are going to use them as our inertia dynamometer example.

First it is important to have an understanding of how DynoJet gets their horsepower numbers. Power in mechanical terms is the ability to accomplish a specified amount of work in a given amount of time. By definition, one horsepower is equal to applying a 550 pound force through a distance of 1 foot in one second. In real terms, it would take 1 HP to raise a 550 pound weight up 1 foot in 1 second. So to measure horsepower, we need to know force (in pounds) and velocity (in feet per second). Dynojet's inertial dynamometer measures power according to the terms just described. It measures velocity directly by measuring the time it takes to rotate two heavy steel drums one turn. It measures force at the surface of the drum by indirectly measuring it's acceleration. Acceleration is simply the difference in velocity at the surface of the drums from one revolution to the next. The force applied to the drums is calculated from acceleration using Newton's 2nd law, Force = Mass * Acceleration. Since the mass of the drums is know and acceleration has been measured, Power (horsepower) can now be calculated. Torque is then calculated using the horsepower number: Torque = Horsepower * 5252 / RPM.

Once they have these numbers a series of correction factors are applied, some made public, some hidden as proprietary secrets. The public correction factor is the SAE correction factor. This formula assumes a mechanical efficiency of 85%. The formula used is: Where: CF= 1.18 * (29.22/Bdo) * ((Square Root(To+460)/537)) – 0.18. To = Intake air temperature in degrees F, Bdo = Dry ambient absolute barometric pressure. This correction factor is meant to predict output in varying atmospheric conditions and is a +/- 7%. The proprietary correction factor is supposed to reflect the loss of power from the crankshaft to the rear wheels.

A Loading Dynamometer applies resistance to the dyne's roller(s) , typically using either a water brake or a current eddy brake. In either case, the amount of force is measure using a strain gauge. The measured force is torque which is a real, indisputable measurement of the actual output at the wheel. Horsepower than can be calculated: Hp = Trq * 5252 / RPM.

A Dynamometer can only measure actual power at the output location. Actual power produced AND delivered by an engine will be highest if measured at the crankshaft, lower at the transmission output shaft and even lower, but more meaningful, still, at the rear wheels. The power that you use is the power at the rear wheels. Some Dynamometer companies add to measured rear wheel power readings a factor that is based on ESTIMATED rear wheel power losses (under what power conditions? 3.0 ltr.? 5.0 ltr.? Under coasting conditions? with a 185/70/15 radial tire? a 335/35/18 radial tire? New heavy radial tire vs. worn old, light, racing tire? Who knows?) In short, there is NO meaningful "average" tire to get a correct rear tire power transmission loss measurement for all cars - so obviously, unless they actually measure the power lost in the rear tires, under driven load conditions, NO dyno company should BE ADDING incorrect power figures into the measured power. It's simply wrong. The fact that they add varying amounts of power to the actual, "true" amount of power delivered and measured to the surface of the drive roller creates a situation that makes it an onerous task to compare power figures from different brands of dynamometer systems. On simple inertial dynamometers, some (most) companies use an average for the inertial mass value of the engine, transmission, driveshaft, axles and rear wheels. This is saying that a 4 cylinder, 2.0 ltr. Porsche 914 has the same rotating mass and same rear wheels as a 8 cylinder, 5.0 ltr. Porsche 928 S+4. This simply is not so and wrong.

It's expensive to measure frictional losses in the engine and drivetrain, requiring the dyno to be able to drive the vehicle with engine off. Add the cost of a 50+hp electric motor, controlled power supply, etc. It's just not likely that $20,000 dyno will be equipped with that equipment. It is also common for dynamometer companies to add to the power readings by adding transmission and driveshaft losses back into the measured power readings. Some companies make a concerted effort try to measure frictional losses and, optionally, add the power to the measured readings. Other companies - some that would surprise you - say that it's not important and give a blanket, single factor for frictional losses in every engine. Some simply say that there is a meaningful "average" for every car,( 4 stroke/ 4 cylinder/ 4 speed transmission, 4 stroke/ 8 cylinder/ automatic transmission) and apply it to every car and that it is not a significant difference. Blanket estimates of "average" losses and corrections are, quite simply, incorrect. At the upper levels of the industry, (we are talking about $150,000 - $500,000 AC or DC 4 quadrant dynamometers) it is not tolerated - shouldn't be - and needn't be. There is a dyno company that actually has different versions of software that displays their own identical data files as different amounts of power depending on whether you use the DOS version or the Windows version of their software!!

True, rear wheel horsepower is the standard of measuring the power that is actually delivered to the rear wheels. It is honest, true, fair and duplicable. It is the ONLY standard that can be duplicated by the entire industry - regardless of the dyno manufacturer. From my experience and that of many others, when comparing True, rear wheel horsepower to DJHP you must apply a factor. It appears that this is a sliding scale based on horsepower but the best estimate is 1.05 to 1.21 (maybe higher). What this means is that for those of you trying to calculate what your crankshaft horsepower is based on DJHP, and are adding 15%, the most common number I hear, you are actually doubling (at least) the factor. Why? Because DJHP already has a puff number added into their DJHP. Lets say DJHP shows 200 hp and you add 15%, you get 230 hp crankshaft horsepower. In reality DJ has already added in 15 or 20% to their 200 DJHP number. How does this help us.? It does not, and is fact harmful to the many dynamometer test facilities that report only what the dyno actually measured. I can not tell you of the many discussions that we have had as to why the horsepower numbers we recorded lower than that of DJ. For those manufacturers that use DJHP as proof of their claims, can you imagine the shock your customers get when the horsepower number of a vehicle tested on a load bearing dyno do not come close to their claim.

Proper tuning, especially on highly modified engines greatly affect the power difference. Due to the fact that the DJ dyno's sweep so quickly on sweep hp tests, there is no way to properly tune a fuel map. What you get is the acceleration and full throttle maps both triggered during the test, ending up over-rich, affecting the horsepower. The other factor that needs to be taken into account is that DJ dynos assume that every vehicle has the same rotating mass - they don't - and that disregard is another reason why the hp conversion figures are different. The most accurate measurement of rear wheel horsepower is in Steady State Mode (inertia is not a factor in power equation.) The inertial mass changes on each car affects the DJ power, but not the true, rear wheel horsepower. There's another message in the above example, besides the average true, rear wheel horsepower to DJHP conversion factor - It's up to the more experienced reader to figure it out.

Chassis dyne HP, What is it? What to call it? DynoJet = "DJHP". It's not really proper to call "DJHP" "rwhp", as neither the Mustang, DynoJet, Fuchs, Superflow or Land and Sea will necessarily produce the same numbers as a DJ dyno, except by luck - and the whole idea of true, rear wheel horsepower is that EVERY dyno manufacturer HAS the capability to provide those numbers! The Superflow chassis dynes, the Mustang, Land and Sea are all capable of measuring power in steady state mode and producing the same numbers - they all measure torque. Torque x rpm / 5252 = horsepower. We've not diddled with physics! The only factor that is added to the measured reading, in true, rear wheel horsepower, is the additional energy (dyne parasitics) required to spin the dyno(s) roller to whatever speed the roller is turning at - logical, proper and required for any measuring instrument, torque x rpm / 5252 = horsepower + parasitic power = true, rear wheel horsepower.

Chassis dyne HP, What can inflate HP readings on a dyno, but not really make more engine power in the real world? A few things can affect HP when using inertia dynos (not a dyne in Steady State Mode) to measure power (what else would you do??:-): Changing to light, worn race rear tires will improve power output on an inertia dyno, but, not improve real world top speed. A heavier (brand new street) tire that replaced the above, light, worn tire, will decrease measured power on an inertia dyno, but not decrease real world top speed. Lighter wheels are a good thing! Better acceleration in lower gears, especially 1st and 2nd (accelerating less inertial mass!). Better handling is possible, too! Driving hard on worn, light tires is foolish and is not being recommended.

Problems with Inertia dyno test procedure and fuel injected vehicles: A Sweep Test (hold throttle wide open and sweep from low rpm to high rpm) will often trigger the Acceleration Fuel Map, along with the Main Fuel Map, causing the fuel mixture readings to indicate dyno operator that the motor is overly rich. This would cause the tuner to lean out the main fuel map. Of course, in the real world, upper gears, the acceleration rate of the engine is much slower than what they tested, doesn't trigger the Acceleration Fuel Map, and the engine ends up a lot leaner in reality in top gear. It's not that common of a problem, since most people never drive that fast for that long to cause engine damage. Work around: Tune full throttle fueling in real world usage at dragstrip (to best trap speed) or in Steady State Mode on different dyno.

You can optimize tuning for a DJ dyno and make big numbers - and you can tune the engine to make the best power under load on a load bearing dyno and blow off the big DJ dyno numbers. Can a tuner cheat and make a load bearing dyno read higher? The only way that could happen is in a Sweep Test - Sweep Tests are the least reliable of all tests, period. There is NO question about that. Since the Rotating Mass is a variable in a Sweep Test (NOT a Steady State Test!), the actual inertia factor entered affects the final HP figure - Tell the software that the vehicle has a lot of rotating mass to accelerate, and the HP number increases. (torque, rpm, acceleration rate and mass are the factors) - just like DJ dyno ignoring the difference in mass of all cars - So - true HP, again - Steady State Test - No acceleration, mass makes no difference, anymore. Torque, RPM and dyne parasitics. Period. True. Can you make a Steady State Test read higher? Really hard to do - The software will NOT take data unless speed and load are completely stable - eliminating cheating. As far as atmospheric conditions making a +/- 10% difference? Unless you REALLY mess with the barometric pressure (and you can look at every atmospheric factor on the test report sheet - it's hard coded to display - and not an option), it is simply, absolutely impossible to do without obvious evidence. Are final tuning optimal dyno settings different on an Inertia dyno vs. a load bearing dyno? For many reasons, final tune settings are different - and, since most load bearing dyno's will do both , there is a choice of tests - from a DJ style Sweep Test to Steady State. Having a choice of those types of tests to do and seeing what the results on the track are, most tuners will choose the Steady State Test over a Sweep Test. Without a doubt - the Steady State test Mode is the most consistently superior method of tuning - anybody who has the capability to do it will echo that sentiment - it's only an arguable point with those who can't do it properly. One of the reasons why the load bearing dyno will provide settings that work better in the real world is that combustion chamber temperatures are more in line with the actual operating temperatures that the engine.

Does altitude make any difference at all in horsepower? The engine couldn't give 2 hoots at what altitude it is tested at - it only cares what the air pressure, temperature and humidity is. Sea level at 28.02 inches baro is exactly the same as 4000 ft at 28.02 inches, as far as the engine is concerned. When tested at 5000 ft, we get virtually exactly the same power (corrected to atmospheric conditions, of course) as we do at sea level - It's just about 24%-25% less on the track! I am confused why some dyno operators insist on putting altitude on their charts and swear that it's a factor.

Crankshaft horsepower vs. true rear wheel horsepower. That's a tough one. As each vehicle is different, the best way is to dyno the engine and then dyno the vehicle to see exactly what the loss is. The best estimate I can give you based on experience and research is take crankshaft horsepower, subtract 14.5% ( search SAE ), take that, and subtract around 10% to 15% and you'll get about true horsepower at the rear wheels. The actual formula contains a curve for power loss through gears and there's another curve for power lost in a tire. Remember, too - that unless you dyno your engine you are only likely to get a crankshaft number from the manufacturer and that's probably a "good" one that the marketing department is providing.

Got to work on the school dyno a little bit more today. Got it calibrated and we put a prelude on it to run the breakin process again since it has been so long since it was last used. Everything seemed to go really well, hoping to dyno a car on friday as long as we can get a ahold of the stuff we need. Still need 2 more straps for the cars and a big fan to cool them down. I may be putting mine on it to see how the numbers compare to the dyno last weekend.

Car is getting put on the dyno today so I will have some more numbers tonight. Hopefully all goes well.

Got the dyno calibrated correctly and put the eclipse on it to do a test run. This was only on 11psi. First run 205whp and 550wtq. This obviously wasn't right, after checking some things found out that the rpms signal died in the middle of the run messing up the tq. Got that fixed and then put down 208whp 210wtq. Also dynoed an s2k which put down 188whp and 125wtq. Next week Ill probably get some high boost runs in.

Sweet deal. Your lucky to have such equipment available for you.

Now you can fine tune and see what it does for hp, that's cool man. Any more pics?

Sweet deal. Your lucky to have such equipment available for you.

Yea I know, I still cant believe they are letting us use it. Even some of the teachers are excited about it working again. Only problem is that we cant get a key to get in the shop, this could be a good thing tho. I would probably be in there all the time tune my car.


Now you can fine tune and see what it does for hp, that's cool man. Any more pics?

I plan on retuning the car on the dyno in a few weeks. I got some goodies to put on first then going to max out these injectors and see how much power it can make. Hoping for 375whp :naughty:

And no new pics. I did get a video of the s2k so I may post it up on youtube. I will get some pics next time we use it.
