S14 Project from HELL.
UKSupraboy
12-20-2002, 10:34 AM
Hi folks.
Not much to show yet on what is probably the most complicated project that I have ever attempted but thought that I would start what will be a long ongoing thread showing this cars buildup with a description of what I will be attempting.
Firstly the kit is the Fujimi veilside S14 which will be built in the style of the C West below. The main modifications will be to the wheel arches which need to be widened and also raised as the car will sit much lower. The front will be a one piece removable unit and a SAS wing will be added to the back.
The real work, however is underneath! As so many modifications were required to transform from road to race car, I decided to completely scratch build the entire chassis, steering and suspension from brass and aluminium. This will include the roll cage which will extend front and back to form a full spaceframe and the floor that is sheet aluminium.
Here are a few pics of work so far completed showing the ‘real’ shocks and the double wishbone suspension and steering that I am working on at the moment. (since these pics, the front right suspension is complete and WORKING!!).:eek: :eek:
http://files.automotiveforums.com/uploads/498998S14pROJECT003.jpg
http://files.automotiveforums.com/uploads/558306S14pROJECT004.jpg
http://files.automotiveforums.com/uploads/266477S14pROJECT005.jpg
http://files.automotiveforums.com/uploads/209582S14pROJECT006.jpg
Also ‘on my work bench’ at the moment is an R32 GTR engine with oversized turbos that will be getting the full detail treatment.
Be sure to come back as I will update whenever something new is finished.
MERRY XMAS to all!!!!!!!!!!!:p :p :p :p
Not much to show yet on what is probably the most complicated project that I have ever attempted but thought that I would start what will be a long ongoing thread showing this cars buildup with a description of what I will be attempting.
Firstly the kit is the Fujimi veilside S14 which will be built in the style of the C West below. The main modifications will be to the wheel arches which need to be widened and also raised as the car will sit much lower. The front will be a one piece removable unit and a SAS wing will be added to the back.
The real work, however is underneath! As so many modifications were required to transform from road to race car, I decided to completely scratch build the entire chassis, steering and suspension from brass and aluminium. This will include the roll cage which will extend front and back to form a full spaceframe and the floor that is sheet aluminium.
Here are a few pics of work so far completed showing the ‘real’ shocks and the double wishbone suspension and steering that I am working on at the moment. (since these pics, the front right suspension is complete and WORKING!!).:eek: :eek:
http://files.automotiveforums.com/uploads/498998S14pROJECT003.jpg
http://files.automotiveforums.com/uploads/558306S14pROJECT004.jpg
http://files.automotiveforums.com/uploads/266477S14pROJECT005.jpg
http://files.automotiveforums.com/uploads/209582S14pROJECT006.jpg
Also ‘on my work bench’ at the moment is an R32 GTR engine with oversized turbos that will be getting the full detail treatment.
Be sure to come back as I will update whenever something new is finished.
MERRY XMAS to all!!!!!!!!!!!:p :p :p :p
Focus2000
12-20-2002, 11:51 AM
:eek: Wow, this sounds like one hell of a project. I can't wait to see more progress pics!
flyonthewall
12-20-2002, 01:06 PM
Mmm delicous!:D
Midnight Racer
12-20-2002, 02:48 PM
Sounds like a lot of work.Hope it turns out well.:)
Toksin
12-20-2002, 05:13 PM
Wow. How did you make those shocks?
magicmanjk808
12-20-2002, 06:23 PM
awesome job on the shocks. i'm getting anxious to see more pics.
srlxy
12-20-2002, 08:27 PM
He is making people curious...
Jonno
12-20-2002, 09:45 PM
Looks great!
hermanchauw
12-21-2002, 12:06 AM
This is WICKED.
Btw, where can i learn abt chassis scratchbuilding?
Btw, where can i learn abt chassis scratchbuilding?
fullbloodchop01
12-21-2002, 10:46 AM
:eek: im getting a little scared:eek:
UKSupraboy
12-21-2002, 11:15 AM
Toksin, the shocks are thin brass tube with brass bar that fits nicely inside. The springs are from a 'mini z', (is that right?). My local hobby store sells springs in packs of 6, 3 pairs with different stiffnesses.
On top and bottom of the shock there is a very small piece of the tubing soldered horizontaly to the 2 separate parts. This will allow it to be hinged top and bottom and move slightly as the suspension goes up and down.

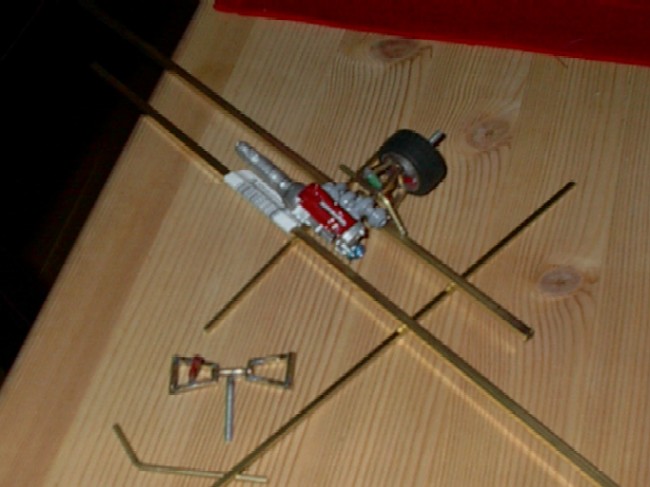

Here are some shots to give an idea of how it fits to the main chassis rails. Note, none of this is finished yet, just plonked in place to check fitment.
You can also see that the wheels will be bolted on and removable.
http://files.automotiveforums.com/uploads/113577IM000610.JPG
http://files.automotiveforums.com/uploads/540712IM000612.JPG
http://files.automotiveforums.com/uploads/734222IM000613.JPG
http://files.automotiveforums.com/uploads/641399IM000615.JPG
I have to work over xmas and newyear but hopefully will get some soldering in to post more advanced pics NEXT YEAR!!
On top and bottom of the shock there is a very small piece of the tubing soldered horizontaly to the 2 separate parts. This will allow it to be hinged top and bottom and move slightly as the suspension goes up and down.
Here are some shots to give an idea of how it fits to the main chassis rails. Note, none of this is finished yet, just plonked in place to check fitment.
You can also see that the wheels will be bolted on and removable.
http://files.automotiveforums.com/uploads/113577IM000610.JPG
http://files.automotiveforums.com/uploads/540712IM000612.JPG
http://files.automotiveforums.com/uploads/734222IM000613.JPG
http://files.automotiveforums.com/uploads/641399IM000615.JPG
I have to work over xmas and newyear but hopefully will get some soldering in to post more advanced pics NEXT YEAR!!
UKSupraboy
02-11-2003, 03:03 PM
Hi,
Thought that I would resurect this thread with a few pics of progress on what is now called the 'Veilside S14 GTR-LM' or something like that.
Seems to be taking forever so far.
Have mounted the front double wishbones and will complete the suspension when the spaceframe is built (need it for the top shock mountings).

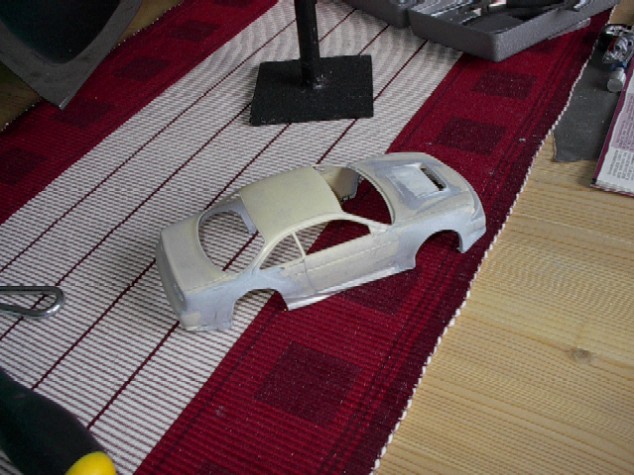

Have spent most of my recent time starting on the body. The Fujimi head and tail light are awfull so decided to fit the units from an R33 GTR-LM, together with the bonnet vent.
I hope to soon be finished with one fromt wheel arch/wing and start to copy onto the other side before separating the complete front and starting work on the rear arches.
Will keep you posted.
Bye.
http://files.automotiveforums.com/uploads/903767S14004.jpg
The brake isnt really the wrong way around, just there to give me an idea of how wide the arches need to be.
http://files.automotiveforums.com/uploads/147649S14005.jpg
http://files.automotiveforums.com/uploads/899934S14003.jpg
http://files.automotiveforums.com/uploads/426341S14pROJECT002.jpg
http://files.automotiveforums.com/uploads/437919S14pROJECT001.jpg
http://files.automotiveforums.com/uploads/516189S14002.jpg
Thought that I would resurect this thread with a few pics of progress on what is now called the 'Veilside S14 GTR-LM' or something like that.
Seems to be taking forever so far.
Have mounted the front double wishbones and will complete the suspension when the spaceframe is built (need it for the top shock mountings).
Have spent most of my recent time starting on the body. The Fujimi head and tail light are awfull so decided to fit the units from an R33 GTR-LM, together with the bonnet vent.
I hope to soon be finished with one fromt wheel arch/wing and start to copy onto the other side before separating the complete front and starting work on the rear arches.
Will keep you posted.
Bye.
http://files.automotiveforums.com/uploads/903767S14004.jpg
The brake isnt really the wrong way around, just there to give me an idea of how wide the arches need to be.
http://files.automotiveforums.com/uploads/147649S14005.jpg
http://files.automotiveforums.com/uploads/899934S14003.jpg
http://files.automotiveforums.com/uploads/426341S14pROJECT002.jpg
http://files.automotiveforums.com/uploads/437919S14pROJECT001.jpg
http://files.automotiveforums.com/uploads/516189S14002.jpg
Midnight Racer
02-11-2003, 03:11 PM
I was wondering what happened to this project.Good to see you haven't given up.Can't wait to see this one completed.Good luck with the rest of the build up.:)
SuPeRcAr_MaN
02-11-2003, 05:03 PM
Hopefully it won't take too much longer to finish. You are putting a tremendous ammount of work into this project, and I'm sure it will turn out great. Keep us updated.
flyonthewall
02-11-2003, 05:13 PM
Very nice work, keep it up, i'm really looking forward to seeing this done.
zangief
02-11-2003, 05:47 PM
this is educational :D
cant wait to learn more hehe
cant wait to learn more hehe
UKSupraboy
03-30-2003, 01:09 AM
Hi,

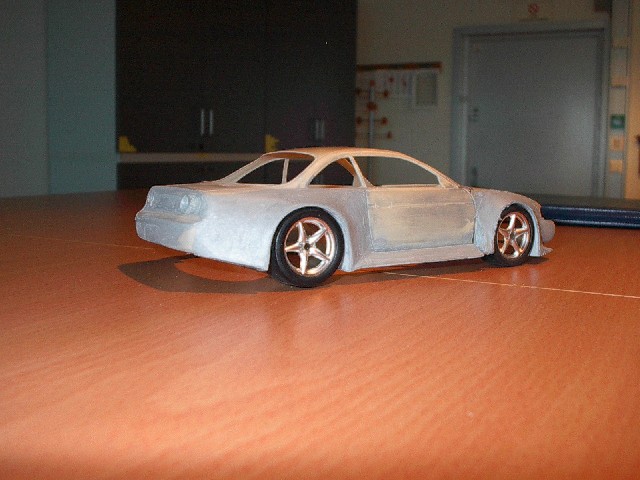

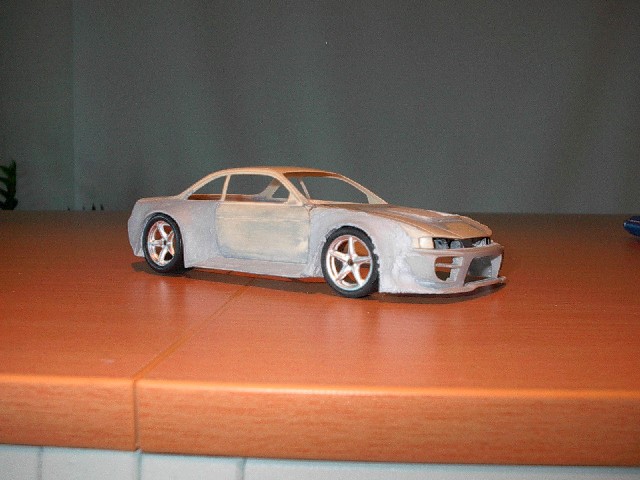

this is going soooo slooow. Seem to have spent weeks just working on the body shape and still only done about half. Ran out of filler so thought I would post some picks from work (80hour week so no chance to buy more:mad: )
Have done one rear as far as getting the shape ok and just need to sand down the front which is now removable.

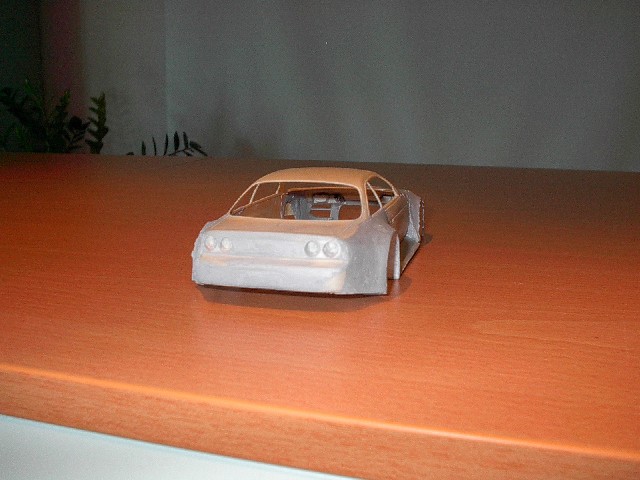

The back has been cut at an angle up to allow for a big diffuser.
Working at the moment on a roll cage which will extend under the front to hold suspension, engine etc.
http://files.automotiveforums.com/uploads/7887851.jpg
http://files.automotiveforums.com/uploads/9500762.jpg
http://files.automotiveforums.com/uploads/2114733.jpg
http://files.automotiveforums.com/uploads/3522375.jpg
http://files.automotiveforums.com/uploads/3281597.jpg
http://files.automotiveforums.com/uploads/5839438.jpg
http://files.automotiveforums.com/uploads/4002229.jpg
this is going soooo slooow. Seem to have spent weeks just working on the body shape and still only done about half. Ran out of filler so thought I would post some picks from work (80hour week so no chance to buy more:mad: )
Have done one rear as far as getting the shape ok and just need to sand down the front which is now removable.
The back has been cut at an angle up to allow for a big diffuser.
Working at the moment on a roll cage which will extend under the front to hold suspension, engine etc.
http://files.automotiveforums.com/uploads/7887851.jpg
http://files.automotiveforums.com/uploads/9500762.jpg
http://files.automotiveforums.com/uploads/2114733.jpg
http://files.automotiveforums.com/uploads/3522375.jpg
http://files.automotiveforums.com/uploads/3281597.jpg
http://files.automotiveforums.com/uploads/5839438.jpg
http://files.automotiveforums.com/uploads/4002229.jpg
Chain
03-30-2003, 01:22 AM
Looks good! Keep it coming.
Jonno
03-30-2003, 01:39 AM
It is coming along very well. Keep at it! :D
Hiroboy
03-30-2003, 05:15 AM
Looking Sweet :)
tonioseven
03-30-2003, 05:22 AM
this is gonna be worth the wait!!:cool: :cool: :cool:
supratuner
03-30-2003, 05:33 AM
its coming laong nicely
PinkyJones
03-30-2003, 05:48 AM
yea dude tha sweet i wish i was that good im going to start me frist project soon i need to get more info on it so i can start like how to apply the putty and make custom things:devil: :alien2:
UKSupraboy
03-30-2003, 06:21 AM
Thanks for the comments guys, have day off on Friday, gonna buy filler and carry on.
Acouple more pics to show how the bodywork is done (for Pinky Jones). The major part was to cut the arches up into the body to lower the body rather than the supension and basically build the arches around the Ferrari wheels for that really tight fit.
Styrene sheet was glued into the arches and under the skirts to widen it and then bulked out using off cuts of styrene before being puttied over in thin coats to aid drying.
When all exterior shaping and sanding is done the excess styrene will be removed and all under surfaces puttied and smoothed.
http://files.automotiveforums.com/uploads/921345IM000724.JPG
http://files.automotiveforums.com/uploads/845552IM000725.JPG
Acouple more pics to show how the bodywork is done (for Pinky Jones). The major part was to cut the arches up into the body to lower the body rather than the supension and basically build the arches around the Ferrari wheels for that really tight fit.
Styrene sheet was glued into the arches and under the skirts to widen it and then bulked out using off cuts of styrene before being puttied over in thin coats to aid drying.
When all exterior shaping and sanding is done the excess styrene will be removed and all under surfaces puttied and smoothed.
http://files.automotiveforums.com/uploads/921345IM000724.JPG
http://files.automotiveforums.com/uploads/845552IM000725.JPG
RyanGiorgio
03-30-2003, 06:34 AM
Absolutely amazing work so far. Keep us updated.
D[X]P
03-30-2003, 07:04 AM
looks truly great and amazing!!!!!:) :D
flyonthewall
03-30-2003, 04:59 PM
Can't wait to see this bad boy complete!
Ghost_9418
03-30-2003, 05:09 PM
I was wondering where this project went. looks awsome!:D
appleseed
03-30-2003, 10:22 PM
wow! the chassis looks like a tremendous challenge and the body is coming along very nicely.:) any new progress? the waiting is killing me!
a.
a.
Vyacheslav
03-30-2003, 10:52 PM
wow good job on the wide body, i should try doing this some day :)
chaos
03-30-2003, 11:00 PM
Keep the updates coming along - its certainly taking shape!
integra818
03-30-2003, 11:57 PM
Simply put- amazing
integra818
03-30-2003, 11:58 PM
Amazing
FUR105
04-11-2003, 08:32 AM
great job! Amazin!!!!:eek:
Keep up the good work!
Keep up the good work!
njh
04-11-2003, 08:40 AM
Great work so far. Keep it up!
exhaust smoke
04-11-2003, 08:58 AM
This is looking very promising, really can't wait to see it complete.
