i am looking for a cross section view of a 95 awd turbo eclipse/talon auto trans,asap, if anyone knows a site or has a pic it would be greatly appreciated.
thanks -steve

i am looking for a cross section view of a 95 awd turbo eclipse/talon auto trans,asap, if anyone knows a site or has a pic it would be greatly appreciated.
thanks -steve

not one person has a exploded view of this trans???:frown:

Uhh let me see if I can find something.

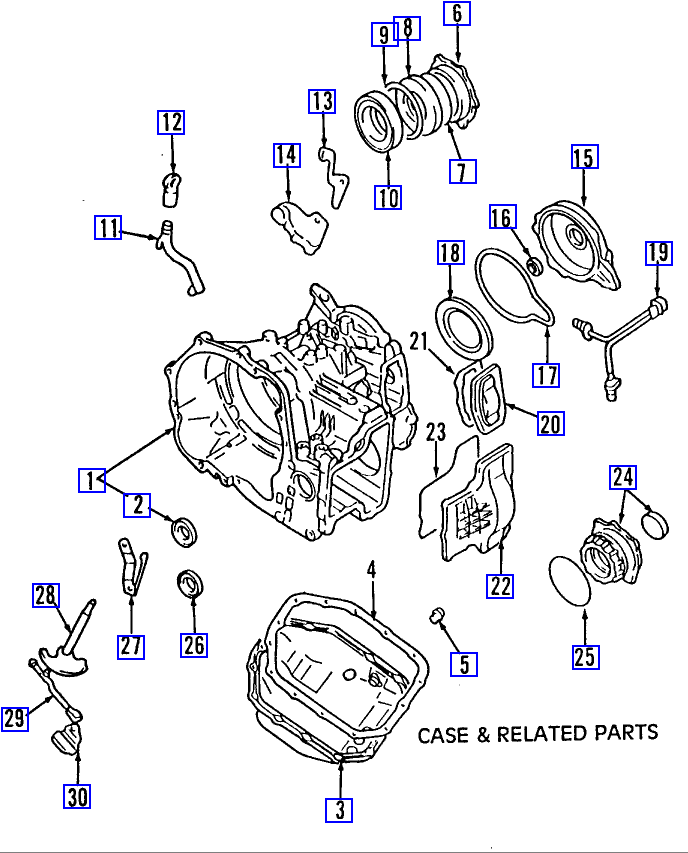

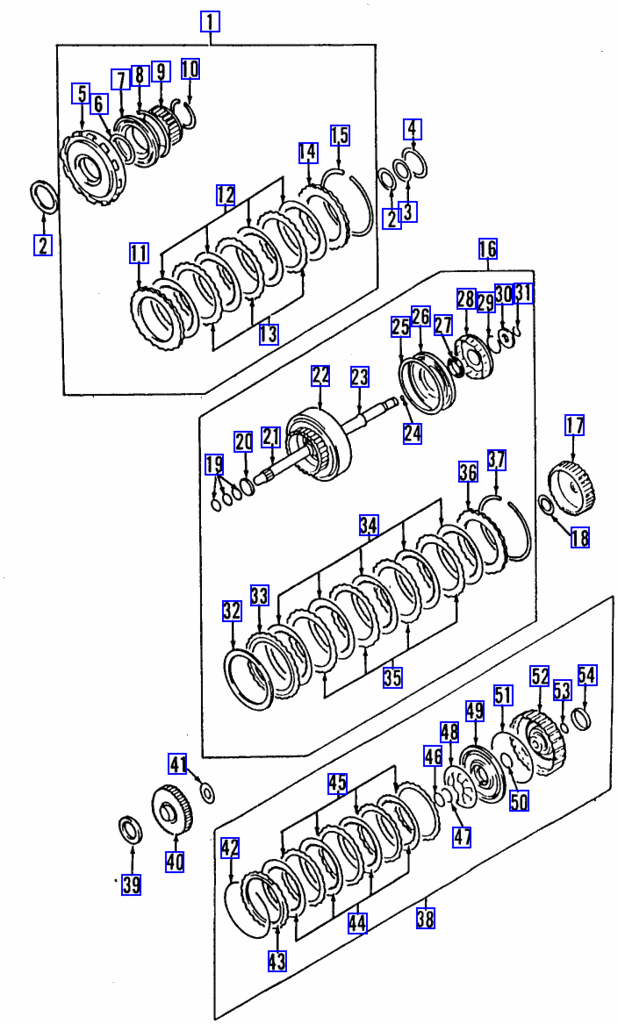

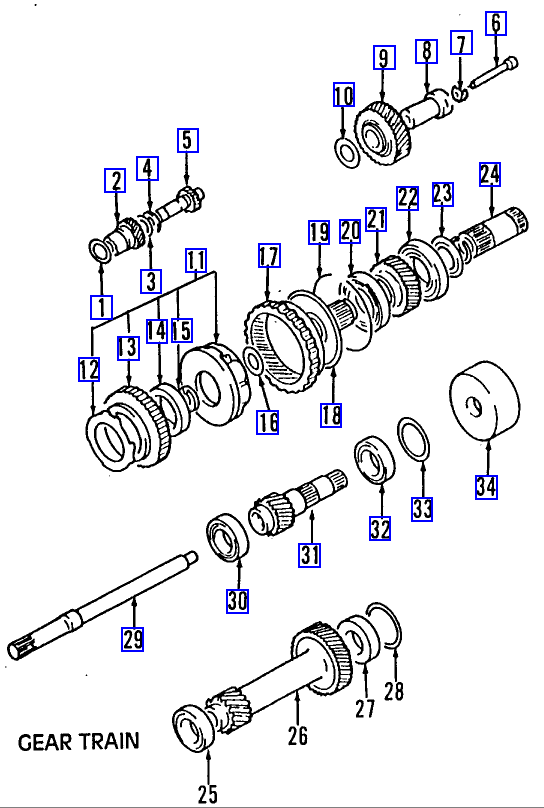

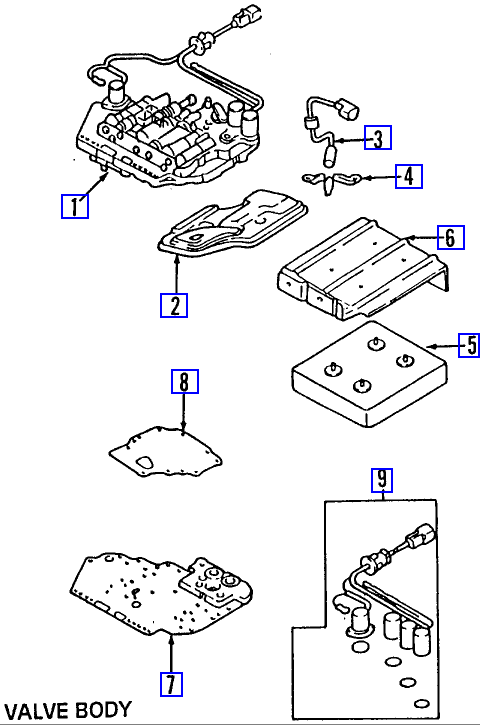

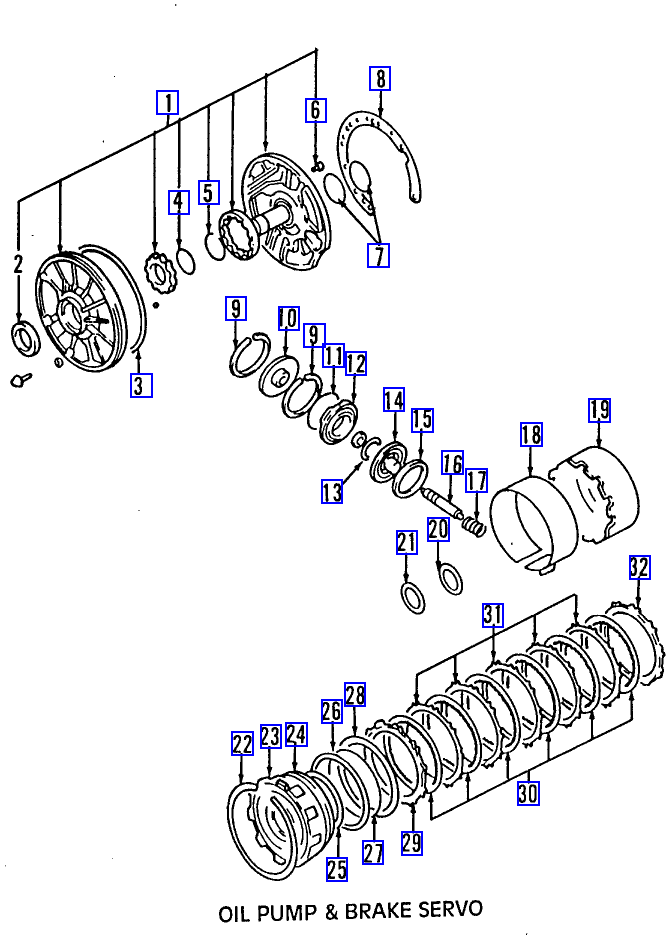

EDIT - Ok I found exploded views of the housing, clutch assembly, oil pump, planetary gears, valve body, and differential. Let me know what you need. I dont have one of everything in one pic.

Haynes manual would be the best place to start.

Uhh let me see if I can find something.

EDIT - Ok I found exploded views of the housing, clutch assembly, oil pump, planetary gears, valve body, and differential. Let me know what you need. I dont have one of everything in one pic.

great thanks! is there anyway to get all of them for me?, it would help alot!

Haynes manual would be the best place to start.thanks but i already tried that, it pretty much says that tranys are too hard to do your self ,have it taken in to a shop..so ?

Ok give me a few minutes to get everything together and I will post is up.

http://i189.photobucket.com/albums/z173/SilvrEclipse/42155279.gif?t=1197701441
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155280.gif?t=1197701473
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155281.gif?t=1197701485
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155282.gif?t=1197701498
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155283.gif?t=1197701505
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155284.gif?t=1197701516

http://i189.photobucket.com/albums/z173/SilvrEclipse/42155279.gif?t=1197701441
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155280.gif?t=1197701473
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155281.gif?t=1197701485
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155282.gif?t=1197701498
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155283.gif?t=1197701505
http://i189.photobucket.com/albums/z173/SilvrEclipse/42155284.gif?t=1197701516

thanks so much man, this helps extremely
