Heater Blower Motor


falcon_423
08-09-2007, 03:06 PM
My blower/fan motor has quit running. 1994 Thunderbird, 3.8L engine with Automatic Temperature Control. I have checked the input voltage to the control unit and find it to be around 6-8 volts. I know I need a minimum of 10 volts going into it, but the only item "previous" to the control unit is a 30 amp "in-line" fuse. Anyone have any idea where to find it?

Selectron
08-09-2007, 04:21 PM

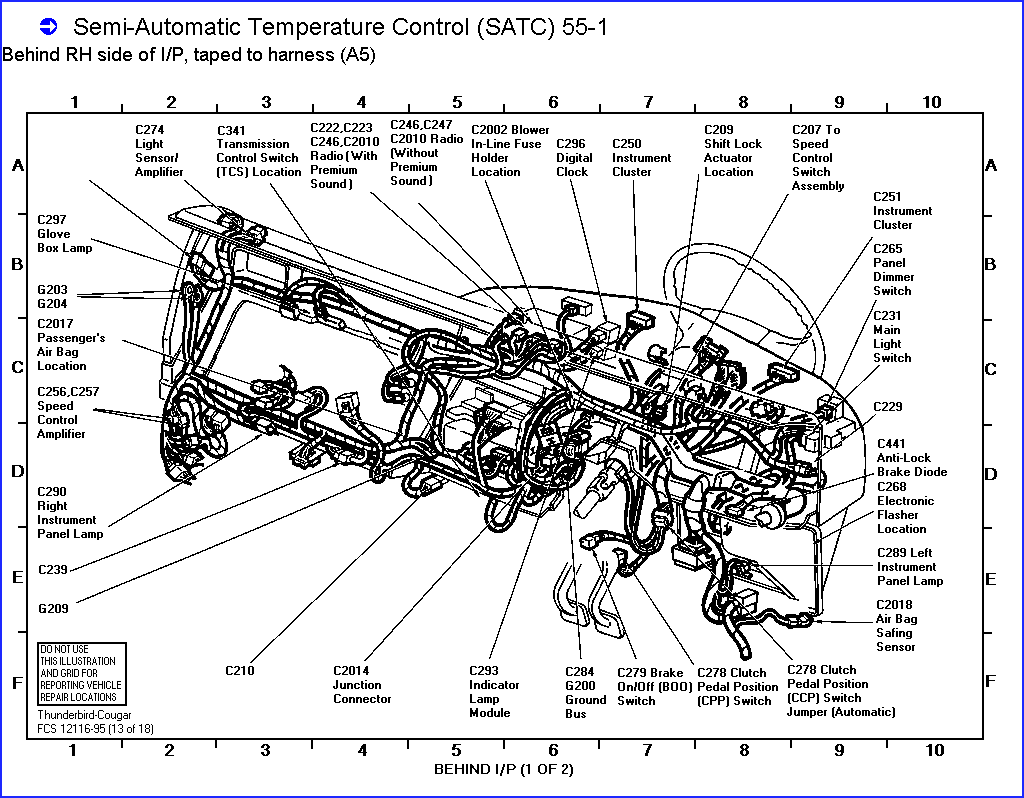

I'm not familiar with your vehicle but I can see that fuse on my wiring diagrams for the '95 Thunderbird - it's a 30 amp inline fuse which feeds into the Blower Motor Speed Controller. This is the location diagram for the '95, which says that it's 'taped to harness' - see grid ref. A5:

http://i180.photobucket.com/albums/x64/Selectron/Thunderbird/th_tbird-inline-fuse.png (http://i180.photobucket.com/albums/x64/Selectron/Thunderbird/tbird-inline-fuse.png)

97Bird
08-09-2007, 08:18 PM
Do a search in this forum for blower motor and then look for the thread that starts with This is a good one!. I explained how to test the blower circuit in that thread

falcon_423
08-10-2007, 10:07 AM
very useful!! thanks

falcon_423
08-10-2007, 10:08 AM
great help! Ive been thru it, but im going to go back thru it with your info in hand

falcon_423
08-15-2007, 06:35 AM
found it!! For those interested, the boogar is just where it SHOULD be! The inline fuse is mounted (but rather well hidden) next to the fuse panel under the dash.
