s14 vh45de swap

So yea names jerry from miami, florida
Heres the specs
VH45de q45 V8
300zx Twin turbo 5 speed

Been working on it for a few weeks
Heres the car
s14
18 by 10 265/30
18 by 11 295/30
Full suspension , and brembos
http://img.photobucket.com/albums/v344/gsracer/WORK%20S1/DSC_0481.jpg

Tranny
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_0270.jpg
Engine out
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3905.jpg
Side by side
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3906.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3907.jpg

Going in
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3917.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3915.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3913.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3909.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3923.jpg

Yes the hood closes

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3926.jpg
Making headers
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3929.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3930.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3932.jpg
Clearing the sterring shaft
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3934.jpg

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3938.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3937.jpg
Merge collectors
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3950.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3951.jpg

Driverside
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3952.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3954.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3956.jpg

GRound clearance
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3957.jpg
Pass side
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3959.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3966.jpg
Out of the car, equal length FTW!!!
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3967.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3968.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3969.jpg

Valve covers just powder coated Ferrari wrionkle red
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3989.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3991.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3990.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3988.jpg

Well to update, I have replaced the timing chain. Cleaned the engine thoroughly, and ready to drop it back in.
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/DSC_0256.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/DSC_0282.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/DSC_0281.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/DSC_0280.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/DSC_0278.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/DSC_0277.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/DSC_0276.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/DSC_0272.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/DSC_0267.jpg

Finnally got all the fittings in , now i can put it back together

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3999.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3998.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3996.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_3994.jpg

Heres the latest progress.
Custom making a few things, the tranny will be here next week, so I'm putting the motor back in the car to get the rest of the stuff ready.
Water pump block off plate for electric water pump
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4002.jpg

Motor on the hoist about to go in
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4003.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4005.jpg

My first attempt at welding aluminum, dont laugh... Seriously. For remote oil filter mount
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4004.jpg

Back view
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4008.jpg
12 lb chrome moly flywheel
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4009.jpg

-16 AN fittings for water lines, two in, two out
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4014.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4012.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4011.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4013.jpg

Here it is back in again after powder coating and cleaning

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4020.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4019.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4016.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4015.jpg

Since I'm still waiting for the tranny getting some other stuff buttoned up.
Oil catch can, still have to put in the breathers, ill just pick up some little k&n filters.
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4034.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4035.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4038.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4021.jpg

Had a friend tig up the fitting for the water pump block off.
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4024.jpg

Heres the Trust oil filter block, no oil cooler yet :(*

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4025.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4027.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4031.jpg
[img]http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4026.jpg[/img

now we're cooking with fire. special thanks to mazworx. They sell this now for anyone who wants it

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4043.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4043.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4053.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4042.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4040.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_4039.jpg

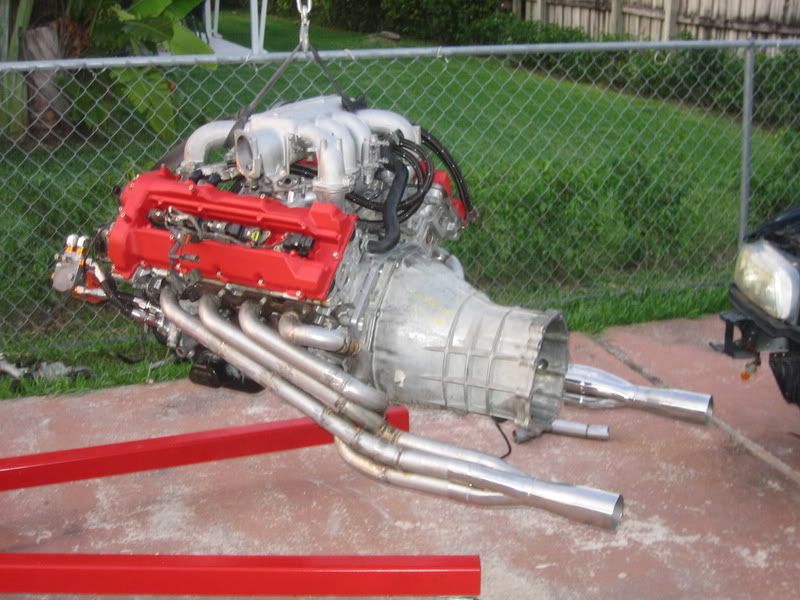

Heres where im at.

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5327.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5322.jpg

Due to a gross miss calculation on my part, i put one of the primaries on the pass header thru the starter and that kind of side tracked me for a while. I cut it off and im just gonna re route it.
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5324.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5323.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5326.jpg

Anyway heres todays progress , put the tranny back together took 15 minutes total.

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5329.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5332.jpg

Good news is the mazworx tranny to chassis mount for the sr20 kit is a direct bolt on in my application which means that the drive shaft for the vg trans with sr20 will bolt on too, makes this ten time easier
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5337.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5335.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5333.jpg

Got the driveshaft on. Another Mazworx part.
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5338.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5343.jpg

Engine coming out again for the 24 billionth time

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5344.jpg


Since i made the headers with out a tranny attached to the motor i wanted to make sure it didnt crash the headers into something after it was installed so did the driverside today

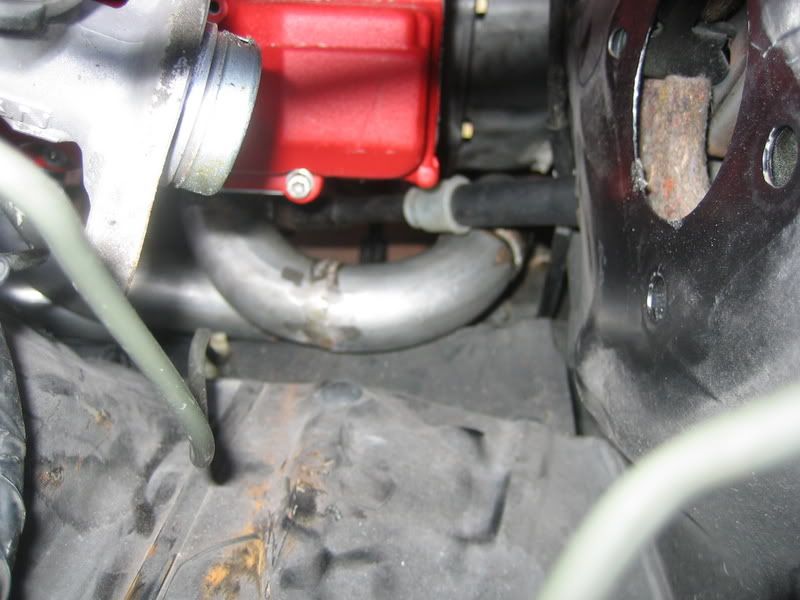

My Mile and a half of steering column clearance
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5346.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5353.jpg

Clutch will be here tommorow and after this weekend motor should be in there permanatly

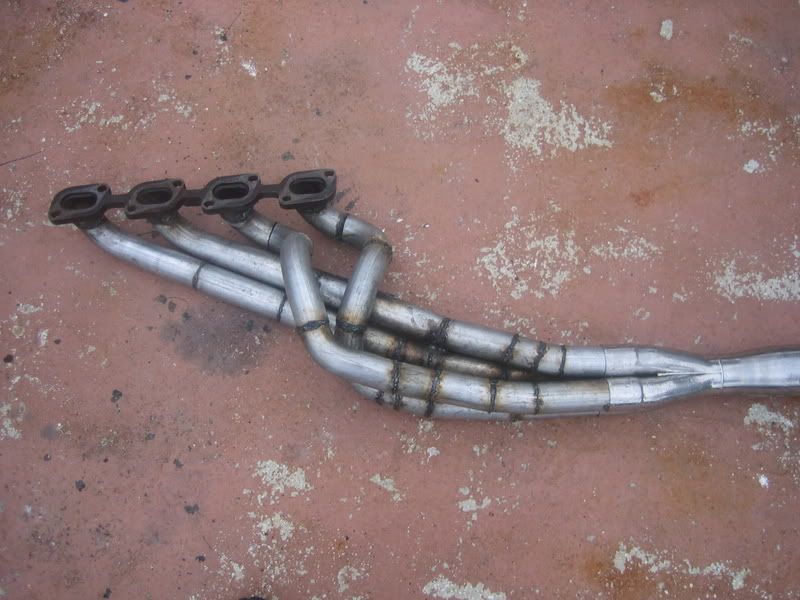

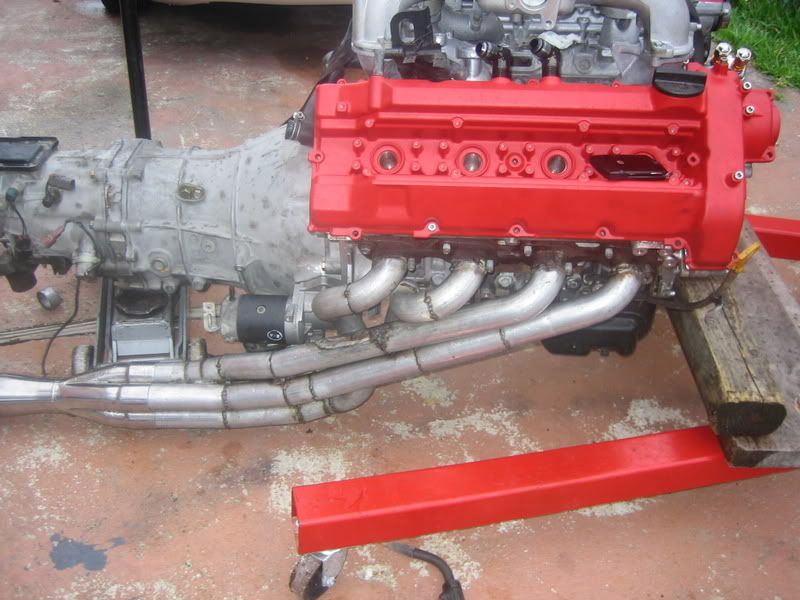

Fixed the pass side header, now it doesnt hit the starter anymore and clears everything else.

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5355.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5355.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5356.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5357.jpg
Got the clutch in today,
Its a z1 motorsports single disc should be good till 500lb/tq.
It all lined up fine, z32 pilot bearing even fit into the vh crank perfect.
Now if it would stop raining id put this f*cker in.

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5358.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5359.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5360.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5361.jpg

Its been rainging all day for the 5th day in a row.
Just getting little odds and ends with the valve covers and the headers done.
Wrapped them today. Tie raps are just to hold them in place because i ran out of hose clamps, and safety wire. Now me nor my passengers will burn there feet by the floorboard.
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5362.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5363.jpg

Ive been watchin this build on Zilvia, and i cant wait till u finish it a post up a video :lol: It looks sick, love the red valve covers

sick fuckin project man. love the headers, work of art. ferrari red looks sick too. good luck and keep us posted :popcorn:

Engine is in for the last time, it will not be coming out again, hahahaha it is on the mounts, tranny is installed on the mount, headers are bolted up, everything is good to go just have to button some little odds and ends and should be almost done.

Motor mounts powder coated
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5365.jpg
Front view
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5366.jpg

Drivers side frame clearance
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5367.jpg

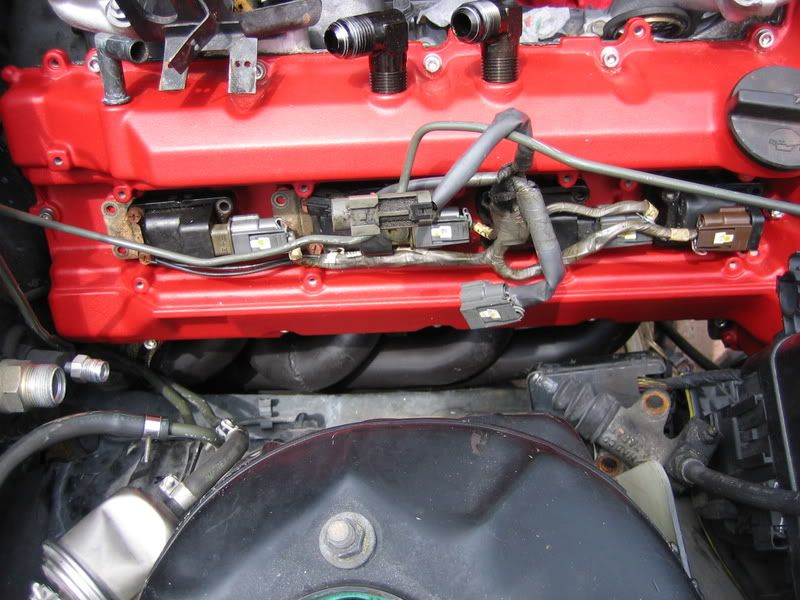

pass side frame clearance
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5368.jpg

Side profile
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5369.jpg

ballin..

that clearance looks tight.. is it gonna be enough?

Yes the clearance will be fine

the latest

Clutch lines, slave, etc are in clutch engages perfect, starter is on motor turns over but doesnt fire yet, still need a couple more parts should have by tommorow.
Heres the booster clearance, although in the picture it looks tight , you can stick your whole hand in between the booster and the valve cover.

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5370.jpg

This is the way i think im gonna sit the radiator

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5371.jpg

Shifter placement, feels perfect.

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5372.jpg

Misc

http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5374.jpg

nice work man. those headers must have been a bitch to wrap. any plans for a turbo setup in the future? not that this isnt going to have enough power. is that the easiest/only way to mount the radiator?

OMG...OMg..OMG!

i love it!

my dream come true. i cant wait to hear it!

Almost there
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5378.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5379.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5380.jpg
http://img.photobucket.com/albums/v344/gsracer/VH%20POWER/IMG_5381.jpg
