Caravan Water Pump - Yes, You Can.

If your pump is beginning to leak, squeal, or fail to circulate coolant, and you've already looked down into the engine compartment with a grimace, wondering how much it's going to cost for replacement, you are not alone. Be assured that the pump can be replaced fairly easily with some rudimentary tools and equipment, and about two hours of spare time. The flat rate for pump replacement is 3.4 hours, which will usually cost you upwards of $250 in labor alone at many places. The dealer list price for a new pump is $110, plus another $7 for the quad ring/gasket you'll need. You can beat the book rate and pay yourself the labor, and buy a new (not remanufactured) pump including a gasket for less than $50 at many auto parts stores.


Raise the front of the vehicle and support it securely on stands. For the amount of money you are saving, you can easily afford a decent jack and substantial jack stands, and have them at your disposal forever to aid in numerous other projects. If you shop right, you'll have plenty left over, too.
Remove the RF wheel and plastic lower splash guard.
Loosen the 3 water pump sheave bolts.
Drain coolant.
Relieve accessory belt tension and remove the belt.
Remove water pump sheave bolts and sheave, pushing sheave backward onto pump to provide clearance.
http://www.wwdsltd.com/files/Caravan3,3-3,8PumpSheaveLoose.jpg

Move the pump sheave around the hub to provide access to the five pump mounting bolts.
Remove the five pump bolts and loosen pump from timing case.
Support the engine from below. Loosen the three front engine mount bolts so there is about ½ inch of free travel. Remove the three RF upper engine mount top bolts.

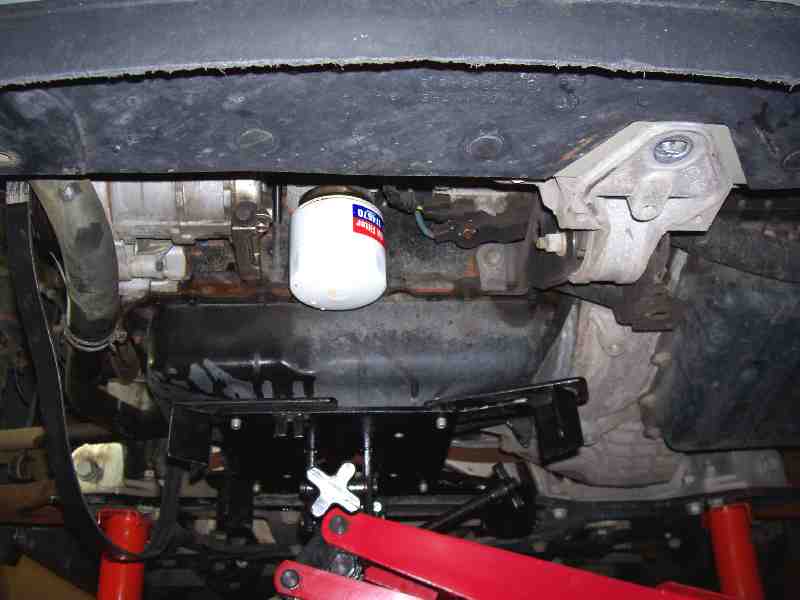

http://www.wwdsltd.com/files/Caravan3,3-3,8EngineSupported.jpg

Lower the engine about two inches.

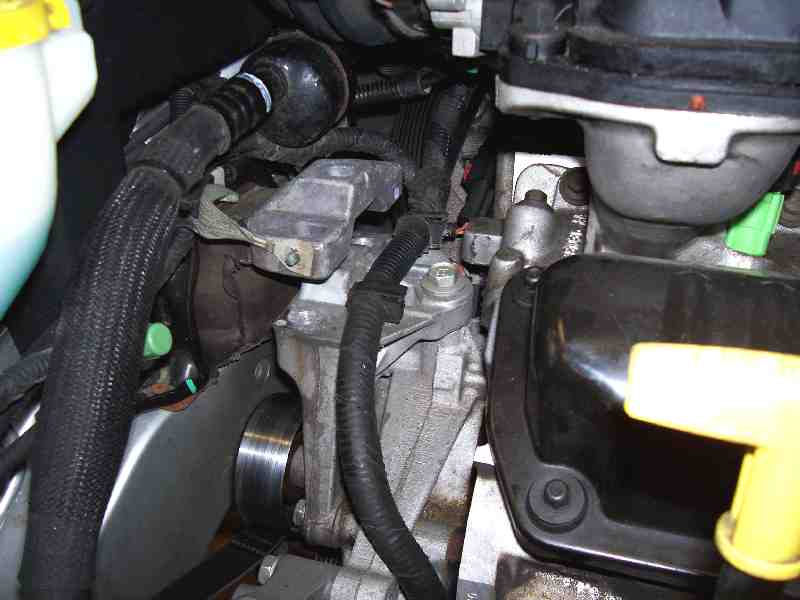

http://www.wwdsltd.com/files/Caravan3,3-3,8RHEngineMountDropped.jpg

Remove pump and install the replacement. Remember to slide the pump sheave onto the pump hub before installation, There will be no room to install the sheave once the pump is bolted in place.

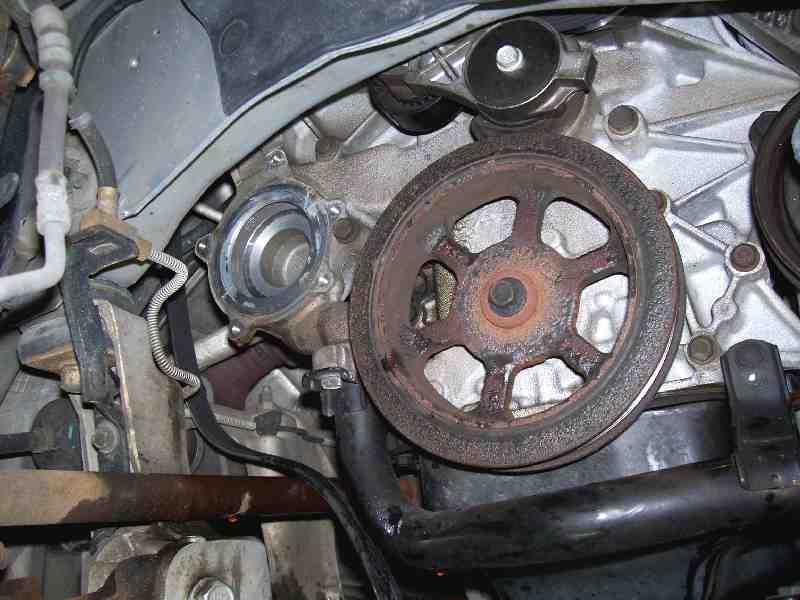

http://www.wwdsltd.com/files/Caravan3,3-3,8WaterPumpRemoved.jpg

Bolt the pump sheave onto the hub finger tight.
Raise engine and install the three RF upper engine mount bolts and the three front engine mount bolts securely.
Attach the accessory belt and tighten the three pump sheave bolts. Install the lower splash shield and RF wheel.
Fill the cooling system and overflow reservoir with a 50% solution of the appropriate coolant.
Start engine with the radiator cap removed and monitor for leakage, Top off the coolant as thermostat opens and allows entrapped air to purge.
Install the radiator cap.

Monitor the coolant level in the reservoir closely for several days of driving as more entrapped air may purge.
