The Camaro Dissecting Has Begun ... PICS!

Well... I finally broke down and tore the car apart... I've had a LT4 Hotcam Kit laying around staring at me for a month or so and now it's going in, with addition to a few other things. The new additions are going to be the cam, ported heads, match ported Intake manifold, new 1.6 rockers, springs, etc (all in the kit), pushrods, Heavy duty timing chain set, CSR electric water pump, pacesetter longtube ceramic coated headers, msd cap & rotor kit... the list goes on but I think that's most of it. So anyways, here's some pics...

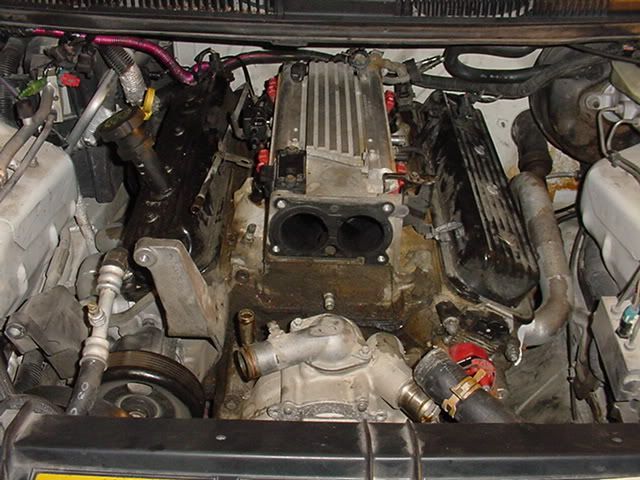

Throttle Body off, wireing harness, hoses, etc..
http://img.photobucket.com/albums/v246/cuda_dude/DSC00293.jpg

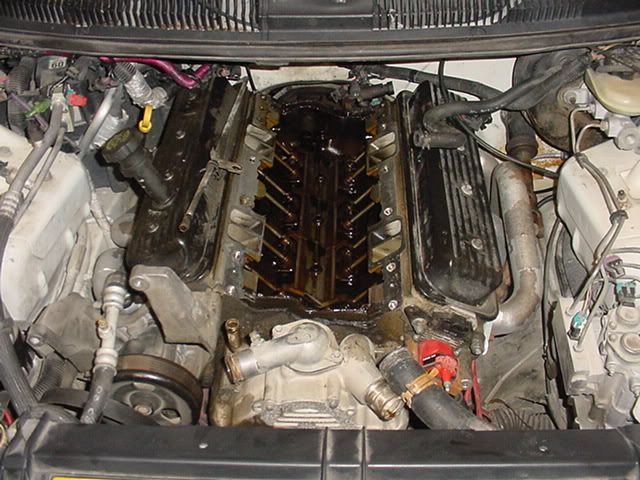

Intake Manifold off
http://img.photobucket.com/albums/v246/cuda_dude/DSC00298.jpg

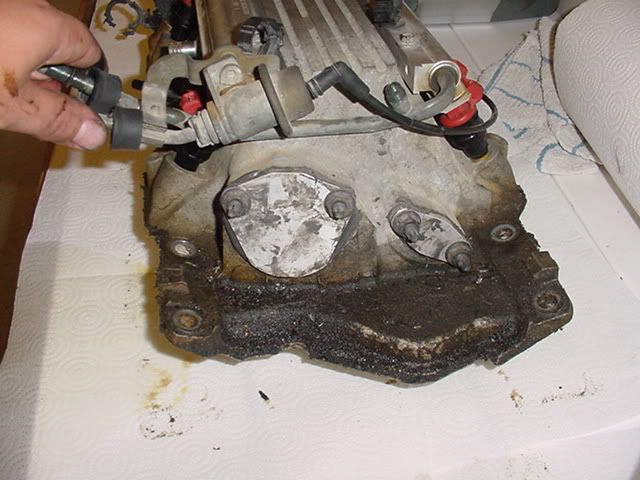

EGR Bockoff Plates on back on Intake Manifold
http://img.photobucket.com/albums/v246/cuda_dude/DSC00304.jpg

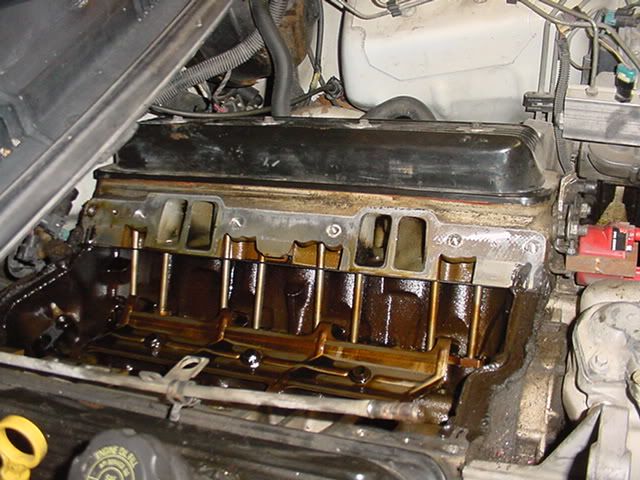

Lifter Valley
http://img.photobucket.com/albums/v246/cuda_dude/DSC00301.jpg

Heads Off
http://img.photobucket.com/albums/v246/cuda_dude/DSC00316.jpg

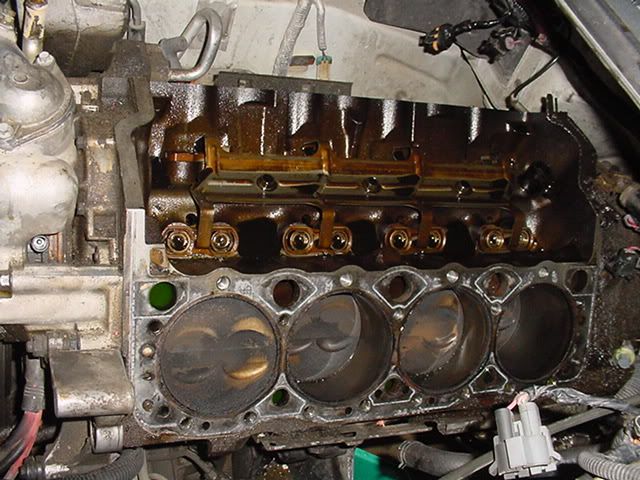

Dirty Pistons
http://img.photobucket.com/albums/v246/cuda_dude/DSC00307.jpg

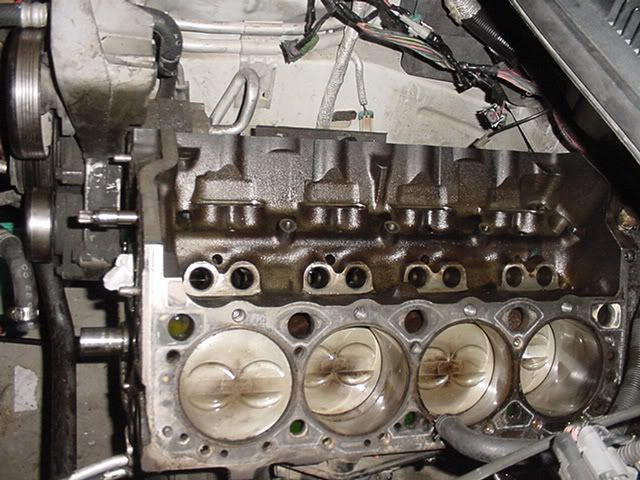

Clean Pistons (oiled)
http://img.photobucket.com/albums/v246/cuda_dude/CleanedPistons.jpg

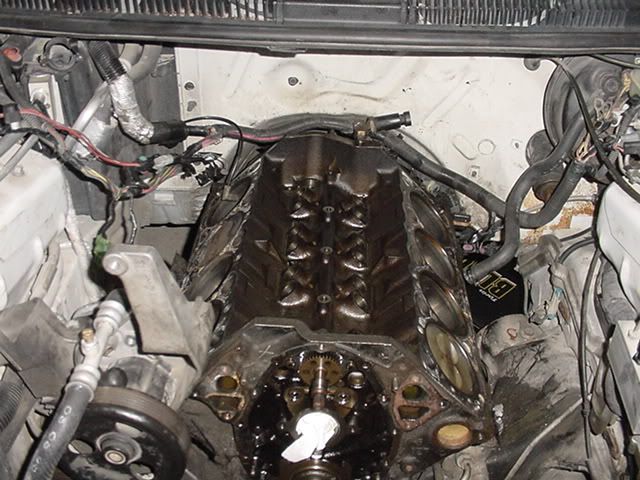

Timing Cover off
http://img.photobucket.com/albums/v246/cuda_dude/Block.jpg
http://img.photobucket.com/albums/v246/cuda_dude/EngineFront.jpg

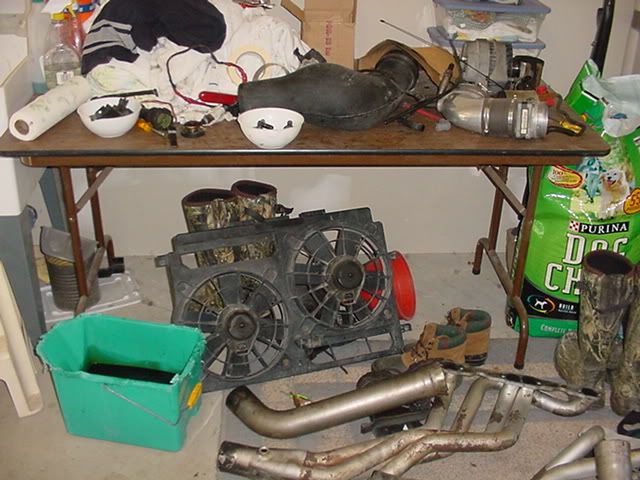

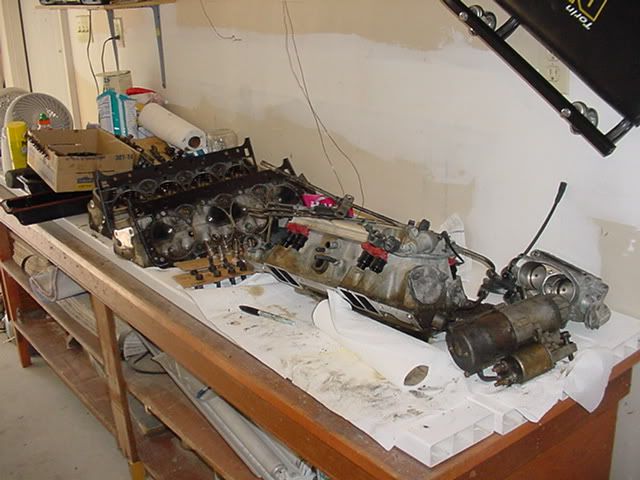

Parts
http://img.photobucket.com/albums/v246/cuda_dude/DSC00315.jpg
http://img.photobucket.com/albums/v246/cuda_dude/DSC00314.jpg

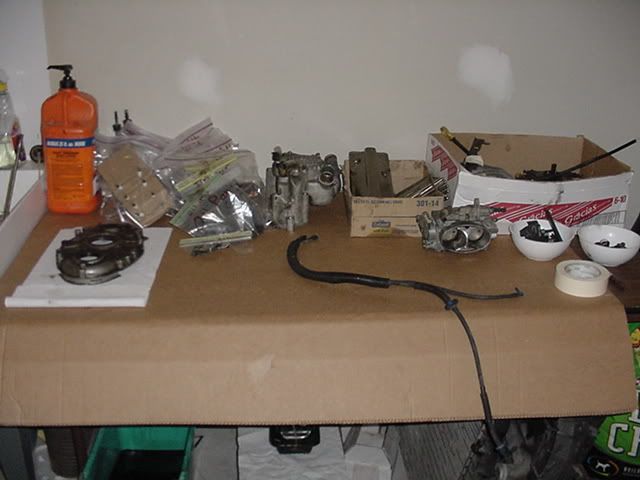

All of those Organized
http://img.photobucket.com/albums/v246/cuda_dude/OrganizedParts.jpg

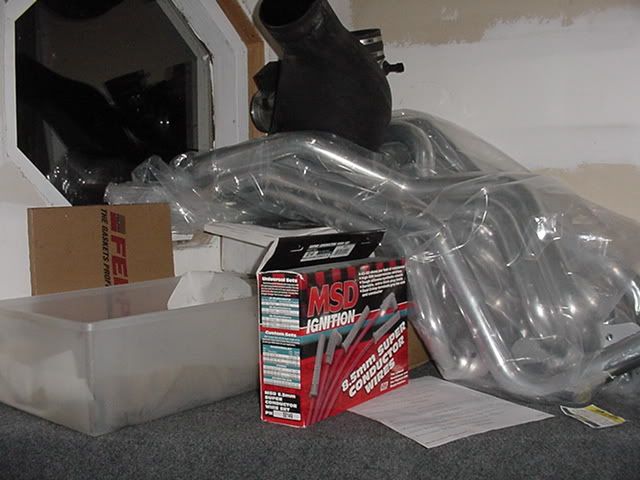

A few new things
http://img.photobucket.com/albums/v246/cuda_dude/NewParts.jpg

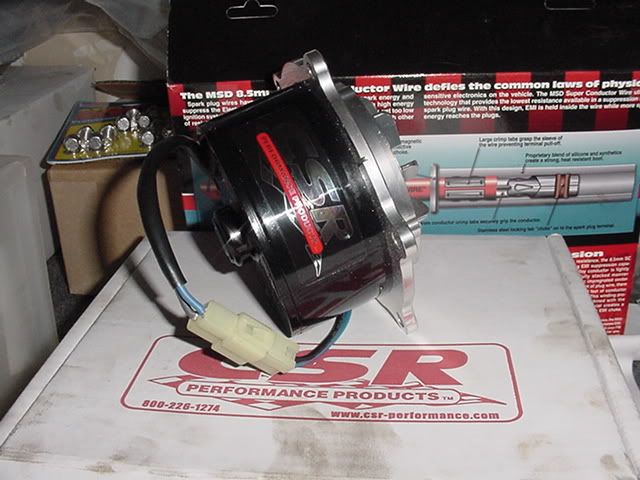

Electric Water Pump
http://img.photobucket.com/albums/v246/cuda_dude/EWP.jpg

Very cool.

i recommend the corvette fuel rail covers when everything is said and done.

I'm thinking about it... If I do, I might modify them

Nice. Good luck to ya.
What kind of power or jut regular performace you want out of this?

CLEAN YOUR MOTOR!!! lol. when you are all done give ir a good clean. some good parts going in. Good luck on all of it!!

I want to have about 400 HP with still decent gas mileage...but yeah, we will see what happens... and yes the engine is getting cleaned... oil leaks are a real bitch..
