1000hp fuel setup. (56k WARN)

So my fuel setup is about complete... -10AN from the fuel cell to the A1000 fuel pump. Then -10AN from the pump to the engine bay into the aeromotive high flow 100 micron fuel filter. Then from the fuel filter, -10AN to the rail and back to the A1000 FPR. -6AN from the FPR back to the fuel cell for the return. I am using PTE 1600cc fuel injectors and I will be running 119 octane gas at all times.

I have about $650 into the whole setup. I got a very good deal on the pump, cell, 17ft of -10AN line and the fuel filter for $350. The pump and filter are worth that alone. Everything is brand new.

Here is a pic of the parts...
http://i36.photobucket.com/albums/e21/Dragtalon/Picture007.jpg

And some pictures of the install. The A1000 FPR is on its way.

Engine bay:
http://i36.photobucket.com/albums/e21/Dragtalon/Picture029.jpg
Fuel Pump:
http://i36.photobucket.com/albums/e21/Dragtalon/Picture031.jpg
Fuel Cell:
http://i36.photobucket.com/albums/e21/Dragtalon/Picture032.jpg
Fuel lines run and pump:
http://i36.photobucket.com/albums/e21/Dragtalon/Picture035.jpg
Fuel rail and fittings:
http://i36.photobucket.com/albums/e21/Dragtalon/Picture038.jpg


Here is the link to the rest of the album if anyone wants to check out more pics...

http://photobucket.com/albums/e21/Dragtalon/

Hopefully I will never have to upgrade my fuel setup again! :D

Looks like a sweet set-up. :thumbsup:

Just curious, is that a stock fuel rail????

I would think with that much into the fuel system you would get a high volume fuel rail to complete it. Looks good though, I'm assuming its a track only car, what do you plan on hitting for numbers?

Yes it is... It is plenty big. I tapped it out to 3/8" NPT (which is a little over 5/8" standard size or 16mm) and it is about 9/16" in diameter inside so it will be able to flow plenty of fuel.

If you say so, I dont know much about that I guess, what are you planing for the rest of your setup?

I would think with that much into the fuel system you would get a high volume fuel rail to complete it. Looks good though, I'm assuming its a track only car, what do you plan on hitting for numbers?
The car is going to be mainly for the track but I will still drive it on the street. I'm running a PTE T67 and I have a 150 shot direct port NX setup that I might throw on the car once I reach the numbers I'm shooting for.

A friend made 694AWHP on the same turbo but was running out of fuel. I'm shooting for 700. Once I hit that number I'm going to race the car to see what times I can achieve. I would like to see close to a 140 trap. That would get me close to a nice mid 10 second run with good driving. If I get that before summer I'm going to put the nitrous on and go for a 9. There are a couple people running the same turbo hitting mid 9s with nitrous and high 9s without so I think it's possible.

The car is getting a 10pt cage good to 9.99 so that will be plenty good for my goals. If I get kicked off the track for not having a 12pt cage I will be happy as hell. All I want is a single digit this year. Whether it is a 9.99 or faster, that is my goal.

I have to go run some errands... I'll explain more later.

Hope ya never lose a hanger bearing or joint !

Damn dude, nice setup. A sub 10's car at the widwest meet would be sweet. Good luck, cant wait to see what kinda numbers that bitch puts down!

Very nice!!! My friend had a very similar setup in his 1g but his was an aluminum fuel cell.

Hope ya never lose a hanger bearing or joint !

I had a similar thought.;)

Sweet turbo choice :D

If this car is going to see much street use I would think the 6an return would be too small to get fuel pressure in line, but for WOT use that's a nice proven setup to go with. I had fuel capacity issues when I was running the T67, it really does pay to go too big when you get to this level.

According to my math, the A1000 at 35 psi boost (assuming 43 psi base) anda traget AFR of 12:1 and using race gas with a specific gravity of .724 (sunoco 117) that setup is good for 84 lbs/min, or about 10 pounds more than a T67 will do at full tilt. Works out nicely. :)

How close does that sit to the drive shaft? Looks really close from that picture. But really nice setup so far.I see you probably did not do much to the cr before all this and ebgine pull. Still had stock exhaust on it lol

Ok, I dont mean to be an ignorant dumbass, but which one is the filter and which one is the regulator? Where is the regulator on a car with the stock fuel system?

The filter can be seen sitting on top of the cell in the first pic, and installed in the second pic. I don't see his reg in the pics. The reg on the stock DSMs is on the drivers side end of the fuel rail, attached directly to it.

Yeah I had to order the regulator... Should be here by the end of the week. Hopefully the car will be running this weekend! Going to be wierd to have to open my hatch to fill up on gas. Although I am only going to run 119 octane, it wont see much street use. At $11 a gallon, it will get expensive!

How close does that sit to the drive shaft? Looks really close from that picture. But really nice setup so far.I see you probably did not do much to the cr before all this and ebgine pull. Still had stock exhaust on it lol
The pump is about 2" away from the driveshaft. Plenty of room. There is no way the driveshaft will move up or down right there unless something breaks. It was the only flat area I could find under there that actually looked like a decent place to mount it!

Everything is pretty much the way it is going to be when I race it. Except for the roll cage, everything is done. I will probably keep the stock exhaust on it for now, due to street use and driving back and fourth to the dyno. I will be running a 5" exhaust off the turbo directly out the drivers side in front of the front tire. I want it to be as free flowing as possible. Then when I want to drive it on the street I can just re-attach the stock exhaust or my custom 3" I have for it and not have to worry about noise.

As for the fuel filter... Like Kevin said, it is in the 2nd pic and it has "FLOW --->" marked on it.

Shit, 117 was 9.50 last year up from 8.25 the year before. I hope it didn't go up again! I only use ~1 gallon per trip to the track, but it still adds up somehow...

Yeah... I might end up putting in 93 or so, maybe 105 or 110 that is a little cheaper for driving to and from the track. I dont really want to trailer it but I might be forced to. Its more impressive to drive to the track, run a 10 then drive home and thats how I want it done. Its so easy to drain the tank now that I wouldnt mind putting in 93 or so just to get me to and from the track, then using 119 when I get there.

and i though my fuel set up was nice... sh*t... its all about who has the money....not me

Not really... The setup really wasnt all that expensive. Its all about good deals! :D

Well the fuel setup is complete. Motor is in, then I decided to rewire the whole car. I dont know what I was thinking.

http://i36.photobucket.com/albums/e21/Dragtalon/Picture080.jpg

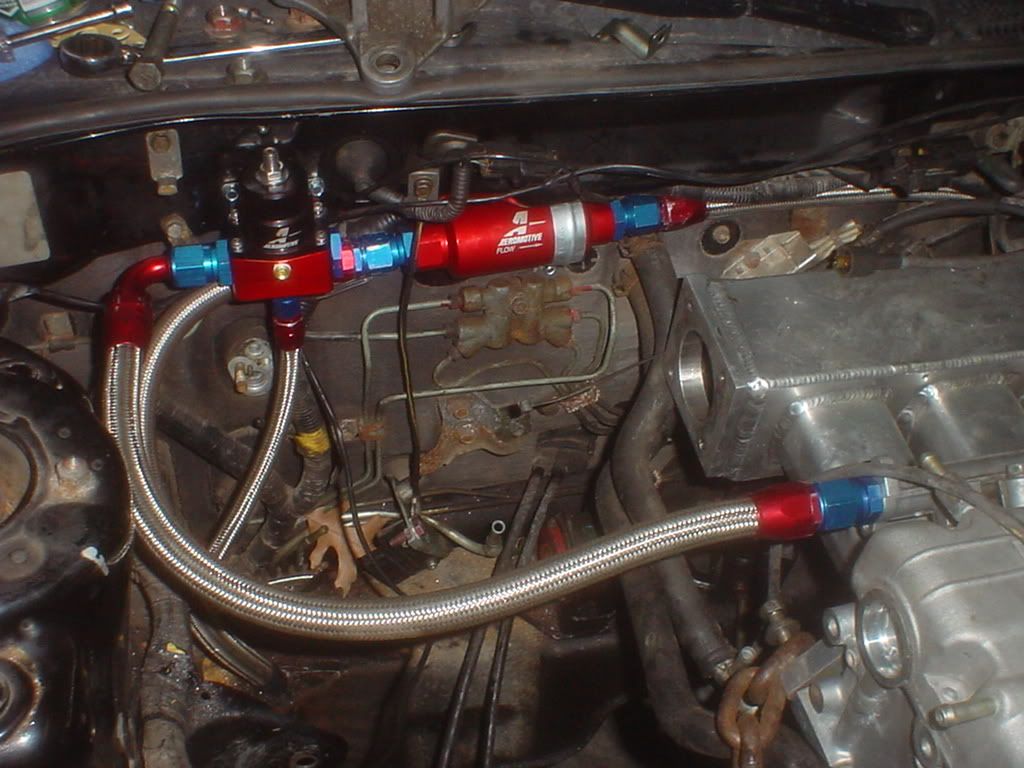

http://i36.photobucket.com/albums/e21/Dragtalon/Picture078.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Motor/Picture083.jpg

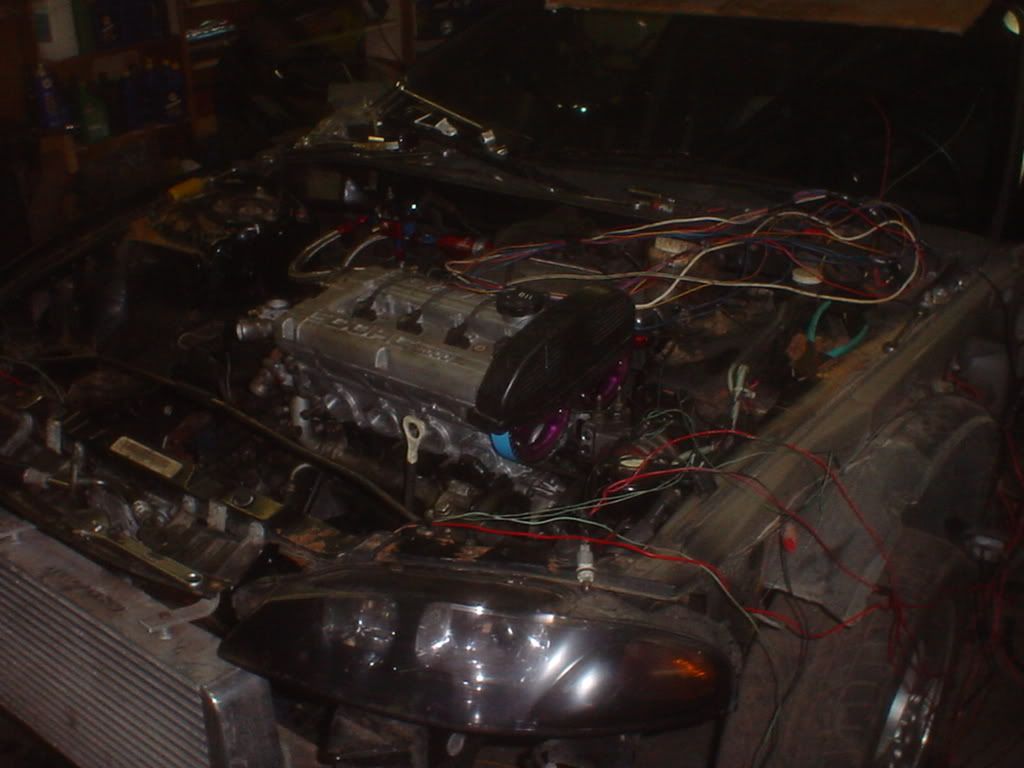

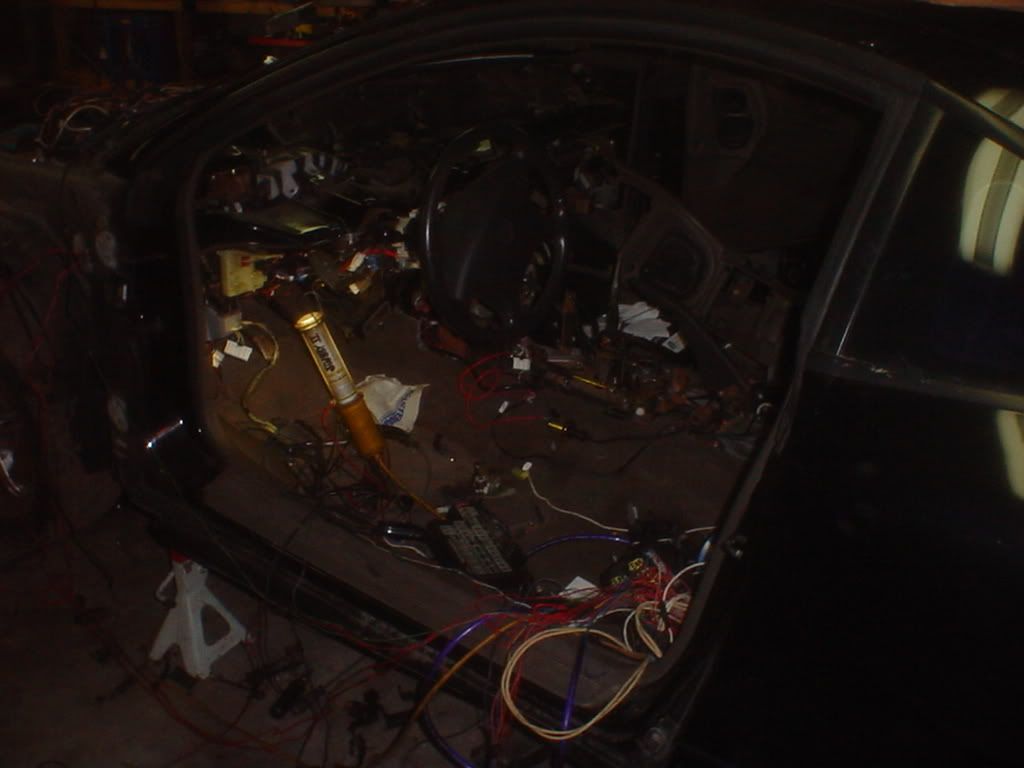

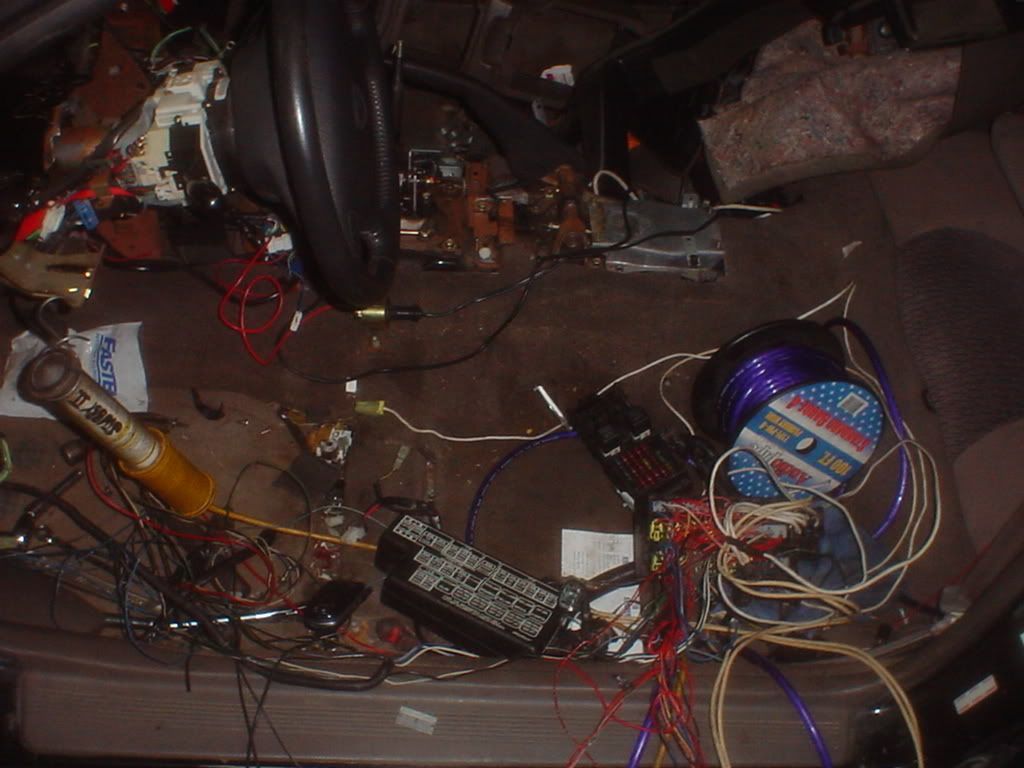

Then I decided to rewire the car.

http://i36.photobucket.com/albums/e21/Dragtalon/Motor/Picture065.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Motor/Picture066.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Motor/Picture067.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Motor/Picture070.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Motor/Picture071.jpg

No more fuse box or wiring in the engine bay. Turned out pretty decent.

wow...that looks...fun

:lol: Man the one thing I have no desire to do in my DSM.... fuckin wiring. Good luck man, the fuel shit looks very pretty ;).

I'm scared to touch the wiring in mine... Its confusing enough already... Although I will be doing some rewiring too, just not the whole car. :wink:

The wiring wasnt that bad. I got it done in about 8hrs. The thing that killed me was I hadnt slept in 2 days so I sat and stared at the wires for a good 1.5-2hrs trying to figure out how I was going to do it. After I got going it was smooth sailing.

The cage gets here next week and I'm picking up some new seats this weekend. Cant wait to get to the dyno!

I cant wait to see your bad ass machine take a run at the MN or midwest meet.

I cant wait to see it in general

What turbo??

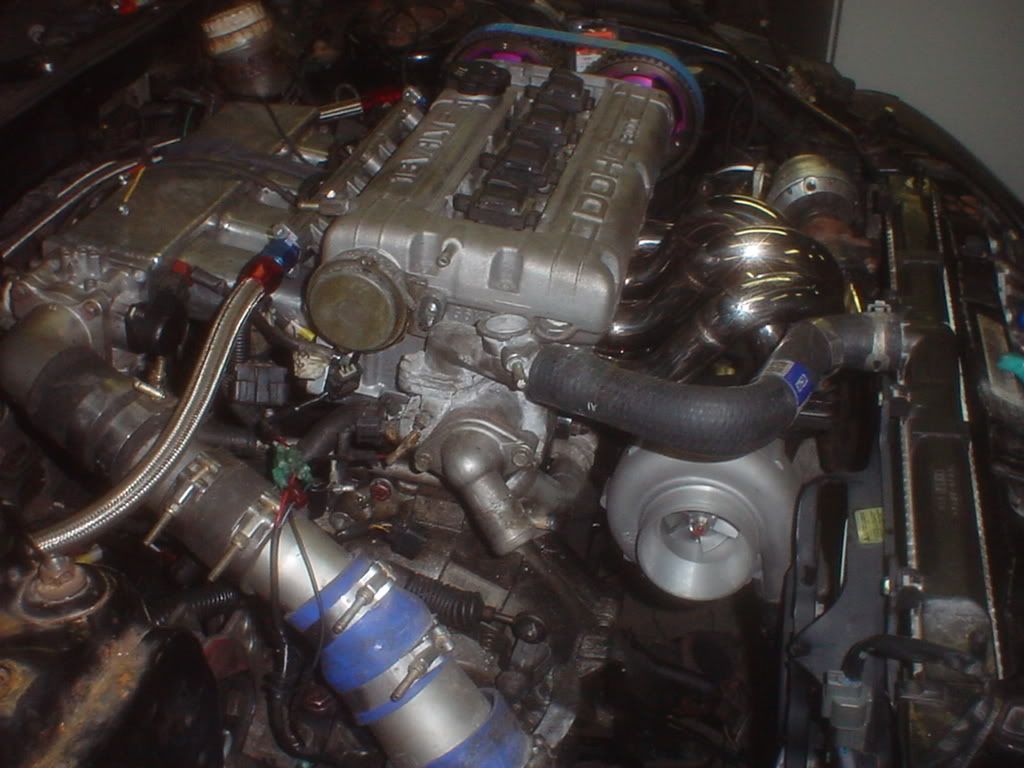

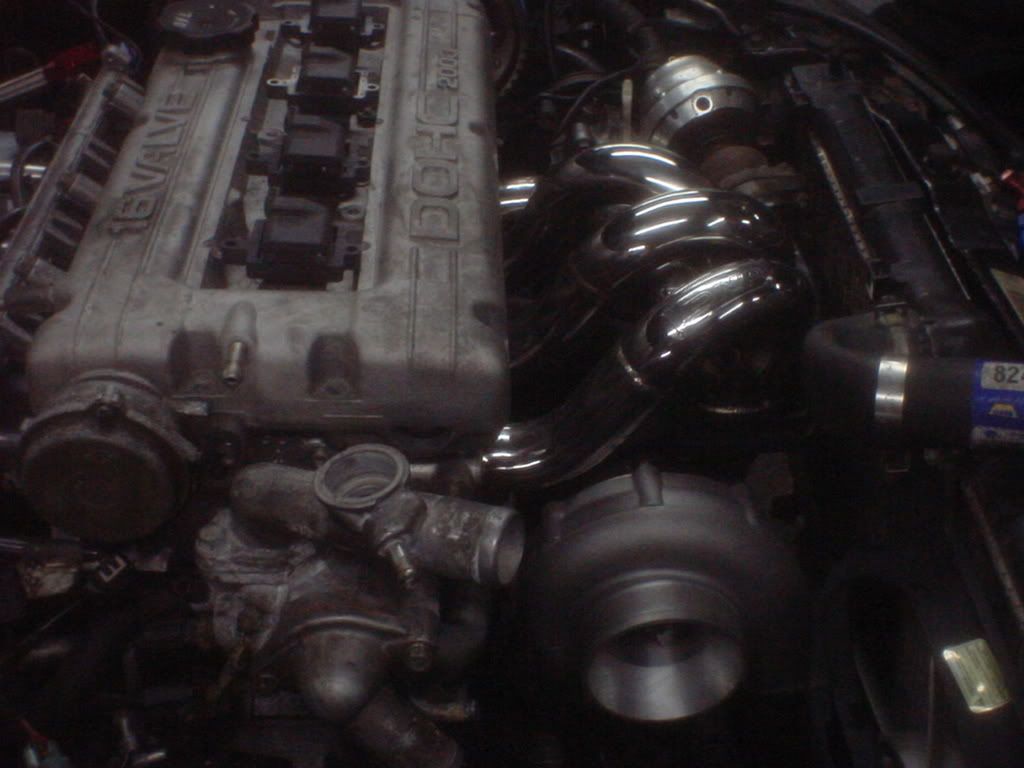

I have a PTE T67 that I was going to use until I came across this PTE T70. Rated 100hp more than the T67 so I decided to use that and am selling my T67 to my buddy. :D
http://i36.photobucket.com/albums/e21/Dragtalon/Motor/Picture097.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Motor/Picture095.jpg

The car will start tomorrow. Pressurized the fuel system tonight, everything is wired except my coil on plug setup I have to finish then adjust fuel settings in DSMLink for the 1600cc injectors and start it up.

The exhaust was a pain in the ass to weld up. Not much room from the turbine housing to the alternator or oil filter. I made it fit nicely thought. I'll get some more pictures of it tomorrow.

Lookin really good. :thumbsup:

Are you gonna powdercoat your valve cover?

Well I suppose I could update this now, quite a bit has changed on the car since this thread was made.

Mods:

Engine - 7 bolt :D
-Eagle rods
-Ross pistons .030 over
-HKS 272 cams
-HKS Cam gears
-HKS dual valve springs
-2g head port mached to a 1g intake gasket

Exhaust
-DNP T4 Exhaust manifold
-Tial 38mm Wastegate
-Custom 3" turbo back straight pipe
-Magnaflow muffler 3" inlet twin 3" out

Drivetrain
-Quartermaster Twin disk
-LSD rear (just installed, didnt come with it)
-Redline Shockproof gear oil
-SS -4AN clutch line

Turbo & Intake
-GT42r
-Cheap ebay FMIC 24x12x3
-Custom made 3" IC piping
-Greddy RS BOV
-GM Maf and Translator
-Custom QPR Intake manifold (prototype)

Fuel
-16gal fuel cell
-Aeromotive A1000 Fuel pump
-Aeromotive 100 Micron Fuel filter -10AN
-Aeromotive A1000 Fuel pressure regulator -10AN
-SS -10AN feed line
-SS -6AN return line
-Stock fuel rail tapped for -10AN
-PTE 1600cc Injectors


MISC
-Kevlar timing belt
-COP Ignition (which I also custom make and sell now)
-AVC-R Boost controller
-DSMLink V2
-Custom dash
-LC-1 WBO2
-Rear mounted battery
-Fuse box in center consol

Gauges
-EGT
-Boost
-Fuel pressure
-Oil pressure
-Oil temp
-Water temp
-10k RPM tach

Plans for winter:
-Cut front half of engine bay off. Make tubular. Buy 1 piece front end.
-Setup fuel system for Methenol, 4 more 1600cc injectors, another A1000 pump.
-Front mount the turbo in the bumper
-Slicks
-Build a new motor, Pauter rods, ross pistons, FP3x cams
-Run Water to Air intercooler (Already Made)
-Honda radiator with 1500CFM fan mounted in fender
-Install roll cage
-Shep Dogbox
-Get the car to weigh less than 2700lbs
-Carbon fiber doors and hatch.
-Possibly make the rear tubular

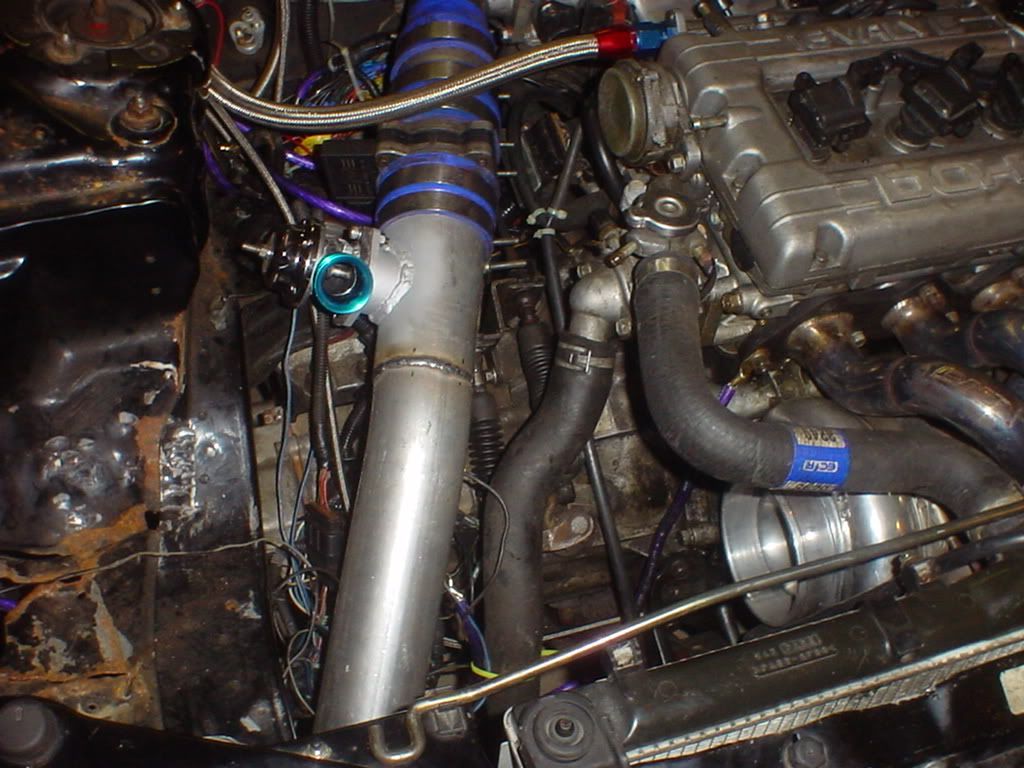

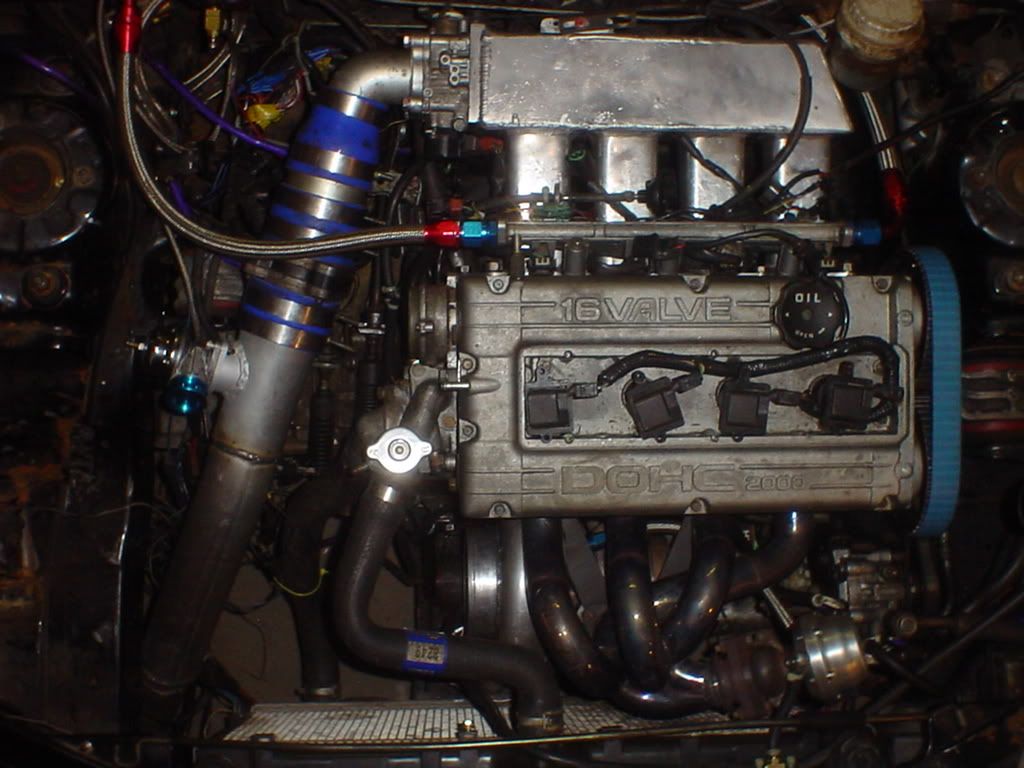

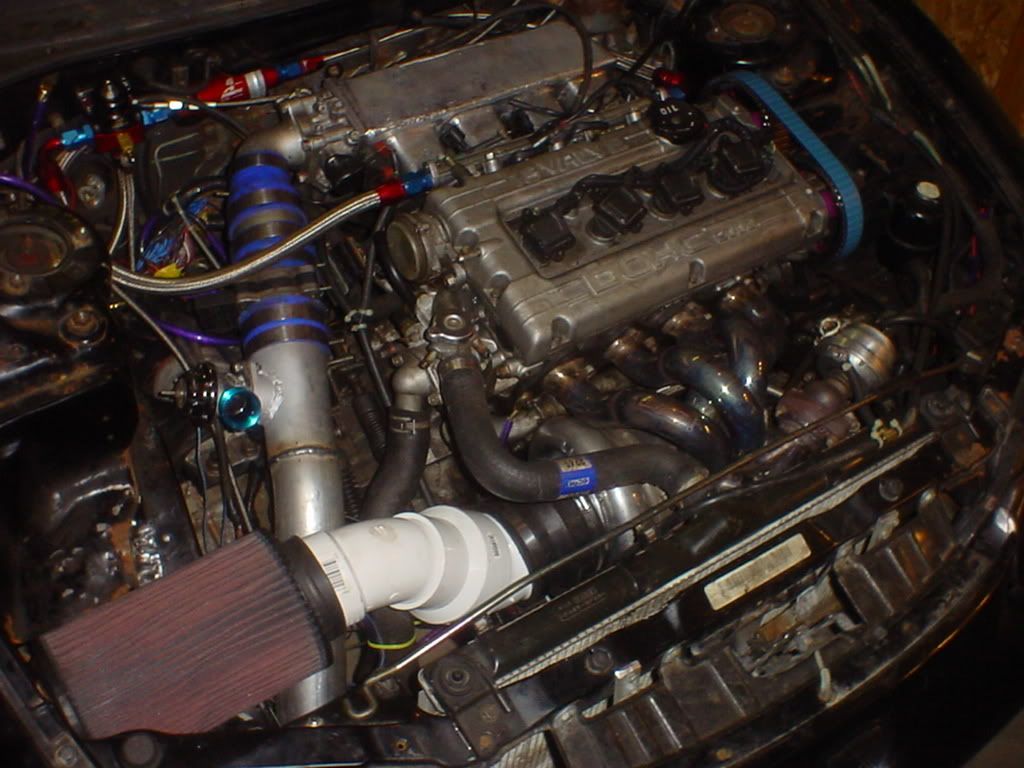

As of right now, here are the pictures.

http://i36.photobucket.com/albums/e21/Dragtalon/Picture008-1.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Picture009-1.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Picture010-1.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Picture011-1.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Picture017.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Picture021-1.jpg

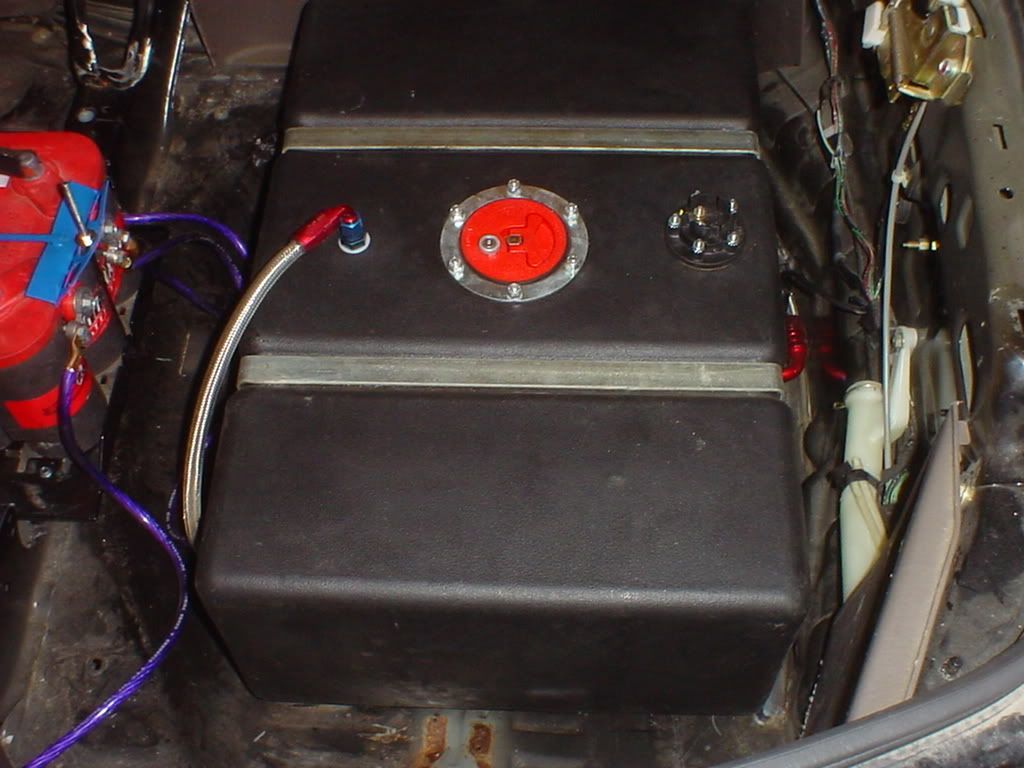

http://i36.photobucket.com/albums/e21/Dragtalon/DSC00914.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/DSC00915.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Picture022-1.jpg

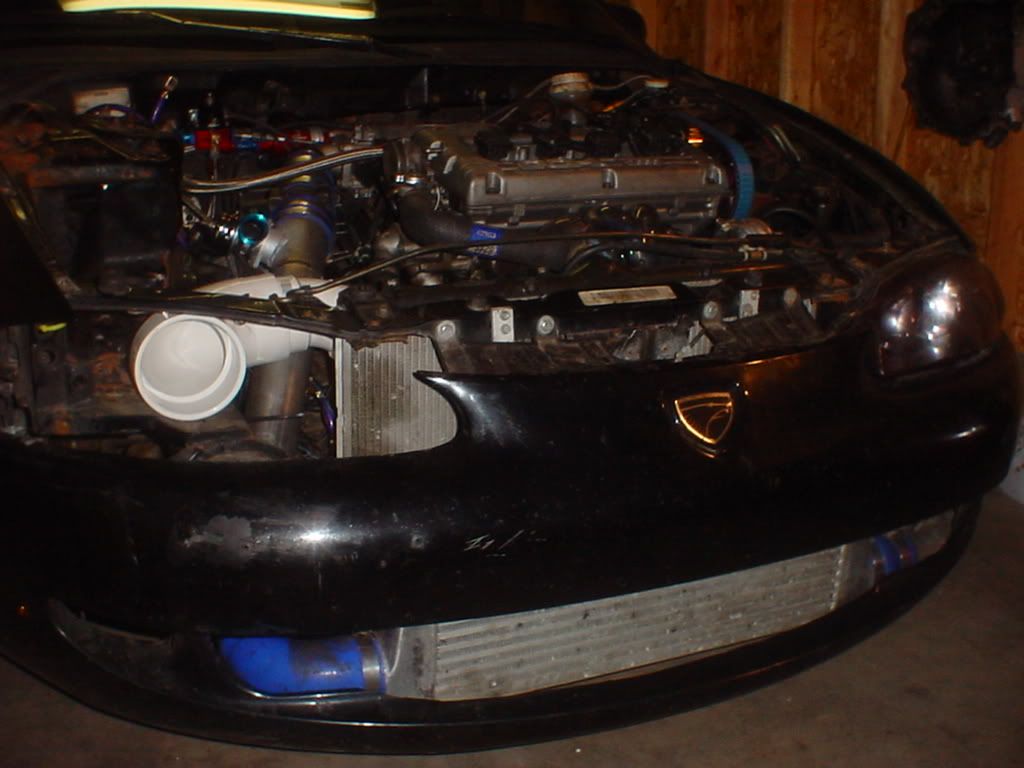

http://i36.photobucket.com/albums/e21/Dragtalon/Picture023.jpg

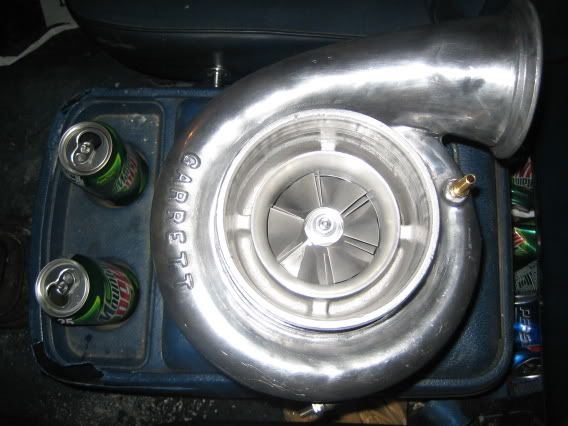

http://i36.photobucket.com/albums/e21/Dragtalon/42r-5.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/42r-4.jpg
http://i36.photobucket.com/albums/e21/Dragtalon/Picture005.jpg

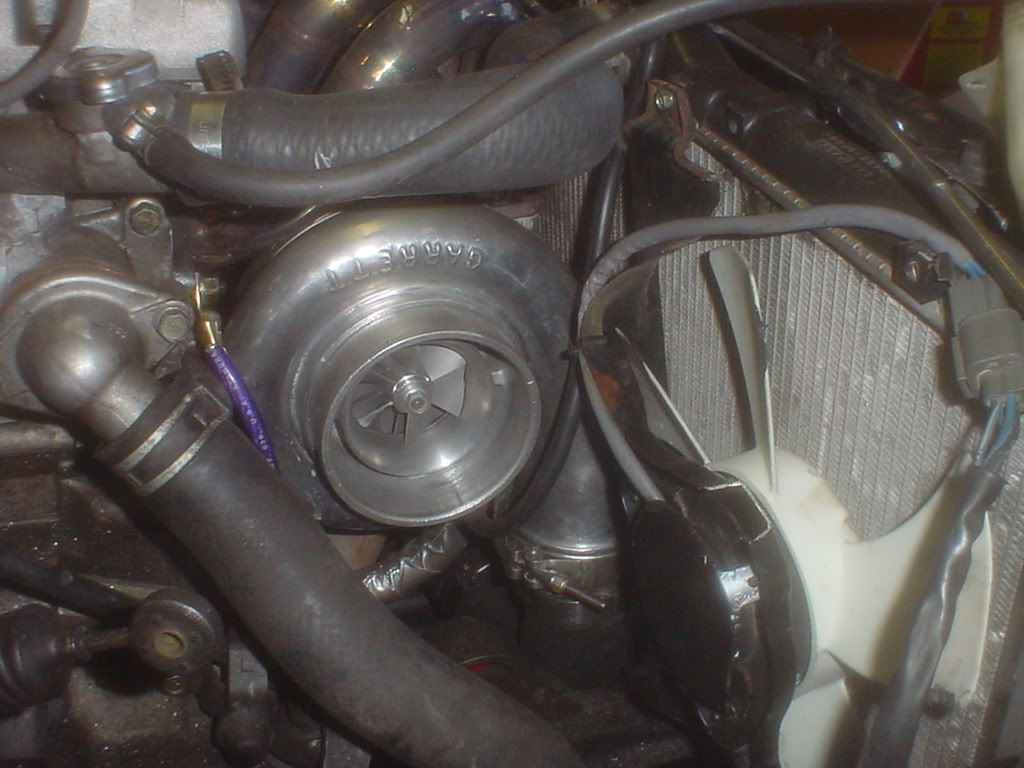

http://i36.photobucket.com/albums/e21/Dragtalon/Picture003.jpg
And last but not least... Next to a stock T-25 wheel.
http://i36.photobucket.com/albums/e21/Dragtalon/42r-2.jpg

All I Could Think Was Oh My God
That Thing Is Nuts

Friggin insane man!

Totally sick

I like.

Do you still have the AC in there? I would yank that shit out! That's like 30lbs IIRC. Just a thought. Looks very very nice though. Can't wait for some numbers.

I like the guages to, and how you have the stock ones in the airbag location

The car never came with AC when I picked it up. It was already removed, kinda nice, I didnt have to deal with it.

I was planning on making the car pretty much drag only, then I started thinking about driving it on the street. The car was going to get a sheet metal dash but I figured it would look shitty. So I decided to make my own gauge cluster and put it where the stock one is. Then since I planned on driving it on the street, I still wanted a speedo. So I looked into ordering aftermarket gauges but decided against it because I've never seen the gauge cluster moved before either. So I put it where the air back was. Everything is still funtional, it lights up, blinker signal, tach and speedo, the whole thing works flawless.

Now its just easier to scare the passenger if I decide to do a pull on the highway or a back road. When they see the speedo wind to 140-145ish well less than 1/2 a mile, its classic to watch them get nervous. :D

Nice...
