How-To:Lowrider dancer


tuning¢ars
01-28-2006, 07:01 AM
hello for all ,today I come here to teach to do a Lowrider Dancer.

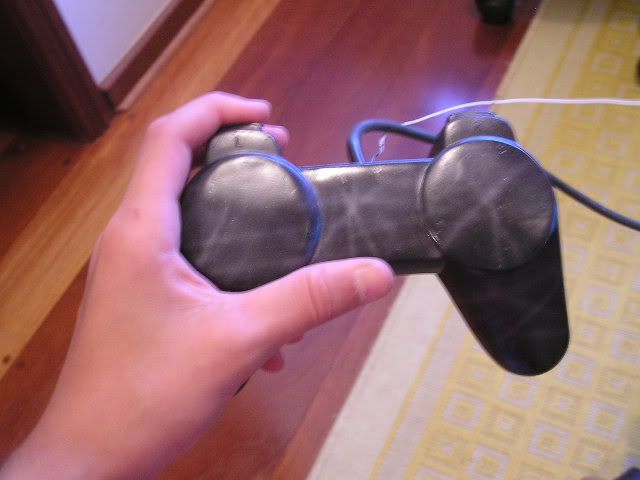

It is going oh an idea of the control for Dancer,of course that were not made many alterations on the eletric circuit ,but is alone an idea:
http://img.photobucket.com/albums/v294/Tuning/P1010045.jpg

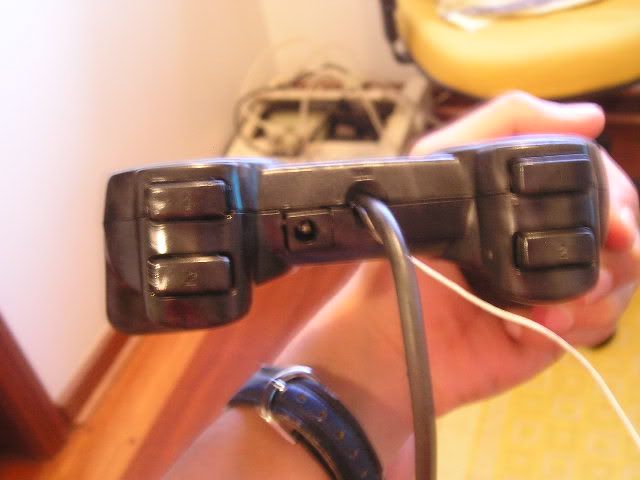

see the entrance of the energy:
http://img.photobucket.com/albums/v294/Tuning/P1010046.jpg

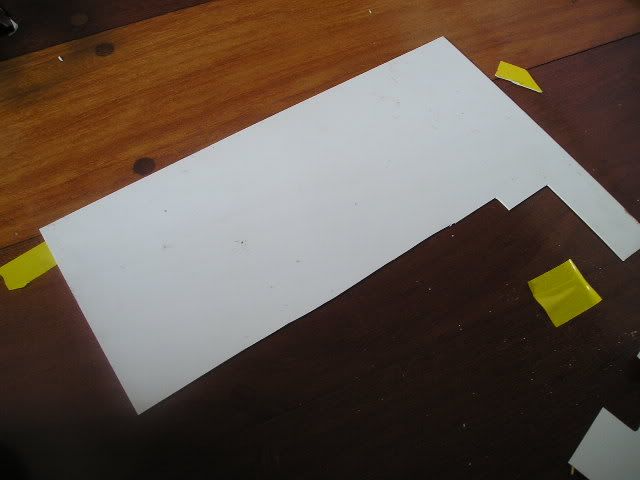

1° step,you will need styrenne
http://img.photobucket.com/albums/v294/Tuning/DancerLowrider3.jpg

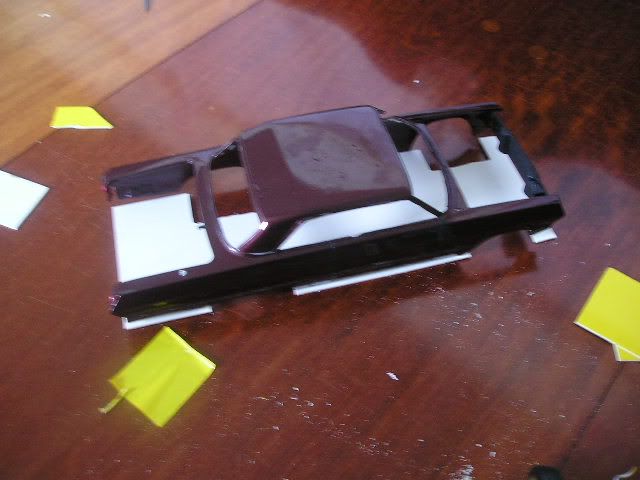

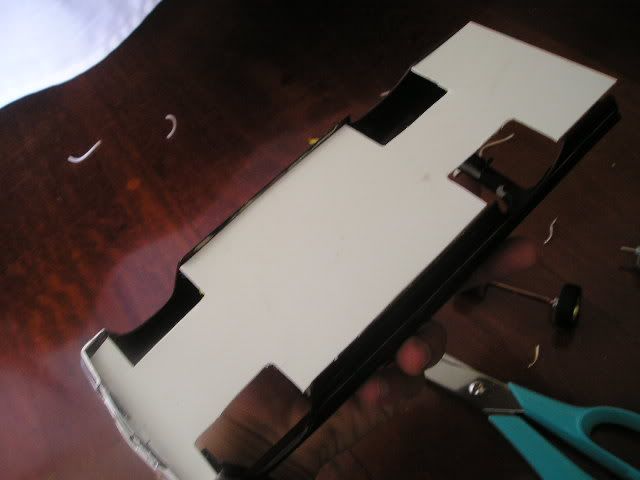

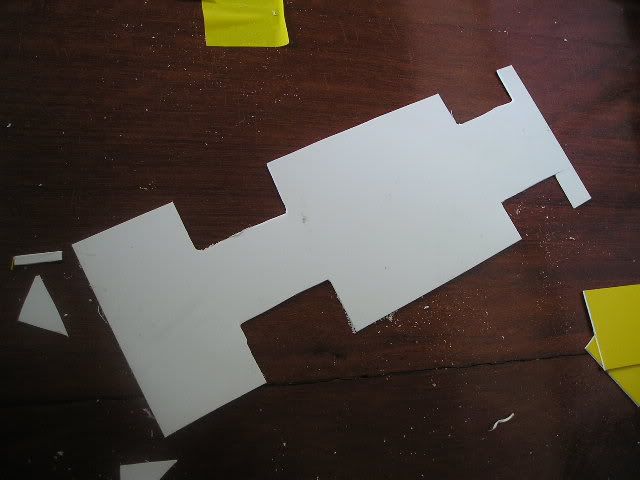

2°step,cut the estireno as a measured chassis, with the entrances for the wheels

http://img.photobucket.com/albums/v294/Tuning/DancerLowrider4.jpg

http://img.photobucket.com/albums/v294/Tuning/DancerLowrider5.jpg

http://img.photobucket.com/albums/v294/Tuning/DancerLowrider20.jpg

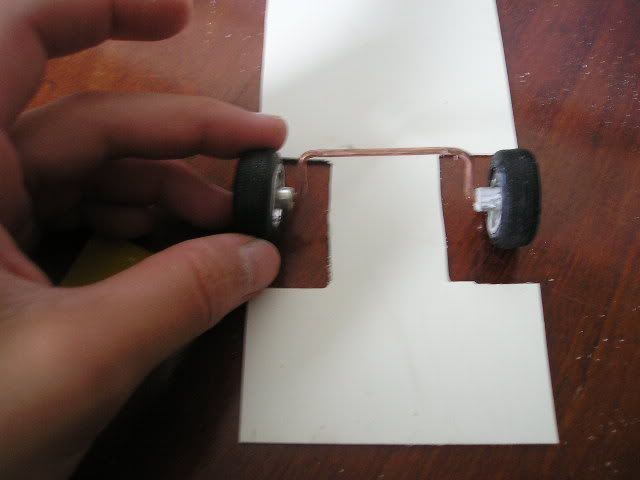

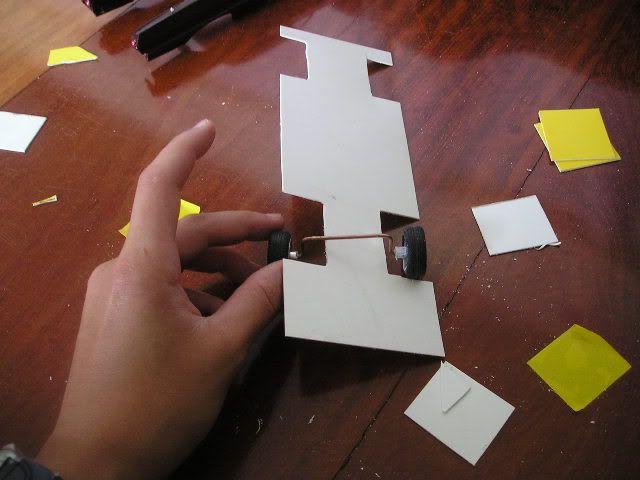

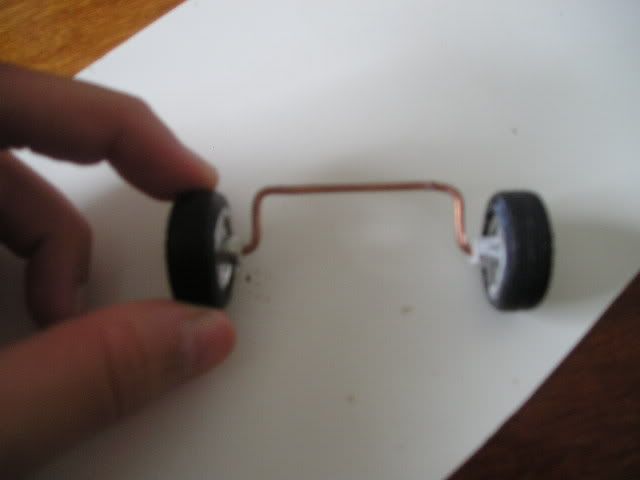

3°step,,make a bar in " U " of thread of copper ,and verify the movements

http://img.photobucket.com/albums/v294/Tuning/DancerLowrider10.jpg

http://img.photobucket.com/albums/v294/Tuning/DancerLowrider11.jpg

http://img.photobucket.com/albums/v294/Tuning/DancerLowrider12.jpg

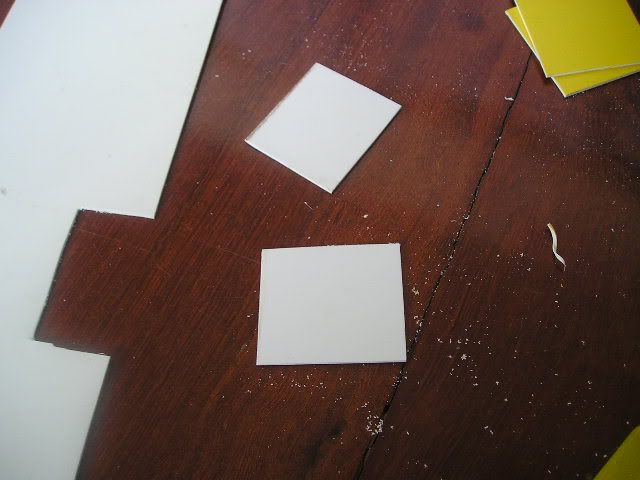

4°step, cut 4 styrenne pieces in the measure of the it distances of a wheel for another

http://img.photobucket.com/albums/v294/Tuning/DancerLowrider6.jpg

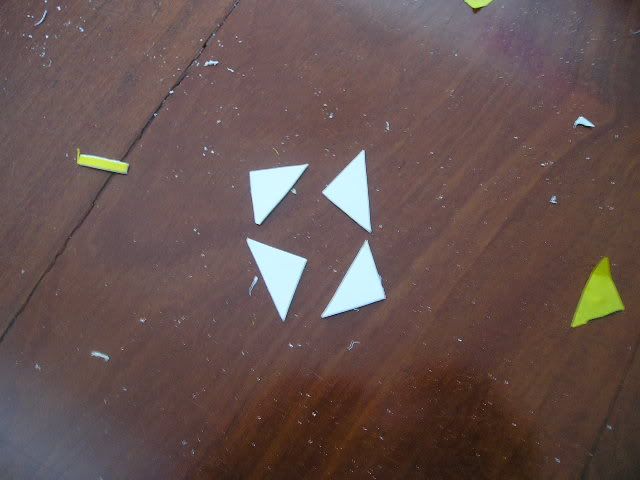

5°step,corte more 8 triangles of 90° to give sustentacion to the styrene ,that you will see later so that it serves

http://img.photobucket.com/albums/v294/Tuning/DancerLowrider7.jpg

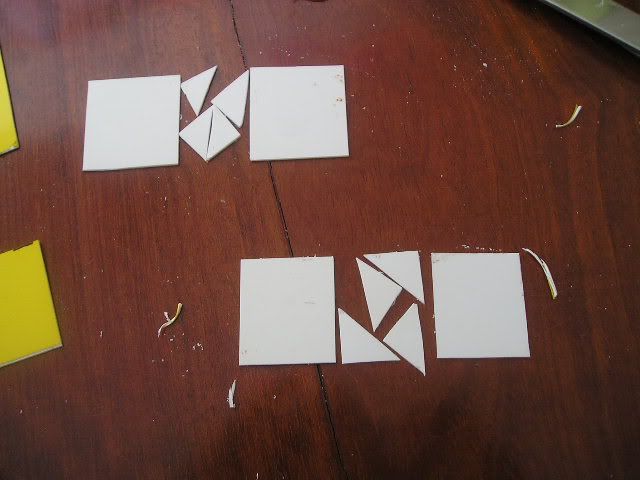

6° step ,must to be like this

http://img.photobucket.com/albums/v294/Tuning/0764a6d7.jpg

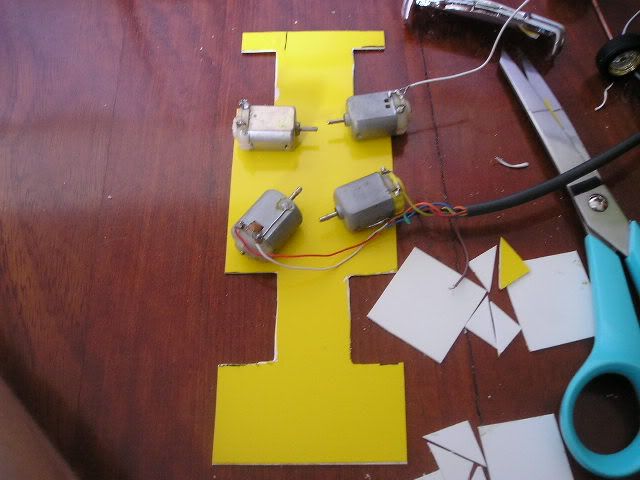

7°step ,start to plan the places where the motors will occupy

http://img.photobucket.com/albums/v294/Tuning/17243682.jpg

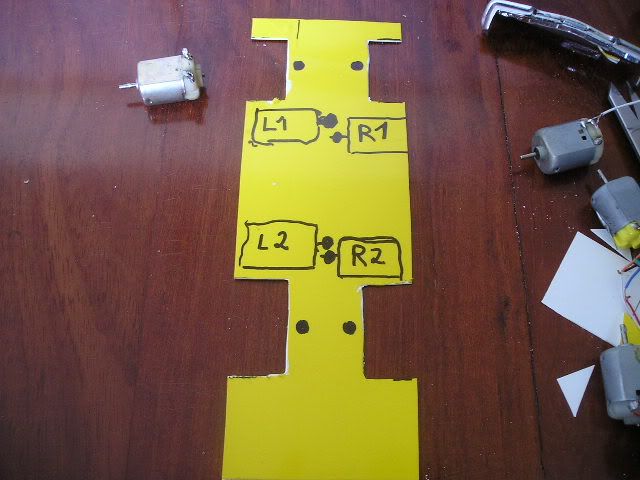

8°step,anote its owed localizations ,note that I use a side with stick ,for not to scratch out in it chassis

http://img.photobucket.com/albums/v294/Tuning/8363d50a.jpg

9°step, now it marks a hole on each side of the bar in " U" and also one below each axe of the motors,like this
http://img.photobucket.com/albums/v294/Tuning/8363d50a.jpg

10°step,use the stove to heat a metal, it should be a little fine

http://img.photobucket.com/albums/v294/Tuning/18d9358f.jpg

http://img.photobucket.com/albums/v294/Tuning/92eb291e.jpg

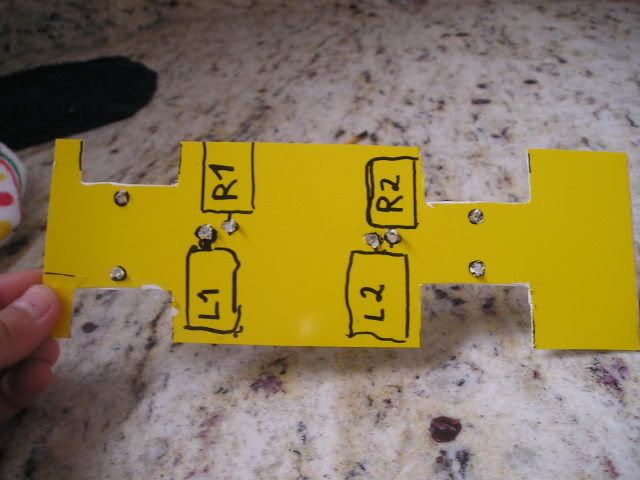

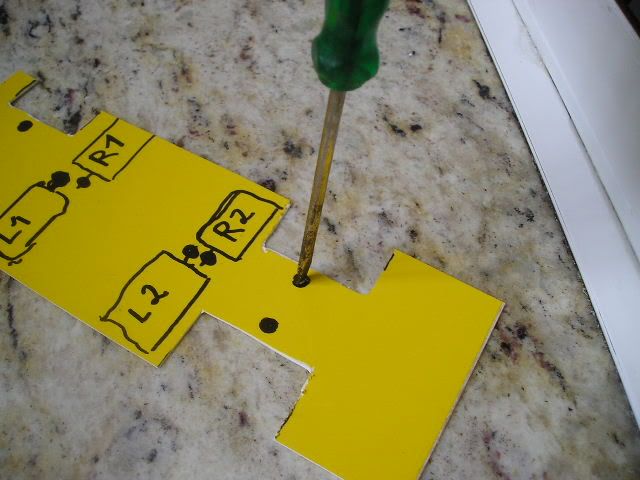

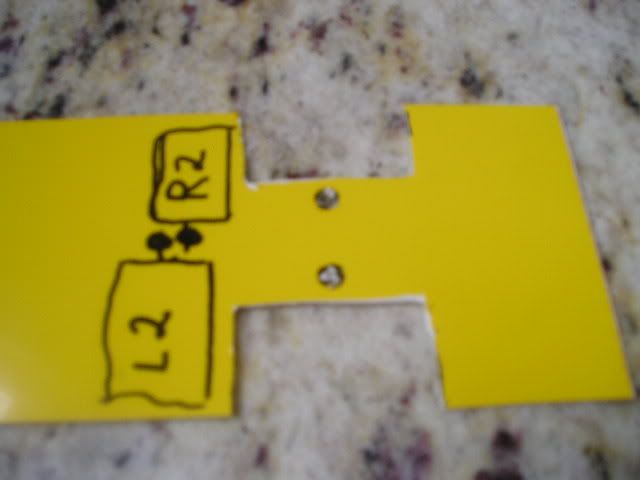

11° step,make a hole on the targets:
http://img.photobucket.com/albums/v294/Tuning/f9135b93.jpg

http://img.photobucket.com/albums/v294/Tuning/f15cfa33.jpg

http://img.photobucket.com/albums/v294/Tuning/64b7309c.jpg

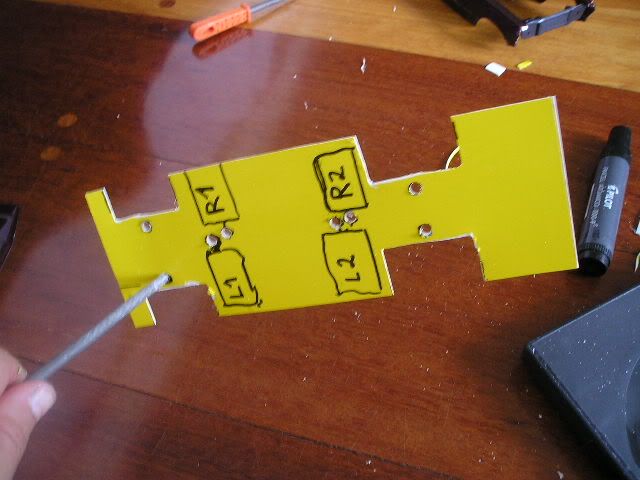

12°step,to make better use a rasp

http://img.photobucket.com/albums/v294/Tuning/55ecf410.jpg

http://img.photobucket.com/albums/v294/Tuning/aaa9b8e1.jpg

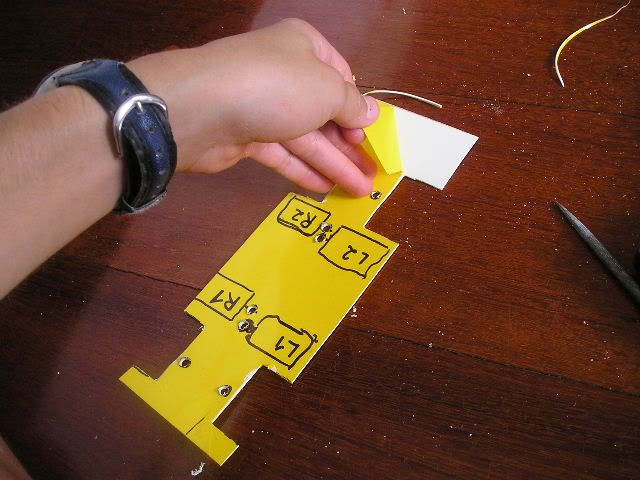

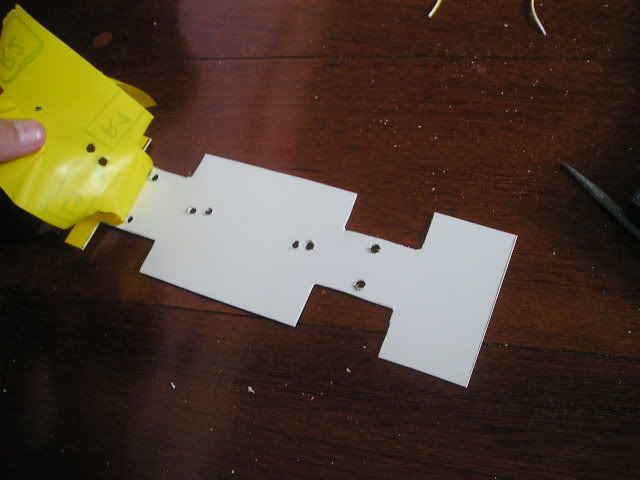

13° step,now you can already remove the sticker

http://img.photobucket.com/albums/v294/Tuning/367bdcd0.jpg

http://img.photobucket.com/albums/v294/Tuning/927152fa.jpg

14°step,you can use the metal to place on the holes ,so the line it will slide soft

http://img.photobucket.com/albums/v294/Tuning/fc96fe49.jpg

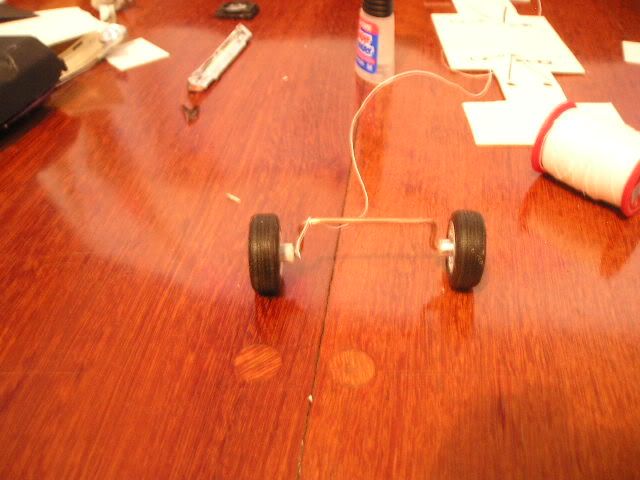

15°step, tie a line in the extremity of the bar in " U",can be a fish line....

http://img.photobucket.com/albums/v294/Tuning/6535e325.jpg

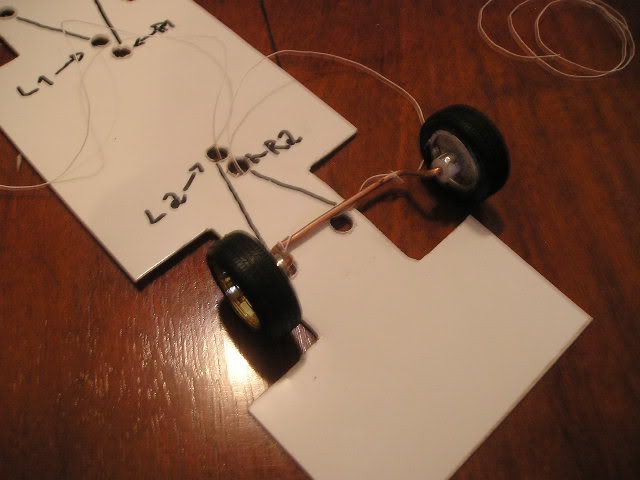

16°step,pass the line inside of the hole below the bar in " U",and that same line passes for the hole where will be the motor that will lift the motor of the respective side:like it shows the illustration

http://img.photobucket.com/albums/v294/Tuning/78260de5.jpg

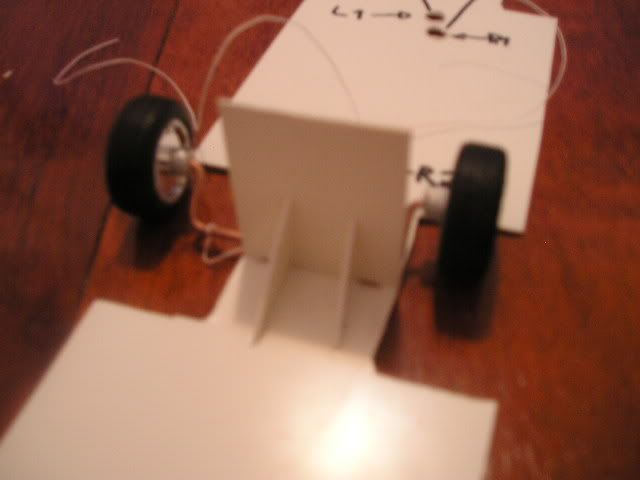

17°step,now with those pieces of styrenne that you already cut previously ,you glue next to the bar in " U",and with 2 triangles you give support gluing in the styrenne as exhibition the photo

http://img.photobucket.com/albums/v294/Tuning/8ca9b53e.jpg

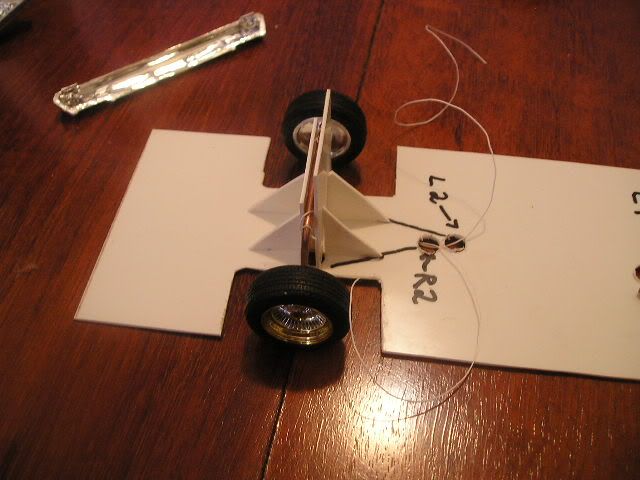

18°step,repit that on the other side and always near the bar in " U " as exhibition the illustration

http://img.photobucket.com/albums/v294/Tuning/1e3f2929.jpg

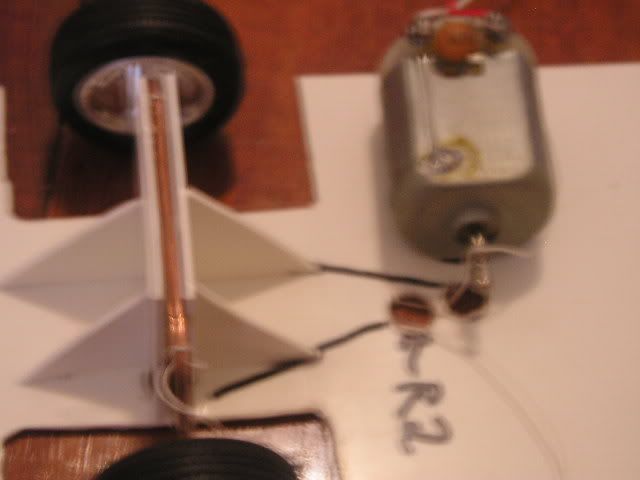

19° step,glue the motor in the place that you reserved ,and ties the line in the axe of the motor

http://img.photobucket.com/albums/v294/Tuning/5d151724.jpg

OBS:note that the line passes underneath and later it returns as it was explained previously

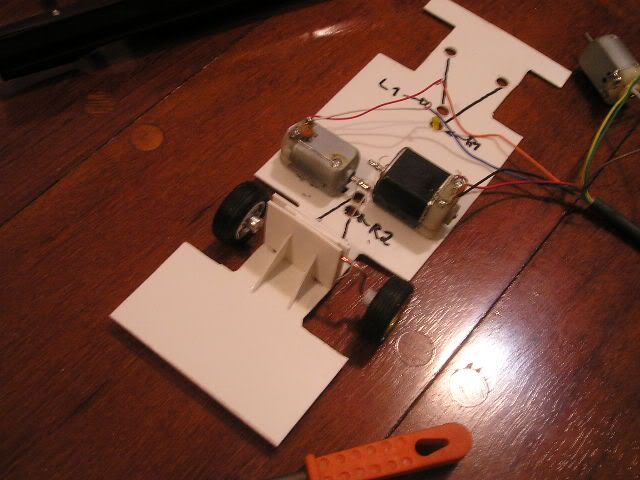

20°step,cole the second motor,and ties as it was already said

http://img.photobucket.com/albums/v294/Tuning/b7f83d67.jpg

21°step,repita that of the other tem front,or you can only leave for him to lift in the front,so it ties the line in the center of the bar in " U ".

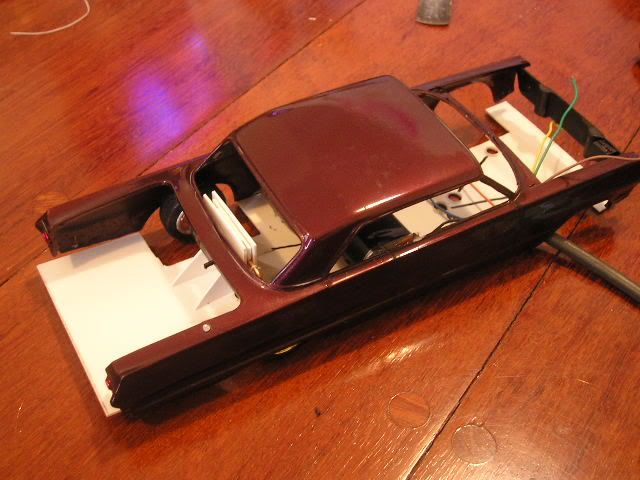

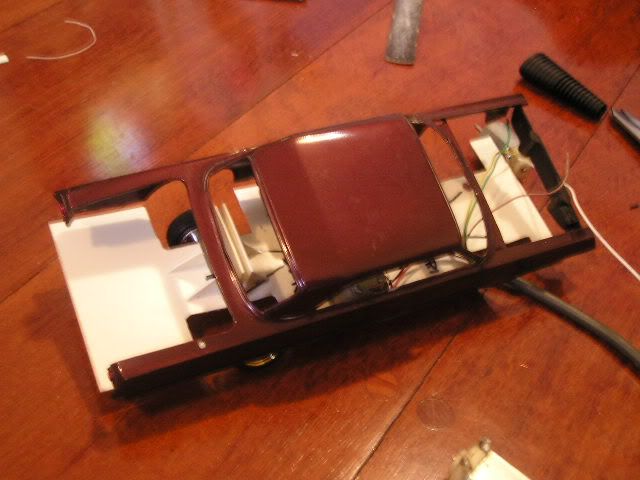

22°step,:YOU NOW HAS A LOWRIDER!!!!!!!! GO SHOW FOR ITS RELATIVES!!!!!! PLAY ENOUGH WITH HIM!!!!!!!!!!!!
http://img.photobucket.com/albums/v294/Tuning/7db6347d.jpg
http://img.photobucket.com/albums/v294/Tuning/48a0dbb6.jpg

TUTORIAL BY Tuning¢ars
[ :grinyes:

I'm sorry about the words,because I'm from Brazil!!:icon16:

BYE.

blubaja
01-28-2006, 10:09 AM
Awsome tut dude!!

D_LaMz
01-28-2006, 10:20 AM
man that is pretty neat, and is that a ps2 controller?

SteveK2003
01-28-2006, 11:04 AM
Wow, that's quite a tutorial! I don't quite get how the motors and pulleys work, but the rest is cool.

I once read an article about a guy who used servos in place of the shocks to make an R/C lowrider. He needed an airplane radio with about 8 channels converted to surface use (It is illegal to use a plane radio in a car, and vice versa), but it really worked and each wheels was independant of the others.

There are a lot of inexpensive microservos available today, and somebody handy with electronics could rig up something similar using a wired controller or even one of the new mini 'park flyer' radios.

KTem
01-28-2006, 11:10 AM
Very cool idea. I don't quite get how it's done yet, but I'm sure I will if I study your tutorial some more... definately a cool idea, thanks for sharing !

vanzz
01-28-2006, 06:12 PM
yeah?cool

tuning¢ars
01-28-2006, 07:13 PM
thanks guys
anyone can move to tutorials thread??

rasta_dubbed
01-29-2006, 12:28 AM
do you have a "sample pic" when it hops?

this is great!

added to my bookmark!

:)

Murray Kish
01-29-2006, 12:57 AM
Very creative. A little 'rough' but definitely unique.

Do the motors go in reverse too?

Murray

cyberkid
01-29-2006, 04:17 AM
do you have a "sample pic" when it hops?

this is great!

added to my bookmark!

:)

I think the last pic is exactly that... though taken from the top doesn't really show that much.

rasta_dubbed
01-29-2006, 05:38 AM
i hope u can post a new pic.. (hopping)

:)

tuning¢ars
01-29-2006, 10:48 AM
I will buy new motors ,then I take photos ok?


thanks

willimo
01-29-2006, 11:44 AM
I'll never understand why people insist on using heated implements to cut styrene, when a knife or drill will do the job just as easily, and far more safely?

rasta_dubbed
01-29-2006, 06:02 PM
I will buy new motors ,then I take photos ok?


thanks


ok thanks... by the way,what batteries are you using? to power the motor...

:)

cyberkid
01-29-2006, 10:18 PM
ok thanks... by the way,what batteries are you using? to power the motor...

:)
A couple of AA's should do it... unless he's powering each motor seperately.

HittenSwitches
01-30-2006, 12:30 AM
I'll never understand why people insist on using heated implements to cut styrene, when a knife or drill will do the job just as easily, and far more safely?

Hahaha, I was wondering that myself when i first saw that part of the tut. I'm like "why wouldn't you just use a drill...Its alot easier and takes less time to do that rather than waiting to heat a piece of metal and then waiting for it to melt through the styrene" lol...Some people i don't know...

tuning¢ars
01-30-2006, 06:45 PM
maybe why i don't have a drill

HittenSwitches
01-31-2006, 12:47 AM
maybe why i don't have a drill

haha, thats why you buy a cheap dremel or something, put a drill bit in it and there you go...Plus with the dremel you have a million other accessories asides from just drillin through styrene

willimo
01-31-2006, 12:53 AM
I never use my Dremel :(

freakmech
01-31-2006, 01:31 AM
I never use my Dremel :(

I use mine to collect dust, works really well you should try it.

tuning¢ars
02-01-2006, 07:10 AM
ohh i hava a drill,but i don't have a dremel.
