Tutorial: Making a roll back ragtop

First off i would like to say that i am -Sk8er6811- and if it is possible i would like it to read SidewayzS15 for my subcase and hinge tutorial. Thanks.

This tutorial is going to be applied to a mini cooper. I chose this because the roof is separated already and it was something i wanted to do on one for awhile now. Before we begin you are going to need some materials consisting of...

1. Krazy Glue (Or other type of C/A)
2. A piece of clothe
3. paperclips or sewing pins
4. Fabric glue
5. Square Brass tubes, though circular ones will work as well. The diameter or width of the opening of the hole should be just smaller than a pin head.
6. Sharpie
7. Dremel (Xacto will work too)
8. Your choice of putty

Step 1: First decide how big you would like your rag top opening to be. After you have decided draw it on to the roof with a marker. After marking it cut the area out with your dremel, or slowly scribe the lines with a knife to leave the opening.

Step 2: Cut the tubing to the length of the hole and make sure it fits snugly in the cutout. Do not glue it in yet.

Step 3: Using a thin cut off wheel, carefully cut a channel in the tubing. After the channel is cut test fit again, and glue it into place.

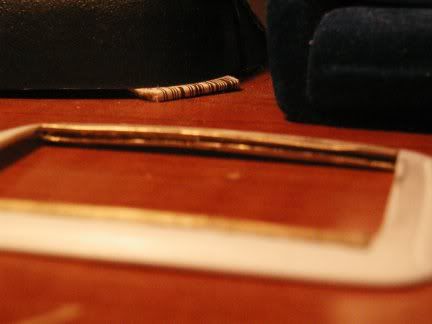

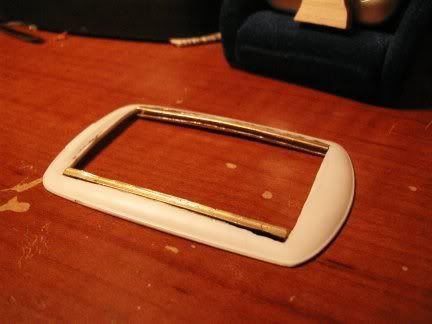

Step 1, 2, and 3 pictures:
http://img.photobucket.com/albums/v281/SidewayzS15/tutorial1.jpg
http://img.photobucket.com/albums/v281/SidewayzS15/tutorial3.jpg

Step 4: Cut a piece of clothe to fit in the hole, make sure you make 2 pieces, one for the top and one for the bottom.

Step 5: Cut paper clips that span the width of the tubing you have glued in. Make sure it is not from edge to edge, if it is, it might be a pressure fit which can lead to the tubes breaking or the top getting stuck when sliding back.

Step 6: Glue 1 paper clip at each end of the clothe, then make 1/2 inch intervals and glue other paperclips at those marks (you might need to adjust the measurement depending on hole size and scale)
Note: Make sure you use fabric glue, I have found other glues go through the fabric, and leave hardened glue spots on the good side :nono:

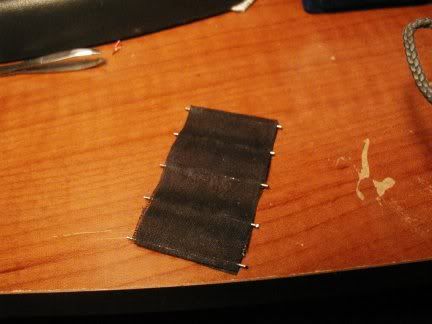

Step 4, 5, and 6 picture:
http://img.photobucket.com/albums/v281/SidewayzS15/tutorial2.jpg

Step 7: Test fit the rag top now, since the tubes are glued in, if there is no opening under the roof, enter on a slight diagonal, and straighten out, do this for each paperclip. Once you get it in place, roll it back and see how it looks :evillol: :smokin:

Step 8: After test fitting, remove the clothe carefully, being sure your not going to loosen or break the glue joints. Then apply putty to the seem where the tube meets the roof, and sand smooth. After that prime paint and apply to your build.

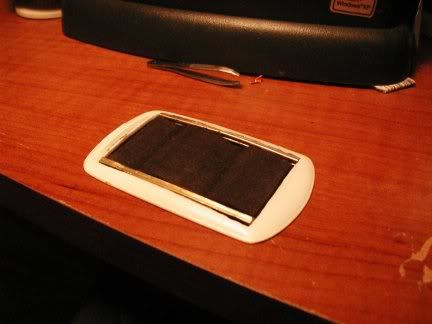

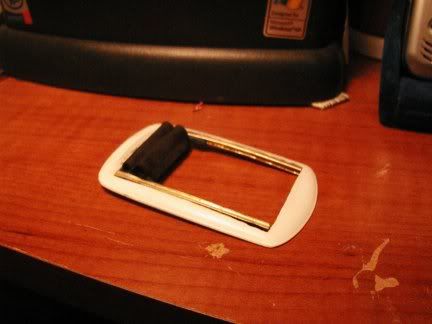

Here is a picture of it opened and closed
http://img.photobucket.com/albums/v281/SidewayzS15/tutorial4.jpg
http://img.photobucket.com/albums/v281/SidewayzS15/tutorial.jpg

Give me some feedback, and if you have any questions, feel free to ask, hope this helps :sunglasse
