clk gtr progress

working on this off and on...

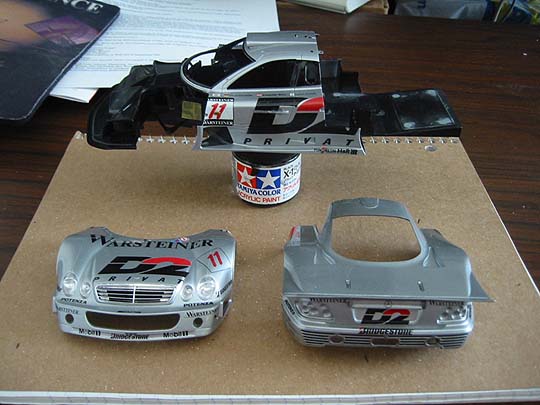

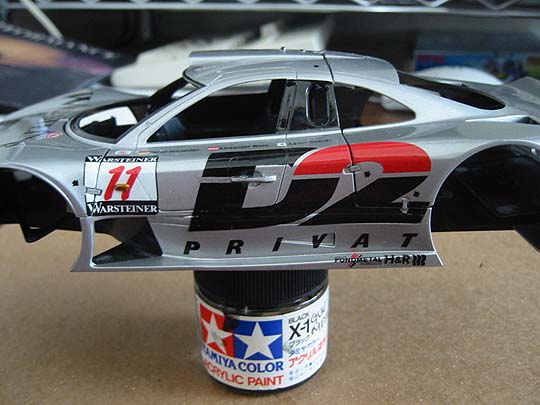

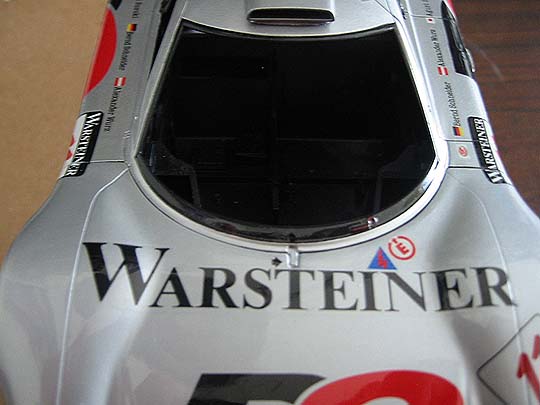

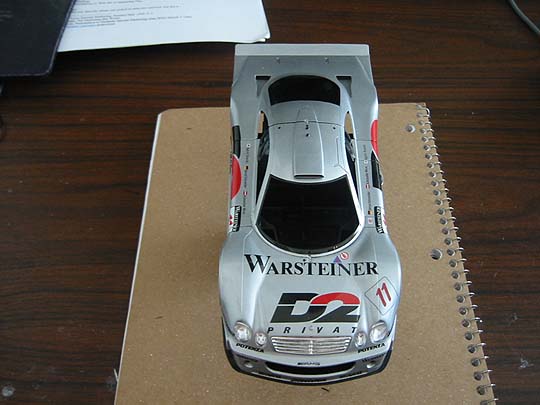

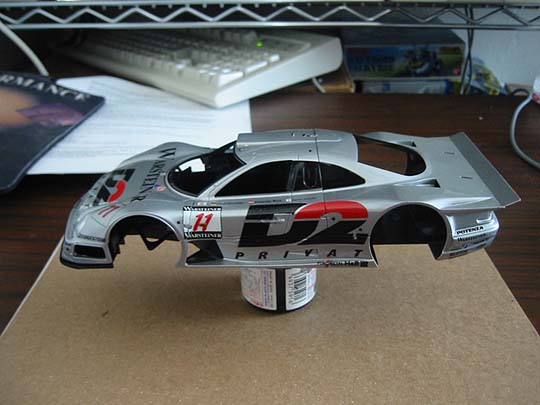

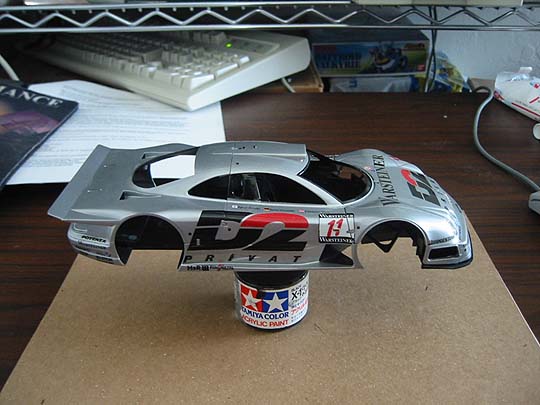

body- ~1 month (now i remember why i hate decals...)

http://files.automotiveforums.com/uploads/597757decaled_fit6.jpg

http://files.automotiveforums.com/uploads/594830decaled_fit7.jpg

http://files.automotiveforums.com/uploads/442452decaled_fit4.jpg

http://files.automotiveforums.com/uploads/941099decaled_fit2.jpg

http://files.automotiveforums.com/uploads/286493decaled_fit3.jpg

http://files.automotiveforums.com/uploads/791143decaled_fit9.jpg

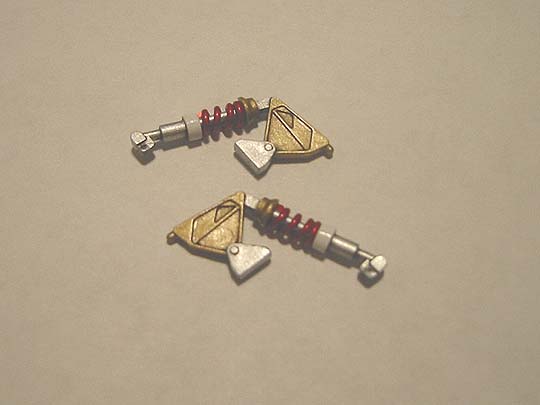

front suspension- 1week

http://files.automotiveforums.com/uploads/294128front_suspension.jpg

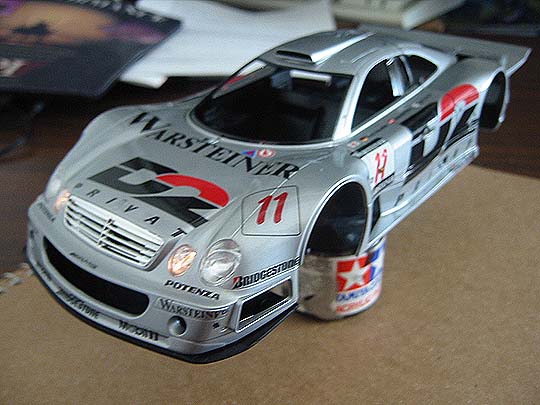

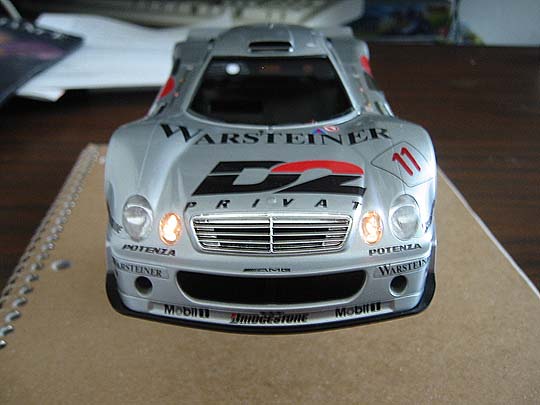

current crown jewels- 1week

http://files.automotiveforums.com/uploads/659603decaled_lights2.jpg

http://files.automotiveforums.com/uploads/541601decaled_lights3.jpg

a.

Looking super sexy! Paint looks really good and the lights are well done too!

Can u tell us more about the lights? Circuit etc???

Looks great! :)

Take your time and it will look great....cant fault what i see so far

The time you are investing in the CLK is really paying off, don't rush at the end!:)

WOW!

:eek2:

Nice. You cut the body up? (Somehow that didn't come out right)

that looks awesome, dude. i would never have the patience to do big decals like that. is it that hard? the biggest decal i did was a CF hood decal on one of my friends' models. i got a few bubbles and whatnot.

thanks for the comments. you're too kind :alien:

i'm not too happy with the results. i had much more agressive plans for this kit. the reason it took me so long was that i just kinda lost interest in finishing it up... i envisioned doors which opened and closed with a removable front end that had some sort of 'catch' to keep it on. it wasn't until i removed the passenger side door that i realized that the plastic was too weak to support the hinges (not to mention the door was very weak due to the shape) so i decided to scrap that idea and put the door back on only to realize i used the wrong putty and could not recreate the panel lines. the tamiya putty is brittle and would crack it you do this. you will need some sort of epoxy putty. so strike one... authenticity down the tube. when i finally got around to do the decal work... microsol all over the driver side door decal... had to airbrush the messed up part on. it looks okay but the decal folded leaving a bit of a 'lip'... strike two... when i hit the third strike, i'm going out to buy a new kit!

but to answer your questions...

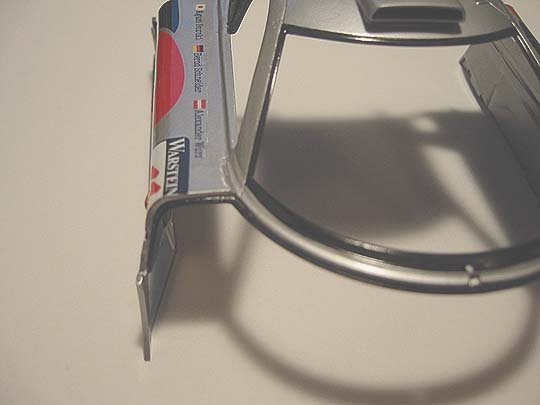

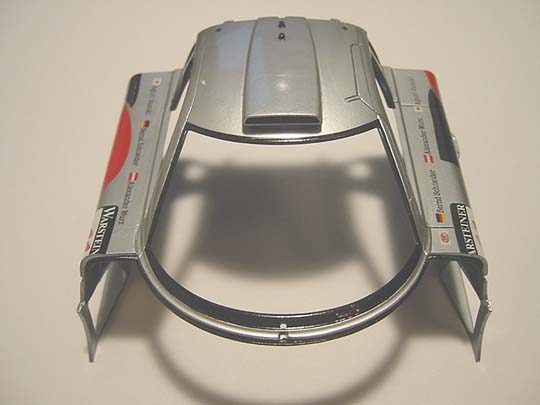

i removed the front and added a 'lip' for support and cut out the plastic molded latches. i recreated them with .020mm plastic sheet (did this for all the latches) i angled them inward so that when the hood is back on, it will have an interference fit with the body and the new latches will fall in place holding the piece together.

http://files.automotiveforums.com/uploads/178003front_lip.jpg

http://files.automotiveforums.com/uploads/726623front_lip_close.jpg

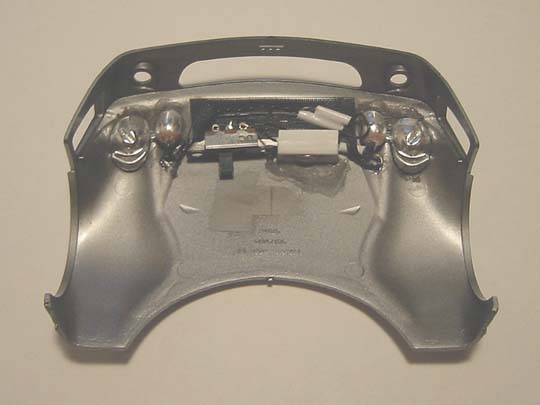

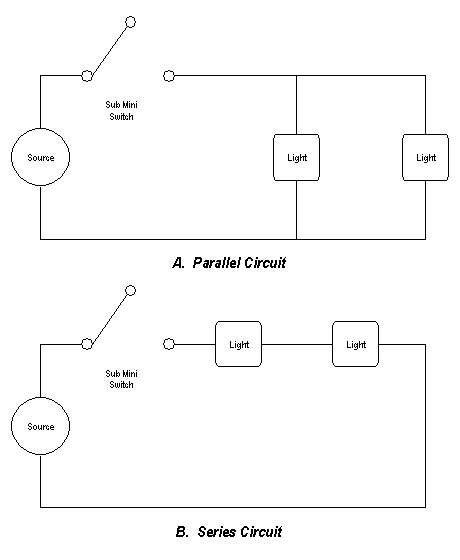

here is a pic of the circuit layout. i used a piece of wire mesh to hide the hardware from being seen from the outside. otherwise the source and switch will be seen through the grill. i used a 397 battery for this application. any 1.5v source would do the trick if you use a parallel setup. keep in mind that you need a 3.0v source if you intend to use the series method. i used the parallel method. there are alot of advantages to using parallel over series but i think i'd just bore you with the details. the switch is a sub mini slide switch.

http://files.automotiveforums.com/uploads/756470layout.jpg

http://files.automotiveforums.com/uploads/631152circuit_layout.jpg


a.

This was also the last kit I finished be for I went on Hiatus, that was two years ago, and I must say you did a hell of alot better job than I did, especially with the decals. By the way, my model won second place in my local model competion so I'd say your quite an excellent modeler, looks fantastic. I two was a perfectoinist until i realized that living with the little mistakes is better than melted bodies( i did this about three times, when I stripped a mustang, a dodge ram, and a supra :( ) Learn form your mistakes, we make them for a reason.
:)

despite your two strikes, i think your model looks pretty nuts. plus you have lights. good job so far, looking forward to the finished product.

Awesome job on it..
The LED is cool ..

even tough it looks great, you cut the front end incorrectly. lower valance in the front is suppost to stay on. if you look at the front bumper you will see that these is a thin piece of body work that is separated by a panel line from the rest of the front cowl.

other wise, it looks VERY good. the decal work is very good, looks like it bleand in with the paint very well. how did you manage to put the D2 side decals without messing up? I found that with is the only hard decal on this car.

I love the light idea, and I VERY impressed how nicely the hood was cut and the lights we installed. I am not sure but maybe you can build a "box" around the lights for a more clean look?

also, someone made a GTR with opening doors, anyone know who it is? I think it wa son a japanese site.

I've a review of a GTR with open doors on my site. It's done by Christophe Wera. You might want to check it out on http://users.skynet.be/automotomover

Back to the GTR here. Looks very cool. Like the front lights, question is though are the rear lights working as well?
I also like the way you cut the front and added the extra lip, cool. Did you rebuild the front suspension springs yourslef? Also very cool.

I have 4 CLK-GTR's at home, waiting to be build ... at some point...

:D

Well done!

thanks for the comments. i know i still have to clean up the bodies. i still have to work on the underside of the bodies. i don't have any more room on the underside of the front end to do anything more.

the front suspension springs were rebuilt using aluminum wire. it was the first time i tried anything of the sort (which explains why painting something like that should take 15min dragged on to 1 week :rolleyes:) getting the springs to look right took two rods of aluminum rod stock!

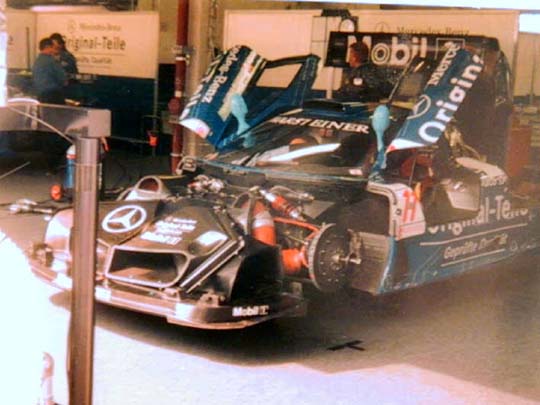

i only have one reference pix for the front end. i found this on the web by chance. i couldn't tell if the lower valence is supposed to stay on or not. it had a small anchor so i just left it on as it helped to keep the front end in place after it was cut. does anyone have any reference pix for the front end details?


http://files.automotiveforums.com/uploads/413247ref.jpg


a.

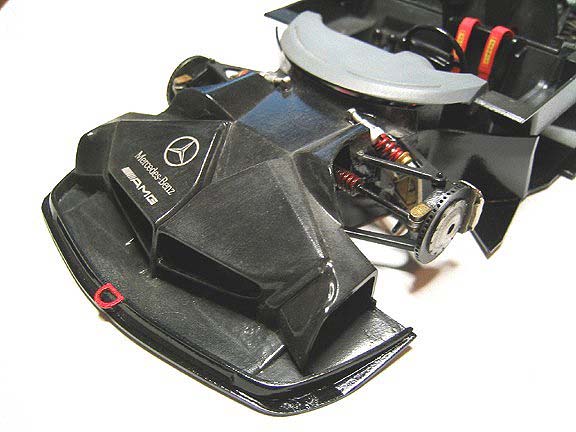

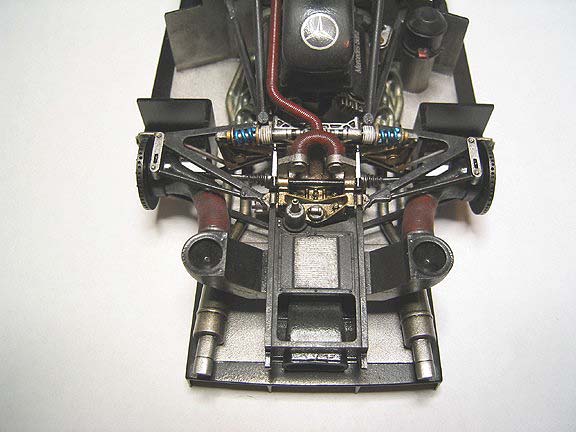

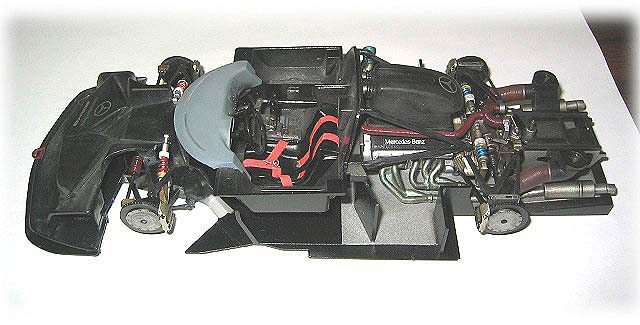

well, this project is going on 5 months and still counting. i took all your comments to heart and made some changes to the body. i cut out the lower area on the front cowl as it began to bother me once rcmaxx pointed it out :apoke: , so i stripped the paint and the decals and took out the lights to accomplish this task. thus this is going to be a single door street version of the clk gtr. not too much going on inside... made minor changes to the air duct... just gave it a little shape. i know its not accurate but i didn't want this thing sitting on my bench any longer than it already has. however, it'll be at least two more weeks before i am able to paint the body. the only place in san francisco that carries gunze lacquer thinner is out of stock and their next shipment is in two weeks! :mad:

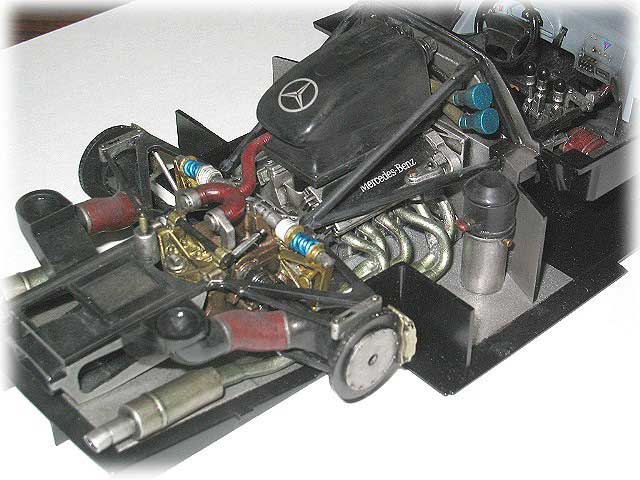

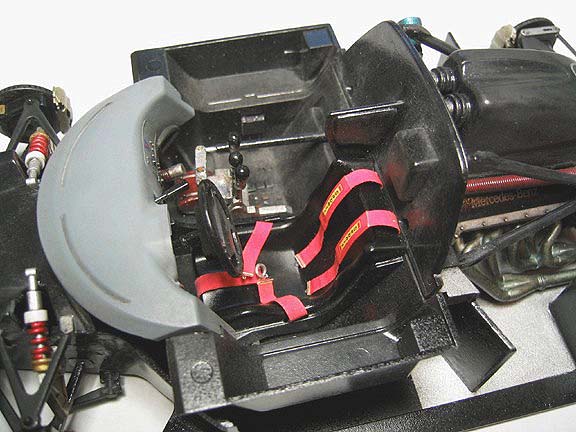

i know this forum loves the 'clean' look on their engines but i decided to take the route less traveled and give it a 'not so clean' feel to it. the reference pix that i have shows the engine bay and front area a bit dirty so i decided to go in this direction. i searched desperately for some engine detail pix, especially for the wiring. unfortunately i couldn't get pix telling where the wires go. i didn't want to just arbitrarily place them anywhere so i just passed on them. enjoy...

a.

http://files.automotiveforums.com/uploads/945529chassis1.jpg
http://files.automotiveforums.com/uploads/878110chassis6.jpg
http://files.automotiveforums.com/uploads/373059chassis9.jpg
http://files.automotiveforums.com/uploads/234014chassis3.jpg
http://files.automotiveforums.com/uploads/805765chassis8.jpg

wonderful detailing!! :shocked: I love your classy work. :ylsuper

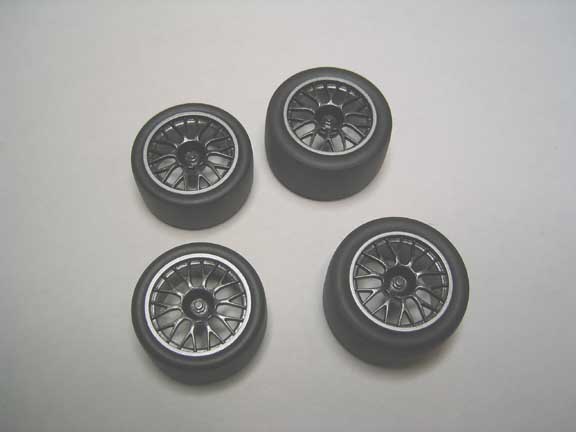

here's a pic of what the wheels are going to be. rims are painted black with silver flakes and a silver lip.

a.

http://files.automotiveforums.com/uploads/622848wheels.jpg

:eshooter: :eshooter: :eshooter:

The car is looking VERY good. Looking forward to seeing the completed project.

How long have you been modeliing btw?

Looking good Appleseed, I like the greasy appearance of the engine bay. A shame you're not doing the racing version anymore - I'm just a guy who likes competion cars and decals :sun:

Very detailed.. I am stunned. :eek:

Awsome lookin model, well done be nice to see it finished.:cool:

Gorgeous. Can't wait to see the finished product. Has anyone seena CLK Super Sport model. I have heard very little about the actual car, let alone a model of it. There were pics of it on www.supercars.net, but I can't find them.

Awesome!!! Hmm.... going to build another CLK - GTR ~ hehe...

thanks for the feedback! i love competition decals on cars too but unfortunately i didn't place the decals on right and it began to bother me. i also had to strip the paint and decals to remove the lower portion of the front cowl... so there goes the decals.

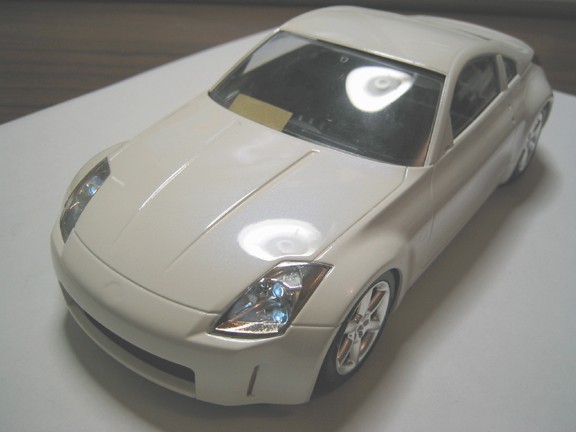

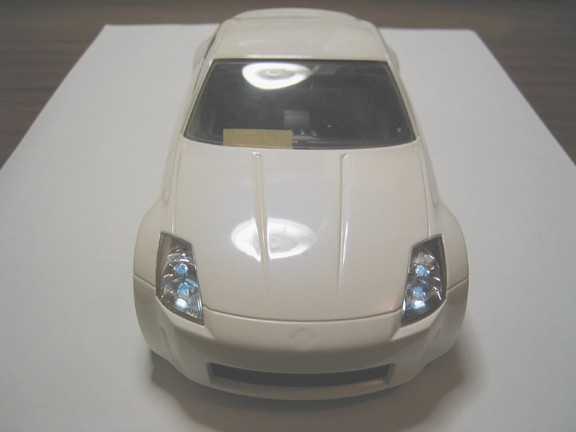

this is actually my second car project. been modeling gundam and science fiction models for a couple of years now. got a 350z in the works as well. only finished with the body on that one. with the down time waiting for paint thinnner, i might get a chance to finish the interior.

http://files.automotiveforums.com/uploads/8166473501.jpg
http://files.automotiveforums.com/uploads/3686043502.jpg

what can i say, i like to add lights to my models :D

a.

Your GTR is coming along very nice. Keep us informed! ;)

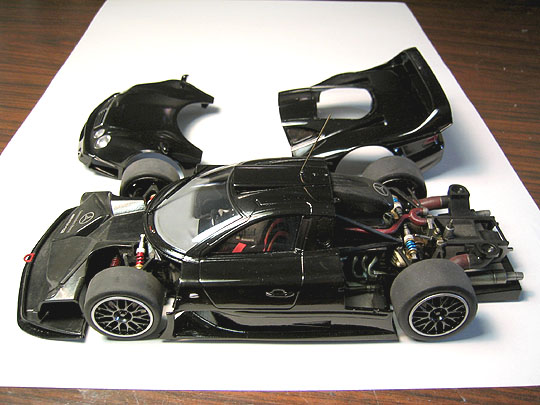

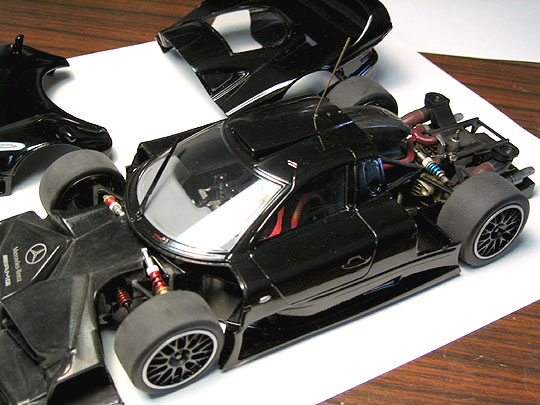

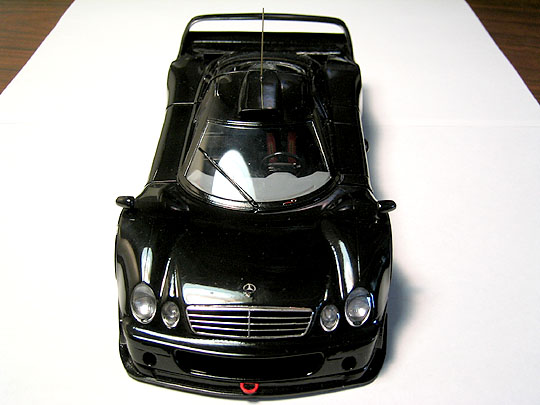

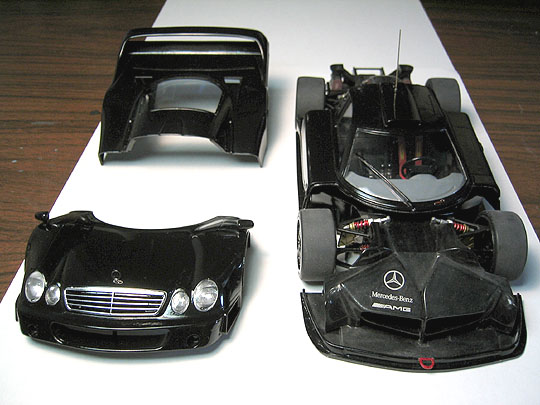

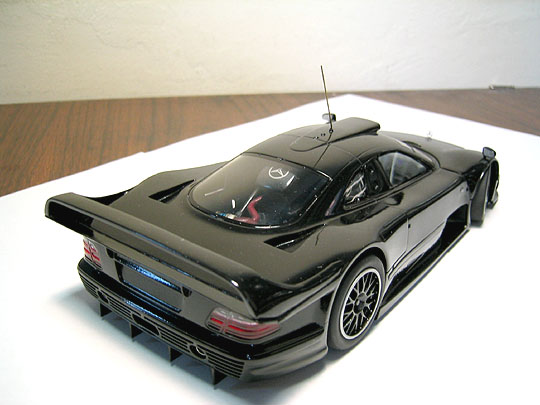

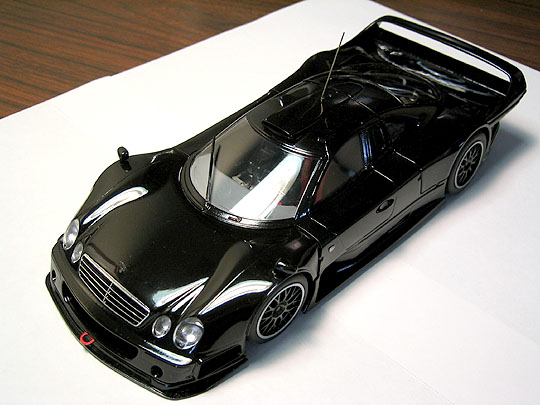

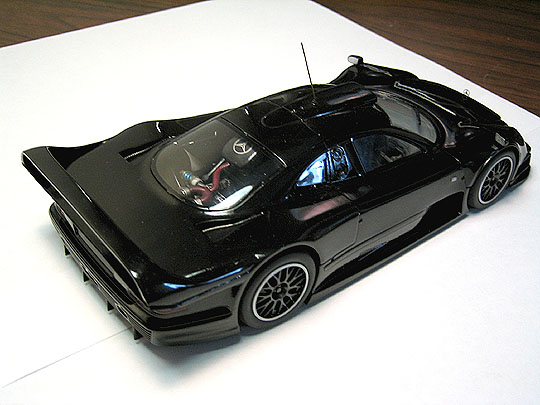

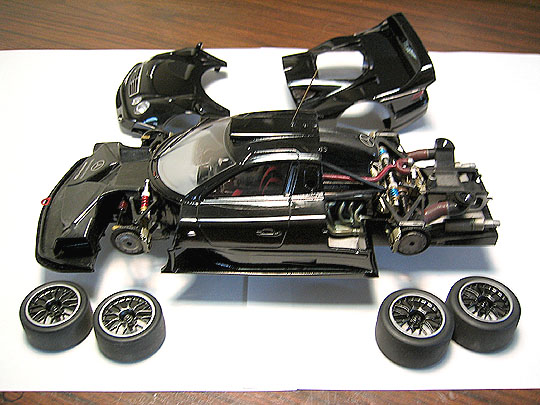

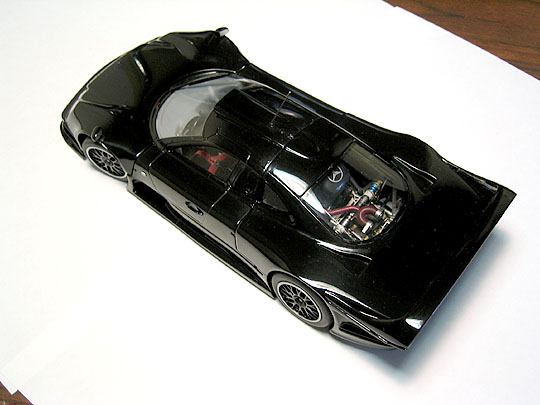

enjoy...

http://files.automotiveforums.com/uploads/125969fin18.jpg

http://files.automotiveforums.com/uploads/217721fin17.jpg

http://files.automotiveforums.com/uploads/251791fin16.jpg

http://files.automotiveforums.com/uploads/671375fin15.jpg

http://files.automotiveforums.com/uploads/425147fin10.jpg

http://files.automotiveforums.com/uploads/669945fin1.jpg

http://files.automotiveforums.com/uploads/929819fin19.jpg

http://files.automotiveforums.com/uploads/641343fin20.jpg

http://files.automotiveforums.com/uploads/847974fin6.jpg

looks fabulous :D

Could you state the parts for the led. the size of light bulb etc.

Thanks

:eek: Beautiful shine! Now we just need some pics with the lights on in this new paint job. :D

Looks amazing!!!:eek:

How did u end up making it into the road version i.e minus the GT wing?

Fan-smeggen'-tastic.

I was wrong about prefering the competition variety - your road version is a one of a kind! Take it you scratch built the rear wing?

:eek2: That Benz is beautiful and I love the 350Z. Great job. :D

thanks for the kind comments. i haven't reinstalled the bulbs for the lights just yet. so pictures of that won't be around for a while.

fly, i just call it road version only for the fact that i destroyed the competition decals. so... i guess you could call it a gt car without the sponsors and the gt wing :confused:

nice wow... u really work well with the decals....

i took down this post because i wanted to redo it and add a bit on diodes but here it is again.

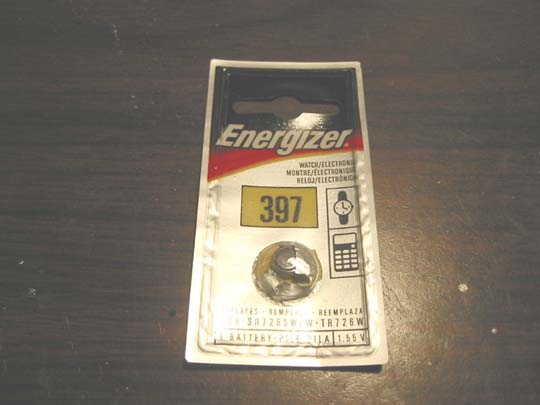

1)the battery

pretty straight forward. you might want to buy a smaller one as they do have those. i just chose this one only because the smaller one is alot smaller and may prove difficult to create an adequate housing for it.

http://files.automotiveforums.com/uploads/134918battery.jpg

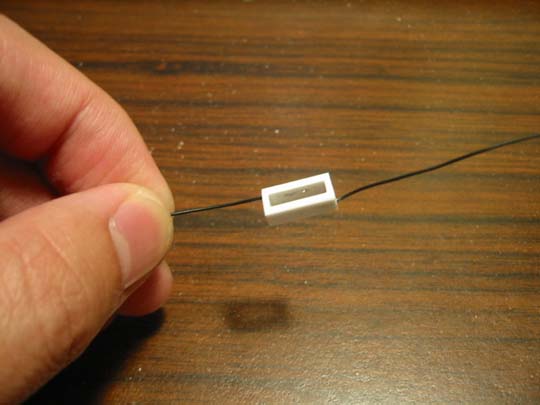

2) the battery case

this thing was built using plastic sheet: 1mm on each side to make the initial housing. then using a fresh blade, score down the center of the sides where the wire is to go. this would give you a guide as to where you need to make holes with the pin vise and above all else, to make a groove so that the wire can lay down flush with the surface and allow for a level surface for the next step. when you finish snaking the wire through, two layers of 0.3mm plastic sheet was laid on top to cover the wires and to provide some support and a flat plastic surface on which to glue with.

http://files.automotiveforums.com/uploads/759480battery_case.jpg

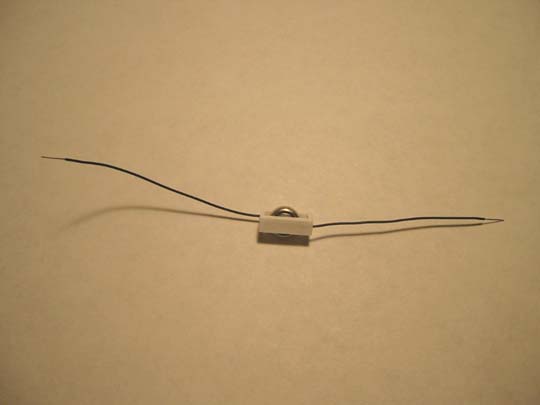

3) the power source

this is how the battery fits into the battery casing. i suggest making a narrow casing such as the one in the picture so as to make changing the battery that much easier.

http://files.automotiveforums.com/uploads/410584source.jpg

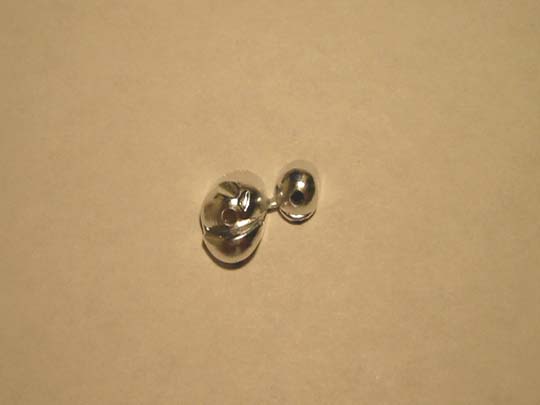

4) the headlight housing

using a pin vise, carefully drill a hole through the back of the headlight piece. if you aligned it right, you would drill out the center of the headlight and push the 'nipple' out from the center of the housing without damaging the sides. after this, use a qtip to brush away the plastic before you use a 1/16 drill bit to make the hole large enough to accept the bulb.

http://files.automotiveforums.com/uploads/338159headlight.jpg

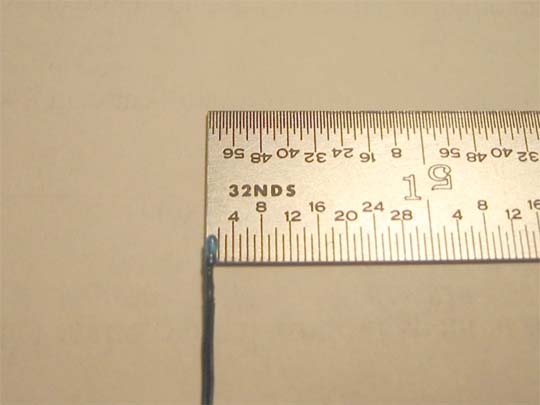

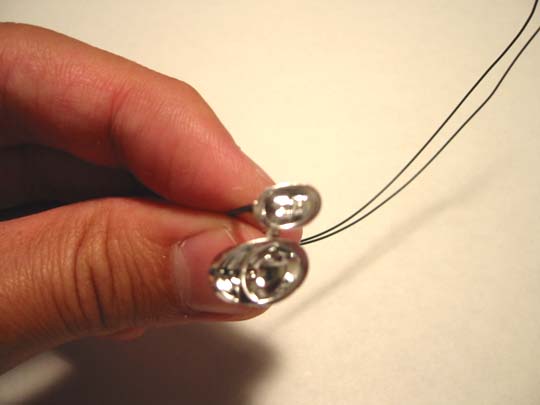

5) the bulb

unfortunately, i don't have a caliper so i cannot tell you what the diameter of this guy is. what i can tell you is that it is smaller than a 1/16 drill bit... but not by much. the electrical specs on this bulb is: 1.5v 30mA 45mW. this means that you can use any 1.5v battery to power this guy. as this thing draws a very low amount of current, the power consumed is only 45mW and is nothing to be concerned about. 45mW is not going to hurt the paint nor distort the plastic. after running the bulb in the housing for over 5min, the bulb did not even feel warm. remember this thing is small and does not heat up to any cautionary level at all. these bulbs are usually used for model railroad cars. thus they have a variety of colors that include green, yellow, white, and red. they come two levels of rated use: 1000hrs and 800hrs. they are a bit expensive as they run about $1.50 each for incandescent bulbs this size.

when you insert the bulb in after the holes are made, the bulb fills the hole quite well and will appear to be 'invisible' and blend well to the plated housing. i would suggest epoxy putty or two part epoxy (be careful of the amount as they do heat up when curing) to glue these in place from behind.

http://files.automotiveforums.com/uploads/636756size.jpg

http://files.automotiveforums.com/uploads/841248bulb_housing.jpg

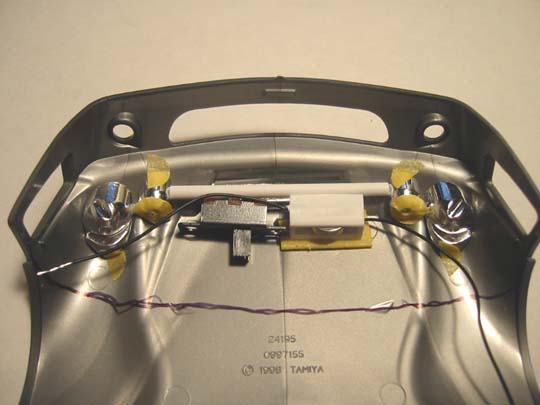

6) the layout

for simplicity's sake, i left the hardware separate and placed them where they should go. the layout is quite simple for this kit. however, you have to be careful with the placement or it will rub against the air intake. depending on how large you made the source housing, you will have to profile it to fit. the connection to the switch will be covered with a plastic rod while the wires will be snaked through another smaller plastic rod which would act as a conduit. you can see the hardware though the grill but with a bit of wire mesh, the problem is solved. i used the smallest switch that i can find and it still is a bit big. it still works but is very snug.

http://files.automotiveforums.com/uploads/777078layout.jpg

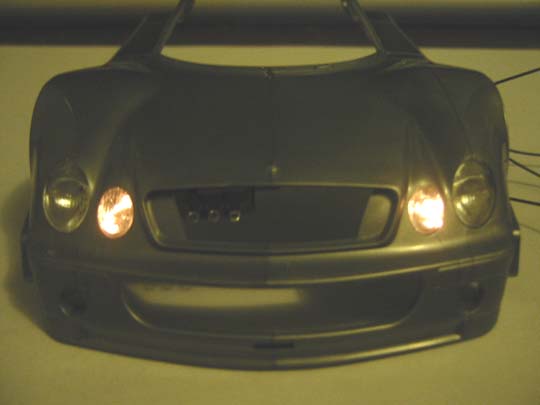

7) the outcome

so this is how it will look. it is worthy to note here that the position and angle you place the bulb will affect the way the light shines.

http://files.automotiveforums.com/uploads/119425lights_on.jpg

8) diodes

there has been a lot of talk about the use of leds and that of a ‘true’ led. i’m going to dispel the belief that there is anything such as a ‘true’ led. (those with an engineering background may want to just end here as you may already know this.) some claim that there is a ‘magical’ voltage on a ‘true’ led and so forth but the fact of the matter is that leds are simply a special form of diode. traditional diodes turn on at 6.3 volts and allows current to flow in one direction only. However, technology has enabled countless other ‘on’ voltages today which gives us more flexibility and variety. any further discussion on the operating voltage is moot since technology has enabled the existence of diodes and leds with operating in voltages as low as 1.6v and up. that is it. nothing more. you just have to be careful and ask questions regarding their range of operation when buying these leds. This is one variable you can control in creating the circuit that you want.

now, the burning question that you all have is ‘what type of voltage does it run on and does the circuit need a resistor’. I’ll try to give you a cohesive answer to this question. conveniently, for me the question is that it all depends. it depends on the choice of circuit that you decide to use and the voltage supply that you have available to you. I’ll talk about the source and leds first.

for the 350z, I have a 9v source (battery size 25A is 9v and 27A is 12v). the 9v source is very hard to come by but I have seen on occasion the 12v source at radio shack. the 12v source is a bit bigger thus the 9v is more desirable. You can always make the 12v source work but it gets a bit tricky with the limited amount of space available to incorporate lights on many of the model kits today.

The leds that I chose for the 350z utilizes two white leds with a published typical operational voltage of 3.0v and two red leds with a published typical operational voltage of 3.0v as well. You guys may be scratching you heads now… how did he get four leds which add up to 12v required ‘on’ voltage to run on 9v?

here’s the answer. Published operational voltages (voltage ranges or swings) are the voltages that engineers and others would normally run at to account for voltage variations and voltage spikes. A 3.0 volt led with a published operational voltage may have a true ‘turn on’ voltage anywhere between 1.6v to 2.8v and a typical maximum voltage of 4.5v. most packages publish absolute max and absolute min operating voltages. These are the absolute minimum required voltages needed to turn the led on and the maximum voltage that these diodes will operate reliably. Anything higher than the absolute max voltage would ‘pop’ the led immediately or dramatically decrease the mtbf exponentially.

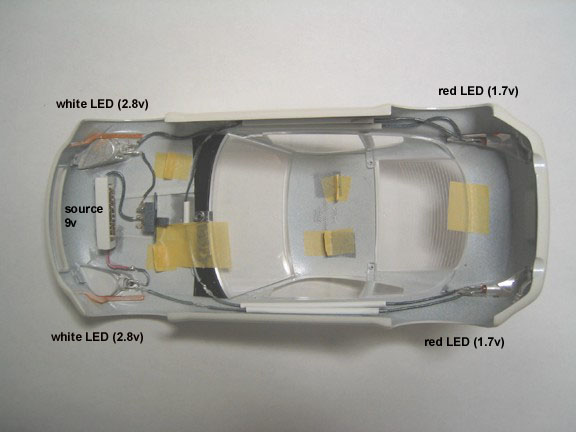

The white leds that I use have a true turn on voltage of 2.8v and the red leds have a true turn on voltage of 1.6v. note that light intensity is a direct function of the voltage drive. If you want it brighter, bump up the voltage but remain in the manufacturers recommended range (otherwise, you’ll end up swapping out the leds for fresh ones). In this case, 2*2.8=5.6v for the white leds and 2*1.7=3.4v for the red leds. This adds up to 9v exactly. So I don’t need resistors in my circuit to operate the leds reliably. My series circuit is shown below (the source and housing is right above the switch):

http://files.automotiveforums.com/uploads/8183043503.jpg

Now, if you are running two white leds with a typical operational voltage of 3.0v with a 9v souce, you would definitely need a resistor even if you put them in series (I’m not going to go into the basic circuit structure of series and parallel circuits when an internet search will do so more comprehensively). It is necessary to drop the voltage by at least 3v to keep the leds within manufacturer’s recommended operating voltages. These particular white leds use 20mA of current. Thus utilizing ohm’s law, v=I*r (where v=voltage needed to be dropped, I=current that the leds draw, and r=resistor value necessary to maintain reliable operating conditions for the led), 3v=(20mA)*r. this gives us a series resistor value of 150ohms. This is the resistor value that you would need to maintain 3.0v to each led. if you want to bump the voltage per led lower, just bump up this resistance value and vice versa if you want to bump the voltage higher (but remember, higher voltages mean shorter operational lifetimes). As it relates to illuminating lights for models, resistors are only needed in a circuit for this reason only. Nothing more. so, if your circuit is similar to the one I used for the 350z, you don’t need resistors as they fall in a desired operational voltage. If you have leds with ‘undesirable’ typical operating voltages such as 4.5v, you might need to tweek the circuit as described above to keep the leds in the operational region (depending on your source that is).

A note on circuits: try to use series circuits as much as you can as this draws less power on the battery and thus extending the battery life. Here’s a simple example: 10v source with two 10ohm resistors. Put them in series and you get a current draw of 0.5A while a parallel circuit with the same elements would draw 2A. that’s four times as much current! Moral here, series circuits have the ability to save your battery life by as much as 4 times that of a parallel circuit.

In the end, I would choose to use the incandescent bulbs for daytime running and fog lights while restricting leds to such usages as headlights and brake lamps.

a.

It turned out very nice! Nice paintwork!!
I'm in favour of a more used and dirty look of engine bays. Clean engines don't exist in my world ;)

Anyway, I think your instructions on how to make lights, should be in the Tutorial that they aer working on. Jay?

Impressive! :eek:
Everything looks great, from the beautiful interior and engine details to the smooth and shine paint job. Excellent work.

what is this poer sources ? need more info !!

anyone know what is the power source ? the small white 9V source look perfect but i can't find any info.. any model number or part number ? name ? anything ?

Originally posted by Gainsbourg
Impressive! :eek:
Everything looks great, from the beautiful interior and engine details to the smooth and shine paint job. Excellent work.

:iagree:

:bigthumb:

:eek2: WOW :eek2:

Originally posted by primera man
Take your time and it will look great....cant fault what i see so far

agreed :bigthumb:

BEAUTIFUL WORK!! Congratulations :bigthumb:

Thanks for sharing the lighting idea - love to try it soem time.

BEAUTIFUL WORK!! Congratulations :bigthumb:

Thanks for sharing the lighting idea - love to try it soem time.

do you realise this is a 2 years old thread !

do you realise this is a 2 years old thread !

Yes Vric, I do - I can read.

FYI came across the thread, found the build nice and useful to me and thought it courteous to say thanks and congratulations the builder.

As a newbie here, I suppose it's possible that I could be in breach of forum etiquette by adding a post to an older, inactive thread thereby making it jump to the top of the list of recent posts listing - if that's the case, I apologise.

Otherwise, I guess you're just annoyed that you wasted 5 or so seconds looking at it again.......sorry for that too

As a newbie here, I suppose it's possible that I could be in breach of forum etiquette by adding a post to an older, inactive thread thereby making it jump to the top of the list of recent posts listing - if that's the case, I apologise.


You hit the nail on the head. :)

The FAQ says different.

http://www.automotiveforums.com/vbulletin/showpost.php?p=583162&postcount=42

how would u turn the lights on and off if the swight is in the inside of your model would it not get damage from taking the bodie on and off all the time..................other than that great job on the lights..........also what do u think about using the fiber optic cables for light

:rofl: !!! Now the thread is 4 years old!!!

Seems as if this thread likes to be "bumped" every 2 years ;)

@ prortiz80: Locate the microswitch in such a way that you can switch it without having to remove the body.
