Small problem at work
primera man
05-02-2003, 06:30 AM
Thought i'd share a few pics from work of one of our locomotives that had a small engine blow-up !!

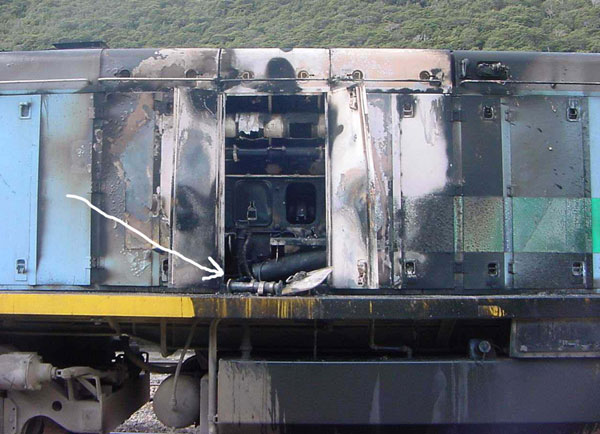

First pic show's part of the cam-shaft (arrow) sitting on the walk way after it had blown out though the side of the engine block and doors..
The loco also caught fire and dumped its 980 litres of oil all over the place.
http://files.automotiveforums.com/uploads/522458nerked.jpg

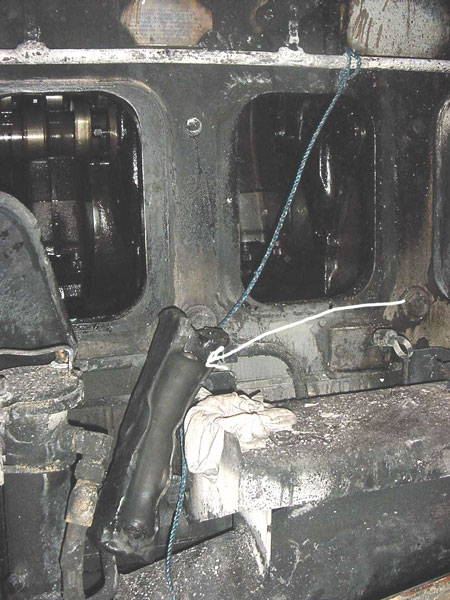

This one shows whats left of the Piston Rod after it done a exit job on the engine
http://files.automotiveforums.com/uploads/427324rod.jpg
http://files.automotiveforums.com/uploads/879708Mvc-001f.jpg
First pic show's part of the cam-shaft (arrow) sitting on the walk way after it had blown out though the side of the engine block and doors..
The loco also caught fire and dumped its 980 litres of oil all over the place.
http://files.automotiveforums.com/uploads/522458nerked.jpg
This one shows whats left of the Piston Rod after it done a exit job on the engine
http://files.automotiveforums.com/uploads/427324rod.jpg
http://files.automotiveforums.com/uploads/879708Mvc-001f.jpg
Oz
05-02-2003, 07:09 AM
:eek:
May I ask what caused that? And were you repairing or taking pics and drinking coffee (I assume your public service jobs are similar to Australian ones)?
May I ask what caused that? And were you repairing or taking pics and drinking coffee (I assume your public service jobs are similar to Australian ones)?
207010
05-02-2003, 07:25 AM
:cool: ha ha ha ha ha ha . iheard that them things produce masses of power and torque of my grandad :confused:
Oz
05-02-2003, 07:41 AM
Originally posted by 207010
:cool: ha ha ha ha ha ha . iheard that them things produce masses of power and torque of my grandad :confused:
:rolleyes:
K
:cool: ha ha ha ha ha ha . iheard that them things produce masses of power and torque of my grandad :confused:
:rolleyes:
K
YogsVR4
05-02-2003, 10:20 AM
*small engine* blow up? Looks pretty large to me :eek: Like OZ asked, do you know what caused that to go off?
taranaki
05-02-2003, 04:11 PM
Bloody Diesels.Get the duct tape out,we'll soon have her running again.:D
Shortbus
05-02-2003, 04:35 PM
Originally posted by taranaki
Bloody Diesels.Get the duct tape out,we'll soon have her running again.:D
Don't forget the JB weld;)
Bloody Diesels.Get the duct tape out,we'll soon have her running again.:D
Don't forget the JB weld;)
primera man
05-02-2003, 05:14 PM
At this stage we think it was caused by the cam shaft coming loose and then simply falling off.
The cam is in 6 sections on each side of the engine and it just looks as though they(The bolts) sheared off.
This then put the whole engine out of timing.
The cam would have smashed into the cylinder and this would have then caused the rod to become bent and finally the poor old girl cryed enough !!:bloated:
It then blew the engine cover off thanks to the shaft and then dumped its oil, shearing a fuel line off which then caught fire
The cam is in 6 sections on each side of the engine and it just looks as though they(The bolts) sheared off.
This then put the whole engine out of timing.
The cam would have smashed into the cylinder and this would have then caused the rod to become bent and finally the poor old girl cryed enough !!:bloated:
It then blew the engine cover off thanks to the shaft and then dumped its oil, shearing a fuel line off which then caught fire
