That's right people, show off your work or home pc and areas.
Taking the idea that ci5ic
posted in COT of posting your work areas, I figure why not also post pics of your home PC and the areas you put them in.
These are mine, since I work at home a few days out of the week, I have a few more than usual, but I let the programs do the work and just cruise the internet (AF) in the mean time. Just don't tell my boss.
Okay here are the pics...

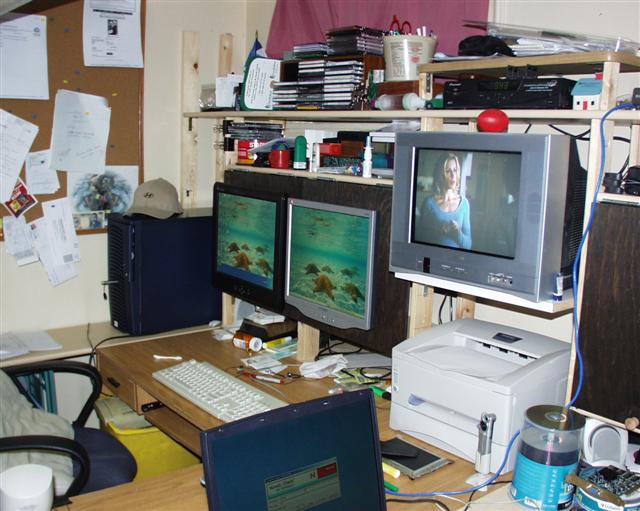

Pic #1
Left side of the room (from left to right then down....)
PC, two LCD monitors (one being Hyundai), Cable box, 13 inch TV (watching Desperate Housewives), Brother Laser Printer and Dell Inspiron Laptop.
PC is a
Ultra Wizard Blue Case, with
Soyo SY-KT880 Dragon 2.0 Motherboard, 2 gigs of ram,
Utlra X-Connect 500 Watt Power supply (green color),
Jaton Geforce MX4000 Dual monitor video card, Hitachi 120 GB drive, Maxtor 120 GB drive, BenQ DVD Re-writable, Generic CD Re-writable, AMD 3200 Anthlon XP Barton, Thermaltake Volcano 10 CPU cooler.

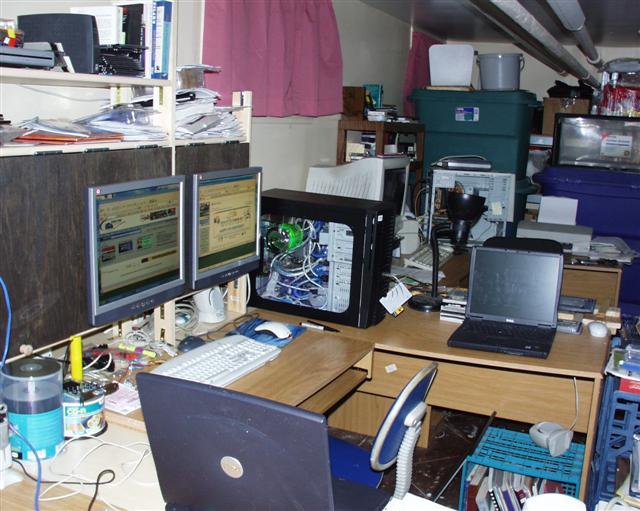

Pic #2
Right side (from left to right then down....)
Dell Laptop (from first pic above),
two LCD monitors (both are Hyundai), my PC, another Dell Laptop
(Incidently, behind my PC is the another monitor, pc, printer.)
Not shown, two scanners, two extra monitors (which the lcd's replaced) and their two extra pcs which I plan on donating to the local senior center.
PC is a Ultra Wizard Black Case, with
Soyo SY-KT880 Dragon Plus 2.0 Motherboard, 2 gigs of ram,
Utlra X-Connect 500 Watt Power supply (titanium color), ATI Radeon 7500 Dual monitor video card, Hitachi 160 GB drive,
Maxtor 120 GB drive, Maxtor 12 GB drive,
BenQ DVD Re-writable with Lightscribe, BenQ DVD Re-writable,
AMD 3200 Anthlon XP Barton, Thermaltake Volcano 10 CPU cooler. Ultra Blue/UV Dual light kit, UV Light fans, Vantec Slot protectors.
Pic 3

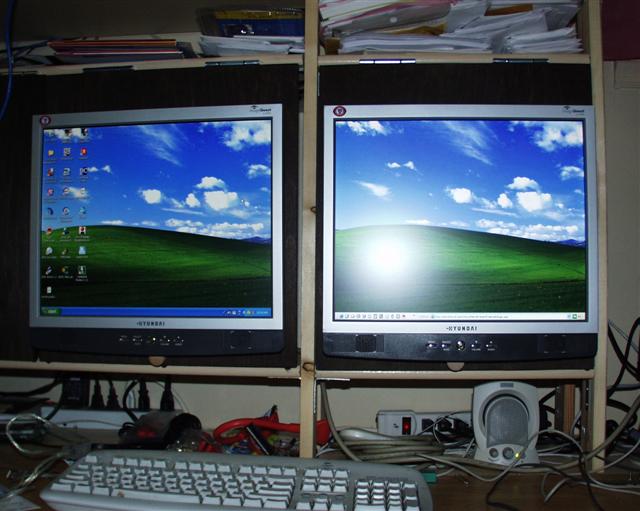

My dual monitors
(Not because they are Hyundai
, but they are sharp and clear.)

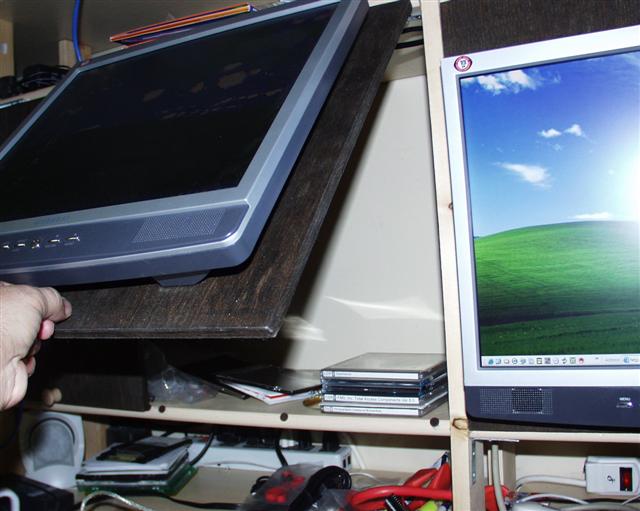

Pic #4
The cabinet that the monitors are resting on I built myself. It took me two weekends because I messed it up on the first try. I still havent finished it. I still have to put the upper board and do the east part of the room. The monitors rest on these doors I constructed for the cabinet. This allows me to hide crap that I seldom use or want to be out of the way.
Not to hog up all the pics, but these are a few more pics of the area...

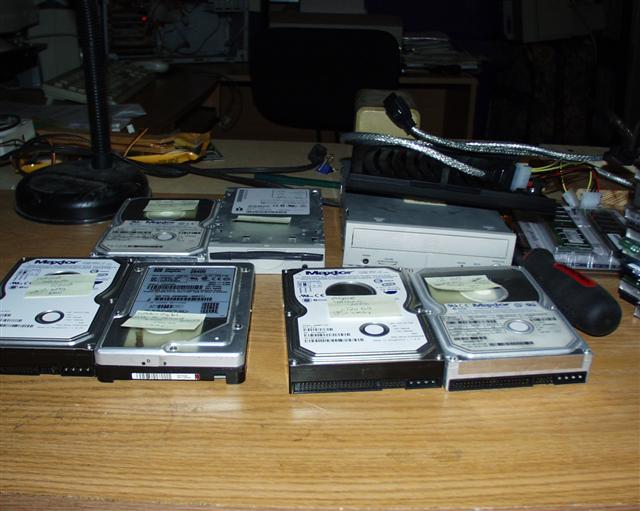

All the hard drives I put in the systems.

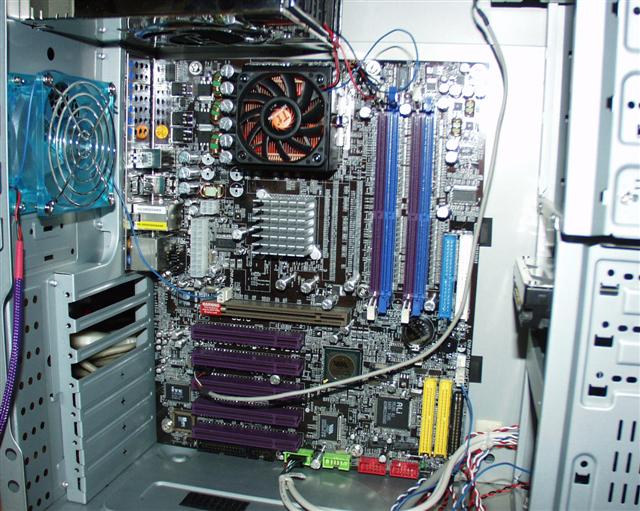

Installing the motherboard

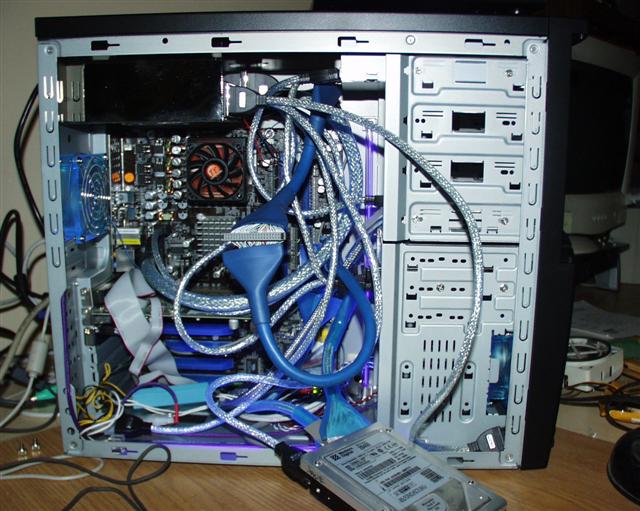

Testing the hard drives

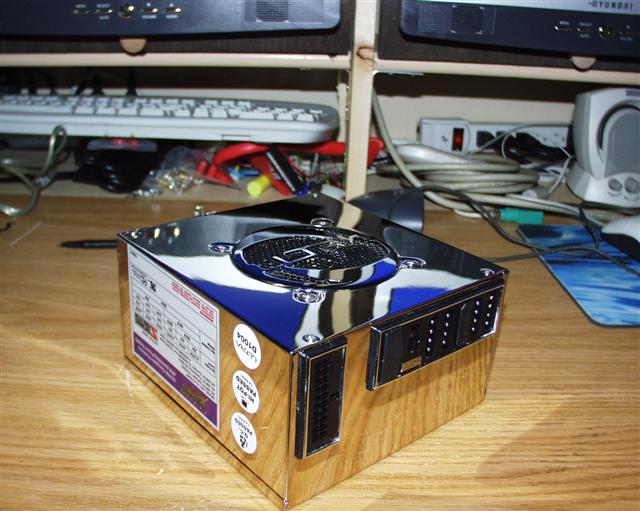

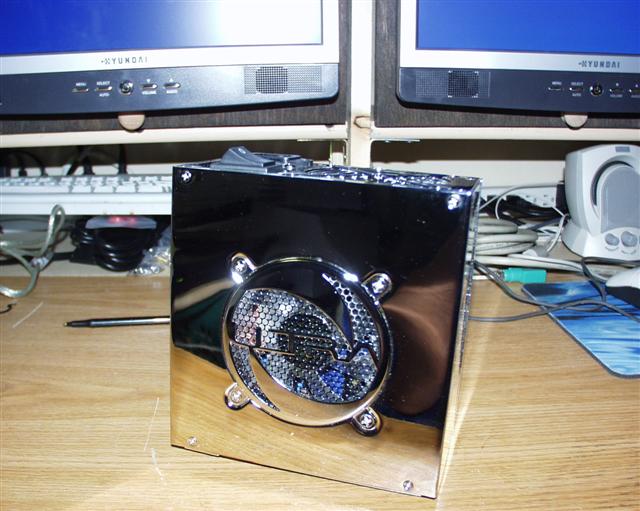

This is my Ultra X-Connect power supply. So shiny and no ugly cables. Only use the ones I need too. Plus they glow.

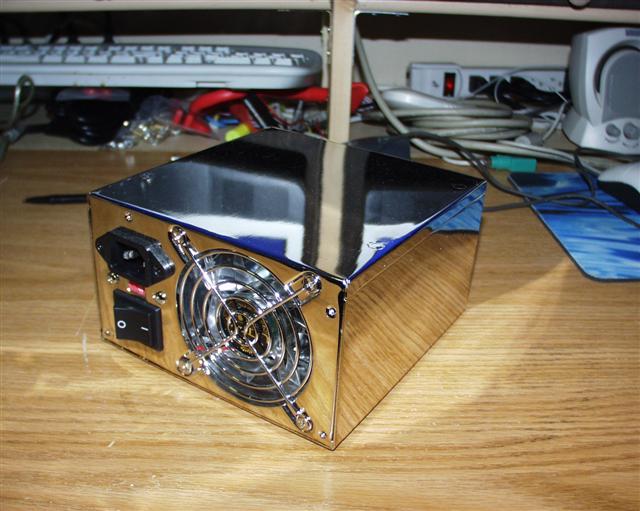

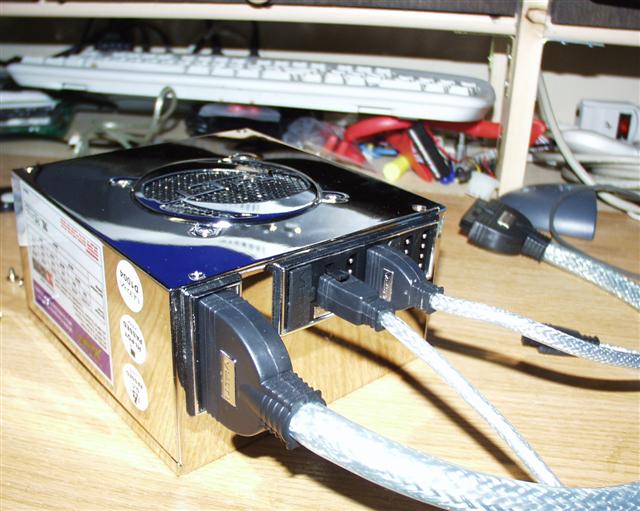

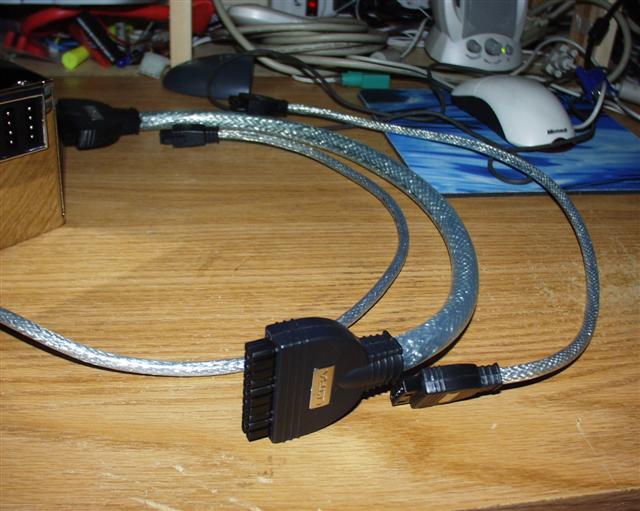

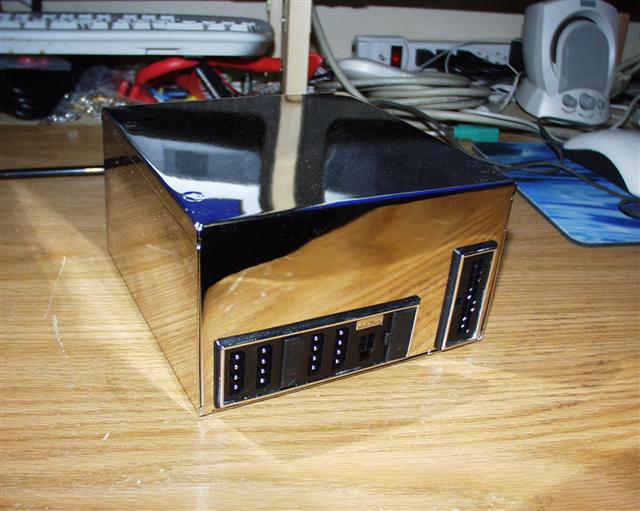

More pics of the power supply and the cables...
Pic 6,
Pic 7,
Pic8, Pic 9, Pic 10,

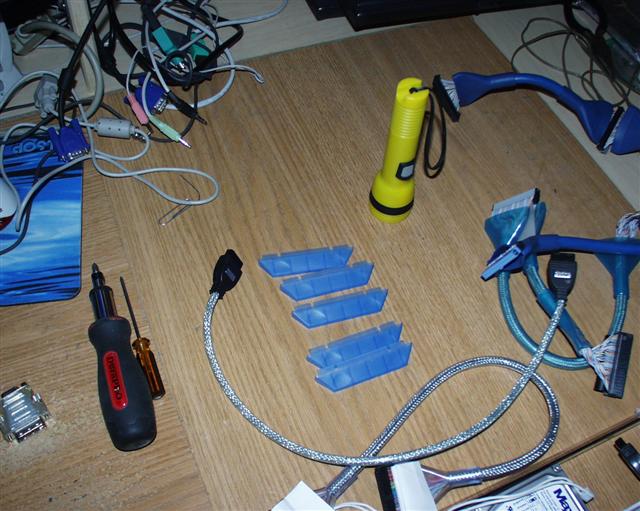

I added these Ultraviolet pci slot protectors so the pci slots do not get any dirt in them.
I then modified the case to make it a clear sided instead of the amber which it came with. Actual mod pics are
here.
Thats enough of my setup, post yours...
TS out
