1997-2000 3.4L Engine Control System Wire Diagrams


xeroinfinity
09-18-2007, 05:17 PM
This is for the 1997-2000 3.4L Grand am's.

1 of 3 (http://i28.photobucket.com/albums/c242/xeroinfinity/SeCond%20Hand/97up3.4ECS1of3.gif)

2 of 3 (http://i28.photobucket.com/albums/c242/xeroinfinity/SeCond%20Hand/97up3.4ECS2of3.gif)

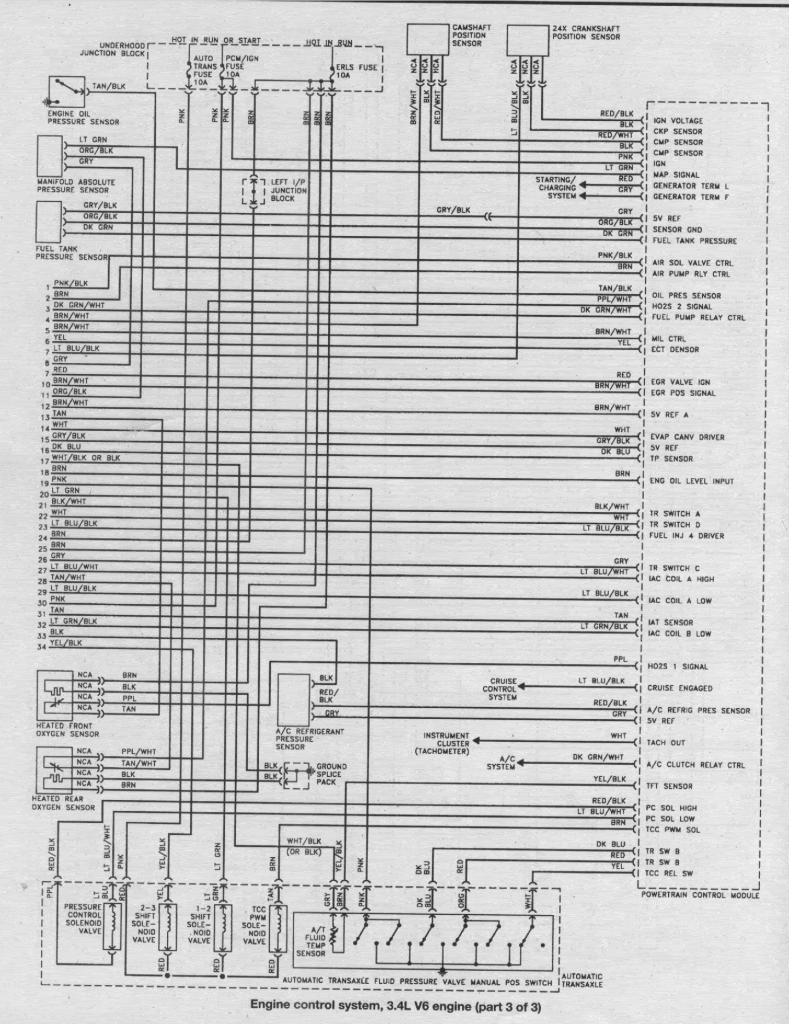

3 of 3 (http://i28.photobucket.com/albums/c242/xeroinfinity/SeCond%20Hand/97up3.4ECS3of3.gif)


These files are very large files, photobucket sized them down degrading the quality.

If you have trouble viewing these PM me.
Send me your email (that can except 2+ MB attachments) and specify which engine diagram you need and I'll send them ASAP.

thankx XI
