1997 3.1 (only) Engine Control System Wire Diagram


xeroinfinity
09-11-2007, 09:33 PM
for 97' V6 only...

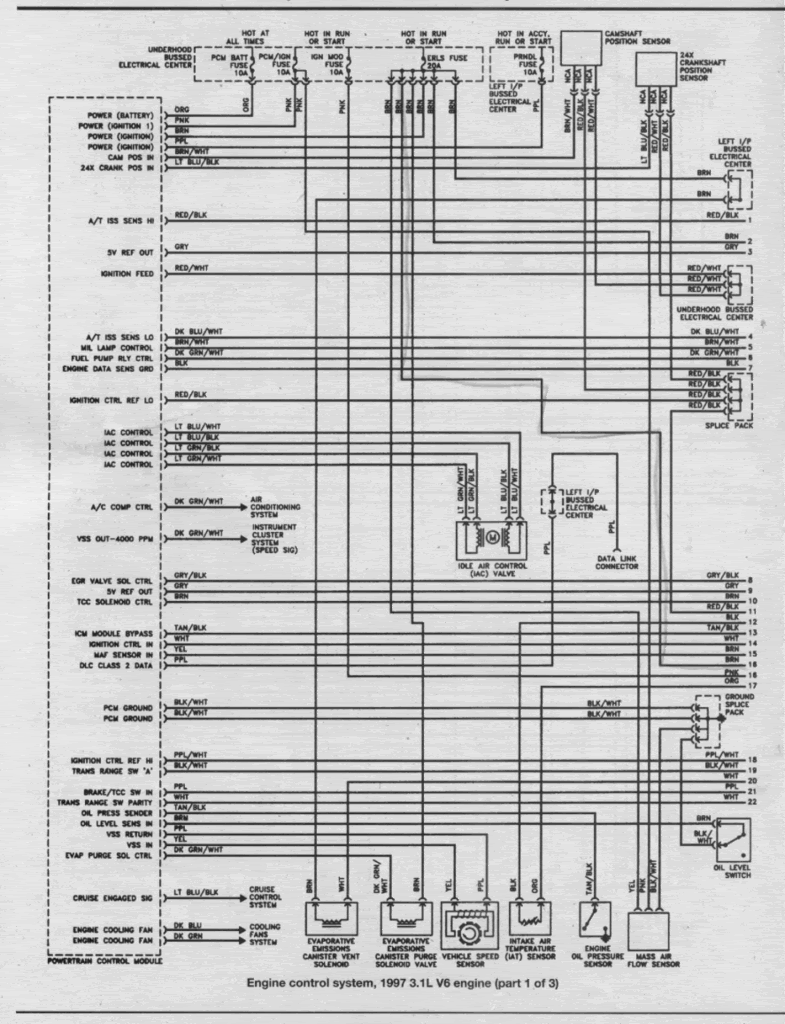

1 of 3 (http://i28.photobucket.com/albums/c242/xeroinfinity/SeCond%20Hand/973.1engcntrl13.gif)

2 of 3 (http://i28.photobucket.com/albums/c242/xeroinfinity/SeCond%20Hand/973.1engcntrl23.gif)

3 of 3 (http://i28.photobucket.com/albums/c242/xeroinfinity/SeCond%20Hand/973.1engcntrl33.gif)
