99-03 Grand Am Parts: Head lights/Cooling System/Engine/Trans/Ignition Syst


xeroinfinity
01-17-2007, 10:48 PM
This will be a work In progress, as thier are more then 1000's parts for this Models of Grand Am's.
Starting Up front , covering most of the usuall stuff for right now.
This section also has ignition system/electrical components.

http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/HeadlampAssy.jpg

1 Head light assy
-99-03R GM# 22572208
- 99-03L GM# 22572207
8 Head Light Bolb - 99-03 (9007) GM# 16524431
9 Parking lightbulb - 99-03 (194) GM# 9438068
10 Signal lightbulb - 99-03 (3157) GM# 12450182
11 Side marker bulb - 99-03 (194) GM# 9438068
12 Head Lamp retainer Ring -- 99-03 -- GM# 16524656


http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/Foglampassy.jpg

1 Fog Lamps Assy
- 99-03R GM# 22613881
- 99-03L GM# 22613882
2 Fog lamp Bulb - 99-03B GM# 12450143
3 Fog Light Relay - 99-03 GM# 15393412

Blower Motor & Fan
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/Blowermotorresistor.jpg

1 Blower motor - 99-02 GM# 52474449
2 bracket - 99-02 52477029
3 Impellar - 99-02 GM# 52477699
4 Resistor - 99-02 GM# 15359314
5 Upper housing - 99-02 52473182
6 Lower Housing - 99-01 52473182
- 02 -- *parts included in upper housing


2.4L cooling sytem
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/waterpump2.jpg

1 Water pump - 99-01 GM# 24577255
2 Gasket set - 99-01 GM# 24574155
3 WP cover -99-01 GM# 24575938

Ignition System 2.4L
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-5.jpg

1 Cover - 99-01 GM# 10488727
2 Ignition Module - 99-01 GM# 10487716
3 Harness - 99-01 GM# 10486200
4 Ignition Coil - 99-01 GM# 10457109
10 PCM
- 99 GM# 9356459
- 00-01 GM# 9356249
-bracket
- 99-01 GM# 22657999

2.4 Electrical
-Alternator 2.4L - 99-01 GM# 10464423

-Starters
2.4L
- 99-00 GM# 10465386
- 01 GM# 10465553

AC Compressor
2.4L - 99-01 GM# 1135439

2.2L Cooling system
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/Waterpump2.jpg

1-Water Pump -02-03 GM# 24467301
2 -Gasket set -02-03 GM# 24439799
3 -Plug -02-03 GM# 90537623
4 -WP Cover -02-03 GM# 90537266

Ignition System 2.2L
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-6.jpg

1 Ignition Module
- 02-03 GM# 12569276
2 Spark Plug
- 02-03 GM# 25337472
3 PCM
- 02-03 GM# 12210553
4 bracket
- 02 GM# 22666353
- 03 GM# 22690562

2.2 Electrical
Alternator 2.2L - 02-03 GM# 22583070

Starters
2.2L - 02-03 GM# 104465551

AC Compressor
2.2L - 02-03 GM# 22688565

2.2 & 2.4L -- belts & pulleys
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/beltspulley2.jpg

1 Serpentine Belt
- 99-01 GM# 24576787
- 02-03 GM# 24466972
2 Belt Tensioner
- 99 GM# 24575670
- 00-01 *Included with mount bracket
- 02-03 GM# 24430296
3 Mounting bracket
- w/o tensioner 99 GM# 24573852
- w/tensioner 00-01 GM# 24575354


Cooling syst continued 2.2- 2.4
Radiator support
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/radiatorsupport2.jpg

1 Upper bar
- 99-03 GM# 22625808
2 Reinforcement
= -99-03 GM# 22608916
3 Lower Panel
- 99-03 GM# 22602298


Splash Shields
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/4cylsplashshileds.jpg
Engine
1 -Outer, auto trans
- 99-03 R GM# 22654880
- 99-03 L GM# 22654879
Outer, Manual trans
- 99-03 R GM# 22654880
- 99-03 L GM# 22620385

2 -Lower - 99-03 GM# 22599670

Air inlet shield
3 -Upper - 99-03 GM# 22619965
4 -Lower - 99-03 B GM# 22620961


Radiator & Components
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/Radcomponents2.jpg
1 -Radiator
Manual Trans - 99-01 GM# 52477426
4 speed - 02-03 GM# 52487242
5 speed - 02-03 GM# 22666459
AUTO trans
- 99-01 GM# 52477425
- 02-03 GM# 52487242

2 Mounting bracket
- 99-03 R GM# 22608986
- 99-03 L GM# 22608985

3 Lower Insulator - 99-03 B GM# 22597744
4 Outer seal - 99-03 Not serviced
5 Upper seal - 99-03 GM# 22636974
6 Reservoir tank
- 99-01 GM# 22688945
- 02-03 GM# 22688945
Inlet Hose - 99-03 GM# 22622876
Overflow hose
- 99-01 GM# 22602412
- 02-03 GM# 22628360
7 Reservoir Cap
- 99-01 GM# 22652695
- 02-03 GM# 22628360
8 Level Sensor - 99-03 GM# 22565474


Radiator Hoses 2.4 L
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/RadHoses2.jpg
1 -Upper Hose - 99-01 GM# 22593999
2 -Lower Hose - 99-01 GM# 22645555
3 -Outlet Pipe
w/o fitting - 99-01 GM# 24574380
w/ fitting - 99-01 GM# 24576122
4 Thermostat - 99-01 GM# 24577288
5 seal - 99-01 GM# 24577118
6 Water Outlet - 99-01 GM# 24575259
7 seal - 99-01 GM# 24572538
8 Mount bolt - 99-01 GM# 115157558
9 Clamp - 99-01 GM# 12338017

2.2 L Rad. hoses
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/RadHoses2-1.jpg
1 -Upper Hose -02-03 GM# 22680934
2 -Lower Hose - 02-03 GM# 22621759
3 -Outlet Pipe - 02-03 GM# 24447273
4 -O-Ring - 02-03 GM# 90537379
5 -Thermo Cover - 02-03 GM# 24447272
6 -Retainer - 02-03 GM# 24477777
7 -Seal - 02-03 GM# 3522676
8 -Thermostat - 02-03 GM# 21028811
9 -Seal - 02-03 GM# 24422922
10 -Thermostat Housing - 02-03 GM# 24447804
11 -Seal - 02-03 GM# 90537471
12 -By-Pass valve - 02-03 GM# 24465911
13 -reatiner - 02-03 GM# 24447276
14 -Seal - 02-03 GM# 24447275

Cooling Fans 2.2-2.4
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/RadFans2.jpg
1 -Fan - 99-03 GM# 12362564
-nut - 99-03 GM# 12362590
2 -Motor
- 99-03 R GM# 88986473
- 99-03 L GM# 88986474
3 -bolt - 99-03 GM# 22062547
4 -Shroud Assy - 99-03 GM# 12362571
5 -Mount bracket
- 99-03 R GM# 12362567
- 99-03 L GM# 12362568
6 -Shield - 99-03 GM# 22647113
7 -bolt - 99-03 GM# 11509428
-Fan Relay
4 pin - 99-03 GM# 12193604
5 pin - 99-01 GM# 12193602
- 02-03 GM# 12177234
-Temp sensor
- 99-01 GM# 12146312
- 02-03 GM# 15326388
-Connector - 99-03 GM# 12101899


3.4 Cooling System
Radiator supports
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/Radiatorsupportv6.jpg

1 - upper ite support - 99-03 GM #22625808
2 - Reinforcemnet - 99-03 GM #22608916
3- Air baffle - 99-03 GM #22616634
4 - Lower deflector - 99-03 GM #22602298

Splash shields
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/V6splashshields.jpg

1 -engine outer auto trans
- 99-03 R 22654880
- 99-03 L 22654879
2 -Lower - 99-03 22599670
Air inlet shield
3 -Upper
GT - 99-03 22619961
SE - 99-03 22619965
4 -Center
GT - 99-03 22647827
5 -Side
SE - 99-03 B 22620961

Radiator Components

http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/V6Radcomponents.jpg

1 -Radiator
--Manual trans -- 00-03 GM# 52477426
--Auto trans -- 99-01 GM# 52477425
-- 02-03 GM# 22676953
2 - Mount bracket -
6 -Resivour Tank
- 99-01 GM# 22688945
- 02-03 GM# 22688945
Overflow Hose
- 99-01 GM# 24505865
- 02-03 * part included in resivour tank
7 -Resivour Cap
-- 99-00 GM# 22652695
-- 01-03 GM# 22671020
8 -Level Sensor -- 99-03 GM# 22565474

http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/V6Radhoses.jpg
1 - Upper 99-03 GM# 22680642
2 -Lower hose 99-03 GM# 22647232
3 -Thermostat 99-03 GM# 24507563
4 -Thermo gasket 99-03 GM# 10226107
5 -Water Outlet(thermostat housing) 99-03 GM# 10182384
6 -mount bolt - 99-03 GM# 11508476
7 -clamp - 99-03 GM# 12338017

Cooling Fans
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/V6Fans.jpg
1 -Fan - 99-03 B GM# 12362564
2 -motor
- 99-03 R GM# 88986473
- 99-03 L GM# 88986474
3 -bolt - 99-03 GM# 22062547
4 -Shroud Assy - 99-03 GM# 12362571
5 -mount bracket
- 99-03 R GM# 12362567
- 99-03 L GM# 12362568
6 -Shield - 99-03 GM# 22647113
7 bolt - 99-03 GM# 11509428
Fan relay
4 pin - 99-03 GM# 12193604
5 pin - 99-01 GM# 12193602
- 02-03 GM# 12177234
-Temp Sensor
- 99-01 GM# 12146312
- 02 GM# 15326386
- 03 GM# 12146312
-Connector- - 99-03 GM# 12101899

Belts & Pulleys
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/V6beltpulley.jpg
1 -Serpentine Belt
- 99-01 GM# 12569376
- 02-03 GM# 12569376
2 - Belt Tensioner - 99-03 GM# 12563083
3 -Idler pulley
- 99-01 GM# 24506756
- 02-03 GM# 12563097
4 -Shield
- 99-01 GM# 24505681
- 02 GM# 12573679
- 03 GM# 12568396

http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/V6waterpump.jpg
1 -Water Pump - 99-03 GM# 12371989
2 -Gasket - 99-03 GM# 10182374
3 -Pulley - 99-03 GM# 14091833

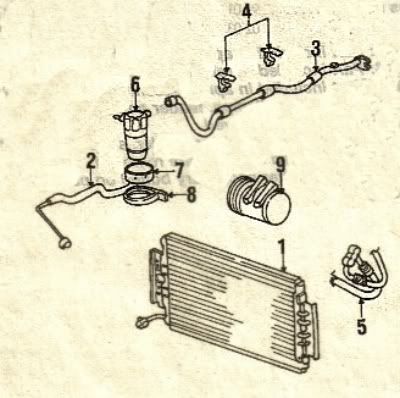

AC & Heater
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/V6Condensercompressorlines.jpg
Condensor Compressor & Llines

1 -Condenser
- 99-01 GM# 52495849
- 02-03 GM# 22663025
2 -tube to Evap
- 99-01 GM# 22653160
- 02-03 GM# 22661508
3 -To drier
w/o manual controls - 99-02 GM# 22603649
w/ manual controls - 99-03 GM# 52458768
4 -Clip
- 99-03 GM# 22649287
5 -Hose & tube assy
- 2.4 L - 99-01 GM# 22611604
- 2.2 L - 02-03 GM# 22681633
- 3.4 L - 99-01 GM# 22612151
- 02 GM# 22661448
- 03 Not listed
6 -Dehydrator
- 99-01 GM# 1132770
- 02-03 GM# 1132777
7 -Insulator
- 99-03 GM# 22637437
8 -bracket
- 99-03 GM# 22593996
9 -Compressor
2.4L
- 99-01 GM# 1135439
2.2L
- 02-03 GM# 22688565
3.4L
- 99-01 GM# 1135440
- 02 GM# 1135440
- 03 Not Listed
-Bolt-
2.4L front - 99-01 GM# 10044389
rear - 99-01 GM# 11516366
2.2L -02-03 GM# 11519177
3.4 L
upper - 99-03 GM# 24503610
Lower - 99-03 GM# 24503609
-Spacer
- 3.4L - 99-03 GM# 10166385
-Pulley
- 3.4L - 99-01 GM# 24506756
- 02 GM# 6580037
- 03 Not listed

http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/HVACcomponents.jpg
Evaporator & Heater Components

1 -Air inlet - 99-02 GM# 52481650
2 -Defrost duct - 99-02 GM# 52473696
3 -Evap core - 99-02 GM# 52474457
4 -Seal - 99-02 GM# 52486388
5 -bracket - 99-01 GM# 52480085
6 -filter - 99-02 GM# 3096022
7 -retainer - 99-02 GM# 3092246
Case
8 -upper - 99-02 GM# 52495744
9 -Lower - 99-02 GM# 52491731
Valve
10 - Defrost - 99-02 GM# 52481016
11 - AC - 99-02 GM# 52481609
Actuator
12 -Defrost valve
- 99-01 GM# 52477455
- 02 GM# 5287754
13 -AC - 99-02 GM# 52478894
14 -Vacum tank - 99-02 GM# 52470570
15 -Heater Core - 99-02 GM# 52481264
16 -Seal - 99-02 GM# 22650205
Case
17 -Upper - 99-02 GM# 52470742
18 -Lower - 99-02 GM# 52491732
-Seal
19 -Case
- 99-01 GM# 52464137
- 02 GM# 52489451
20 -Mounting
- 99-01 GM# 52454645
- 02 GM# 52479798
Valve
21 -Heater - 99-02 GM# 52484819
22 -temp control - 99-02 GM# 52473890
Actuator
23 -Temp control - 99-02 GM# 16177412
24 -air valve - 99-02 GM# 52477456


Ignition system 3.4L
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/V6ignitionsystem.jpg

1 -Ignition Coil
- 99-02 GM# 10472401
2 Seal
- 99-02 GM# 1989579
3 Ignition Module
- 99-02 GM# 10489422
4 Bracket
- 99-02 GM# 10473138
5 PCM
- 99 GM# 9356741
- 00 GM# 9380717
- 01 GM# 9378702
- 02 GM# 9380717
Pcm bracket
- 99-02 GM# 22657999

Electrical
Alternator 3.4L
- 99- GM# 10464424
- 00-03 GM# 10464465
Starters
3.4L
- 99-00 GM# 10465459
- 01 GM# 10465519
- 02-03 GM# 10465542

Electrical Components
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/Electricalcomponents.jpg
1 junction(fuse) box - 99-00 GM# 15323499
1st design - 01-02 GM# 15356092
2nd design - 02 GM# 22686945
All - 03 GM# 22681985
2 Mount bracket - 99-03 GM#12564339
3 Cover - 99-03 GM# 15393899
4 Retainer - 99-03 GM# 12084709
5 Shield - 99-03 GM# 15319645
6 Label - 99-00 GM# 15328802
- 01 -02 GM# 15401192
- 03 GM# 88953162
7 Cover
pos. battery cable - 99-03 GM# 12194094
8 Wire connector
- black - 99-03 GM# 15303513
- brown - 99-03 GM# 15303514
- grey - 99-03 GM# 15303512
9 Connector wire
- grey - 99-03 GM# 15305886
- black - 99-03 GM# 15305928
- neutral - 99-03 GM# 15305920
10 Fuel pump relay - 99-03 GM# 15393412
11 Relay - 99-03 GM# 12193604
12 Fuse - 99-03 GM# 12065932
13 Fuse puller - 99-03 GM# 1219790


More below......

xeroinfinity
01-18-2007, 05:15 PM
Engine and Transaxle 2.2L

http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-7.jpg
Air intake
1 Air Cleaner Assy 02-03 GM# 22659983
2 Air filter 02-03 GM #25161977
3 Mount bracket -02-03 GM# 12564339
Support bracket
4 Upper - 02-03 GM# 22653408
5 Lower - 02-03 GM# 22599991
6 Front Duct - 02-03 GM# 12564515
7 Air Outlet duct - 02-02 GM# 22659985
8 Resonator - 02-03 GM# 22659984
Air Temp Sensor 02-03 GM# 12160244

2.2 Engine Parts
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-8.jpg

1 Crankshaft Balance 02-03 gm# 90537704
2 Timing cover 02-03 GM# 24450057
3 Gasket 02-03 GM# 2442669
4 Seal 02-03 GM# 90537704
5 Valve Cover 02-03 GM# 24426069
6 Gasket 02-03 GM# 90537319
7 Filler Cap 02-03 GM# 12573342
8 Seal 02-03 24100002
9 Oil Pan 02-03 GM# 24406361
10 Baffle 02-03 GM# 24406368
gasket 02-03 GM# NL
11 Oil Filter 02-03 GM# 24460712
12 Dip stick 02-03 GM# 24428553
13 Tube assy 02-03 GM #2440078

2.2 Transaxle Parts
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-9.jpg

Transaxle Parts
1 - Trans Pan 02-03 GM# 8685184
2 - Gasket 02-03 GM# 24203590
3 - Filter 02-03 GM# 24221762
4 - magnet 02-03 GM# 8665830

2.2 Engine Mounting
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-10.jpg

1 Motor Mount 02-03 GM# 22696931
2 Adapter 02-03 GM# 22676701
Trans Mount
3 Front - manual trans 02-03 GM# 2604369
- auto trans 02-30 GM# 22621543
4 Rear - manaul trans 02-03 GM# 22604370
- auto trans 02-03 GM# 22624648
5 Side - Manual trans 02-03 GM# 22604371
- auto trans 02-03 GM# 22590932
Trans Mount Bracket
6 Front 02-03 GM# 22614831
7 Rear 02-03 GM# 22659448
8 Block to trans 02-03 GM# 24450984
Heatshield 02-03 GM# 22649030


Engine and Transaxle 2.4L

http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-11.jpg
Air box
1 Air Cleaner Assy 02-03 GM# 25171392
2 Cover - 99-01 included with air cleaner assy
3 Air Filter 02-03 GM# 25161977
4 Housing - 99-01 included with air cleaner assy
5 Insulator - 99-01 included with air cleaner assy
6 Rear duct - 99-01 included with air cleaner assy
7 Mount bracket - 99-01 GM# 12564339
Support bracket
8 upper - 99-01 GM# 22653408
9 Lower - 99-01 GM# 22599991
10 Front duct - 99-01 GM# 12564515
11 Air outlet duct - 99-01 GM# 24574954
12 Resonator - 99-01 GM# 24574953
13 Air Temp sensor 02-03 GM# 12160244
Clamp
14 front - 99-01 GM# 10087567
15 Center - 99-01 GM# 22542761
16 Rear - 99-01 GM# 10087567
17 Resonator - 99-01 GM# 24575547
18 Seal - 99-01 GM# 24575644
19 Clamp - 99-01 GM# 12338017
20 bracket - 99-01 GM# 24574538

Engine Parts 2.4
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-12.jpg
Engine Parts

1 Crankshaft Balance 99-01 GM# 24575562
2 Tming Cover 99-01 GM# 24576620
Gasket
3 Outer 99-01 GM# 24575243
4 Inner 99-01 GM# 24574584
5 Oil Seal 99-01 GM# 22531277
6 Inner Housing
Timing Chain 99-01 GM# 24576060
7 Filler Cap 99-01 GM# 93439687
8 Cam Housing
Intake cam w/cover 99-01 GM# 24574056
exhaust cam w/cover 99-01 GM# 24573741
9 Gasket
intake w/cover 99-01 GM# 12363173
exhaust w/cover 99-01 GM# 12355988
10 Dip Stick 99-01 GM# 24574970
11 Tube Assy 99-01 GM# 24574160
12 Oil Pan 99-01 GM# 24574970
13 Gasket 99-01 GM# 24574406
14 Oil Filter 99-01 GM# 25010633

Transaxle Parts 2.4
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-13.jpg
Transaxle Parts
Auto :
1 FlyWheel 99-01 GM# 24575970
2 bolt GM# 25509226
3 Coverter 99-01 GM# 24211330
4 Cover 99-01 GM# 24574011
5 Trans Pan
W/O Gasket 99-01 GM# 8685184
W/Gasket 99-01 GM# 24203769
6 Gasket 99-01 GM# 24203590
7 Filter 99-01 GM# 24221762

http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-14.jpg
Manual:
1 Flywheel 00-01 GM# 22533244
2 Clutch 00-01 GM# 22622114
3 Pressure Plate 00-01 GM# 22629291
4 Cylinder
Clutch Master Cyl 00-01 GM# 22632982
Cover
5 Front 00-01 GM# 22613826
6 Rear 00-01 GM# 22613827


Engine Mounting 2.4
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/2-15.jpg
Engine Mounting

1 Motor Mount 99-01 GM# 22657322
2 Adapter 99-01 GM# 22608899
Trans Mount
3 Front 99 GM# 22605204
- Manual trans 00-01 GM# 22604369
- Auto trans 00-01 GM# 22605204
4 Rear 99 GM# 22624648
- Manaul trans 00-01 GM# 22604370
- Auto trans 00-01 GM# 22624648
5 Side 99 GM# 25590932
- Manual trans 00-01 GM# 22604371
- Auto trans 00-01 GM# 22590832
Trans Mount Bracket
6 - Front 99-01 GM# 22614831
7 - Rear 99-01 GM# 22659448
8 - Block to trans 99-01 GM# 24575222
Heat Shield 99-01 GM# 22649030

Engine And Transaxle 3.4L
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/3-2.jpg
Air Assy
1 Air Cleaner Assy
-W/O Ram Air 99-03 GM# 25177520
-W/Ram Air Package 99-03 GM# 25177519
2 Cover *included with air cleaner assy
3 Air Filter 99-03 GM# 25161977
4 Housing * included with air cleaner assy
5 Insulator *included with air cleaner assy
6 Rear Duct included with air cleaner assy
7 Mount bracket - 99-03 GM# 12564339
Support bracket
8 upper - 99-03 GM# 22653408
9 lower - 99-03 GM# 22599991
Air duct
10 upper w/Ram air package - 99-03 GM# 24507995
11 Lower - 99-02 GM# 12563826
12 Seal w/Ram air package - 99-03 GM# 24508234
13 Adapter - 99-03 GM# 25099500
14 Air Mass Sensor(MAF) 99-03 25180303
15 Clamp - 99-03 GM# 24505503
16 Air Temp Sensor(IAT) 99-03 GM# 12160244
17 PCV Tube
- 99 GM# 24504646
- 00-03 GM# 24508188
18 Air duct(between TB and MAF) 99-03 GM# 24505502
19 Clamp
- 99-02 GM# 10087567
- 03 GM# 24508399


Engine Parts 3.4
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/3-3.jpg
Engine Parts
1 Crankshaft balance 99-03 GM# 24504609
2 Timing Cover 99-03 GM# 24505667
3 gasket 99-03 GM# 10189276
4 Oil Seal 99-03 GM# 10243247
5 Oil Pan 99-03 GM# 12512670
6 gasket 99-03 GM# 10182387
7 Baffle 99-03 GM# 24503912
8 Oil Filter 99-03 GM# 25010792
9 Oil Level Sensor 99-03 GM# 24506885
10 Vavle Cover
- 99-02R GM# 24504670
- 99-02L GM# 24504669
- 03 R GM# 24504670
- 03 L GM# 12575018
11 Gasket 99-03 B GM# 10154775
12 Fller Cap 99-03 GM# 21007373
13 Dip Stick
- 99-02 GM# 12574894
- 03 GM# 12574894
14 Tub Assy
- 99 GM# 10236994
- 00-03 GM# 24507976


Trans axle Parts
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/3-4.jpg
1 Flywheel 99-03 GM# 24576876
2 bolt 99-03 GM# 12338144
3 Converter 99-03 GM# 24211330
4 Cover - 99-03 GM# 24507882
5 Trans Pan
- W/O gasket 99-02 GM# 8685184
- W/gasket 99-02 GM# 24203769
All 03 GM# 8685184
6 Gakset 99-03 GM# 24203590
7 Filter 99-03 GM# 24221762

Engine Mounting 3.4
http://i28.photobucket.com/albums/c242/xeroinfinity/fisslesticks/3-5.jpg
Engine Mounting
1 Motor Mount 99-03 GM# 22657322
2 Adapter 99-03 GM# 22692941
Trans Mount
3 Front - 99-03 GM# 22605204
4 Rear - 99-03 GM# 22624648
5 Side - 99-03 GM# 22590932
Trans Mount brisket
6 Front 99-03 GM# 22614831
7 Rear 99-03 GM# 22659448
Trans Support
8 Upper 99-03 GM# 22652765
9 Lower 99-03 GM# 22653988



More On Part 2 starting with Emission Components

Add your comment to this topic!
